Transporto priemonė: LS 1934; VIN numerio dalis: 350048

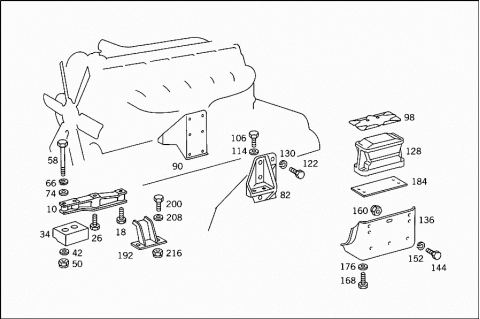

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3042410005 | SUPPORTING ARM |
| LEFT AND RIGHT | ||
| 010 | A 3502417005 | SUPPORTING ARM |
| LEFT AND RIGHT | ||
| 018 | N 000931016026 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| 026 | N 000931016038 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| 034 | A 3502417113 | RUBBER MOUNTING |
| FRONT | ||
| 034 | A 0002410513 | RUBBER MOUNTING |
| FRONT | ||
| 042 | N 000125015012 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 050 | N 913004012003 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 058 | N 000961014103 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| M 14X55 | ||
| 058 | N 000960014231 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| M 14X1,5X58 | ||
| 066 | N 000127014201 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 074 | N 000125015012 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 082 | A 3502420205 | SUPPORTING ARM |
| LEFT | ||
| 090 | A 3502420305 | SUPPORTING ARM |
| RIGHT | ||
| 098 | A 6202420034 | SCREENING PLATE |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 106 | N 000961018041 | SCREW |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 114 | A 6209900040 | WASHER |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 122 | N 000961014101 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| 128 | A 3502407218 | RUBBER MOUNTING |
| CLUTCH END | ||
| 128 | A 6202400318 | RUBBER MOUNTING |
| CLUTCH END | ||
| 128 | A 6202400418 | RUBBER MOUNTING |
| CLUTCH END | ||
| 128 | A 6202400518 | RUBBER MOUNTING |
| CLUTCH END | ||
| 130 | N 000127014201 | LOCK WASHER |
| ENGINE SUPPORT TO BELL HOUSING | ||
| 136 | A 3502407006 | CONSOLE |
| REAR LEFT | ||
| 136 | A 3502407106 | CONSOLE |
| REAR RIGHT | ||
| 144 | N 000933010258 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 144 | N 000961012154 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 152 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 160 | N 913004010004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 168 | N 000961014106 | SCREW |
| RUBBER MOUNTING TO CONSOLE | ||
| 176 | N 007349015002 | WASHER |
| RUBBER MOUNTING TO CONSOLE | ||
| 184 | A 3502660184 | SHIM |
| RUBBER MOUNTING TO CONSOLE | ||
| 192 | A 3462410165 | RUBBER BUFFER |
| 192 | A 3502407065 | STOP |
| 200 | N 000961012106 | SCREW |
| STOP TO ENGINE CROSS MEMBER | ||
| 208 | N 000125013012 | WASHER |
| STOP TO ENGINE CROSS MEMBER | ||
| 216 | N 913004012003 | NUT |
| STOP TO ENGINE CROSS MEMBER |
