Transporto priemonė: LS 1934; VIN numerio dalis: 350048

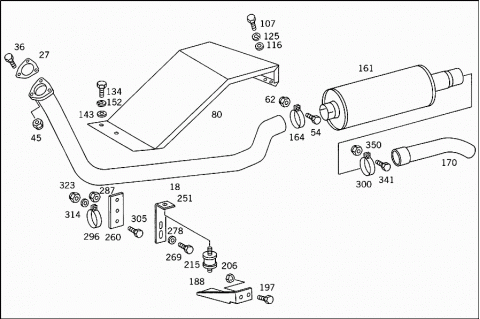

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 018 | A 3504907619 | EXHAUST PIPE |
| FRONT | ||
| 027 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 027 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 036 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 045 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 054 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 062 | N 913004010004 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 080 | A 3504927430 | PROTECTIVE PLATE |
| 083 | A 3504927830 | PROTECTIVE PLATE |
| 086 | A 3504907930 | PROTECTIVE PLATE |
| 089 | N 000933008268 | SCREW |
| HEAT SHIELD | ||
| 092 | N 000127008104 | LOCK WASHER |
| HEAT SHIELD | ||
| 107 | N 000933008228 | SCREW |
| PROTECTIVE PLATE TO FIRE WALL | ||
| M 8X16 | ||
| 116 | N 009021008100 | WASHER |
| PROTECTIVE PLATE TO FIRE WALL | ||
| 125 | N 000127008104 | LOCK WASHER |
| PROTECTIVE PLATE TO FIRE WALL | ||
| 134 | N 000933008288 | SCREW |
| PROTECTIVE PLATE TO FIRE WALL | ||
| M 8X25 | ||
| 143 | N 009021008100 | WASHER |
| PROTECTIVE PLATE TO SUPPORT | ||
| 152 | N 000127008104 | LOCK WASHER |
| PROTECTIVE PLATE TO SUPPORT | ||
| 161 | A 3504907015 | EXHAUST MUFFLER WITH PIPE |
| 161 | A 3504907215 | EXHAUST MUFFLER WITH PIPE |
| 164 | N 071555104500 | CLAMP |
| EXHAUST MUFFLER | ||
| 170 | A 3504927204 | REAR EXHAUST PIPE |
| 179 | A 3504917115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 188 | A 3504917215 | CONSOLE |
| EXHAUST PIPE | ||
| 190 | A 3504917116 | SUPPORT |
| EXHAUST PIPE | ||
| 197 | N 000933012015 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 206 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 215 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO CONSOLE | ||
| 224 | N 000934010000 | NUT |
| BRACKET TO CONSOLE | ||
| 233 | N 000127010202 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 242 | N 000125010517 | WASHER |
| BRACKET TO CONSOLE | ||
| 251 | A 3504927641 | BRACKET |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 260 | A 3504927741 | BRACKET |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 269 | N 000933010129 | SCREW |
| BRACKET TO BRACKET | ||
| 278 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 287 | N 913004010004 | NUT |
| BRACKET TO BRACKET | ||
| 296 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 300 | N 071555100500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 305 | N 000933008273 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 314 | N 000125008417 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 323 | N 913004008001 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 332 | A 3504917040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET | ||
| 341 | N 000933010129 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X30 | ||
| 350 | N 913004010004 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
