Transporto priemonė: LS 1934; VIN numerio dalis: 350048

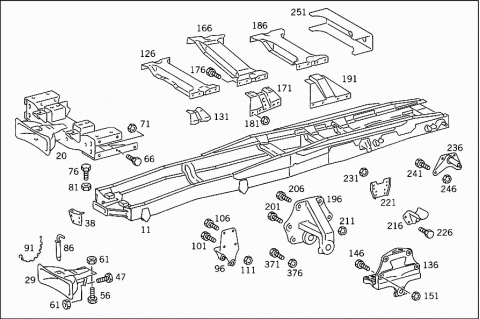

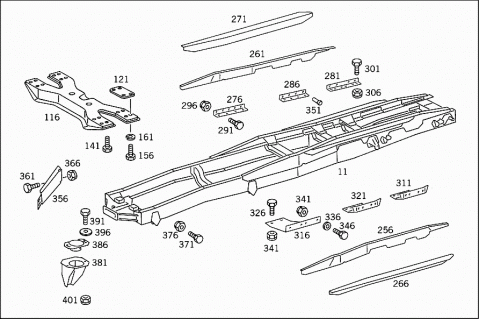

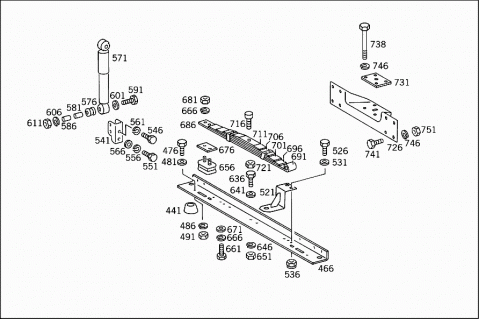

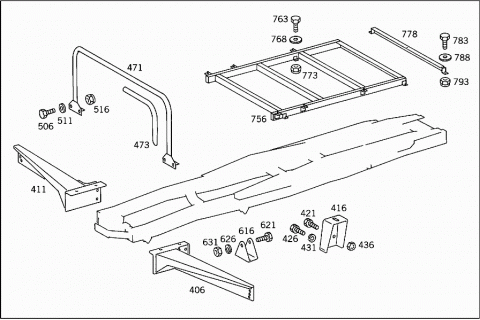

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 3503107502 | FRAME |
| 020 | A 3503107126 | ENGINE CROSS MEMBER |
| NO. 1 | ||
| 029 | A 3503107209 | BRACKET |
| WITH COUPLING MOUTH | ||
| 038 | A 3503150027 | ANGLE |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 047 | N 000933010129 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| M 10X28 | ||
| 056 | N 000933010174 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| M 10X22 | ||
| 061 | N 913004010004 | NUT |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 066 | N 000961014105 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 066 | N 000961014106 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X35 | ||
| 066 | N 000961014107 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 071 | N 913004014004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 076 | N 000961012020 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X30 | ||
| 081 | N 913004012003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 086 | A 3453157206 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 091 | A 0008500095 | FASTENER |
| FOR COUPLING MOUTH | ||
| 096 | A 3503220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 101 | A 3879900214 | SCREW |
| 106 | A 3469900014 | SCREW |
| 111 | N 913004016005 | NUT |
| 116 | A 3503127010 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO. 2 | ||
| 121 | A 3503137084 | SHIM |
| Repalced by: A 3873120084 | ||
| 121 | A 3873120084 | SHIM |
| 126 | A 3353122225 | CROSS MEMBER |
| TRANSMISSION | ||
| NO. 3 | ||
| 131 | A 3503120461 | STRUT |
| (CROSS MEMBER) | ||
| 136 | A 6203220003 | FRONT SPRING BRACKET |
| REAR | ||
| 136 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 141 | N 000961014107 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 146 | N 000961014101 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X45 | ||
| 151 | N 913004014004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 156 | N 000961014105 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 161 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| 166 | A 3463125025 | CROSS MEMBER |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| NR.4 | ||
| 171 | A 3503120561 | STRUT |
| LEFT | ||
| 171 | A 3503120661 | STRUT |
| RIGHT | ||
| 176 | N 000961014105 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| M 14X30 | ||
| 176 | N 000961014107 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| M 14X40 | ||
| 181 | N 913004014004 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 186 | A 3503120317 | CROSS MEMBER |
| Repalced by: A 3873120017 | ||
| 186 | A 3873120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO. 5 | ||
| 191 | A 3873120161 | STRUT |
| REAR SPRING RIGHT FRONT BRACKET | ||
| 191 | A 3503127161 | STRUT |
| REAR SPRING LEFT FRONT BRACKET | ||
| 196 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 201 | N 000961016102 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 206 | N 000961016012 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 211 | N 913004016004 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 216 | A 3523250417 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| 221 | A 3353250241 | STIFFENING |
| HELPER SPRING BRACKET | ||
| 226 | N 000961012171 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 231 | N 913004012003 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 236 | A 3353250603 | REAR SPRING BRACKET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 241 | N 000961014106 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 246 | N 913004014004 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 251 | A 3503127135 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 256 | A 3503160801 | SIDE MEMBER |
| LEFT | ||
| 261 | A 3503160702 | SIDE MEMBER |
| RIGHT | ||
| 266 | A 3503160352 | ANGLE |
| LEFT OUTSIDE | ||
| 271 | A 3503160452 | ANGLE |
| RIGHT OUTSIDE | ||
| 276 | A 3503160052 | ANGLE |
| 281 | A 3503167052 | ANGLE |
| A 3503167452 | ANGLE | |
| LEFT | ||
| 286 | A 3503160252 | ANGLE |
| 291 | N 000961012020 | SCREW |
| ANGLE TO FRAME | ||
| 296 | N 913004012003 | NUT |
| ANGLE TO FRAME | ||
| 301 | N 000961012171 | SCREW |
| ANGLE TO FRAME | ||
| N 000961014107 | SCREW | |
| ANGLE TO FRAME | ||
| N 913004014005 | NUT | |
| ANGLE TO FRAME | ||
| 301 | N 000961012106 | SCREW |
| SIDE MEMBER TO FRAME | ||
| 306 | N 913004012003 | NUT |
| SIDE MEMBER TO FRAME | ||
| 311 | A 3503160140 | BRACKET |
| AUXILIARY FRAME | ||
| 316 | A 3503160340 | BRACKET |
| AUXILIARY FRAME | ||
| 321 | A 3503160240 | BRACKET |
| AUXILIARY FRAME | ||
| 326 | N 000961012171 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 326 | N 000961012106 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 326 | N 000961012106 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5X35 | ||
| 326 | N 000963012040 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 12X35 | ||
| 336 | N 000125013012 | WASHER |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 341 | N 913004012003 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5 | ||
| 341 | N 913004012003 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5 | ||
| 341 | N 913004012012 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 12 | ||
| 346 | N 000961012154 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| N 000961012154 | SCREW | |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004012003 | NUT | |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 351 | N 910005012001 | RIVET |
| 12X28 MM | ||
| 351 | N 910005012002 | RIVET |
| 12X30 MM | ||
| 351 | N 910005012029 | RIVET |
| 12X32 MM | ||
| 351 | N 910005012003 | RIVET |
| 12X34 MM | ||
| 351 | N 910005012004 | RIVET |
| 12X36 MM | ||
| 351 | N 910005012005 | RIVET |
| 12X38 MM | ||
| 351 | N 910005012027 | RIVET |
| 12X40 MM | ||
| 351 | N 910005012006 | RIVET |
| 12X42 MM | ||
| 351 | N 910005012021 | RIVET |
| 12 X 45 MM | ||
| 351 | N 910005012036 | RIVET |
| 12X48 MM | ||
| 351 | N 910005012023 | RIVET |
| 12X50 MM | ||
| 351 | N 910005014006 | RIVET |
| 14X34 MM | ||
| 351 | N 910005014005 | RIVET |
| 14X42 MM | ||
| 356 | A 3503157194 | REINFORCEMENT |
| LEFT | ||
| 356 | A 3503157294 | REINFORCEMENT |
| RIGHT | ||
| 361 | N 000933010174 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 366 | N 913004010004 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 371 | N 000961014106 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 376 | N 913004014004 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 381 | A 3503100167 | BODY SUPPORT |
| 386 | A 3503107057 | PLATE |
| WITH CUP | ||
| 391 | N 000961012106 | SCREW |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 396 | A 3509907140 | WASHER |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 401 | N 913004012003 | NUT |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 406 | A 3505200072 | ANGLE |
| BUMPER,LEFT | ||
| 411 | A 3505200172 | ANGLE |
| BUMPER,RIGHT | ||
| 416 | A 3503170101 | CONSOLE |
| LEFT | ||
| 416 | A 3503170201 | CONSOLE |
| RIGHT | ||
| 421 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 426 | N 000960012041 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X52 | ||
| 426 | N 000961012154 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 431 | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 436 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 441 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 466 | A 3508917031 | CONSOLE |
| (RUBBER BUFFER) | ||
| 471 | A 3505207151 | CLAMP |
| 473 | N 900271045016 | HOSE |
| BRACKET TO RETAINING CLAMP | ||
| 476 | N 000961014107 | SCREW |
| CONSOLE TO CONSOLE | ||
| 481 | A 3359900540 | WASHER |
| CONSOLE TO CONSOLE | ||
| 486 | N 000127014201 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 491 | N 000934014020 | NUT |
| CONSOLE TO CONSOLE | ||
| 506 | N 000933010267 | SCREW |
| CLAMP TO CONSOLE | ||
| 511 | N 000125010517 | WASHER |
| CLAMP TO CONSOLE | ||
| 516 | N 913004010014 | NUT |
| CLAMP TO CONSOLE | ||
| 521 | A 3505207941 | BRACKET |
| REAR RIGHT,ENGINE SUSPENSION | ||
| 526 | N 000933010129 | SCREW |
| BRACKET TO CONSOLE | ||
| 531 | N 000125010517 | WASHER |
| BRACKET TO CONSOLE | ||
| 536 | N 913004010014 | NUT |
| BRACKET TO CONSOLE | ||
| 541 | A 3508900003 | MOUNTING |
| VIBRATION ABSORBER | ||
| 546 | N 000961012106 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 546 | N 000961012160 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 551 | N 000933010269 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 551 | N 000933010129 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 556 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 561 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 566 | N 009021010102 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 571 | A 3508917005 | SHOCK ABSORBER |
| 571 | A 0008911205 | SHOCK ABSORBER |
| FICHTEL & SACHS | ||
| 576 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 12 05 | ||
| 581 | A 0008910017 | BUSHING |
| TO 000 891 12 05 | ||
| 586 | A 3368910050 | SPRING BUSHING |
| 591 | N 000961012184 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| M 12X65 | ||
| 591 | N 000961012192 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| 601 | N 000125013012 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 606 | N 000127012201 | LOCK WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 611 | N 000934012004 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 616 | A 3358910820 | MOUNTING |
| 621 | N 000961012079 | SCREW |
| BEARING BRACKET TO LEAF SPRING | ||
| 626 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO LEAF SPRING | ||
| 631 | N 000934012004 | NUT |
| BEARING BRACKET TO LEAF SPRING | ||
| 636 | N 000933010129 | SCREW |
| MOUNTING TO CONSOLE | ||
| 641 | N 009021010102 | WASHER |
| LEAF SPRING TO CAB | ||
| 646 | N 000127010202 | LOCK WASHER |
| LEAF SPRING TO CAB | ||
| 651 | N 000934010005 | NUT |
| LEAF SPRING TO CAB | ||
| 656 | A 3358900001 | MOUNTING |
| CAB | ||
| 661 | N 000933010174 | SCREW |
| MOUNTING TO CONSOLE | ||
| 666 | N 000127010202 | LOCK WASHER |
| MOUNTING TO CONSOLE | ||
| 671 | N 009021010102 | WASHER |
| MOUNTING TO CONSOLE | ||
| 676 | A 3353170884 | SHIM |
| MOUNTING TO CONSOLE | ||
| 681 | N 000934010005 | NUT |
| MOUNTING TO CONSOLE | ||
| 686 | A 3368900005 | SPRING |
| CAB | ||
| 691 | A 3368910151 | SPRING |
| 755 MM | ||
| 696 | A 3368910251 | SPRING |
| 650 MM | ||
| 701 | A 3368910351 | SPRING |
| 510 MM | ||
| 706 | A 3368910451 | SPRING |
| 370 MM | ||
| 711 | A 3368910551 | SPRING |
| 240 MM | ||
| 716 | N 004626008103 | SPRING BOLT |
| 721 | N 000934008000 | NUT |
| 726 | A 3358910210 | CONSOLE |
| SPRING SUSPENSION | ||
| 731 | A 3358911511 | PLATE |
| 738 | N 000933010261 | SCREW |
| CONSOLE TO CAB | ||
| 741 | N 000931010399 | SCREW |
| CONSOLE TO CAB | ||
| 746 | N 000127010202 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 751 | N 000934010000 | NUT |
| CONSOLE TO CAB | ||
| 756 | A 3503107095 | AUXILIARY FRAME |
| 763 | N 000933008050 | SCREW |
| COVERING TO FRAME | ||
| 768 | N 000125008417 | WASHER |
| COVERING TO FRAME | ||
| 773 | N 913004008001 | NUT |
| COVERING TO FRAME | ||
| 778 | A 3503107037 | CROSS MEMBER |
| 783 | N 000933008288 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 788 | N 000125008417 | WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 793 | N 913004008001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
