Transporto priemonė: LS 1934; VIN numerio dalis: 350048

Grupė: 47 FUEL SYSTEM

#	Kodas	Pavadinimas

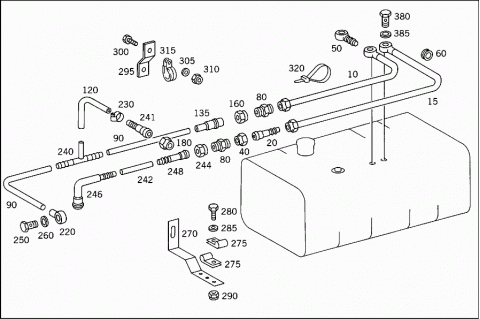

010	A 3504707165	LINE
		FROM FUEL TANK TO FITTING
015	A 3504707265	LINE
		FROM FUEL TANK TO FITTING
020	A 3504707079	INTERMEDIATE PIECE
040	N 915017010200	UNION NUT
050	A 0009905088	BANJO UNION
060	A 3069975081	GROMMET
080	N 915006008002	DOUBLE FITTING
		FUEL LINES TO FUEL TANK
090	A 0089975482	HOSE
		FROM FUEL PUMP TO T-FITTING
		1780 MM
090	A 0089975482	HOSE
		FROM FUEL PUMP TO T-FITTING
		780 MM
120	A 3454767226	HOSE
	Repalced by: A 3769978182
120	A 3769978182	HOSE
		FROM FUEL PUMP TO T-FITTING
135	A 3504707665	LINE
		FROM FUEL PUMP TO T-FITTING
160	N 915017010200	UNION NUT
		FROM FUEL PUMP TO T-FITTING
180	N 915017006200	UNION NUT
		FROM FUEL PUMP TO T-FITTING
220	A 0009904088	BANJO UNION
	Repalced by: N 915052008000
220	N 915052008006	BANJO UNION
		FROM FUEL PUMP TO T-FITTING
		8/14 MM
230	N 916002010100	CLAMP
		FROM FUEL PUMP TO T-FITTING
240	A 3084767023	DISTRIBUTOR
		FROM FUEL PUMP TO T-FITTING
241	A 3504707079	INTERMEDIATE PIECE
		FROM FUEL PUMP TO T-FITTING
242	A 0089975482	HOSE
		FROM FUEL FILTER TO CONNECTOR
		2570 MM
244	N 915017010200	UNION NUT
		FROM FUEL FILTER TO CONNECTOR
246	A 3504707062	ELBOW FITTING
	Repalced by: A 3504707079
248	A 3504707079	INTERMEDIATE PIECE
		FROM FUEL FILTER TO CONNECTOR
250	N 915036010100	HOLLOW SCREW
		FUEL LINE LEADING TO FEED PUMP
260	N 007603014104	SEAL RING
		FUEL LINE LEADING TO FEED PUMP
270	A 3444760336	BRACKET
		LINE MOUNTING
275	A 0009950905	CLAMP
		FUEL LINE TO SIDE MEMBER
280	N 000933008288	SCREW
		FUEL LINE TO SIDE MEMBER
285	N 009021008102	WASHER
		FUEL LINE TO SIDE MEMBER
290	N 913004008001	NUT
		FUEL LINE TO SIDE MEMBER
295	A 3094760236	BRACKET
		FUEL LINE TO SIDE MEMBER
300	N 000933006221	SCREW
		FUEL LINE TO SIDE MEMBER
305	N 000125006420	WASHER
		FUEL LINE TO SIDE MEMBER
310	N 913004006001	NUT
		FUEL LINE TO SIDE MEMBER
315	N 916016012200	CLAMP
		FUEL LINE TO SIDE MEMBER
315	A 3459957901	CLAMP
		FUEL LINE TO SIDE MEMBER
320	A 3449977290	LOOM TIE
	Repalced by: A 3459977390
320	A 3459977390	LOOM TIE
		FUEL LINE TO SIDE MEMBER
		195 MM

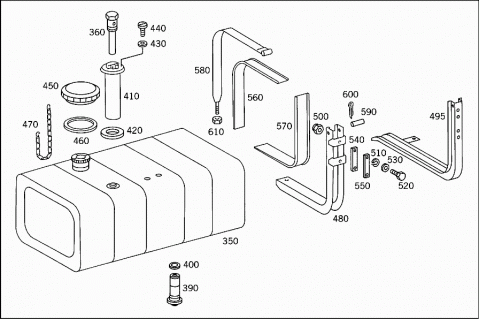

350	A 3454707102	FUEL TANK
		300 L
360	A 3444707226	RISING PIPE
		FUEL LINE TO SENDER UNIT
360	A 3454707026	RISING PIPE
		FUEL LINE TO SENDER UNIT
380	N 915036012150	HOLLOW SCREW
385	N 007603016301	SEAL RING
385	N 007603016301	SEAL RING
385	N 007603016105	SEAL RING
385	N 007603016105	SEAL RING
	A 3504707062	ELBOW FITTING
	Repalced by: A 3084767124
	A 3084767124	CONNECTOR
390	A 3504700006	FUEL STRAINER
400	A 0029977245	SEAL RING
410	A 3455427617	SENDER UNIT
	Repalced by: A 3455427817
410	A 3455427817	SENDER UNIT
	Repalced by: A 3505427017
410	A 3505427017	SENDER UNIT
		FUEL TANK
420	A 4044710080	GASKET
		FUEL GAUGE SENDER UNIT TO FUEL TANK
430	A 0669970640	SEAL RING
		FUEL GAUGE SENDER UNIT TO FUEL TANK
440	N 007985005171	SCREW
		FUEL GAUGE SENDER UNIT TO FUEL TANK
450	A 3444700205	FILLER CAP
460	A 3444710679	SEAL RING
470	A 3034700031	CHAIN
480	A 3454757003	CONSOLE
480	A 3504707542	SUPPORT
		FUEL TANK
495	A 3504707942	SUPPORT
		RIGHT FUEL TANK
495	A 3504707742	SUPPORT
		RIGHT FUEL TANK
495	A 3504707842	SUPPORT
		LEFT FUEL TANK
495	A 3504707642	SUPPORT
		LEFT FUEL TANK
500	N 913004014005	NUT
		CONSOLE TO SIDE MEMBER
510	N 000127014201	LOCK WASHER
		CONSOLE TO SIDE MEMBER
520	N 000961014116	SCREW
		CONSOLE TO SIDE MEMBER
530	A 3449900140	WASHER
		CONSOLE TO SIDE MEMBER
540	A 3454757019	BASE
550	A 3354750019	BASE
560	A 3459837191	CARDBOARD
		FUEL TANK TO CONSOLE
570	A 3459837291	CARDBOARD
		FUEL TANK TO CONSOLE
580	A 3454707040	STRAP
		FUEL TANK TO CONSOLE
590	N 001433016200	PIN
		STRAP TO SUPPORT
600	N 000094004050	COTTER PIN
		STRAP TO SUPPORT
610	N 000934012004	NUT
		STRAP TO SUPPORT
