Transporto priemonė: LS 1934; VIN numerio dalis: 350048

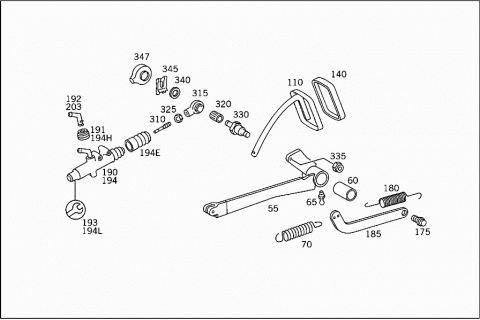

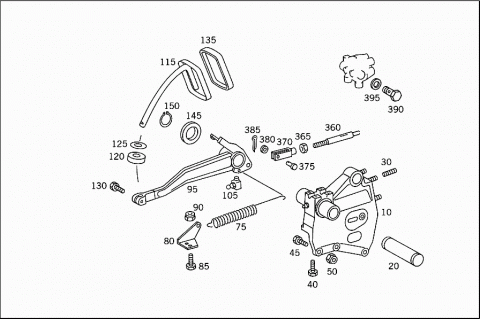

Grupė: 29 PEDALS - 001 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3452947201 | BEARING BRACKET |
| 020 | A 3762940004 | BEARING TUBE |
| 030 | N 000835008061 | STUD |
| PEDAL BEARING BRACKET | ||
| 040 | N 000933010129 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 045 | N 000933010269 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 050 | N 913004010004 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 055 | A 3502907216 | PEDAL |
| CLUTCH | ||
| 060 | A 3442920150 | BUSHING |
| 065 | N 071412010100 | GREASE NIPPLE |
| 070 | A 3129931510 | SPRING |
| RELEASE SPRING | ||
| 075 | A 3609930210 | SPRING |
| RELEASE SPRING | ||
| 080 | A 3502927040 | BRACKET |
| RELEASE SPRING | ||
| 085 | N 000933006230 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 090 | N 913004006001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 095 | A 3502907118 | PEDAL |
| Repalced by: A 3762900618 | ||
| 095 | A 3762900618 | PEDAL |
| (BRAKE PEDAL) | ||
| 095 | A 3762900918 | PEDAL |
| (BRAKE PEDAL) | ||
| 105 | N 071412010100 | GREASE NIPPLE |
| A 3222900824 | PEDAL PLATE | |
| 110 | A 3502907024 | PEDAL PLATE |
| (CLUTCH PEDAL) | ||
| 110 | A 3452907624 | PEDAL PLATE |
| (CLUTCH PEDAL) | ||
| 115 | A 3452907224 | PEDAL PLATE |
| (BRAKE PEDAL) | ||
| 115 | A 3452907524 | PEDAL PLATE |
| (BRAKE PEDAL) | ||
| 120 | A 3122911197 | SEAL WASHER |
| CAB FLOOR SEALING | ||
| 125 | A 3222930077 | WASHER |
| CAB FLOOR SEALING | ||
| 130 | N 000933010174 | SCREW |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 135 | A 3202925082 | PAD |
| BRAKE PEDAL | ||
| 135 | A 3452917082 | PAD |
| BRAKE PEDAL | ||
| 140 | A 3052910182 | PAD |
| CLUTCH PEDAL | ||
| 145 | A 3202940051 | SPACER RING |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 150 | N 000471040002 | LOCK RING |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 152 | N 900190012005 | THREADED PIN |
| STOP LIGHT SWITCH | ||
| 153 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 153 | N 000936012005 | NUT |
| STOP LIGHT SWITCH | ||
| 155 | A 3762920004 | BEARING BRACKET |
| 160 | A 3762920030 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 162 | A 3442920150 | BUSHING |
| 165 | N 007984010035 | SCREW |
| BEARING BRACKET AND STOP TO PEDAL BEARING BRACKET | ||
| 170 | N 007980010003 | LOCK WASHER |
| BEARING BRACKET AND STOP TO PEDAL BEARING BRACKET | ||
| 175 | A 3452917074 | PIN |
| Repalced by: A 3509917020 | ||
| 175 | A 3509917020 | BALL PIVOT |
| RELEASE SPRING | ||
| 180 | A 3529931310 | SPRING |
| 185 | A 3522910732 | LEVER |
| Repalced by: A 3762907034 | ||
| 185 | A 3762907034 | LEVER |
| RELEASE SPRING | ||
| 190 | A 3452957006 | MASTER CYLINDER |
| 191 | A 0009978635 | PLUG |
| TO 345 295 70 06 | ||
| 192 | A 0029901671 | ELBOW FITTING |
| TO 345 295 70 06 | ||
| 193 | A 0002902667 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| TO A 345 295 70 06 | ||
| 194 | A 3502957006 | MASTER CYLINDER |
| 194E | A 0002955483 | BOOT |
| 194H | A 0009971186 | PLUG |
| 194L | A 3085867129 | REPAIR KIT |
| 194L | A 0002902712 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| 195 | N 000931006191 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 200 | N 913004006001 | NUT |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 203 | A 3092950036 | INTERMEDIATE PIECE |
| MASTER CYLINDER | ||
| 205 | A 3504317002 | RESERVOIR |
| Repalced by: A 3504317102 | ||
| 205 | A 3504317102 | RESERVOIR |
| (RESERVOIR) | ||
| VARGA | ||
| 210 | A 0084310502 | RESERVOIR |
| 215 | A 3084317033 | FILLER CAP |
| Repalced by: A 3644317033 | ||
| 215 | A 3644317033 | FILLER CAP |
| SENSOR TO COVER | ||
| 220 | A 0089970240 | SEAL RING |
| 225 | A 3084317034 | STRAINER |
| H 983084310140 | BRACKET | |
| 230 | H 983084310176 | WASHER |
| 235 | N 000934018012 | NUT |
| 238 | N 000933006220 | SCREW |
| RESERVOIR TO CAB | ||
| 240 | N 000125006420 | WASHER |
| RESERVOIR TO CAB | ||
| 250 | N 913004006001 | NUT |
| RESERVOIR TO CAB | ||
| 255 | A 3539970082 | HOSE |
| Repalced by: A 0009978952 | ||
| 255 | A 0009978952 | HOSE |
| Repalced by: A 3504287035 | ||
| 255 | A 3504287035 | BRAKE HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 260 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 260 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 260 | N 000000000666 | CLAMP |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 263 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 263 | A 3459977390 | LOOM TIE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 265 | A 0004281072 | UNION SCREW |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 270 | A 3502957013 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 271 | A 3502907113 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 272 | A 3509907068 | FITTING |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 273 | A 0004280072 | UNION SCREW |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 275 | A 3502957135 | HOSE |
| 280 | A 3502957040 | BRACKET |
| HOSE TO FRAME | ||
| N 000933010294 | SCREW | |
| HOSE TO FRAME | ||
| 300 | N 007603014102 | SEAL RING |
| 310 | A 3812950033 | ROD |
| 315 | A 0009961145 | ARTICULATION PIECE |
| 315 | A 0009961045 | ARTICULATION PIECE |
| 320 | A 0059814410 | NEEDLE BEARING |
| 320 | A 0059813810 | NEEDLE BEARING |
| 320 | A 0089811210 | NEEDLE BEARING |
| 325 | N 000934008013 | NUT |
| 325 | N 000934008013 | NUT |
| 330 | A 3762910074 | PIN |
| 335 | N 913004010004 | NUT |
| GUIDE BOLT TO CLUTCH PEDAL LEVER | ||
| 340 | N 000433008403 | WASHER |
| PISTON ROD TO GUIDE BOLT | ||
| 345 | N 912002008001 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 345 | A 3502937073 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 347 | A 3182950383 | BOOT |
| PISTON ROD TO GUIDE BOLT | ||
| 350 | N 000933010269 | SCREW |
| STOP | ||
| 355 | N 913004010004 | NUT |
| STOP | ||
| 360 | A 3452957033 | ROD |
| Repalced by: A 3762950033 | ||
| 360 | A 3762950033 | ROD |
| BRAKE PEDAL | ||
| 365 | N 000934012009 | NUT |
| BRAKE PEDAL | ||
| 370 | A 3459967001 | YOKE |
| Repalced by: A 3769960001 | ||
| 370 | A 3769960001 | YOKE |
| BRAKE PEDAL | ||
| 375 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 380 | N 000433010500 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 385 | N 000094003212 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 390 | N 915047012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 395 | N 007603016103 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 400 | A 3502507066 | OIL PIPE |
| CLUTCH BOOSTER,CONNECTION: | ||
| 405 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 405 | N 915062006000 | SLEEVE |
| 410 | N 003861008005 | GLAND |
| 415 | N 915017008100 | UNION NUT |
| 420 | N 915052006014 | BANJO UNION |
| 425 | A 3509977572 | FITTING |
| CLUTCH BOOSTER,CONNECTION: | ||
| 430 | N 007603016105 | SEAL RING |
| CLUTCH BOOSTER,CONNECTION: | ||
