Transporto priemonė: LS 1934; VIN numerio dalis: 350048

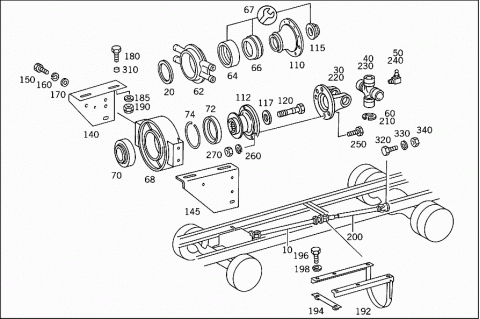

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3504100204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1185 MM | ||
| 010 | A 3754100004 | PROPELLER SHAFT |
| Repalced by: A 3864103001 | ||
| 010 | A 3864103001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1240 MM - ALBARUS | ||
| 020 | A 3874130061 | PROTECTIVE CAP |
| 020 | A 3894130061 | PROTECTIVE CAP |
| 030 | A 3954110211 | DRIVE FLANGE |
| 030 | A 3754110011 | DRIVE FLANGE |
| 030 | A 0004100830 | CENTERING FLANGE |
| TO A 3864103001 | ||
| 040 | A 3874100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 040 | A 6204100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 040 | A 0004102131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| TO A 3864103001 | ||
| A 0069903601 | SCREW | |
| WITH BUSHINGS | ||
| TO A 3864103001 | ||
| 050 | N 071412008300 | GREASE NIPPLE |
| 050 | A 3459977288 | GREASE NIPPLE |
| 050 | A 0009974788 | GREASE NIPPLE |
| TO A 3864103001 | ||
| A 0069943041 | LOCK | |
| 1,975 MM | ||
| A 0069943141 | LOCK | |
| 2,000 MM | ||
| A 0069943241 | LOCK | |
| 2,025 MM | ||
| A 0069943341 | LOCK | |
| 2,050 MM | ||
| A 0069943441 | LOCK | |
| 2,075 MM | ||
| A 0069943541 | LOCK | |
| 2,100 MM | ||
| A 0069943641 | LOCK | |
| 2,125 MM | ||
| A 0069943741 | LOCK | |
| 2,150 MM | ||
| A 0069943841 | LOCK | |
| 2,175 MM | ||
| A 0069943941 | LOCK | |
| 2,200 MM | ||
| A 0069944041 | LOCK | |
| 2,225 MM | ||
| 060 | A 3634110773 | LOCK |
| Repalced by: A 3634111173 | ||
| 060 | A 3634110973 | LOCK |
| Repalced by: A 3634111173 | ||
| 060 | A 3634111173 | LOCK |
| 2.20 MM | ||
| 062 | A 3634130001 | HOUSING |
| PROPELLER SHAFT BEARING | ||
| 064 | A 3634130012 | RUBBER MOUNTING |
| 066 | A 3634100151 | BALL BEARING |
| 067 | A 3504100010 | INTERMEDIATE BEARING |
| REPAIR KIT | ||
| 068 | A 3954100222 | INTERMEDIATE BEARING |
| 070 | A 0029819225 | BALL BEARING |
| 070 | A 0029819325 | BALL BEARING |
| 072 | A 3874130261 | PROTECTIVE CAP |
| 074 | N 912009110200 | SNAP RING |
| 110 | A 3954100030 | CENTERING FLANGE |
| 112 | A 3954100130 | CENTERING FLANGE |
| 115 | A 3853510672 | NUT |
| 115 | A 3663530072 | NUT |
| 117 | A 3894110062 | THRUST WASHER |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 120 | A 3899900019 | SCREW |
| Repalced by: N 000961020063 | ||
| 120 | N 000961020063 | SCREW |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 140 | A 6204137142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 140 | A 6204138042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 145 | A 6204137042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 145 | A 6204138142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 150 | N 000961012106 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 12X35 | ||
| 160 | N 000127012201 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 170 | A 3879900040 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 170 | A 3879900040 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 170 | A 3299900040 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 180 | N 000960012383 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 12X55 | ||
| 180 | N 000961012171 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 12X40 | ||
| 185 | A 3299900040 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 190 | N 913001012000 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 192 | A 3504100040 | BRACKET |
| PROPELLER SHAFT RETAINING STRAP | ||
| 194 | A 3504107093 | MOUNTING PLATE |
| BRACKET | ||
| 196 | N 000933010270 | SCREW |
| MOUNTING PLATE TO BRACKET | ||
| 198 | N 000127010202 | LOCK WASHER |
| MOUNTING PLATE TO BRACKET | ||
| 200 | A 3954102301 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1322 MM | ||
| 200 | A 3754100402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1405 MM | ||
| A 3634110773 | LOCK | |
| Repalced by: A 3634111173 | ||
| A 3634110973 | LOCK | |
| Repalced by: A 3634111173 | ||
| 210 | A 3634111173 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 220 | A 3954110211 | DRIVE FLANGE |
| 220 | A 3754110011 | DRIVE FLANGE |
| 230 | A 3504107131 | UNIVERSAL JOINT CROSS |
| 230 | A 6204100031 | UNIVERSAL JOINT CROSS |
| 240 | N 071412008300 | GREASE NIPPLE |
| UNIVERSAL JOINT | ||
| 240 | A 3459977288 | GREASE NIPPLE |
| UNIVERSAL JOINT | ||
| N 071412008100 | GREASE NIPPLE | |
| PROPELLER SHAFT | ||
| A 0069943041 | LOCK | |
| 1,975 MM | ||
| A 0069943141 | LOCK | |
| 2,000 MM | ||
| A 0069943241 | LOCK | |
| 2,025 MM | ||
| A 0069943341 | LOCK | |
| 2,050 MM | ||
| A 0069943441 | LOCK | |
| 2,075 MM | ||
| A 0069943541 | LOCK | |
| 2,100 MM | ||
| A 0069943641 | LOCK | |
| 2,125 MM | ||
| A 0069943741 | LOCK | |
| 2,150 MM | ||
| A 0069943841 | LOCK | |
| 2,175 MM | ||
| A 0069943941 | LOCK | |
| 2,200 MM | ||
| A 0069944041 | LOCK | |
| 2,225 MM | ||
| 250 | A 0029909901 | SCREW |
| REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 260 | N 000127016201 | LOCK WASHER |
| REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 260 | N 000127016201 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 270 | N 000934016026 | NUT |
| REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 270 | N 000934016026 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 310 | A 3464135011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 320 | A 0029909901 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 330 | N 000127016201 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 340 | N 000934016026 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
