Transporto priemonė: LS 1934; VIN numerio dalis: 350048
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

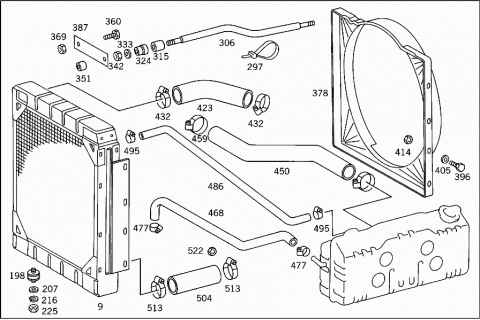

| 009 | A 3505007403 | RADIATOR |
| 009 | A 3505007703 | RADIATOR |

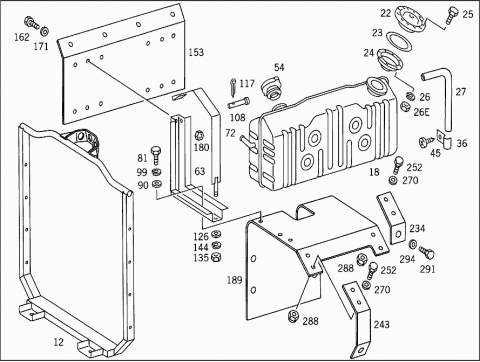

| 012 | A 3505007627 | SUPPORT |
| 018 | A 3505007249 | TANK |
| 022 | A 3505017239 | VALVE |
| 023 | A 3505017080 | GASKET |
| 024 | A 3455017040 | VALVE HOUSING |
| 025 | N 000933005095 | SCREW |
| 026 | N 912004005101 | LOCK WASHER |
| 026E | N 000934005008 | NUT |
| 027 | A 3509978082 | HOSE |
| EXPANSION TANK | ||
| 036 | A 1819950020 | CLAMP |
| DE-AERATION | ||
| 045 | N 007981004226 | SHEET METAL SCREW |
| DE-AERATION | ||
| 054 | A 3505017115 | RADIATOR CAP |
| 063 | A 3505047401 | SUPPORT |
| EXPANSION TANK | ||
| 072 | A 3505007162 | STRAP |
| EXPANSION TANK | ||
| 081 | N 000933008268 | SCREW |
| STRAP TO SUPPORT | ||
| M 8X16 | ||
| 090 | N 009021008100 | WASHER |
| STRAP TO SUPPORT | ||
| 099 | N 000127008203 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 108 | N 001444006224 | PIN |
| STRAP TO SUPPORT | ||
| 117 | N 000094001520 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 126 | N 000125006420 | WASHER |
| STRAP TO SUPPORT | ||
| 135 | N 000934006006 | NUT |
| STRAP TO SUPPORT | ||
| 144 | N 912004006100 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 153 | A 3505007235 | PANELLING |
| 162 | N 000933008282 | SCREW |
| COVERING TO CONSOLE | ||
| 171 | N 000125008417 | WASHER |
| COVERING TO CONSOLE | ||
| 180 | N 000934008010 | NUT |
| COVERING TO CONSOLE | ||
| 189 | A 3505007427 | SUPPORT |
| EXPANSION TANK | ||
| 198 | A 3475040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 207 | N 000125010517 | WASHER |
| RADIATOR TO SUPPORT | ||
| 216 | N 000127010202 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 225 | N 000934010000 | NUT |
| RADIATOR TO SUPPORT | ||
| 234 | A 3505047240 | BRACKET |
| Repalced by: A 3505047540 | ||
| 234 | A 3505047540 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 243 | A 3505047340 | BRACKET |
| Repalced by: A 3505047640 | ||
| 243 | A 3505047640 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 252 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 270 | N 009021008102 | WASHER |
| BRACKET TO SUPPORT | ||
| 288 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 291 | N 000933008285 | SCREW |
| BRACKET TO GUSSET PLATE | ||
| M 8X12 | ||
| 294 | N 009021088102 | WASHER |
| BRACKET TO GUSSET PLATE | ||
| 297 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 297 | A 3459977390 | LOOM TIE |
| ENGINE HOOD RELEASE CABLE | ||
| 306 | A 3505007845 | RADIATOR STRUT |
| LEFT | ||
| 306 | A 3505007945 | RADIATOR STRUT |
| RIGHT | ||
| 315 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 324 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 333 | N 009021010102 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 342 | N 000934010000 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 351 | A 3505287109 | PIPE |
| 360 | N 000933008228 | SCREW |
| STRUT TO RADIATOR STRUT | ||
| M8X16 | ||
| 369 | N 913004008011 | NUT |
| STRUT TO RADIATOR STRUT | ||
| M 8X1 | ||
| 378 | A 3505007155 | FAN SHROUD |
| 387 | A 3505047440 | BRACKET |
| 396 | N 000931010264 | SCREW |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 405 | N 000125010517 | WASHER |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 414 | N 913004010004 | NUT |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 423 | A 3505287682 | HOSE |
| COOLING WATER INLET TO THERMOSTAT | ||
| 432 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 432 | N 000000000672 | CLAMP |
| 432 | A 3449978790 | CLAMP |
| Repalced by: A 3449977890 | ||
| 432 | A 3449977890 | CLAMP |
| 432 | A 3459979390 | LOOM TIE |
| 450 | N 900271028025 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 28X37X625 MM | ||
| 450 | A 3505017782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 28X42X650 MM | ||
| A 3505017324 | COOLING WATER PIPE | |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 459 | A 3449978590 | LOOM TIE |
| Repalced by: A 3449977690 | ||
| 459 | A 3449977690 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 459 | A 0019972590 | LOOM TIE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 459 | A 3509979090 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| A 3505017882 | HOSE | |
| FROM WATER PUMP TO COOLING WATER PIPE | ||
| A 3505017982 | HOSE | |
| FROM PIPE LINE TO EXPANSION TANK | ||
| 468 | N 900271012078 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 12X21X640MM | ||
| 468 | A 3505017682 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 12X24X640 MM | ||
| 477 | A 3509970390 | LOOM TIE |
| 477 | A 3449978490 | CLAMP |
| Repalced by: A 3449977590 | ||
| 477 | A 3449977590 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 477 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 477 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 477 | N 000000000666 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 477 | A 3509979090 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 477 | A 3509978890 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 486 | A 3159970982 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 8X15X500 MM | ||
| 486 | A 3505017582 | HOSE |
| 18X20X440 MM | ||
| 495 | A 3449978390 | LOOM TIE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 495 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 495 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 495 | N 000000000666 | CLAMP |
| FROM RADIATOR TO EXPANSION TANK | ||
| 495 | A 3459978990 | CLAMP |
| FROM RADIATOR TO EXPANSION TANK | ||
| 504 | A 3505287982 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| 513 | A 3449978790 | CLAMP |
| Repalced by: A 3449977890 | ||
| 513 | A 3449977890 | CLAMP |
| FROM RADIATOR TO OIL COOLER | ||
| 513 | A 3459979390 | LOOM TIE |
| FROM RADIATOR TO OIL COOLER | ||
| 513 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 513 | N 000000000672 | CLAMP |
| FROM RADIATOR TO OIL COOLER | ||
| 522 | N 913004008001 | NUT |
| HOSE TO BRACKET | ||

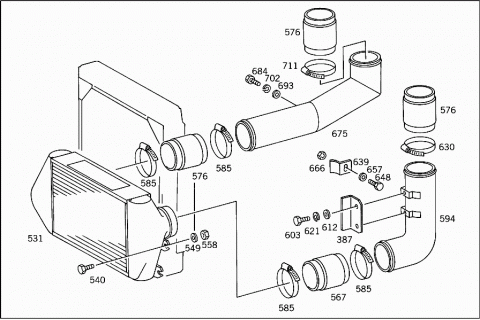

| 531 | A 3505017101 | RADIATOR |
| 531 | A 3505007803 | RADIATOR |
| 531 | A 3505007903 | RADIATOR |
| 540 | N 000933008288 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| M 8X25 | ||
| 549 | N 000125008417 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 558 | N 913004008005 | NUT |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 567 | A 3459970482 | HOSE |
| Repalced by: A 3459979082 | ||
| 567 | A 3459979082 | HOSE |
| CHARGING AIR | ||
| 576 | A 3505057182 | HOSE |
| Repalced by: A 3505288282 | ||
| 576 | A 3505288282 | HOSE |
| Repalced by: A 3865287882 | ||
| 576 | A 3865287882 | HOSE |
| 576 | A 3865288382 | HOSE |
| A 3849977590 | LOOM TIE | |
| 585 | A 3449979090 | PART NAME MISSING |
| Repalced by: A 3509979690 | ||
| 585 | A 3509979690 | CLAMP |
| HOSE TO CHARGING AIR INTERCOOLER AND TO PIPE ELBOW | ||
| 585 | A 3509971690 | LOOM TIE |
| HOSE TO CHARGING AIR INTERCOOLER AND TO PIPE ELBOW | ||
| 585 | A 0019972790 | LOOM TIE |
| Repalced by: A 3509978290 | ||
| 585 | A 3509978290 | CLAMP |
| HOSE TO CHARGING AIR INTERCOOLER AND TO PIPE ELBOW | ||
| 585 | A 6849977390 | CLAMP |
| HOSE TO CHARGING AIR INTERCOOLER AND TO PIPE ELBOW | ||
| 594 | A 3505207101 | AIR INTAKE PIPE |
| 603 | N 000933008268 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 612 | N 000125008417 | WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 621 | N 912004008100 | LOCK WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 630 | A 3449979090 | PART NAME MISSING |
| Repalced by: A 3509979690 | ||
| 630 | A 3509979690 | LOOM TIE |
| HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET | ||
| 630 | A 3509971690 | LOOM TIE |
| HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET | ||
| 630 | A 0019972790 | LOOM TIE |
| Repalced by: A 3509978290 | ||
| 630 | A 3509978290 | LOOM TIE |
| HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET | ||
| 630 | A 6849977390 | LOOM TIE |
| HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET | ||
| 639 | A 3505287940 | BRACKET |
| 648 | N 000933008268 | SCREW |
| BRACKET TO FILTER BRACKET | ||
| 657 | N 000125008417 | WASHER |
| BRACKET TO FILTER BRACKET | ||
| 666 | N 913004008001 | NUT |
| BRACKET TO FILTER BRACKET | ||
| 675 | A 3505207201 | AIR INTAKE PIPE |
| 684 | N 000933008268 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 693 | N 000125008417 | WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 702 | N 912004008100 | LOCK WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 711 | A 3449979090 | PART NAME MISSING |
| Repalced by: A 3509979690 | ||
| 711 | A 3509979690 | CLAMP |
| HOSE TO PIPE AND TO AIR INTAKE PIPE | ||
| 711 | A 3509971690 | LOOM TIE |
| HOSE TO PIPE AND TO AIR INTAKE PIPE | ||
| 711 | A 0019972790 | LOOM TIE |
| Repalced by: A 3509978290 | ||
| 711 | A 3509978290 | CLAMP |
| HOSE TO PIPE AND TO AIR INTAKE PIPE | ||
| 711 | A 6849977390 | CLAMP |
| HOSE TO PIPE AND TO AIR INTAKE PIPE | ||
