Transporto priemonė: LS 1934; VIN numerio dalis: 350048

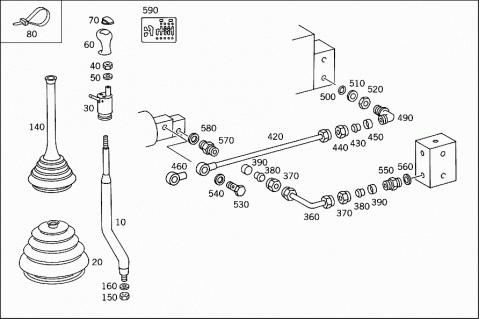

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3502677401 | SHIFT LEVER |
| 020 | A 3452677096 | BOOT |
| Repalced by: A 6882677096 | ||
| 020 | A 6882677096 | BOOT |
| 030 | A 0002609557 | VALVE |
| Repalced by: A 0012602457 | ||
| 030 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 030 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 030 | A 0012605357 | VALVE |
| 030 | A 3882607157 | VALVE |
| 030 | A 0012607157 | VALVE |
| 040 | N 913004010004 | NUT |
| 050 | N 000125010517 | WASHER |
| 060 | A 6202670010 | HANDLE |
| 060 | A 3502677010 | HANDLE |
| 070 | A 6202680157 | COVER |
| TO 350 267 70 10 | ||
| 080 | A 3509978090 | CLAMP |
| AS REQUIRED | ||
| 090 | A 3502607549 | LINE |
| 100 | A 3502607649 | LINE |
| 110 | N 915017004101 | UNION NUT |
| 120 | N 003861004001 | GLAND |
| 130 | N 915062002000 | SLEEVE |
| 140 | A 3502677296 | BOOT |
| 150 | N 913004012012 | NUT |
| SHIFT LEVER TO TRANSMISSION | ||
| 160 | N 000125013012 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 170 | A 3509977872 | FITTING |
| SHIFT LEVER VALVE TO SHIFT VALVE | ||
| 180 | A 3502608049 | LINE |
| FROM SHIFT LEVER VALVE TO RELAY VALVE, CONNECTION: | ||
| 190 | N 915017006104 | UNION NUT |
| FROM RELAY VALVE TO VALVE | ||
| 200 | N 003861006008 | GLAND |
| FROM RELAY VALVE TO VALVE | ||
| 210 | N 915062004000 | SLEEVE |
| FROM RELAY VALVE TO VALVE | ||
| 210 | A 0009920105 | BUSHING |
| FROM RELAY VALVE TO VALVE | ||
| 220 | N 915017006100 | UNION NUT |
| FROM RELAY VALVE TO VALVE | ||
| 230 | N 003861006007 | GLAND |
| FROM RELAY VALVE TO VALVE | ||
| 240 | N 003901006001 | SCREW-IN FITTING |
| RELAY VALVE | ||
| 240 | A 0029978472 | FITTING |
| RELAY VALVE | ||
| 250 | N 007603010101 | SEAL RING |
| 260 | A 3502608449 | LINE |
| 270 | N 915017006104 | UNION NUT |
| 280 | N 003861006008 | GLAND |
| 290 | N 915062004000 | SLEEVE |
| 290 | A 0009920105 | BUSHING |
| 300 | N 915052004006 | BANJO UNION |
| 310 | A 3502608549 | LINE |
| 320 | N 915017006100 | UNION NUT |
| 330 | N 003861006007 | GLAND |
| 340 | N 915062004000 | SLEEVE |
| 340 | A 0009920105 | BUSHING |
| 350 | N 915052004006 | BANJO UNION |
| 353 | A 3454298136 | CONNECTOR |
| 356 | N 007603012106 | SEAL RING |
| 360 | A 3502608349 | LINE |
| 370 | N 915017008100 | UNION NUT |
| 380 | N 003861008005 | GLAND |
| 390 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 390 | N 915062006000 | SLEEVE |
| 400 | N 915036008200 | HOLLOW SCREW |
| 410 | N 007603012106 | SEAL RING |
| 420 | A 3502608249 | LINE |
| CLUTCH BOOSTER,CONNECTION: | ||
| 21 | ||
| 424 | A 3502608849 | LINE |
| OPERATING VALVE | ||
| 430 | N 003861006007 | GLAND |
| 21 | ||
| 440 | N 915017006100 | UNION NUT |
| 21 | ||
| 442 | A 3502607949 | LINE |
| 443 | N 915017006100 | UNION NUT |
| 444 | N 003861006007 | GLAND |
| 445 | N 915062004000 | SLEEVE |
| 445 | A 0009920105 | BUSHING |
| 446 | A 3459977690 | LOOM TIE |
| 446 | A 0019978590 | LOOM TIE |
| 450 | N 915062004000 | SLEEVE |
| CLUTCH BOOSTER,CONNECTION: | ||
| 21 | ||
| 460 | N 915052004002 | BANJO UNION |
| CLUTCH BOOSTER,CONNECTION: | ||
| 21 | ||
| 470 | N 915036012150 | HOLLOW SCREW |
| DELIVERY LINE TO CLUTCH BOOSTER | ||
| 472 | N 007603016103 | SEAL RING |
| 474 | A 3454298136 | CONNECTOR |
| DISTRIBUTOR | ||
| 476 | N 007603012106 | SEAL RING |
| DISTRIBUTOR | ||
| 479 | A 3452607362 | BRACKET |
| 483 | A 0004343001 | VALVE |
| "KNORR DO BRASIL" | ||
| 483 | A 3454347401 | VALVE |
| "WABCO DO BRASIL" | ||
| 484 | A 0009971977 | HANDLE |
| TO 000 434 22 01,WABCO | ||
| 485 | A 0004340586 | CUP |
| TO 000 434 22 01,WABCO | ||
| 486 | A 0025869843 | REPAIR KIT |
| TO 000 434 22 01,WABCO | ||
| 486 | A 0014301360 | REPAIR KIT |
| Repalced by: A 0004304106 | ||
| 486 | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 30 01 | ||
| 486 | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 30 01 | ||
| H 983455860943 | REPAIR KIT | |
| Repalced by: A 0034301281 | ||
| 486 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 434 74 01 | ||
| 486 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 434 74 01 | ||
| 490 | A 3454297438 | ELBOW FITTING |
| DELIVERY LINE TO TRANSMISSION RELAY VALVE | ||
| 500 | A 0019875046 | SEALING CORD |
| DELIVERY LINE TO TRANSMISSION RELAY VALVE | ||
| 510 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 510 | A 0009940103 | THRUST RING |
| DELIVERY LINE TO TRANSMISSION RELAY VALVE | ||
| 520 | N 080705012003 | NUT |
| DELIVERY LINE TO TRANSMISSION RELAY VALVE | ||
| M 12X1.5 | ||
| 530 | N 915036008200 | HOLLOW SCREW |
| DELIVERY LINE TO DISTRIBUTOR | ||
| 531 | A 3454300123 | LEVER |
| 532 | A 3604300050 | ROLLER |
| 533 | A 3524340350 | BUSHING |
| 533 | A 3502677050 | BUSHING |
| 534 | N 007341005108 | RIVET |
| 535 | A 3529902101 | SCREW |
| OPERATING VALVE SETTING | ||
| 536 | N 000934008000 | NUT |
| OPERATING VALVE SETTING | ||
| 537 | N 000125010517 | WASHER |
| LEVER TO BRACKET | ||
| 538 | N 000471010000 | LOCK RING |
| LEVER TO BRACKET | ||
| 540 | N 007603012106 | SEAL RING |
| DELIVERY LINE TO DISTRIBUTOR | ||
| 550 | N 003901008008 | SCREW-IN FITTING |
| DELIVERY LINE TO DISTRIBUTOR AND TO CLUTCH BOOSTER | ||
| 560 | N 007603012106 | SEAL RING |
| DELIVERY LINE TO DISTRIBUTOR AND TO CLUTCH BOOSTER | ||
| 570 | A 3509977572 | FITTING |
| DELIVERY LINE TO DISTRIBUTOR AND TO CLUTCH BOOSTER | ||
| 580 | N 007603016105 | SEAL RING |
| DELIVERY LINE TO DISTRIBUTOR AND TO CLUTCH BOOSTER | ||
| 590 | A 3505847238 | GUMMED LABEL |
