Transporto priemonė: LS 2624/6X4; VIN numerio dalis: 343014

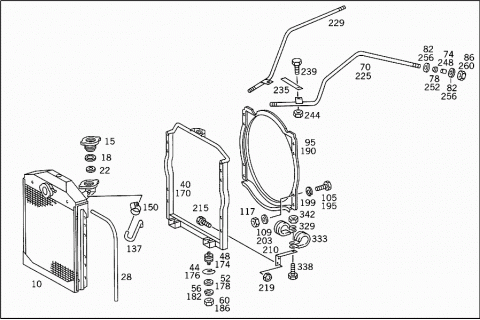

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3355001203 | RADIATOR |
| Repalced by: A 3355002303 | ||
| 010 | A 3355002303 | RADIATOR |
| Repalced by: A 3465006103 | ||
| 010 | A 3465006103 | RADIATOR |
| BEHR | ||
| 010 | A 3465005503 | RADIATOR |
| Repalced by: A 3465005703 | ||
| 010 | A 3465005703 | RADIATOR |
| Repalced by: A 3465006003 | ||
| 010 | A 3465006003 | RADIATOR |
| HAUGG | ||
| 015 | A 0005013515 | RADIATOR CAP |
| TO 335 500 12 03 | ||
| 015 | A 0005014915 | RADIATOR CAP |
| TO 346 500 55 03,346 500 57 03 | ||
| 015 | A 0005013115 | RADIATOR CAP |
| TO 335 500 23 03 | ||
| 015 | A 0005014315 | RADIATOR CAP |
| TO 335 500 23 03,346 500 61 03 | ||
| 015 | A 0005015315 | RADIATOR CAP |
| TO 346 500 60 03,346 500 61 03 | ||
| 015 | A 0005017315 | RADIATOR CAP |
| Repalced by: A 0005017215 | ||
| 015 | A 0005017215 | RADIATOR CAP |
| TO 346 500 60 03,346 500 61 03 | ||
| 015 | A 0005015415 | RADIATOR CAP |
| TO 346 500 60 03 | ||
| 018 | A 0005010580 | GASKET |
| TO 000 501 49 15 | ||
| 018 | A 0005010780 | GASKET |
| TO 000 501 49 15 | ||
| 022 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM,TO 000 501 35 15,000 501 31 15 | ||
| 028 | A 0139978682 | HOSE |
| TO 335 500 23 03,346 500 61 03 | ||
| A 0159979082 | HOSE | |
| Repalced by: A 0019970652 | ||
| 028 | A 0019970652 | HOSE |
| TO 346 500 60 03 | ||
| 040 | A 3355001527 | SUPPORT |
| Repalced by: A 3355001127 | ||
| 040 | A 3355001127 | SUPPORT |
| RADIATOR | ||
| 044 | A 3265040284 | SHIM |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 048 | A 3475040012 | RUBBER MOUNTING |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 052 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 052 | N 009021010209 | WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 056 | N 912004010102 | LOCK WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 060 | N 000934010014 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 070 | A 3385000045 | RADIATOR STRUT |
| RADIATOR TO CAB | ||
| 074 | A 3199910540 | SPACER TUBE |
| RADIATOR TO CAB | ||
| 078 | A 3275045082 | RUBBER RING |
| RADIATOR TO CAB | ||
| 082 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 082 | N 009021010209 | WASHER |
| RADIATOR TO CAB | ||
| 086 | N 000934010014 | NUT |
| RADIATOR TO CAB | ||
| 095 | A 3355050730 | AIR BAFFLE |
| TO 335 500 12 03,335 500 23 03 | ||
| 095 | A 3355050730 | AIR BAFFLE |
| TO 346 500 61 03 | ||
| 095 | A 3435050130 | AIR BAFFLE |
| TO 346 500 55 03,346 500 57 03 | ||
| 095 | A 3435050130 | AIR BAFFLE |
| TO 346 500 60 03 | ||
| 105 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 105 | N 304017008043 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 109 | N 007349008003 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 117 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 117 | N 913004008001 | NUT |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 125 | A 3465015082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 129 | A 3465015182 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| 133 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 133 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 137 | A 3465015282 | HOSE |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 137 | A 3465015982 | HOSE |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 142 | A 3465015382 | HOSE |
| FOR UPPER HEATING LINE | ||
| 146 | N 900271015037 | HOSE |
| HEATING RETURN | ||
| 15X24X1000 MM | ||
| 150 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 150 | N 000000000665 | CLAMP |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 150 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 150 | N 000000000666 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 160 | A 3465005603 | RADIATOR |
| BEHR | ||
| 160 | A 3465006203 | RADIATOR |
| WKF | ||
| 170 | A 3465000027 | SUPPORT |
| RADIATOR | ||
| 174 | A 3475040012 | RUBBER MOUNTING |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 176 | A 3265040284 | SHIM |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 178 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 178 | N 009021010209 | WASHER |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 182 | N 912004010102 | LOCK WASHER |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 186 | N 000934010014 | NUT |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 190 | A 3465000016 | AIR BAFFLE |
| RADIATOR | ||
| 195 | N 000933010145 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 199 | N 912004010102 | LOCK WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 203 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 203 | N 000125010532 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 210 | A 3465040040 | BRACKET |
| SUPPORT TO FRAME | ||
| 215 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 215 | N 304017006012 | SCREW |
| BASE FRAME TO BRACKET | ||
| 219 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 219 | N 913004006001 | NUT |
| BASE FRAME TO BRACKET | ||
| 225 | A 3465000045 | RADIATOR STRUT |
| LEFT | ||
| 229 | A 3465000145 | RADIATOR STRUT |
| Repalced by: A 3465000345 | ||
| 229 | A 3465000345 | RADIATOR STRUT |
| RIGHT | ||
| 235 | A 3465040022 | STRUT |
| Repalced by: A 3604290340 | ||
| 235 | A 3604290340 | BRACKET |
| Repalced by: A 3604293140 | ||
| 235 | A 3604293140 | BRACKET |
| CENTRAL | ||
| 239 | N 000933006102 | SCREW |
| STAY TO FRAME | ||
| 244 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 244 | N 913004006001 | NUT |
| STAY TO FRAME | ||
| 248 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO CAB | ||
| 252 | A 3275045082 | RUBBER RING |
| BASE FRAME TO CAB | ||
| 256 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 256 | N 009021010209 | WASHER |
| BASE FRAME TO CAB | ||
| 260 | N 000934010014 | NUT |
| BASE FRAME TO CAB | ||

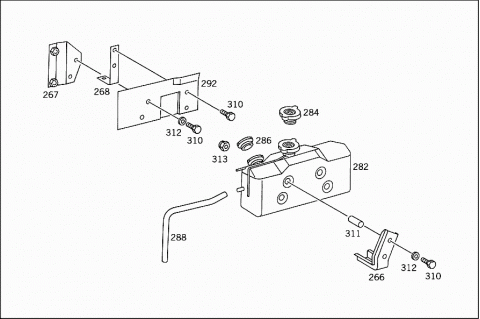

| 265 | A 3465010021 | CONSOLE |
| EXPANSION TANK | ||
| 266 | A 3465010121 | CONSOLE |
| FRONT TANK | ||
| 266 | A 3465010221 | CONSOLE |
| REAR TANK | ||
| 267 | A 3465000431 | BRACKET |
| EXPANSION TANK TO CONSOLE | ||
| 268 | A 3465000331 | BRACKET |
| EXPANSION TANK TO CONSOLE | ||
| 269 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 273 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 280 | A 3465000149 | TANK |
| Repalced by: A 3465000249 | ||
| 282 | A 3465000249 | TANK |
| EXPANSION TANK | ||
| 283 | A 0005014615 | RADIATOR CAP |
| PRESSURE RELIEF | ||
| 283 | A 0005017215 | RADIATOR CAP |
| PRESSURE RELIEF | ||
| 284 | A 0005015815 | RADIATOR CAP |
| PRESSURE RELIEF | ||
| 285 | A 0005014515 | RADIATOR CAP |
| FILLER NECK | ||
| 286 | A 3765010015 | RADIATOR CAP |
| FILLER NECK | ||
| 288 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 288 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 290 | A 3465000035 | PANELLING |
| PROTECTIVE PLATE | ||
| 292 | A 3465010035 | COVER PLATE |
| EXPANSION TANK | ||
| 295 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 295 | N 913004008001 | NUT |
| STRAP TO EXPANSION TANK | ||
| 300 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 304 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 304 | A 3815010495 | SHIM |
| (STRAP) | ||
| 308 | A 3465010195 | SHIM |
| (STRAP) | ||
| 310 | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 310 | N 304017008067 | SCREW |
| EXPANSION TANK TO CONSOLE | ||
| M 8X110 | ||
| 310 | N 000931008435 | SCREW |
| EXPANSION TANK TO CONSOLE | ||
| M 8X190 | ||
| 310 | N 000933008145 | SCREW |
| EXPANSION TANK TO CONSOLE | ||
| M 8X18 | ||
| 311 | A 3465040253 | SPACER TUBE |
| EXPANSION TANK TO CONSOLE | ||
| 312 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 312 | N 009021008213 | WASHER |
| EXPANSION TANK TO CONSOLE | ||
| Repalced by: N 000000003250 | ||
| 312 | N 000000003250 | WASHER |
| EXPANSION TANK TO CONSOLE | ||
| 313 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 313 | N 913004008001 | NUT |
| EXPANSION TANK TO CONSOLE | ||
| 315 | N 900271008043 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 315 | A 3465016182 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 319 | A 3465015782 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 319 | A 3465016282 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 325 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 325 | N 000000000666 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 329 | N 916016022206 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| Repalced by: N 916016022203 | ||
| 329 | N 916016022203 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 333 | N 916016018201 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 338 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 338 | N 304017006020 | SCREW |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 342 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 342 | N 913004006001 | NUT |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 350 | A 3465015082 | HOSE |
| FROM INLET,OR COOLING WATER LINE,TO THERMOSTAT | ||
| 355 | A 3465015582 | HOSE |
| COOLING WATER HOSE TO ENGINE | ||
| 360 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 360 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 365 | A 3465015682 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 365 | A 3465016082 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 369 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 369 | N 000000000668 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 369 | N 000000000668 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 369 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 369 | N 000000000667 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 375 | N 900271015037 | HOSE |
| HEATING FEED | ||
| 375 | A 3465015382 | HOSE |
| HEATING FEED | ||
| 379 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 379 | N 000000000666 | CLAMP |
| HEATING RETURN | ||
