Transporto priemonė: LS 2628/6X4; VIN numerio dalis: 343044

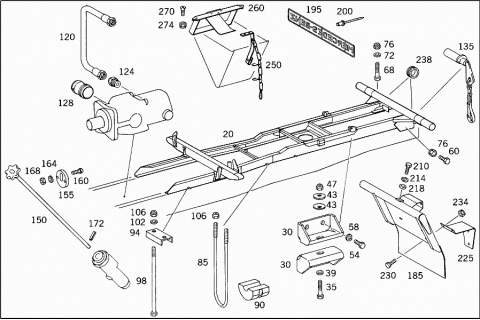

Grupė: 60 PLATFORM

#	Kodas	Pavadinimas
020	A 3436105103	SUBSTRUCTURE
		(AUXILIARY FRAME)
020	A 3436105103	SUBSTRUCTURE
		PLATFORM USED FOR MEILLER THREE-SIDE DUMP TRUCK
	A 3436105503	SUBSTRUCTURE
		(AUXILIARY FRAME)
	A 3436100104	SUBSTRUCTURE
		(AUXILIARY FRAME)
030	A 3958910131	CONSOLE
		AUXILIARY FRAME MOUNTING
035	N 000960014245	SCREW
		CONSOLE TO AUXILIARY FRAME
		14X1.5X85 MM
	N 000960016260	SCREW
	Repalced by: N 308765016002
	N 308765016002	SCREW
		CONSOLE TO AUXILIARY FRAME
		16X1.5X90 MM
	N 000960014245	SCREW
		CONSOLE TO AUXILIARY FRAME
		14X1.5X85 MM
039	N 007349015003	WASHER
		CONSOLE TO AUXILIARY FRAME
043	A 0009930526	DISC SPRING
		CONSOLE TO AUXILIARY FRAME
047	N 913004014002	NUT
	Repalced by: N 910113014001
047	N 910113014001	NUT
		CONSOLE TO AUXILIARY FRAME
047	N 913004014002	NUT
	Repalced by: N 910113014001
047	N 910113014001	NUT
		CONSOLE TO AUXILIARY FRAME
	N 913004016005	NUT
	Repalced by: N 910113016001
	N 910113016001	NUT
		CONSOLE TO AUXILIARY FRAME
054	N 000961014154	SCREW
		CONSOLE TO AUXILIARY FRAME
		14X1.5X25 MM
058	N 912004014100	LOCK WASHER
		CONSOLE TO AUXILIARY FRAME
060	N 000961014028	SCREW
		AUXILIARY FRAME MOUNTING
		14X1.5X40 MM
	N 000960014237	SCREW
		AUXILIARY FRAME MOUNTING
		14X1.5X50 MM
068	N 000960014190	SCREW
		AUXILIARY FRAME MOUNTING
		14X1.5X60 MM
072	N 007349015003	WASHER
		AUXILIARY FRAME MOUNTING
076	N 913004014005	NUT
	Repalced by: N 910113014000
076	N 910113014000	NUT
		AUXILIARY FRAME MOUNTING
076	N 913004014002	NUT
	Repalced by: N 910113014001
076	N 910113014001	NUT
		AUXILIARY FRAME MOUNTING
085	A 3358912130	CLAMP
		AUXILIARY FRAME MOUNTING
090	A 3158910096	BASE
		AUXILIARY FRAME MOUNTING
094	A 3358910198	SHIM
		AUXILIARY FRAME MOUNTING
098	N 000960014164	SCREW
		AUXILIARY FRAME MOUNTING
102	N 007349015003	WASHER
		AUXILIARY FRAME MOUNTING
106	N 913004014002	NUT
	Repalced by: N 910113014001
106	N 910113014001	NUT
		CLAMP TO FRAME
	N 001443030200	PIN
		RETAINING ROPE TO AUXILIARY FRAME
	N 000094008014	COTTER PIN
		RETAINING ROPE TO AUXILIARY FRAME
120	A 0089972682	HOSE
		LINES TO PUMP AND TO OIL TANK
124	A 0019971372	FITTING
		LINES TO PUMP AND TO OIL TANK
128	A 0019974472	FITTING
	Repalced by: A 0019909478
128	A 0019909478	CONNECTOR
		LINES TO PUMP AND TO OIL TANK
135	A 0003150706	COUPLING PIN
		DUMPER AUXILIARY FRAME TO CHASSIS
150	A 3356190115	SHAFT
		DUMPER VALVE OPERATION
155	A 3396470021	GUIDE
	Repalced by: A 3436470021
155	A 3436470021	GUIDE
		CAB
160	N 000085004107	SCREW
		GUIDE TO CAB
164	N 009021004108	WASHER
	Repalced by: N 009021004207
164	N 009021004207	WASHER
		GUIDE TO CAB
168	N 913010004101	RIVETED NUT
	Repalced by: N 913024004100
168	N 913024004100	RIVETED NUT
		GUIDE TO CAB
172	N 001481005036	CLAMPING SLEEVE
		DUMPER VALVE THRU CAB REAR PANEL
185	A 3438800608	MUD APRON
		LEFT
	A 3438800708	MUD APRON
		RIGHT
195	A 3605840025	NAME PLATE
		AT REAR FENDER
200	N 910003003103	RIVET
210	N 000961012056	SCREW
	Repalced by: N 308676012038
210	N 308676012038	SCREW
		MUD APRON TO AUXILIARY FRAME
214	N 912004012100	LOCK WASHER
		MUD APRON TO AUXILIARY FRAME
218	N 000125013008	WASHER
225	A 3435441438	BRACKET
		MUD APRON
230	N 000933006102	SCREW
		BRACKET TO REAR FENDER
234	N 913004006002	NUT
	Repalced by: N 913004006001
234	N 913004006001	NUT
		BRACKET TO REAR FENDER
238	A 4069975081	GROMMET
		ELECTRIC CABLE THRU FRAME, REAR
250	A 3355800390	BRACKET
	Repalced by: A 3355800290
250	A 3355800290	BRACKET
		CHOCK
260	A 3828900079	CLAMP
		CHOCK FIXTURE
270	N 000964008016	SCREW
		CHOCK FIXTURE
274	N 913004008004	NUT
	Repalced by: N 913004008001
274	N 913004008001	NUT
		CHOCK FIXTURE
