Transporto priemonė: LS 2628/6X4; VIN numerio dalis: 343044
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

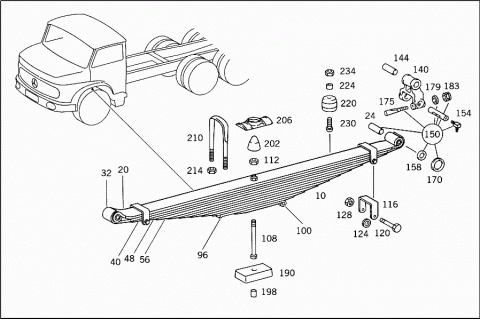

| 010 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 010 | A 3953200302 | FRONT SPRING |
| 13-LEAF | ||
| 010 | A 3953200002 | FRONT SPRING |
| 10-LEAF | ||
| 020 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3953200294 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3953200094 | SPRING LEAF |
| Repalced by: A 3953200394 | ||
| 020 | A 3953200394 | SPRING LEAF |
| NO.1 | ||
| 024 | A 3043210150 | BUSHING |
| 024 | A 6203210050 | BUSHING |
| 032 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3953210212 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3953210012 | SPRING LEAF |
| Repalced by: A 3953210312 | ||
| 032 | A 3953210312 | SPRING LEAF |
| NO.2 | ||
| 040 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 040 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3953210113 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3463215613 | SPRING LEAF |
| Repalced by: A 3953210013 | ||
| 040 | A 3953210013 | SPRING LEAF |
| NO.3 | ||
| 048 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 048 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3953210114 | SPRING LEAF |
| Repalced by: A 6563210214 | ||
| 048 | A 6563210214 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3953210014 | SPRING LEAF |
| Repalced by: A 3463215614 | ||
| 048 | A 3463215614 | SPRING LEAF |
| Repalced by: A 6593210614 | ||
| 048 | A 6593210614 | SPRING LEAF |
| NO.4 | ||
| 056 | A 3633210015 | SPRING LEAF |
| Repalced by: A 6593210615 | ||
| 056 | A 6593210615 | SPRING LEAF |
| NO.5 | ||
| 056 | A 3953210115 | SPRING LEAF |
| Repalced by: A 6563210215 | ||
| 056 | A 6563210215 | SPRING LEAF |
| NO.5 | ||
| 056 | A 3463215615 | SPRING LEAF |
| Repalced by: A 3953210015 | ||
| 056 | A 3953210015 | SPRING LEAF |
| NO.5 | ||
| A 3633210016 | SPRING LEAF | |
| Repalced by: A 6593210616 | ||
| A 6593210616 | SPRING LEAF | |
| NO.6 | ||
| A 3953210116 | SPRING LEAF | |
| Repalced by: A 6563210216 | ||
| A 6563210216 | SPRING LEAF | |
| NO.6 | ||
| A 3463215316 | SPRING LEAF | |
| Repalced by: A 3463215616 | ||
| A 3463215616 | SPRING LEAF | |
| Repalced by: A 3953210016 | ||
| A 3953210016 | SPRING LEAF | |
| NO.6 | ||
| A 3633210017 | SPRING LEAF | |
| Repalced by: A 6593210617 | ||
| A 6593210617 | SPRING LEAF | |
| NO.7 | ||
| A 3953210117 | SPRING LEAF | |
| Repalced by: A 6563210217 | ||
| A 6563210217 | SPRING LEAF | |
| NO.7 | ||
| A 3463215617 | SPRING LEAF | |
| Repalced by: A 6593210517 | ||
| A 6593210517 | SPRING LEAF | |
| NO.7 | ||
| A 3633210018 | SPRING LEAF | |
| Repalced by: A 6593210618 | ||
| A 6593210618 | SPRING LEAF | |
| NO.8 | ||
| A 3953210118 | SPRING LEAF | |
| Repalced by: A 6563210218 | ||
| A 6563210218 | SPRING LEAF | |
| NO.8 | ||
| A 3463215618 | SPRING LEAF | |
| NO.8 | ||
| A 3633210019 | SPRING LEAF | |
| Repalced by: A 6593210619 | ||
| A 6593210619 | SPRING LEAF | |
| NO.9 | ||
| A 3953210119 | SPRING LEAF | |
| Repalced by: A 6563210219 | ||
| A 6563210219 | SPRING LEAF | |
| NO.9 | ||
| A 3463215619 | SPRING LEAF | |
| Repalced by: A 6593210519 | ||
| A 6593210519 | SPRING LEAF | |
| NO.9 | ||
| A 3633210020 | SPRING LEAF | |
| NO.10 | ||
| A 3953210120 | SPRING LEAF | |
| Repalced by: A 6563210120 | ||
| A 6563210120 | SPRING LEAF | |
| NO.10 | ||
| A 3463215320 | SPRING LEAF | |
| Repalced by: A 3463215620 | ||
| A 3463215620 | SPRING LEAF | |
| NO.10 | ||
| 096 | A 3633210021 | SPRING LEAF |
| Repalced by: A 6593210421 | ||
| 096 | A 6593210421 | SPRING LEAF |
| NO.11 | ||
| 096 | A 3953210121 | SPRING LEAF |
| Repalced by: A 6563210121 | ||
| 096 | A 6563210121 | SPRING LEAF |
| NO.11 | ||
| 100 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 100 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 100 | A 3953210122 | SPRING LEAF |
| NO.12 | ||
| A 3953210123 | SPRING LEAF | |
| Repalced by: A 6563210123 | ||
| A 6563210123 | SPRING LEAF | |
| NO.13 | ||
| 108 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 108 | A 3473210171 | SCREW |
| (SPRING BOLT) | ||
| 108 | A 3463215071 | SCREW |
| (SPRING BOLT) | ||
| 112 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 112 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 116 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240833 | ||
| 116 | A 6203240833 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 116 | A 6203240533 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| NO.4 | ||
| 116 | A 6203240533 | SPRING CLAMP |
| SPRING EYE,REAR | ||
| NO.4 | ||
| 116 | A 6593240133 | SPRING CLAMP |
| SPRING EYE,FRONT | ||
| NO.4 | ||
| 116 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 116 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 116 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 116 | A 0003249633 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 116 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 116 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| NO.3 | ||
| 116 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,REAR | ||
| NO.3 | ||
| 116 | A 6593240033 | SPRING CLAMP |
| SPRING EYE,FRONT | ||
| NO.3 | ||
| 120 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 120 | N 308765012007 | SCREW |
| SPRING CLAMP | ||
| M 12X120 | ||
| 120 | N 000960012333 | SCREW |
| SPRING CLAMP | ||
| M 12X125 | ||
| N 000963012011 | SCREW | |
| SPRING CLAMP | ||
| N 000963012011 | SCREW | |
| SPRING CLAMP | ||
| 124 | A 3039902440 | WASHER |
| SPRING CLAMP | ||
| 128 | N 000934012022 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 140 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 144 | A 3043210150 | BUSHING |
| 144 | A 6203210050 | BUSHING |
| A 3953220330 | SHACKLE PIN | |
| Repalced by: A 3955860232 | ||
| 150 | A 3955860032 | REPAIR KIT |
| Repalced by: A 3955860232 | ||
| 150 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 150 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 154 | N 071412010300 | GREASE NIPPLE |
| 158 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 158 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 158 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 170 | A 0029973140 | SEAL RING |
| 175 | A 3529900337 | BOLT |
| 179 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 179 | N 000125010532 | WASHER |
| 183 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 183 | N 910113010000 | NUT |
| 190 | A 3913510028 | PAD |
| FRONT SPRINGS TO FRONT AXLE | ||
| 190 | A 3353310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 33 MM | ||
| 190 | A 3353310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 33 MM | ||
| 190 | A 3893310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 85 MM | ||
| 190 | A 3953310128 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 75 MM | ||
| 198 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 198 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 198 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 198 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 198 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 198 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 202 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 202 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 206 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 206 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 206 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 206 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 210 | A 3433310225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 330 MM | ||
| 210 | A 3433310225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 330 MM | ||
| 210 | A 3333310125 | U-BOLT |
| Repalced by: A 3363310025 | ||
| 210 | A 3363310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 290 MM | ||
| 214 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 214 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 214 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 | A 0019871140 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 224 | A 3633220051 | SPACER RING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| A 6209870039 | RUBBER BUFFER | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| A 3953210040 | BRACKET | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 230 | N 007985010127 | SCREW |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 234 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 234 | N 910113010000 | NUT |
| SPRING STOP TO FRAME BOTTOM SIDE | ||

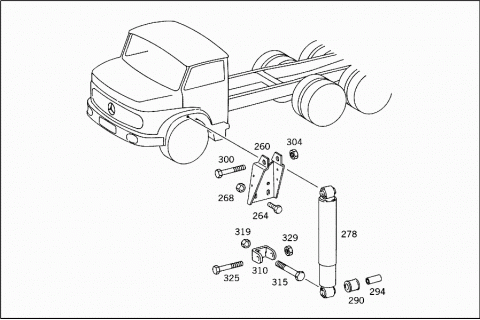

| 260 | A 3363230040 | BRACKET |
| SHOCK ABSORBER | ||
| 264 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 264 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 268 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 278 | A 0023235400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 278 | A 0023231600 | SHOCK ABSORBER |
| Repalced by: A 0043234900 | ||
| 278 | A 0043234900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 278 | A 0023237200 | SHOCK ABSORBER |
| Repalced by: A 0033239700 | ||
| 278 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 278 | A 0033239700 | SHOCK ABSORBER |
| 278 | A 0023237300 | SHOCK ABSORBER |
| Repalced by: A 0043234400 | ||
| 278 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 278 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 278 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0003231944 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 290 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 290 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 54 00,002 323 73 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 16 00,004 323 44 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 49 00,002 323 72 00 | ||
| 290 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 290 | A 0003233144 | RUBBER BUFFER |
| TO 002 323 97 00 | ||
| Repalced by: A 0003238085 | ||
| 290 | A 0003238085 | RUBBER MOUNTING |
| TO 002 323 97 00 | ||
| 294 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 294 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 294 | A 0003233150 | SPACER RING |
| TO 002 323 54 00,002 323 73 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 16 00,004 323 44 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 49 00,002 323 72 00 | ||
| 294 | A 0003235250 | BUSHING |
| TO 002 323 97 00 | ||
| 300 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 300 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X85 | ||
| 304 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 304 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 310 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 310 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 310 | A 3953230540 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 315 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 315 | N 000960020084 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 20X125 | ||
| 315 | N 000960020084 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 20X125 | ||
| 315 | N 000960022037 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 22X130 | ||
| 319 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 319 | N 913004020003 | NUT |
| BRACKET TO SPRING SADDLE | ||
| 319 | N 913004020003 | NUT |
| BRACKET TO SPRING SADDLE | ||
| 319 | N 913004022003 | NUT |
| Repalced by: N 910113022001 | ||
| 319 | N 910113022001 | NUT |
| BRACKET TO SPRING SADDLE | ||
| Repalced by: N 910113022000 | ||
| 319 | N 910113022000 | NUT |
| BRACKET TO SPRING SADDLE | ||
| A 3439900340 | WASHER | |
| BRACKET TO SPRING SADDLE | ||
| 34X20.5X6 MM | ||
| Repalced by: A 3939900240 | ||
| A 3939900240 | WASHER | |
| BRACKET TO SPRING SADDLE | ||
| 34X17X6 MM | ||
| 325 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 325 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| M 16X85 | ||
| 329 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 329 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||

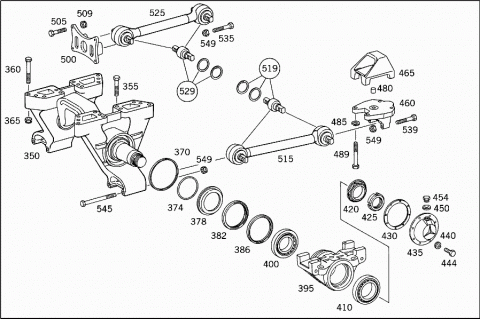

| 350 | A 3953200778 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 355 | N 914142020103 | SCREW |
| Repalced by: A 0003250175 | ||
| 355 | A 0003250175 | SCREW |
| Repalced by: A 0003250775 | ||
| 355 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 355 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X90 | ||
| 360 | N 000960020123 | SCREW |
| Repalced by: A 0003250075 | ||
| 360 | A 0003250075 | SCREW |
| Repalced by: A 0003250475 | ||
| 360 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 360 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X150 | ||
| 365 | N 913012020000 | NUT |
| CONSOLE TO FRAME | ||
| 370 | A 3953200067 | GASKET |
| INSIDE | ||
| 374 | A 0009973445 | SEAL RING |
| Repalced by: A 0079975948 | ||
| 374 | A 0079975948 | SEAL RING |
| INSIDE | ||
| 378 | A 3893251062 | THRUST WASHER |
| INSIDE | ||
| 382 | A 0059978447 | SEAL RING |
| INSIDE | ||
| 386 | A 0099978846 | SEAL RING |
| INSIDE | ||
| 395 | A 3953250312 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 395 | A 6243250012 | SPRING SADDLE |
| Repalced by: A 6243250112 | ||
| 395 | A 6243250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 395 | A 6243250212 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 400 | A 0029815005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 400 | A 0029815305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 400 | A 0059819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 400 | A 0079810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 410 | A 0049810605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 410 | A 0039816805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 410 | A 0079810305 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 420 | A 3893252152 | SPACER WASHER |
| OUTSIDE | ||
| 425 | A 3899905060 | NUT |
| SPRING SADDLE | ||
| 430 | A 3893250280 | GASKET |
| COVER TO REAR SPRING SADDLE | ||
| 435 | A 3893200684 | COVER |
| SPRING SUPPORT | ||
| 440 | N 912004008102 | LOCK WASHER |
| COVER TO REAR SPRING SADDLE | ||
| 444 | N 000933008145 | SCREW |
| COVER TO REAR SPRING SADDLE | ||
| 450 | N 007603014405 | SEAL RING |
| OIL REFILLING | ||
| 454 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 454 | N 007604014110 | SCREW PLUG |
| OIL REFILLING | ||
| 460 | A 3953251109 | BEARING BRACKET |
| REAR AXLES I AND II | ||
| 465 | A 3953250619 | SPRING SEAT |
| Repalced by: A 6243250419 | ||
| 465 | A 6243250419 | SPRING SEAT |
| Repalced by: A 6253250019 | ||
| 465 | A 6253250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 465 | A 6253250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 465 | A 3953250719 | SPRING SEAT |
| Repalced by: A 6243250519 | ||
| 465 | A 6243250519 | SPRING SEAT |
| Repalced by: A 6253250119 | ||
| 465 | A 6253250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 465 | A 6253250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 480 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 485 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 489 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 489 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 500 | A 3953251909 | BEARING BRACKET |
| Repalced by: A 3953253909 | ||
| 500 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 500 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I AND II CONTROL ARM BEARING BRACKETS,SEE GROUP: | ||
| "42" | ||
| 505 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 505 | N 308676014014 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X70 | ||
| 505 | N 308676014002 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X80 | ||
| 509 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 509 | N 910113014000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 515 | A 3953500706 | CONTROL ARM |
| BOTTOM | ||
| 515 | A 6593500406 | CONTROL ARM |
| BOTTOM | ||
| 515 | A 6593502706 | CONTROL ARM |
| BOTTOM | ||
| 515 | A 6243500106 | CONTROL ARM |
| BOTTOM | ||
| 515 | A 6593501206 | CONTROL ARM |
| BOTTOM | ||
| 515 | A 6593503506 | CONTROL ARM |
| BOTTOM | ||
| 519 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 519 | A 0003500613 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 525 | A 3953500006 | CONTROL ARM |
| Repalced by: A 6243500006 | ||
| 525 | A 6243500006 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 525 | A 6593501106 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 525 | A 6593503406 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 529 | A 0005861235 | REPAIR KIT |
| Repalced by: A 0003500413 | ||
| 529 | A 0003500413 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 535 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 535 | N 000960020078 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M 20X85 | ||
| 539 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 539 | N 308765020012 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 20X90 | ||
| 545 | N 000960020152 | SCREW |
| Repalced by: N 000960020120 | ||
| 545 | N 000960020120 | SCREW |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| M 20X230 | ||
| 545 | N 000960020120 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| M 20X230 | ||
| 545 | N 000960020080 | SCREW |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| M 20X240 | ||
| 545 | N 000960020080 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| M 20X240 | ||
| 549 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 549 | N 913004020003 | NUT |
| UPPER AND LOWER CONTROL ARMS | ||

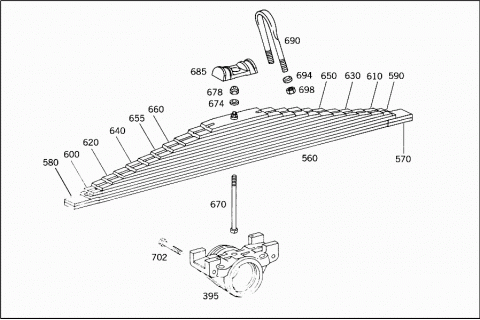

| 560 | A 3433200206 | REAR SPRING |
| 11-LEAF | ||
| 560 | A 3433200106 | REAR SPRING |
| 8-LEAF | ||
| 570 | A 3433240611 | SPRING LEAF |
| Repalced by: A 3433200193 | ||
| 580 | A 3433240612 | SPRING LEAF |
| Repalced by: A 3433200193 | ||
| 580 | A 3433200193 | SPRING LEAF |
| NO.1,NO.2 | ||
| 580 | A 3433240511 | SPRING LEAF |
| Repalced by: A 3433200093 | ||
| 580 | A 3433240512 | SPRING LEAF |
| Repalced by: A 3433200093 | ||
| 580 | A 3433200093 | SPRING LEAF |
| NO.1,NO.2 | ||
| 590 | A 3433240213 | SPRING LEAF |
| NO.3 | ||
| 590 | A 3433240113 | SPRING LEAF |
| NO.3 | ||
| 600 | A 3433240214 | SPRING LEAF |
| NO.4 | ||
| 600 | A 3433240114 | SPRING LEAF |
| NO.4 | ||
| 610 | A 3433240215 | SPRING LEAF |
| NO.5 | ||
| 610 | A 3433240115 | SPRING LEAF |
| NO.5 | ||
| 620 | A 3433240216 | SPRING LEAF |
| NO.6 | ||
| 620 | A 3433240116 | SPRING LEAF |
| NO.6 | ||
| 630 | A 3433240217 | SPRING LEAF |
| NO.7 | ||
| 630 | A 3433240117 | SPRING LEAF |
| NO.7 | ||
| 640 | A 3433240218 | SPRING LEAF |
| NO.8 | ||
| 640 | A 3433240118 | SPRING LEAF |
| NO.8 | ||
| 650 | A 3433240219 | SPRING LEAF |
| NO.9 | ||
| 655 | A 3433240220 | SPRING LEAF |
| NO.10 | ||
| 660 | A 3433240221 | SPRING LEAF |
| NO.11 | ||
| 670 | A 3473240071 | SPRING BOLT |
| Repalced by: A 3473240271 | ||
| 670 | A 3473240271 | SPRING BOLT |
| 674 | N 007349019002 | WASHER |
| 678 | N 913004018004 | NUT |
| 685 | A 3433510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 685 | A 6243510126 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 690 | A 3953510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 694 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 698 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 702 | N 000960024047 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
| M 24X140 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
