Transporto priemonė: LS 2638; VIN numerio dalis: 696369

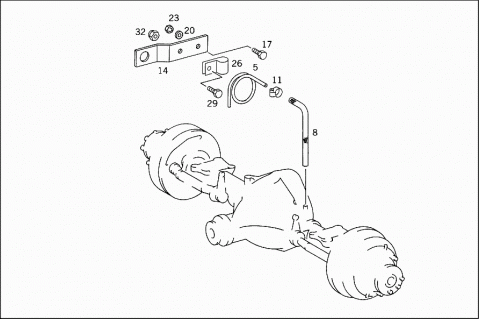

Grupė: 35 REAR AXLE - 030 AXLE BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3443517066 | PIPE |
| AXLE BREATHING | ||
| 008 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 008 | A 3769978182 | HOSE |
| 011 | N 916002010100 | CLAMP |
| 014 | A 3845288240 | BRACKET |
| BREATHER PIPE | ||
| 017 | N 000931010401 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X45 | ||
| 020 | N 000125010517 | WASHER |
| BRACKET TO SUPPORT | ||
| 023 | N 913004010004 | NUT |
| BRACKET TO SUPPORT | ||
| 026 | A 3129951401 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 029 | N 000933006220 | SCREW |
| Repalced by: N 910105006004 | ||
| 029 | N 910105006004 | SCREW |
| CLAMP TO BRACKET | ||
| 032 | N 913023006002 | NUT |
