Transporto priemonė: LS 911 B; VIN numerio dalis: 353014

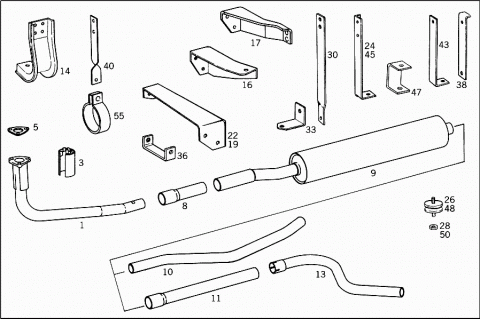

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST MUFFLER AND EXHAUST PIPES | ||
| 001 | A 3604900219 | EXHAUST PIPE |
| Repalced by: A 3604900619 | ||
| 001 | A 3604900619 | EXHAUST PIPE |
| FRONT | ||
| A 3604904119 | EXHAUST PIPE | |
| FRONT | ||
| 003 | A 3814920030 | PROTECTIVE PLATE |
| Repalced by: A 3834900130 | ||
| 003 | A 3524900130 | PROTECTIVE PLATE |
| Repalced by: A 3834900130 | ||
| 003 | A 3834900130 | PROTECTIVE PLATE |
| Repalced by: A 3834922530 | ||
| 003 | A 3834922530 | PROTECTIVE PLATE |
| 005 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 005 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931010282 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10 X 40 | ||
| N 000931010271 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M10X60 | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 008 | A 3604920207 | CONNECTOR |
| Repalced by: A 3224920207 | ||
| 008 | A 3404920007 | CONNECTOR |
| Repalced by: A 3224920207 | ||
| 008 | A 3224920207 | CONNECTOR |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 009 | A 3604900315 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3604900515 | ||
| 009 | A 3604900515 | EXHAUST MUFFLER WITH PIPE |
| FRONT | ||
| 009 | A 3604902315 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3834900001 | ||
| 009 | A 3834900001 | EXHAUST MUFFLER |
| FRONT | ||
| 010 | A 3524928604 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 010 | A 3524928104 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 010 | A 3524928104 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 010 | A 3604924804 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 010 | A 3604920805 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 011 | A 3604921407 | CONNECTOR |
| REAR | ||
| 011 | A 3604921407 | CONNECTOR |
| REAR | ||
| 011 | A 3604921407 | CONNECTOR |
| REAR | ||
| 011 | A 3604921507 | CONNECTOR |
| REAR | ||
| 011 | A 3604921607 | CONNECTOR |
| Repalced by: A 3604921707 | ||
| 011 | A 3604921707 | CONNECTOR |
| REAR | ||
| 013 | A 3604922504 | REAR EXHAUST PIPE |
| Repalced by: A 3604922604 | ||
| A 3604922804 | REAR EXHAUST PIPE | |
| Repalced by: A 3604922604 | ||
| 013 | A 3604922604 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3604922704 | REAR EXHAUST PIPE |
| Repalced by: A 3604922904 | ||
| 013 | A 3604922904 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3604923504 | REAR EXHAUST PIPE |
| Repalced by: A 3604923904 | ||
| 013 | A 3604923604 | REAR EXHAUST PIPE |
| Repalced by: A 3604923904 | ||
| 013 | A 3604923704 | REAR EXHAUST PIPE |
| Repalced by: A 3604923904 | ||
| 013 | A 3604923804 | REAR EXHAUST PIPE |
| Repalced by: A 3604923904 | ||
| 013 | A 3604923904 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3604927404 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3604927404 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3604927704 | REAR EXHAUST PIPE |
| Repalced by: A 3604922305 | ||
| 013 | A 3604922305 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3604922305 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3524928404 | REAR EXHAUST PIPE |
| REAR | ||
| 013 | A 3524928404 | REAR EXHAUST PIPE |
| REAR | ||
| A 3834926604 | REAR EXHAUST PIPE | |
| REAR | ||
| 013 | A 3584920104 | REAR EXHAUST PIPE |
| Repalced by: A 3604922605 | ||
| 013 | A 3604922605 | REAR EXHAUST PIPE |
| Repalced by: A 3604922805 | ||
| 013 | A 3604922805 | REAR EXHAUST PIPE |
| REAR | ||
| A 3854920114 | END PIECE | |
| A 3604910016 | SUPPORT | |
| AT SIDE MEMBER | ||
| A 3604910016 | SUPPORT | |
| AT SIDE MEMBER | ||
| A 3604910016 | SUPPORT | |
| AT SIDE MEMBER | ||
| 014 | A 3814910016 | SUPPORT |
| AT SIDE MEMBER | ||
| 014 | A 3814910016 | SUPPORT |
| AT SIDE MEMBER | ||
| 014 | A 3814910016 | SUPPORT |
| AT SIDE MEMBER | ||
| A 3524910316 | SUPPORT | |
| HELPER SPRING BRACKET | ||
| A 3524910316 | SUPPORT | |
| HELPER SPRING BRACKET | ||
| A 3524910416 | SUPPORT | |
| HELPER SPRING BRACKET | ||
| A 3604910416 | SUPPORT | |
| REAR EXHAUST LINE | ||
| A 3604910416 | SUPPORT | |
| REAR EXHAUST LINE | ||
| 016 | A 3814910116 | SUPPORT |
| REAR EXHAUST LINE | ||
| 016 | A 3814910116 | SUPPORT |
| REAR EXHAUST LINE | ||
| 016 | A 3814910116 | SUPPORT |
| REAR EXHAUST LINE | ||
| 017 | A 3604910316 | SUPPORT |
| REAR EXHAUST LINE | ||
| 017 | A 3604910316 | SUPPORT |
| REAR EXHAUST LINE | ||
| A 3814910216 | SUPPORT | |
| REAR EXHAUST LINE | ||
| A 3814910216 | SUPPORT | |
| REAR EXHAUST LINE | ||
| A 3814910216 | SUPPORT | |
| REAR EXHAUST LINE | ||
| 019 | A 3524910916 | SUPPORT |
| REAR EXHAUST LINE | ||
| A 3604910816 | SUPPORT | |
| REAR EXHAUST LINE | ||
| A 3604910816 | SUPPORT | |
| REAR EXHAUST LINE | ||
| A 3524910016 | SUPPORT | |
| EXHAUST | ||
| 022 | A 3604910916 | SUPPORT |
| EXHAUST | ||
| 024 | A 3604921341 | BRACKET |
| Repalced by: A 3814923841 | ||
| 024 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 335 MM | ||
| 024 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 335 MM | ||
| 024 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 335 MM | ||
| 024 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 335 MM | ||
| A 3604924541 | BRACKET | |
| EXHAUST | ||
| 024 | A 3814920541 | BRACKET |
| Repalced by: A 3814923841 | ||
| 024 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 355 MM | ||
| 024 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 355 MM | ||
| 026 | A 0019873140 | RUBBER BUFFER |
| Repalced by: A 0019875340 | ||
| 026 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 028 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 028 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X20 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| REAR SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| A 3524925219 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| 030 | A 3604922119 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| A 3604922819 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| A 3224923119 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| 036 | A 3524925319 | BRACKET |
| CENTRAL PART | ||
| A 3604922241 | BRACKET | |
| REAR EXHAUST LINE | ||
| A 3604922241 | BRACKET | |
| REAR EXHAUST LINE | ||
| 038 | A 3604920519 | BRACKET |
| Repalced by: A 3604920619 | ||
| 038 | A 3604920619 | BRACKET |
| AT REAR SPRING REAR BRACKET | ||
| 040 | A 3224921819 | BRACKET |
| EXHAUST PIPE | ||
| 033 | A 3814920041 | BRACKET |
| 033 | A 3814920041 | BRACKET |
| 033 | A 3814920041 | BRACKET |
| A 3524923319 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| 043 | A 3604921441 | BRACKET |
| Repalced by: A 3524920441 | ||
| 043 | A 3524920441 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 200 MM | ||
| 045 | A 3604921141 | BRACKET |
| REAR CROSS MEMBER | ||
| 047 | A 3604924041 | BRACKET |
| Repalced by: A 3604924441 | ||
| 047 | A 3604924441 | BRACKET |
| REAR CROSS MEMBER | ||
| A 3604921619 | BRACKET | |
| REAR CROSS MEMBER | ||
| A 3814920041 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| 048 | A 0019873140 | RUBBER BUFFER |
| Repalced by: A 0019875340 | ||
| 048 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 050 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 050 | N 910113010000 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| N 000933008145 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8 X 35 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8 X 22 | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8 X 15 | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8 X 20 | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 10 X 30 | ||
| N 000933010105 | SCREW | |
| Repalced by: N 304017010019 | ||
| N 304017010019 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 10 X 25 | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| BRACKET TO SUPPORT | ||
| 055 | N 071555065501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 65.5 MM | ||
| N 071555063500 | CLAMP | |
| EXHAUST PIPE TO BRACKET | ||
| 63.5 MM | ||
| N 071555060500 | CLAMP | |
| Repalced by: N 000000001642 | ||
| N 000000001642 | CLAMP | |
| EXHAUST PIPE TO BRACKET | ||
| 60.5 MM | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| CLAMP TO BRACKET AND TO PIPE | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| CLAMP TO BRACKET AND TO PIPE | ||
