Transporto priemonė: LU 1920; VIN numerio dalis: 699004

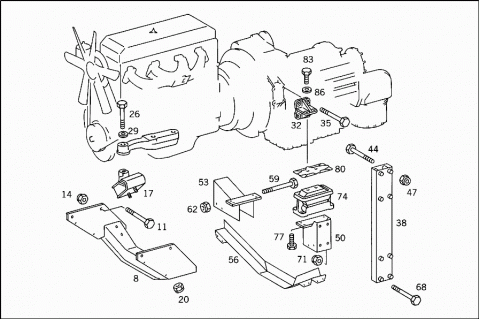

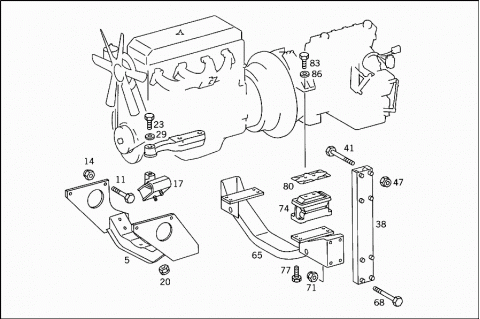

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6993100026 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 6993100126 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 6993100326 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 011 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 011 | N 308676016013 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 014 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 014 | N 910113016001 | NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 017 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 020 | N 910113012002 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 023 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 023 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 023 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 16X1,5X60-8.8 | ||
| 026 | N 000960016040 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 16X1,5X65-10.9 | ||
| 029 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 032 | A 6992420205 | SUPPORTING ARM |
| REAR | ||
| 035 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 035 | N 308676016020 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 038 | A 6992403102 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 041 | N 000960014143 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 044 | N 000960014263 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 047 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 047 | N 910113014000 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 050 | A 6992403506 | CONSOLE |
| ENGINE LEFT SUPPORT | ||
| 053 | A 6992403606 | CONSOLE |
| ENGINE RIGHT SUPPORT | ||
| 056 | A 6992404902 | ENGINE SUPPORT |
| TRANSVERSE | ||
| 059 | N 000961010045 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 062 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 062 | N 910113010002 | HEXAGON NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 065 | A 6992403002 | ENGINE SUPPORT |
| TRANSVERSE | ||
| 068 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 068 | N 308765012003 | SCREW |
| CROSS MEMBER TO ENGINE SUPPORT | ||
| 071 | N 910113012002 | NUT |
| CROSS MEMBER TO ENGINE SUPPORT | ||
| 074 | A 6452400018 | RUBBER MOUNTING |
| REAR | ||
| 074 | A 6452400118 | RUBBER MOUNTING |
| REAR | ||
| 074 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| 077 | N 000961012164 | SCREW |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 080 | A 3832420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 083 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 083 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 083 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 16X1,5X60-8.8 | ||
| 083 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 083 | N 308676016004 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 16X1,5X55-10.9 | ||
| 086 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
