Transporto priemonė: LU 1920; VIN numerio dalis: 699004

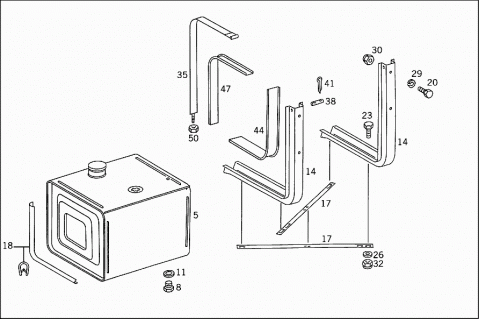

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3874702701 | FUEL TANK |
| HYDRAUL.SYSTEM USED FOR ATACHED UNITS OF A MAKE OTHER THAN MERCEDES-BENZ | ||
| 200 L | ||
| 008 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 008 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 011 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 014 | A 3354750703 | CONSOLE |
| FUEL TANK | ||
| 017 | A 3434750026 | REINFORCEMENT |
| FUEL TANK CONSOLE | ||
| 018 | A 0029873572 | EDGE GUARD SECTION |
| FUEL TANK | ||
| Repalced by: A 0019872272 | ||
| 018 | A 0019872272 | EDGE GUARD SECTION |
| FUEL TANK | ||
| 020 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 020 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 023 | N 000961012151 | SCREW |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 026 | N 000125013022 | WASHER |
| Repalced by: N 000125013008 | ||
| 026 | N 000125013008 | WASHER |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 029 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 030 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 030 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 032 | N 910113012002 | NUT |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 035 | A 3464705340 | STRAP |
| FUEL TANK | ||
| 038 | N 001443016200 | PIN |
| STRAP TO SUPPORT | ||
| 041 | N 000094004051 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 044 | A 3634750120 | PAD |
| FUEL TANK TO CONSOLE | ||
| 110/119 MM | ||
| 047 | A 3634750320 | PAD |
| FUEL TANK TO CONSOLE | ||
| 46/55 MM | ||
| 050 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
