Transporto priemonė: LU 1920; VIN numerio dalis: 699004

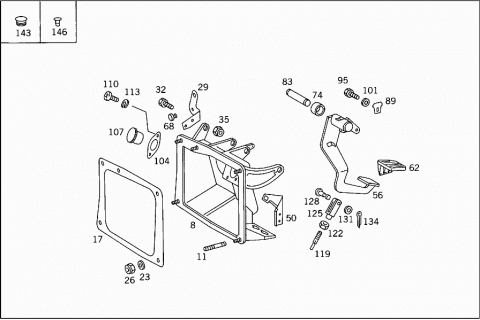

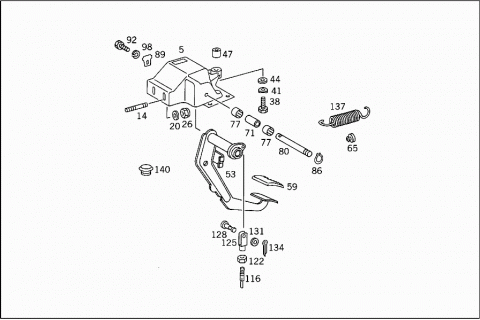

Grupė: 29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 008 | A 6502900319 | BEARING BRACKET |
| BRAKE | ||
| 011 | A 6732940270 | STUD |
| 014 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO FIRE WALL | ||
| 017 | A 6452940180 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 020 | N 007349008003 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 023 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 023 | N 000125008443 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 026 | N 913004008001 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 029 | A 6452920030 | STOP |
| BRAKE PEDAL | ||
| 032 | N 000933006130 | SCREW |
| STOP TO BEARING BRACKET | ||
| 035 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 035 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 038 | N 000933010151 | SCREW |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 041 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 044 | A 4039900040 | WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 047 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 050 | A 6554620239 | BRACKET |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 053 | A 6202900818 | PEDAL |
| BRAKE | ||
| 056 | A 6452900118 | PEDAL |
| BRAKE | ||
| 056 | A 6452900318 | PEDAL |
| BRAKE | ||
| 059 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 062 | A 2012920082 | PAD |
| BRAKE PEDAL | ||
| 065 | A 1152910186 | STOP |
| BRAKE PEDAL | ||
| 068 | A 6732910286 | STOP |
| BRAKE PEDAL | ||
| 071 | A 3852920053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 074 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 074 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 077 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 080 | A 3852940007 | PIVOT PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 083 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 086 | N 000471020001 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 089 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 092 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 092 | N 304017006018 | SCREW |
| LOCK TO BEARING BRACKET | ||
| M 6X12 | ||
| 095 | N 304017006016 | SCREW |
| LOCK TO BEARING BRACKET | ||
| M 6X18 | ||
| 098 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 101 | N 000125006421 | WASHER |
| LOCK TO BEARING BRACKET | ||
| Repalced by: N 000125006449 | ||
| 101 | N 000125006449 | WASHER |
| LOCK TO BEARING BRACKET | ||
| 104 | A 6452910046 | FLANGE |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 107 | N 900083027000 | PLUG |
| FLANGE | ||
| 110 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 110 | N 000000001145 | SCREW |
| FLANGE TO BEARING BRACKET | ||
| 113 | N 912004006102 | LOCK WASHER |
| FLANGE TO BEARING BRACKET | ||
| 116 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 116 | A 9702900039 | ROD |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 119 | A 6452920032 | ROD |
| Repalced by: A 6732920032 | ||
| 119 | A 6732920032 | ROD |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 122 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 122 | N 304035008001 | NUT |
| ROD TO YOKE | ||
| 125 | A 6209960001 | YOKE |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 125 | N 071752008003 | YOKE |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 128 | A 3852920174 | PIN |
| YOKE TO BRAKE PEDAL | ||
| 131 | N 000433008406 | WASHER |
| YOKE TO BRAKE PEDAL | ||
| 134 | N 000094002059 | COTTER PIN |
| YOKE TO BRAKE PEDAL | ||
| Repalced by: N 000094002060 | ||
| 134 | N 000094002060 | COTTER PIN |
| YOKE TO BRAKE PEDAL | ||
| 137 | A 3879935010 | SPRING |
| BRAKE PEDAL RESET | ||
| 140 | A 3819970486 | PLUG |
| CAB FLOOR SEALING | ||
| 140 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 140 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 140 | A 0009973220 | EXPANSION PLUG |
| CAB FLOOR SEALING | ||
| 143 | A 3019970386 | PLUG |
| SEAL | ||
| 146 | A 0009971586 | PLUG |
| SEAL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/360 | ||
