Transporto priemonė: LU 1924; VIN numerio dalis: 699006

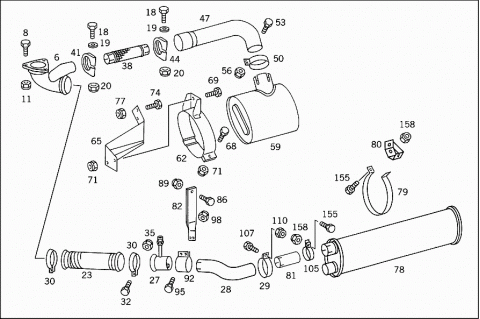

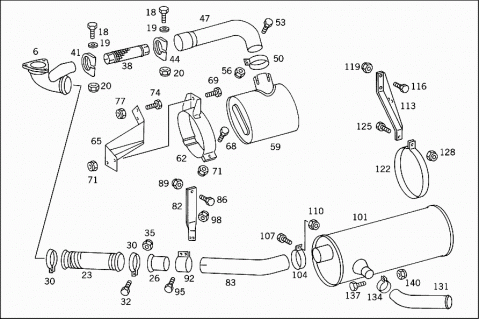

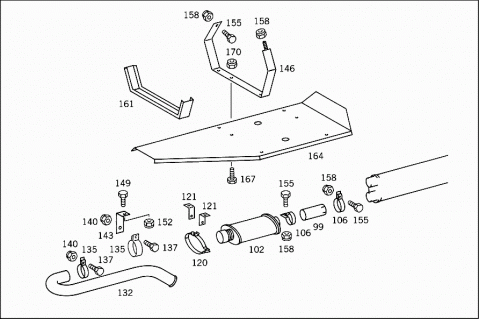

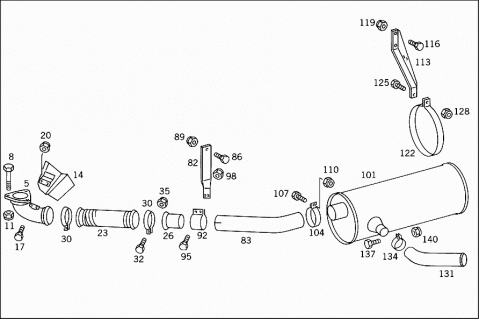

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6994905419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 006 | A 6994908819 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 008 | N 000931012114 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 011 | N 910113012002 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 6994902630 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 017 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 017 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 017 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 017 | N 910143008005 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| M 8X40 | ||
| 018 | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 018 | N 304017008067 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| M 8X110 | ||
| 019 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 019 | N 000125008443 | WASHER |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 020 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 020 | N 913004008001 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 020 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 023 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 026 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 027 | A 6554901425 | CONNECTOR |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 028 | A 0814908120 | EXHAUST PIPE |
| FROM CONNECTOR TO MUFFLER | ||
| 029 | N 071555094500 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 030 | A 6209970590 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 032 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 032 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| M 8X50 | ||
| 035 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 035 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 038 | A 6734900065 | FLEXIBLE METAL TUBE |
| FROM EXHAUST PIPE TO RESONATOR | ||
| 041 | A 6684920340 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 044 | A 6734920140 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 047 | A 0814921101 | FRONT EXHAUST PIPE |
| FROM EXHAUST PIPE TO RESONATOR | ||
| 050 | N 071555068502 | CLAMP |
| FROM EXHAUST PIPE TO RESONATOR | ||
| 053 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 053 | N 304017008034 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X25 | ||
| 056 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 056 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 059 | A 6794900101 | RESONATOR |
| 062 | A 6794900041 | CLAMP |
| RESONATOR | ||
| 065 | A 0804903140 | BRACKET |
| RESONATOR | ||
| 068 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 068 | N 304017010002 | SCREW |
| RESONATOR | ||
| M 10X30 | ||
| 069 | N 000933010128 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X20 | ||
| 071 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 071 | N 910113010000 | NUT |
| RESONATOR | ||
| 071 | N 910113010000 | HEXAGON NUT |
| CLAMP TO BRACKET | ||
| 074 | N 000961010038 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X25 | ||
| 077 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 077 | N 910113010002 | HEXAGON NUT |
| BRACKET TO SUPPORT | ||
| 078 | A 6774900001 | EXHAUST MUFFLER |
| PRE-MUFFLER | ||
| 079 | A 6744914541 | STRAP |
| PRE-MUFFLER | ||
| 080 | A 0804904040 | BRACKET |
| PRE-MUFFLER | ||
| 081 | A 0814926502 | FRONT EXHAUST PIPE |
| PRE-MUFFLER | ||
| 082 | A 6994929342 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 083 | A 6994929604 | REAR EXHAUST PIPE |
| FRONT,REAR PART | ||
| 086 | N 000933012058 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X20 | ||
| 089 | N 913004012010 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 092 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 095 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 095 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 098 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 098 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 099 | A 0814926502 | FRONT EXHAUST PIPE |
| BETWEEN PRE-MUFFLER & POSTERIOR MUFFLER | ||
| 101 | A 6154900101 | EXHAUST MUFFLER |
| 102 | A 6174902601 | EXHAUST MUFFLER |
| (POSTERIOR MUFFLER) | ||
| 104 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 104 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 105 | N 071555094500 | CLAMP |
| CONNECTING PIPE | ||
| 106 | N 071555090500 | CLAMP |
| Repalced by: N 071555090502 | ||
| 106 | N 071555090502 | CLAMP |
| CONNECTING PIPE | ||
| 107 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 107 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 110 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 110 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 113 | A 6994900342 | STRAP |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 116 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 116 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 119 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 119 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 120 | A 6774900540 | BRACKET |
| REAR MUFFLER SUSPENSION | ||
| 121 | A 6995012022 | BRACKET |
| REAR MUFFLER SUSPENSION | ||
| 122 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 125 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M 10X40 | ||
| 128 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 128 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 131 | A 6994924314 | END PIECE |
| REAR EXHAUST PIPE | ||
| 132 | A 0804925206 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 134 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 135 | N 071555090500 | CLAMP |
| Repalced by: N 071555090502 | ||
| 135 | N 071555090502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER AND TO BRACKET | ||
| 137 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 137 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 137 | N 304017010002 | HEXAGON HEAD BOLT |
| TAIL PIPE TO EXHAUST MUFFLER AND TO BRACKET | ||
| M 10X30 | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 140 | N 910113010000 | HEXAGON NUT |
| TAIL PIPE TO EXHAUST MUFFLER AND TO BRACKET | ||
| 143 | A 0804915441 | BRACKET |
| TAIL PIPE | ||
| 146 | A 0804903840 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 149 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 149 | N 304017008021 | SCREW |
| BRACKET TO TAIL PIPE BRACKET | ||
| 152 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 152 | N 913004008001 | NUT |
| BRACKET TO TAIL PIPE BRACKET | ||
| 155 | N 000933010105 | SCREW |
| EXHAUST PIPE TO SUPPORT | ||
| 155 | N 000933010105 | SCREW |
| EXHAUST PIPE TO PRE-MUFFLER | ||
| 155 | N 000933010105 | SCREW |
| BRACKET TO PRE-MUFFLER | ||
| 155 | N 000933010105 | SCREW |
| CONNECTING PIPE | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| EXHAUST PIPE TO SUPPORT | ||
| 158 | N 910113010000 | HEXAGON NUT |
| EXHAUST PIPE TO PRE-MUFFLER | ||
| 158 | N 910113010000 | HEXAGON NUT |
| BRACKET TO PRE-MUFFLER | ||
| 158 | N 910113010000 | HEXAGON NUT |
| CONNECTING PIPE | ||
| 161 | A 3604750020 | PAD |
| 164 | A 6994929830 | PROTECTIVE PLATE |
| 167 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 167 | N 304017008016 | SCREW |
| HEAT SHIELD MOUNTING | ||
| 170 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 170 | N 913004008001 | NUT |
| HEAT SHIELD MOUNTING | ||
