Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358002
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0024302201 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024304101 | ||
| A 0024308501 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024304101 | ||

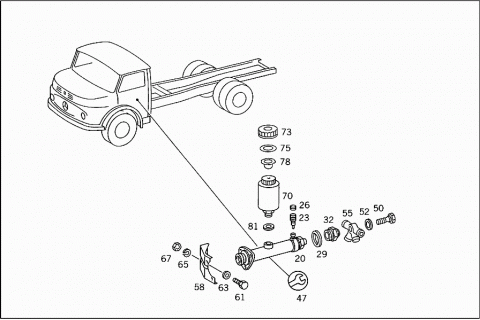

| 020 | A 0024304101 | BRAKE MASTER CYLINDER |
| 023 | A 3075530107 | VALVE |
| 026 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 026 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 026 | A 0004210887 | PROTECTIVE CAP |
| 029 | N 007603040102 | SEAL RING |
| TEVES | ||
| 032 | A 0004311075 | THREADED UNION |
| TEVES | ||
| 047 | A 0005861743 | REPAIR KIT |
| TEVES | ||
| 047 | A 0015860143 | REPAIR KIT |
| Repalced by: A 0004303283 | ||
| 047 | A 0004303283 | PISTON |
| TO 002 430 85 01,KUGELFISCHER | ||
| 050 | A 0009902963 | HOLLOW SCREW |
| KUGELFISCHER | ||
| 050 | A 0004280026 | HOLLOW SCREW |
| TEVES | ||
| 052 | A 0004318860 | SEAL RING |
| KUGELFISCHER | ||
| 052 | N 007603014405 | SEAL RING |
| TEVES | ||
| 055 | A 0004310330 | BANJO UNION |
| KUGELFISCHER | ||
| 055 | A 0004280124 | DISTRIBUTOR |
| TEVES | ||
| 058 | A 3524310940 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 061 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 063 | N 000125010518 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 065 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 067 | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 070 | A 0004312102 | RESERVOIR |
| BOLTED ON BRAKE MASTER CYLINDER | ||
| 070 | A 0014313702 | RESERVOIR |
| BOLTED ON BRAKE MASTER CYLINDER | ||
| 073 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 075 | A 0009972940 | SEAL RING |
| 078 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 078 | A 0004314334 | STRAINER |
| TO 000 431 21 02 | ||
| 078 | A 0004314334 | STRAINER |
| TO 001 431 37 02 | ||
| 081 | N 007603022102 | SEAL RING |

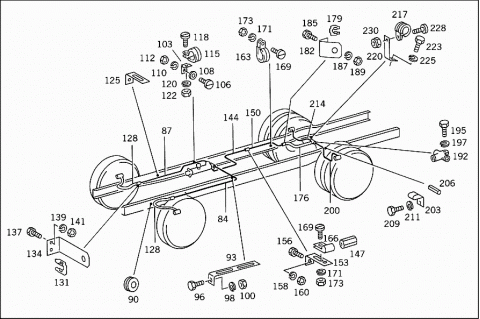

| 084 | A 3404203929 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 2400 MM | ||
| 087 | A 3404202429 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| 1350 MM | ||
| 090 | A 3859970081 | GROMMET |
| SIDE MEMBER,FRONT | ||
| 093 | A 3524290740 | BRACKET |
| BRAKE LINES TO CROSS MEMBER | ||
| 096 | N 000933008147 | SCREW |
| BRAKE LINES TO CROSS MEMBER | ||
| 098 | N 912004008102 | LOCK WASHER |
| BRAKE LINES TO CROSS MEMBER | ||
| 100 | N 000934008010 | NUT |
| BRAKE LINES TO CROSS MEMBER | ||
| 103 | A 3604280143 | ANGLE |
| BRAKE LINES TO CROSS MEMBER | ||
| 106 | N 000084006137 | SCREW |
| BRAKE LINES TO CROSS MEMBER | ||
| 108 | N 000125006421 | WASHER |
| BRAKE LINES TO CROSS MEMBER | ||
| 110 | N 912004006102 | LOCK WASHER |
| BRAKE LINES TO CROSS MEMBER | ||
| 112 | N 000934006007 | NUT |
| BRAKE LINES TO CROSS MEMBER | ||
| 115 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 115 | N 916016008200 | CLAMP |
| BRAKE LINES TO CROSS MEMBER | ||
| 118 | N 000084006197 | SCREW |
| BRAKE LINES TO CROSS MEMBER | ||
| 120 | N 912004006102 | LOCK WASHER |
| BRAKE LINES TO CROSS MEMBER | ||
| 122 | N 000934006007 | NUT |
| BRAKE LINES TO CROSS MEMBER | ||
| 125 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 125 | A 3464296040 | BRACKET |
| AT CAB CONSOLE | ||
| 128 | A 0004288235 | BRAKE HOSE |
| 550 MM | ||
| 128 | A 0004288935 | BRAKE HOSE |
| 650 MM | ||
| 128 | A 0014284835 | BRAKE HOSE |
| 650 MM | ||
| 131 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 131 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 134 | A 3524282040 | BRACKET |
| BRAKE HOSE,FRONT | ||
| 137 | N 000933008145 | SCREW |
| BRAKE HOSE BRACKET | ||
| 139 | N 912004008102 | LOCK WASHER |
| BRAKE HOSE BRACKET | ||
| 141 | N 000934008010 | NUT |
| BRAKE HOSE BRACKET | ||
| 144 | A 3404201429 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 850 MM | ||
| 147 | A 0004292736 | CONNECTOR |
| 150 | A 3404203829 | LINE |
| FROM CONNECTOR TO REAR AXLE | ||
| 2200 MM | ||
| 150 | A 3404204029 | LINE |
| FROM CONNECTOR TO REAR AXLE | ||
| 2600 MM | ||
| 150 | A 3404204129 | LINE |
| FROM CONNECTOR TO REAR AXLE | ||
| 2800 MM | ||
| 150 | A 3404203729 | LINE |
| FROM CONNECTOR TO REAR AXLE | ||
| 2000 MM | ||
| 153 | A 3184280240 | BRACKET |
| 156 | N 000933008147 | SCREW |
| 158 | N 912004008102 | LOCK WASHER |
| 160 | N 000934008010 | NUT |
| 163 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 163 | N 916016008200 | CLAMP |
| BRAKE LINES TO FRAME | ||
| 8 MM | ||
| 166 | A 3609950601 | CLAMP |
| BRAKE LINES TO FRAME | ||
| 18 MM | ||
| 169 | N 000084006197 | SCREW |
| BRAKE LINES TO FRAME | ||
| 171 | N 912004006102 | LOCK WASHER |
| BRAKE LINES TO FRAME | ||
| 173 | N 000934006007 | NUT |
| BRAKE LINES TO FRAME | ||
| 176 | A 0024280735 | BRAKE HOSE |
| 600 MM | ||
| 176 | A 0004281435 | BRAKE HOSE |
| 176 | A 0014285135 | BRAKE HOSE |
| 179 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 179 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 182 | A 3834280140 | BRACKET |
| BRAKE HOSE,REAR | ||
| 185 | N 000933008137 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 187 | N 912004008102 | LOCK WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 189 | N 000934008010 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 192 | A 0004290437 | DISTRIBUTOR |
| 192 | A 0004294337 | DISTRIBUTOR |
| 195 | N 000933008152 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 197 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 200 | A 3404202429 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1350 MM | ||
| 203 | A 3129951020 | CLAMP |
| DISTRIBUTOR TO REAR AXLE | ||
| 206 | A 3129973482 | HOSE |
| DISTRIBUTOR TO REAR AXLE | ||
| 209 | N 000933008212 | SCREW |
| 211 | N 912004008102 | LOCK WASHER |
| 214 | A 3404201029 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 650 MM | ||
| 217 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 217 | N 916016008200 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 220 | A 3854294040 | BRACKET |
| Repalced by: A 3812711640 | ||
| 220 | A 3812711640 | BRACKET |
| BRAKE LINE TO REAR AXLE | ||
| 223 | N 000933008290 | SCREW |
| BRACKET TO REAR AXLE | ||
| 225 | N 912004008102 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 228 | N 000084006197 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 230 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 230 | N 913004006001 | NUT |
| BRACKET TO REAR AXLE HOUSING | ||
| 233 | N 074305022202 | NUT |
| AT AIR COMPRESSOR | ||
| 235 | A 0009870446 | SEALING CORD |
| AT AIR COMPRESSOR | ||
| 237 | A 0004290227 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 239 | N 074301026202 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 242 | A 0005516456 | TUBE |
| 18 MM | ||
| 245 | N 915018018000 | UNION NUT |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 247 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 247 | A 0019901167 | SEAL CONE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||

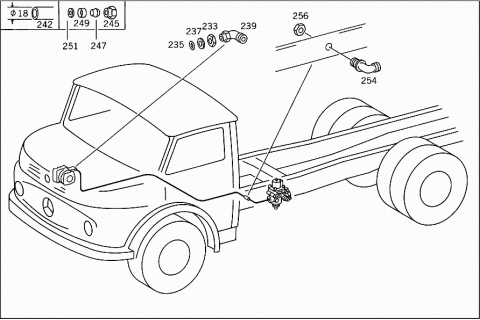

| 249 | N 915065018101 | THRUST RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 251 | N 915045015100 | SEAL RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 254 | A 0009903371 | ELBOW FITTING |
| 256 | N 074305026202 | NUT |
| ELBOW FITTING TO SIDE MEMBER | ||
| 259 | A 0005516256 | TUBE |
| 15 MM | ||
| 262 | N 915018015000 | UNION NUT |
| 264 | N 003861015004 | GLAND |
| 266 | N 915065015101 | THRUST RING |
| 268 | N 915045012100 | SEAL RING |
| 271 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 271 | A 6739950001 | CLAMP |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 274 | N 000084006197 | SCREW |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 276 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 278 | N 000934006007 | NUT |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||

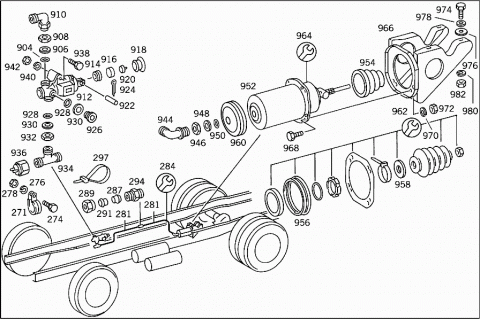

| 281 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 281 | A 0009872827 | PLASTIC PIPE |
| BLACK | ||
| 12X9 MM | ||
| 284 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 284 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||

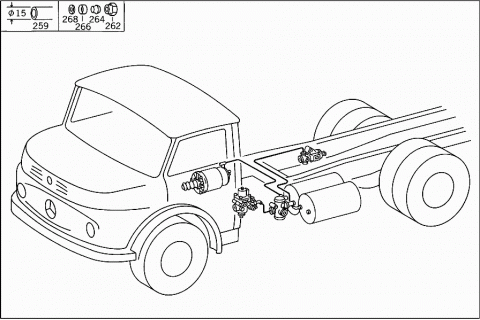

| TO 010 997 59 82 | ||
| 287 | N 915062009000 | SLEEVE |
| 289 | N 915017012100 | UNION NUT |
| 291 | N 003861012007 | GLAND |
| 294 | N 074313012100 | FITTING |
| Repalced by: A 0029971172 | ||
| 294 | A 0029971172 | FITTING |
| 297 | A 0019978490 | LOOM TIE |

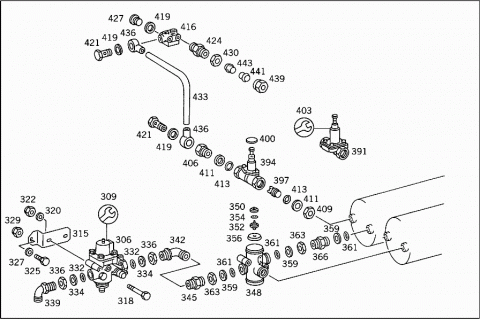

| 306 | A 0024316006 | PRESSURE REGULATOR |
| WABCO | ||
| 306 | A 0024315906 | PRESSURE REGULATOR |
| BOSCH | ||
| 309 | A 0014304960 | REPAIR KIT |
| TO 002 431 60 06,WABCO 975 303 440 0 | ||
| 309 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 59 06,BOSCH | ||
| 309 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 59 06,BOSCH | ||
| 315 | A 3524316340 | BRACKET |
| PRESSURE REGULATOR | ||
| 318 | N 000933008153 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 320 | N 000125008418 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 322 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 325 | N 000931008228 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 327 | N 000125008418 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 329 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 332 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "1,21" | ||
| 334 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "1,21" | ||
| 336 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "1,21" | ||
| 339 | A 0004293238 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 342 | N 074301022203 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 345 | N 074298022203 | DOUBLE FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "L,2" | ||
| 348 | A 0004317206 | VALVE |
| (TWO-CIRCUIT PROTECTIVE VALVE) | ||
| 350 | A 0004311981 | VALVE DISC |
| 352 | A 0004312081 | VALVE DISC |
| 354 | A 0007630454 | SEAL |
| 356 | A 0004315086 | CUP |
| 359 | A 0004290227 | THRUST RING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 361 | A 0009870446 | SEALING CORD |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 363 | N 074305022202 | NUT |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 366 | N 074299022302 | DOUBLE FITTING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||

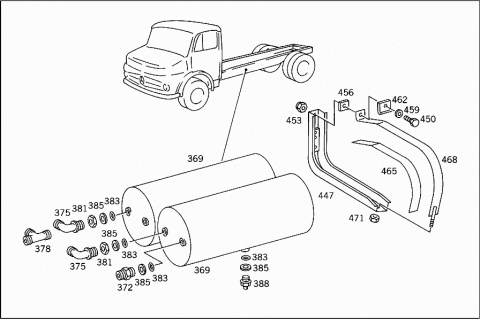

| 369 | A 3214300205 | RESERVOIR |
| Repalced by: A 0034322501 | ||
| 369 | A 0034322501 | RESERVOIR |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 40 L. | ||
| 372 | N 074298022203 | DOUBLE FITTING |
| OUTSIDE AIR RESERVOIR | ||
| 375 | N 074301022203 | ELBOW FITTING |
| INSIDE AIR RESERVOIR | ||
| 378 | A 0009902470 | T-FITTING |
| OUTSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 381 | N 074305022202 | NUT |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 383 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 385 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 388 | A 0004321107 | VALVE |
| DRAIN | ||
| 388 | A 0004321907 | VALVE |
| DRAIN | ||
| 388 | A 0004320807 | VALVE |
| DRAIN | ||
| 388 | A 0004322107 | VALVE |
| DRAIN | ||
| 388 | A 0004322407 | VALVE |
| DRAIN | ||
| 391 | A 0014299844 | VALVE |
| (OVERFLOW VALVE) | ||
| BOSCH | ||
| 391 | A 0014295244 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 391 | A 0034290244 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| 394 | A 0014297944 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 397 | A 0024298844 | VALVE |
| TO 001 429 79 44,GRAU | ||
| 400 | A 0004290745 | DIAPHRAGM |
| TO 001 429 79 44,GRAU | ||
| 403 | A 0015862642 | REPAIR KIT |
| TO 001 429 98 44,BOSCH | ||
| 403 | A 0015862042 | REPAIR KIT |
| TO 001 429 52 44,WABCO | ||
| 406 | A 0009904468 | FITTING |
| AT OVERFLOW VALVE | ||
| 409 | N 074305022202 | NUT |
| OVERFLOW VALVE TO FRONT OF RESERVOIR | ||
| 411 | A 0004290227 | THRUST RING |
| OVERFLOW VALVE TO FRONT OF RESERVOIR | ||
| 413 | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE TO FRONT OF RESERVOIR | ||
| 416 | A 0004294137 | DISTRIBUTOR |
| 419 | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 421 | N 915036008202 | HOLLOW SCREW |
| AT DISTRIBUTOR | ||
| 424 | A 0039977572 | FITTING |
| AT DISTRIBUTOR | ||
| 427 | N 000908012003 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 430 | N 080705014002 | NUT |
| DISTRIBUTOR TO FRAME | ||
| 433 | A 0089979082 | HOSE |
| FROM DISTRIBUTOR TO OVERFLOW VALVE | ||
| 800 MM | ||
| 436 | N 915052006013 | BANJO UNION |
| 439 | N 915017008100 | UNION NUT |
| 441 | N 003861008005 | GLAND |
| 443 | N 915062006000 | SLEEVE |
| 447 | A 3604301311 | CONSOLE |
| 450 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 450 | A 0029909604 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X1.5X40 MM | ||
| 450 | N 000961014064 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X1.5X40 MM | ||
| 453 | N 913004014002 | NUT |
| CONSOLE TO FRAME | ||
| 456 | A 3604750484 | SHIM |
| 459 | N 007349015009 | WASHER |
| CONSOLE TO FRAME | ||
| 462 | A 3434320026 | PLATE |
| CONSOLE TO FRAME | ||
| 465 | A 3354320218 | BASE |
| 468 | A 3604300040 | STRAP |
| 471 | N 000934010014 | NUT |
| RESERVOIR TO SUPPORT | ||

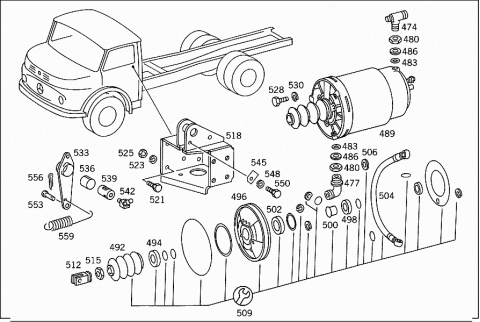

| 474 | A 0004311675 | THREADED UNION |
| AT BRAKE BOOSTER | ||
| 477 | A 3529900071 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 480 | N 080705016003 | NUT |
| AT BRAKE BOOSTER | ||
| 483 | A 0009971548 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 486 | A 0004310051 | SPACER RING |
| AT BRAKE BOOSTER | ||
| 489 | A 0004318814 | BRAKE CYLINDER |
| AIR BRAKE BOOSTER | ||
| 492 | A 0004317186 | CUP |
| 494 | A 0004312886 | SEAL RING |
| 496 | A 0004315583 | PISTON |
| 498 | A 0004317060 | SEAL RING |
| 500 | A 0003270032 | VALVE PART |
| 502 | A 0004319460 | SEAL RING |
| 504 | A 0004289535 | BRAKE HOSE |
| 505 MM | ||
| 506 | N 007603014405 | SEAL RING |
| 509 | A 0025860143 | REPAIR KIT |
| 512 | A 3604310267 | YOKE |
| AT BRAKE CYLINDER | ||
| 515 | N 000936010010 | NUT |
| AT BRAKE CYLINDER | ||
| 518 | A 3604302111 | CONSOLE |
| BRAKE BOOSTER | ||
| 521 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| 523 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 525 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 528 | N 000933010129 | SCREW |
| BRAKE BOOSTER TO CONSOLE | ||
| 530 | N 912004010102 | LOCK WASHER |
| BRAKE BOOSTER TO CONSOLE | ||
| 533 | A 3524301323 | LEVER |
| BRAKE BOOSTER | ||
| 536 | A 3529920801 | BUSHING |
| 539 | A 3604310074 | PIN |
| LEVER TO CONSOLE | ||
| 542 | N 071412010100 | GREASE NIPPLE |
| LEVER TO CONSOLE | ||
| 545 | A 3149940101 | LOCK |
| LEVER TO CONSOLE | ||
| 548 | N 912004008102 | LOCK WASHER |
| LEVER TO CONSOLE | ||
| 550 | N 000933008130 | SCREW |
| LEVER TO CONSOLE | ||
| 553 | A 3529910007 | PIN |
| DOUBLE LEVER TO PUSH ROD | ||
| 556 | N 000094003219 | COTTER PIN |
| DOUBLE LEVER TO PUSH ROD | ||
| 559 | A 3609930210 | SPRING |
| (RELEASE SPRING) | ||

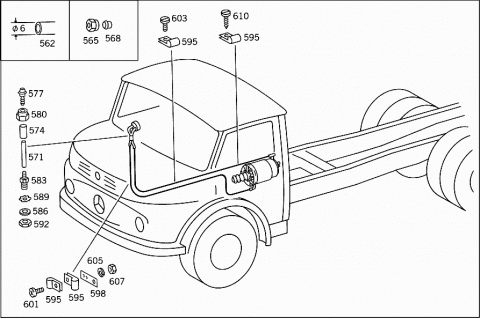

| 562 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 562 | A 0004296201 | LINE |
| 6 MM | ||
| 565 | N 915017006100 | UNION NUT |
| 568 | N 003861006007 | GLAND |
| 571 | A 0089976082 | HOSE |
| BRAKE PRESSURE CONTROL | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 574 | N 040621010200 | INSULATING HOSE |
| BRAKE PRESSURE CONTROL | ||
| 577 | A 0019975072 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 580 | N 915017006200 | UNION NUT |
| BRAKE PRESSURE CONTROL | ||
| 583 | A 0019973772 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 586 | N 000125013008 | WASHER |
| FITTING TO FIRE WALL | ||
| 589 | N 006797012153 | TOOTHED WASHER |
| FITTING TO FIRE WALL | ||
| 592 | N 000936012009 | NUT |
| FITTING TO FIRE WALL | ||
| 595 | A 3609950101 | CLAMP |
| LINE MOUNTING | ||
| 598 | A 3124292440 | BRACKET |
| LINE MOUNTING | ||
| 601 | N 007985006155 | SCREW |
| LINE MOUNTING | ||
| M 6X16 | ||
| 603 | N 000084006134 | SCREW |
| LINE MOUNTING | ||
| M 6X12 | ||
| 605 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 607 | N 000934006007 | NUT |
| LINE MOUNTING | ||
| 610 | N 007971004227 | SHEET METAL SCREW |
| LINE MOUNTING | ||

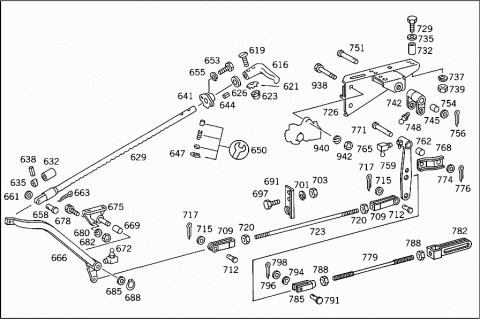

| 616 | A 3124271220 | HANDLE |
| 619 | N 000964006028 | SCREW |
| HANDLE TO RATCHET ROD | ||
| 621 | N 006797006146 | TOOTHED WASHER |
| HANDLE TO RATCHET ROD | ||
| 623 | N 001587006002 | CAP NUT |
| HANDLE TO RATCHET ROD | ||
| 626 | A 3124271086 | DAMPING RING |
| 629 | A 3214201374 | ROD |
| 632 | A 3534270095 | PROTECTIVE CAP |
| 635 | A 3124271151 | SPACER RING |
| 638 | N 001473004021 | GROOVED PIN |
| 641 | A 3124201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 644 | N 001473004023 | GROOVED PIN |
| 647 | N 000472015000 | LOCK RING |
| 650 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 653 | N 000933008145 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 655 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 658 | A 3529910407 | PIN |
| ROD TO LEVER | ||
| 661 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 663 | N 000094002059 | COTTER PIN |
| ROD TO LEVER | ||
| 666 | A 3604200812 | BRAKE LEVER |
| 669 | A 3529921201 | BUSHING |
| 672 | N 071412010300 | GREASE NIPPLE |
| 675 | A 3214200778 | BEARING BRACKET |
| 678 | N 000933010129 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 680 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 682 | N 000934010014 | NUT |
| BEARING BRACKET TO FRAME | ||
| 685 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 688 | N 000471022000 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 691 | A 3604200286 | BRACKET |
| HAND BRAKE LINKAGE | ||
| 697 | N 000933008145 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 701 | N 912004008102 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 703 | N 000934008010 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 709 | A 3214200176 | END PIECE |
| 712 | A 3529910007 | PIN |
| 715 | N 000125010518 | WASHER |
| 717 | N 000094003219 | COTTER PIN |
| 720 | N 000934010014 | NUT |
| 723 | N 900331010660 | PULL ROD |
| 726 | A 3604300310 | BRACKET |
| HAND BRAKE VALVE | ||
| 729 | N 000931010331 | SCREW |
| BRACKET TO FRAME | ||
| 732 | A 3604270253 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 732 | A 3604270353 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 735 | N 000125010518 | WASHER |
| BRACKET TO FRAME | ||
| 737 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 739 | N 000934010010 | NUT |
| BRACKET TO FRAME | ||
| 742 | A 3604200681 | LEVER |
| TOP | ||
| 745 | A 3229920101 | BUSHING |
| 748 | N 071412010100 | GREASE NIPPLE |
| 751 | N 001434014052 | PIN |
| UPPER LEVER TO BRACKET | ||
| 754 | N 000125015013 | WASHER |
| UPPER LEVER TO BRACKET | ||
| 756 | N 000094004065 | COTTER PIN |
| UPPER LEVER TO BRACKET | ||
| 759 | A 3604200881 | LEVER |
| BOTTOM | ||
| 762 | A 3229920101 | BUSHING |
| 765 | N 071412010300 | GREASE NIPPLE |
| 768 | A 3604200089 | SHACKLE |
| 771 | N 001434014045 | PIN |
| SHACKLE TO LEVER | ||
| 774 | N 000125015013 | WASHER |
| SHACKLE TO LEVER | ||
| 776 | N 000094004065 | COTTER PIN |
| SHACKLE TO LEVER | ||
| 779 | N 900331010659 | PULL ROD |
| 779 | N 900331010661 | PULL ROD |
| 779 | N 900331010663 | PULL ROD |
| 779 | N 900331010657 | PULL ROD |
| 782 | A 3524200247 | YOKE |
| 785 | A 0009961501 | YOKE |
| 788 | N 000934010014 | NUT |
| 791 | A 3529910007 | PIN |
| 791 | A 3149910207 | PIN |
| 794 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 794 | N 000137010205 | SPRING WASHER |
| 796 | N 000433010505 | WASHER |
| 798 | N 000094003219 | COTTER PIN |

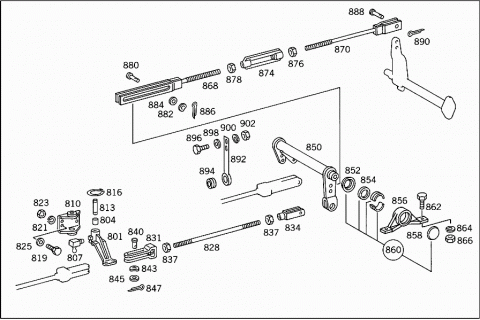

| 801 | A 3524203081 | LEVER |
| 804 | A 3529921201 | BUSHING |
| 807 | N 071412010300 | GREASE NIPPLE |
| 810 | A 3404200278 | BEARING BRACKET |
| 813 | A 3124261574 | PIN |
| 816 | N 000471022000 | LOCK RING |
| 819 | N 000933010129 | SCREW |
| 821 | N 912004010102 | LOCK WASHER |
| 823 | N 000934010014 | NUT |
| 825 | A 3609901240 | WASHER |
| Repalced by: A 1159903140 | ||
| 825 | A 1159903140 | WASHER |
| 828 | N 900331010657 | PULL ROD |
| 831 | A 3524200247 | YOKE |
| 834 | A 0009961501 | YOKE |
| 837 | N 000934010014 | NUT |
| 840 | A 3149910207 | PIN |
| 843 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 843 | N 000137010205 | SPRING WASHER |
| 845 | N 000433010505 | WASHER |
| 847 | N 000094003219 | COTTER PIN |
| 850 | A 3604200980 | BRAKE INTERMEDIATE SHAFT |
| 852 | A 3274270058 | SEAL HOLDER |
| HAND BRAKE | ||
| 854 | A 3279970040 | SEAL RING |
| HAND BRAKE | ||
| 856 | A 3584201078 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 856 | A 3584200278 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 858 | N 000470052000 | EXPANSION PLUG |
| BRAKE INTERMEDIATE SHAFT | ||
| 860 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 862 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 864 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 866 | N 000934012022 | NUT |
| BEARING BRACKET TO FRAME | ||
| 868 | A 3604200474 | ROD |
| FRONT | ||
| 870 | A 3584200074 | ROD |
| REAR | ||
| 874 | A 3859960034 | NUT |
| 876 | N 000934012020 | NUT |
| 878 | N 000934012021 | NUT |
| 880 | A 3529910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 882 | N 900055012001 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 884 | N 000433013005 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 886 | N 000094004019 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 888 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 890 | N 000094004019 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 892 | A 3524200086 | BRACKET |
| 894 | A 0009973481 | GROMMET |
| 896 | N 000933008147 | SCREW |
| BRACKET TO FRAME | ||
| 898 | N 000125008418 | WASHER |
| BRACKET TO FRAME | ||
| 900 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 902 | N 000934008010 | NUT |
| BRACKET TO FRAME | ||
| 904 | A 0009870446 | SEALING CORD |
| HAND BRAKE VALVE,CONNECTION "1" | ||
| 906 | A 0004290227 | THRUST RING |
| HAND BRAKE VALVE,CONNECTION "1" | ||
| 908 | N 074305022202 | NUT |
| HAND BRAKE VALVE,CONNECTION "1" | ||
| 910 | N 074301022203 | ELBOW FITTING |
| HAND BRAKE VALVE,CONNECTION "1" | ||
| 912 | A 0004310616 | VALVE |
| HAND BRAKE VALVE | ||
| 914 | A 0004317386 | CUP |
| 916 | A 0004290695 | AIR CLEANER |
| 918 | A 0004317087 | PROTECTIVE CAP |
| 920 | A 0004350390 | VALVE DISC |
| 922 | N 001433012015 | PIN |
| 924 | N 000094004019 | COTTER PIN |
| 926 | N 000908022001 | SCREW PLUG |
| HAND BRAKE VALVE,CONNECTION: | ||
| "A" | ||
| 928 | A 0009870446 | SEALING CORD |
| HAND BRAKE VALVE,CONNECTION: | ||
| "A" | ||
| 930 | A 0004290227 | THRUST RING |
| HAND BRAKE VALVE,CONNECTION: | ||
| "A" | ||
| 932 | N 074305022202 | NUT |
| HAND BRAKE VALVE,CONNECTION: | ||
| "A" | ||
| 934 | N 074302022304 | T-FITTING |
| HAND BRAKE VALVE,CONNECTION: | ||
| "A" | ||
| 936 | A 0005455414 | SWITCH |
| HAND BRAKE VALVE,CONNECTION: | ||
| "A" | ||
| 938 | N 000931010272 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 940 | N 912004010102 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 942 | N 000934010014 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 944 | N 074315012100 | FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 946 | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 948 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 950 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 952 | A 0004312414 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 952 | A 0004317614 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 954 | A 0004319586 | CUP |
| TO 000 431 76 14,KNORR | ||
| 956 | A 0014311186 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 958 | A 0049971740 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 960 | A 0004319286 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 962 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 962 | A 0034201724 | REPAIR KIT |
| TO 000 431 24 14,BOSCH | ||
| 964 | A 0014301660 | REPAIR KIT |
| TO 000 431 76 14,KNORR | ||
| 966 | A 3604302311 | CONSOLE |
| 966 | A 3604302411 | CONSOLE |
| 968 | N 000933010105 | SCREW |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 970 | N 912004010102 | LOCK WASHER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 972 | N 000934010014 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 974 | N 000933010129 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 976 | A 3609900040 | WASHER |
| Repalced by: A 4219905440 | ||
| 976 | A 4219905440 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 978 | N 000125010518 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 980 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 982 | N 000934010014 | NUT |
| BEARING BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
