Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358002

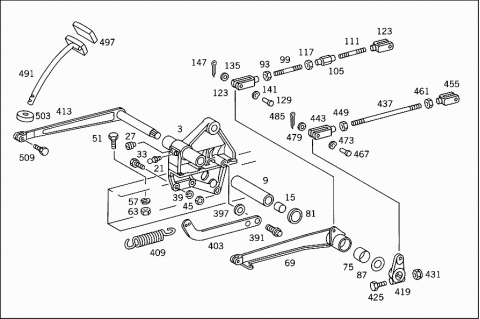

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3522901919 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 009 | A 3522900436 | BEARING TUBE |
| 015 | A 3529920901 | BUSHING |
| 015 | A 3529922001 | BUSHING |
| 021 | N 071412010100 | GREASE NIPPLE |
| 027 | A 3529900080 | SCREW |
| 033 | N 000933010145 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 039 | N 912004010102 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 045 | N 000934010014 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 051 | N 000933010105 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 057 | N 912004010102 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 063 | N 000934010014 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 069 | A 3522902916 | PEDAL |
| CLUTCH | ||
| 075 | A 3529920401 | BUSHING |
| 081 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 081 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 081 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 087 | A 3039910345 | RING |
| PEDAL TO BEARING TUBE | ||
| 093 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 099 | N 900331010667 | PULL ROD |
| CLUTCH OPERATION | ||
| 105 | N 001479010000 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 111 | N 900331010653 | PULL ROD |
| CLUTCH OPERATION | ||
| 117 | N 000934010035 | NUT |
| YOKE TO ROD | ||
| 123 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 129 | A 3529910007 | PIN |
| CLUTCH LINKAGE | ||
| 135 | N 000433010505 | WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 141 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 141 | N 000137010205 | SPRING WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 147 | N 000094003219 | COTTER PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 153 | A 3522905539 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 159 | A 3529910415 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 159 | A 3029910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 165 | N 071805016300 | SNAP RING |
| BALL PIVOT TO BRACKET | ||
| 171 | N 912004012100 | LOCK WASHER |
| BALL PIVOT TO BRACKET | ||
| 177 | N 000936012011 | NUT |
| BALL PIVOT TO BRACKET | ||
| 183 | N 071412010100 | GREASE NIPPLE |
| 189 | A 3522930060 | SEAL RING |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 195 | A 3529910515 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 201 | N 000463013002 | LOCK PLATE |
| CLUTCH OPERATION | ||
| 207 | N 000934012021 | NUT |
| CLUTCH OPERATION | ||
| 213 | A 3522932536 | BEARING BRACKET |
| OUTSIDE | ||
| 219 | N 000933010105 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 225 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 231 | N 000934010014 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 237 | A 3529910815 | BALL PIVOT |
| IN BEARING BRACKET,FOR DOUBLE LEVER BEARING | ||
| 243 | A 3522930160 | SEAL RING |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| 249 | N 000125013008 | WASHER |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| 255 | N 912004012100 | LOCK WASHER |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| 261 | N 000934012021 | NUT |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| 267 | A 3522905439 | ROD |
| CLUTCH OPERATION | ||
| 273 | N 900331010653 | PULL ROD |
| CLUTCH LINKAGE | ||
| 279 | A 0009916222 | BALL SOCKET |
| 285 | N 071805016300 | SNAP RING |
| 291 | N 000936010008 | NUT |
| CLUTCH LINKAGE | ||
| 297 | N 071805016402 | SECURING CLIP |
| CLUTCH LINKAGE | ||
| 303 | A 3522930311 | RELEASE YOKE |
| CLUTCH RELEASE | ||
| 309 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 309 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 315 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 321 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 327 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 327 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 333 | A 3802540059 | SEAL RING |
| SOFT | ||
| 333 | A 3802540259 | SEAL RING |
| SOFT | ||
| 339 | A 3802540159 | SEAL RING |
| HARD | ||
| 339 | A 3802540359 | SEAL RING |
| HARD | ||
| 345 | A 3522540040 | BRACKET |
| INSIDE | ||
| 351 | N 000933008147 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 357 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 363 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 369 | A 0002540020 | RELEASE BEARING |
| 369 | A 0002540120 | RELEASE BEARING |
| 375 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| 385 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 391 | A 3522910474 | PIN |
| RELEASE SPRING | ||
| 397 | A 3529902340 | WASHER |
| CLUTCH PEDAL RELEASE SPRING | ||
| 403 | A 3522910732 | LEVER |
| RELEASE SPRING | ||
| 409 | A 3529931310 | SPRING |
| CLUTCH | ||
| 413 | A 3522900318 | PEDAL |
| BRAKE | ||
| 419 | A 3522933110 | LEVER |
| BRAKE SHAFT | ||
| 425 | N 000931010258 | SCREW |
| BRAKE PEDAL TO BEARING TUBE | ||
| 431 | N 913004010008 | NUT |
| BRAKE PEDAL TO BEARING TUBE | ||
| 437 | N 900331010668 | PULL ROD |
| BRAKE LINKAGE | ||
| 443 | A 0009961501 | YOKE |
| FROM BRAKE LEVER TO DOUBLE LEVER | ||
| 449 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 455 | A 3419960001 | YOKE |
| FROM BRAKE LEVER TO DOUBLE LEVER | ||
| 461 | N 000934010035 | NUT |
| YOKE TO ROD | ||
| 467 | A 3529910007 | PIN |
| YOKE TO LEVER | ||
| 473 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 473 | N 000137010205 | SPRING WASHER |
| YOKE TO LEVER | ||
| 479 | N 000433010505 | WASHER |
| YOKE TO LEVER | ||
| 485 | N 000094003219 | COTTER PIN |
| YOKE TO LEVER | ||
| 491 | A 3222900924 | PEDAL PLATE |
| CLUTCH AND BRAKE | ||
| 497 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 503 | A 3182910084 | SEAL RING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 509 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
