Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358003

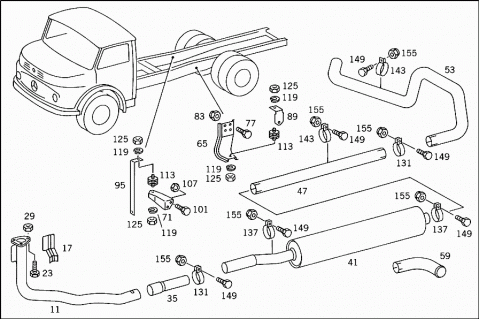

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 3604904119 | EXHAUST PIPE |
| FRONT | ||
| 017 | A 3834922530 | PROTECTIVE PLATE |
| 023 | N 000931010282 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 000934010014 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 035 | A 3224920207 | CONNECTOR |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 041 | A 3604902315 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3834900001 | ||
| 041 | A 3834900001 | EXHAUST MUFFLER |
| FRONT | ||
| 047 | A 3604921507 | CONNECTOR |
| REAR | ||
| 047 | A 3604921707 | CONNECTOR |
| REAR | ||
| 053 | A 3604922305 | REAR EXHAUST PIPE |
| REAR | ||
| 059 | A 3834926604 | REAR EXHAUST PIPE |
| REAR | ||
| 065 | A 3814910016 | SUPPORT |
| AT SIDE MEMBER | ||
| 071 | A 3814910116 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 077 | N 000933008153 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 077 | N 000933008147 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X20 | ||
| 083 | N 913004008004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 089 | A 3814920041 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 095 | A 3814923841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 095 | A 3604922141 | BRACKET |
| Repalced by: A 3814923841 | ||
| 095 | A 3814923841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 250 MM | ||
| 101 | N 000933008154 | SCREW |
| REAR SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| 107 | N 913004008004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 113 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE BRACKET TO SIDE MEMBER | ||
| 119 | N 912004010102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 125 | N 000934010014 | NUT |
| BRACKET TO SUPPORT | ||
| 131 | N 071555065501 | CLAMP |
| BRACKET TO SUPPORT | ||
| 65.5 MM | ||
| 137 | N 071555063500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 63.5 MM | ||
| 143 | N 071555060500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 60.5 MM | ||
| 149 | N 000933008153 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 155 | N 913004008004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
