Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358003

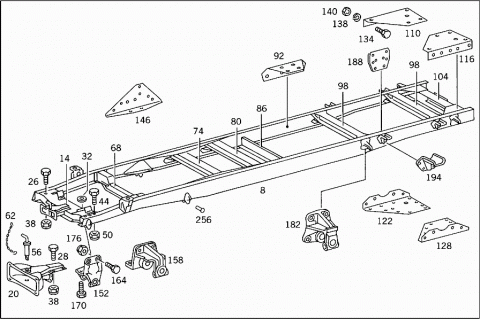

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3583109701 | FRAME |
| 008 | A 3583109801 | FRAME |
| 008 | A 3583105101 | FRAME |
| 008 | A 3583102501 | FRAME |
| 014 | A 3523100126 | ENGINE CROSS MEMBER |
| FRONT | ||
| 020 | A 3523100109 | BRACKET |
| WITH COUPLING MOUTH | ||
| 026 | N 000933010164 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X22 | ||
| 028 | N 000933010105 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X25 | ||
| 032 | N 007349010007 | WASHER |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 038 | N 913004010008 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 044 | N 000933010128 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X20 | ||
| 044 | N 000933010105 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 044 | N 308676012012 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | N 000934010014 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | N 000934012022 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 056 | A 3223150206 | COUPLING PIN |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 062 | A 0008500095 | FASTENER |
| COUPLING PIN | ||
| 068 | A 3603100028 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 074 | A 3523100236 | CROSS MEMBER |
| NO.3 | ||
| 074 | A 3583100036 | CROSS MEMBER |
| NO.3 | ||
| 080 | A 3523100036 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO. 4 | ||
| 080 | A 3523100136 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO. 4 | ||
| 080 | A 3523100436 | CROSS MEMBER |
| NO.4 | ||
| 086 | A 3213100037 | CROSS MEMBER |
| TRANSFER CASE | ||
| NO.5 | ||
| 092 | A 3123122652 | ANGLE |
| LEFT AND RIGHT | ||
| 098 | A 3603100142 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| 098 | A 3603100142 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO. 4 | ||
| 098 | A 3603100142 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO. 6 | ||
| 098 | A 3603100142 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO. 6 | ||
| 098 | A 3603100142 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO. 7 | ||
| 104 | A 3523100146 | CROSS MEMBER |
| REAR | ||
| 110 | A 3213120087 | GUSSET PLATE |
| TOP RIGHT | ||
| 116 | A 3213120187 | GUSSET PLATE |
| TOP LEFT | ||
| 122 | A 3523120187 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 128 | A 3523120287 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 134 | N 000961012164 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 12X28 | ||
| 134 | N 000960012225 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 12X45 | ||
| 134 | N 000961012056 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 12X20 | ||
| 138 | N 912004012100 | LOCK WASHER |
| GUSSET PLATE TO SIDE MEMBER | ||
| 140 | N 000934012022 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 146 | A 3523110353 | ANGLE |
| LEFT FRONT SPRING REAR BRACKET | ||
| 146 | A 3523110453 | ANGLE |
| RIGHT FRONT SPRING REAR BRACKET | ||
| 152 | A 3533220101 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 158 | A 3533220201 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 164 | A 3229903101 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X32 | ||
| 164 | A 3409900201 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 170 | A 3219901901 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 176 | N 000934014020 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 182 | A 3583250001 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 188 | A 3813250041 | STIFFENING |
| AT SIDE MEMBER | ||
| 194 | A 3523250417 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| 200 | A 3523170728 | REINFORCEMENT |
| LEFT | ||
| 200 | A 3523170628 | REINFORCEMENT |
| RIGHT | ||
| 208 | A 3589901414 | SCREW |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 10X32 | ||
| 208 | A 3609900314 | SCREW |
| BODY SUPPORT TO SIDE MEMBER | ||
| M 10X26 | ||
| 214 | N 913004010011 | NUT |
| BODY SUPPORT TO SIDE MEMBER | ||
| 220 | A 3283100367 | BODY SUPPORT |
| LEFT | ||
| 220 | A 3283100467 | BODY SUPPORT |
| RIGHT | ||
| 226 | A 3523101667 | BODY SUPPORT |
| REAR | ||
| 232 | N 000933010105 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X25 | ||
| 232 | N 000961012016 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X28 | ||
| 232 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 238 | N 000125010518 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 238 | N 000125013008 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 244 | N 912004010102 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 244 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 250 | N 000934010014 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 250 | N 000934012022 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859900814 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| M 16X16X25X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| N 913004014005 | NUT | |
| N 913004016005 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 256 | N 910005010082 | RIVET |
| 10X22 MM | ||
| 256 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 256 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 256 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 256 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 256 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 256 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 256 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 256 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 256 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 256 | N 910005014059 | RIVET |
| 14X48 MM | ||

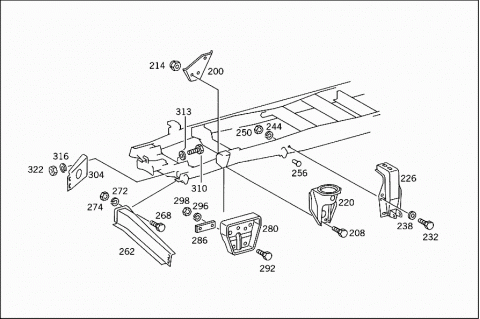

| 262 | A 3523100053 | STRUT |
| LEFT | ||
| 262 | A 3523100153 | STRUT |
| RIGHT | ||
| 268 | N 000933010105 | SCREW |
| STRUT TO FRAME | ||
| 272 | N 912004010102 | LOCK WASHER |
| STRUT TO FRAME | ||
| 274 | N 000934010014 | NUT |
| STRUT TO FRAME | ||
| 280 | A 3523230895 | REINFORCEMENT |
| PEDAL BEARING BRACKET | ||
| 286 | A 3523110084 | SHIM |
| PEDAL BEARING BRACKET | ||
| 292 | N 000963012010 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 12X30 | ||
| 292 | N 000933012056 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 12X30 | ||
| 296 | N 912004012100 | LOCK WASHER |
| REINFORCEMENT TO SIDE MEMBER | ||
| 298 | N 000934012021 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 304 | A 3523130826 | BRACKET |
| LEFT | ||
| 304 | A 3523130926 | BRACKET |
| RIGHT | ||
| 310 | N 000933010105 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 313 | N 000125010518 | WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 316 | N 912004010102 | LOCK WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 322 | N 000934010014 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||

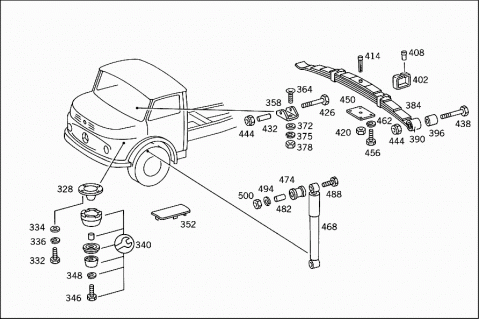

| 328 | A 3228910120 | MOUNTING |
| CAB SUSPENSION | ||
| 332 | N 000933008148 | SCREW |
| MOUNTING TO CAB | ||
| 334 | N 000125008418 | WASHER |
| MOUNTING TO CAB | ||
| 336 | N 912004008102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 340 | A 3525860031 | REPAIR KIT |
| CAB MOUNTING,FRONT | ||
| 346 | N 000961012079 | SCREW |
| CAB MOUNTING,FRONT | ||
| 348 | N 912004012100 | LOCK WASHER |
| CAB MOUNTING,FRONT | ||
| 352 | A 3228910411 | PLATE |
| COVERING TO FRAME | ||
| 358 | A 3523170240 | BRACKET |
| FOR SPRING | ||
| 364 | A 3529900030 | SCREW |
| BRACKET TO CONSOLE | ||
| 372 | N 000125010518 | WASHER |
| BRACKET TO CONSOLE | ||
| 375 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 378 | N 000934010014 | NUT |
| BRACKET TO CONSOLE | ||
| 384 | A 3223100179 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 390 | A 3223100279 | SPRING |
| SPRING LEAF | ||
| NO. 1 | ||
| 396 | A 0009883610 | RUBBER MOUNTING |
| LEAF SPRING | ||
| 402 | A 0033211933 | SPRING CLAMP |
| LEAF SPRING | ||
| NO.4 | ||
| 408 | N 000660006029 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 414 | N 004626008100 | SPRING BOLT |
| LEAF SPRING | ||
| 420 | N 000934008010 | NUT |
| LEAF SPRING | ||
| 426 | A 3229901314 | SCREW |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 432 | A 3229910640 | SPACER TUBE |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 438 | N 000960012230 | SCREW |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 444 | N 913002012002 | NUT |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 444 | N 913002012002 | NUT |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 450 | A 3358910411 | PLATE |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 456 | N 000931010258 | SCREW |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 462 | N 912004010102 | LOCK WASHER |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 468 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 468 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 474 | A 0003232644 | RUBBER BUFFER |
| Repalced by: A 0003234385 | ||
| 474 | A 0003234385 | RUBBER MOUNTING |
| TO 000 891 02 05 | ||
| 474 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 08 05 | ||
| 482 | A 0002410150 | BUSHING |
| TO 000 891 02 05 | ||
| 482 | A 0008910017 | BUSHING |
| TO 000 891 08 05 | ||
| 488 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 494 | N 912004012100 | LOCK WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 500 | N 913002012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
