Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358003

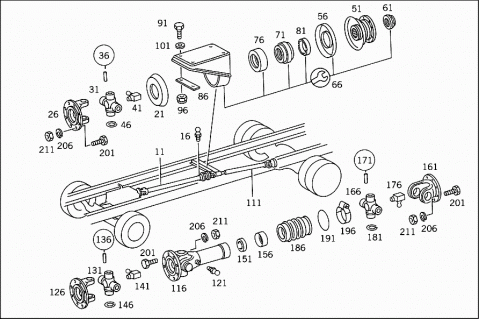

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
011	A 3214101801	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		839 MM
011	A 3214101901	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1439 MM
011	A 3214102001	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1949 MM
016	N 071412008101	GREASE NIPPLE
021	A 3124131361	PROTECTIVE CAP
026	A 3024110011	DRIVE FLANGE
031	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
036	A 3189810287	NEEDLE
		SET = 132 PIECES
041	N 071412008302	GREASE NIPPLE
046	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
046	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
046	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
046	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
046	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
046	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
051	A 3124101430	CENTERING FLANGE
056	A 3124131361	PROTECTIVE CAP
061	A 3224110072	NUT
066	A 3524100010	REPAIR KIT
		INTERMEDIATE SHAFT BEARING
071	A 3124131112	RUBBER MOUNTING
076	A 3524100051	BALL BEARING
081	A 3124131231	BEARING RING
086	A 3524130011	REINFORCEMENT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
091	N 000961010010	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
096	N 913002010010	NUT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
101	N 007349010007	WASHER
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
111	A 3214103602	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1672 MM
111	A 3214103802	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1790 MM
116	A 3224101208	UNIVERSAL JOINT YOKE
121	N 071412008101	GREASE NIPPLE
126	A 3024110011	DRIVE FLANGE
131	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
136	A 3189810287	NEEDLE
		SET = 132 PIECES
141	N 071412008302	GREASE NIPPLE
146	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
146	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
146	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
146	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
146	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
146	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
151	A 3374130080	SEAL RING
156	A 3214110158	SEAL HOLDER
161	A 3024110011	DRIVE FLANGE
166	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
171	A 3189810287	NEEDLE
		SET = 132 PIECES
176	N 071412008302	GREASE NIPPLE
181	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
181	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
181	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
181	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
181	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
181	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
186	A 3524100080	BOOT
191	A 3214110053	WIRE RING
196	N 916002078100	CLAMP
201	A 3219901501	SCREW
	Repalced by: A 3539900001
201	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
		M 10X1X26
206	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
211	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE

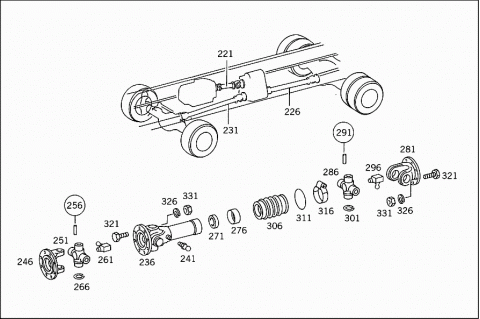

221	A 3214103402	PROPELLER SHAFT
		FROM TRANSMISSION TO TRANSFER CASE
		1291 MM
226	A 3164100002	PROPELLER SHAFT
		FROM TRANSFER CASE TO REAR AXLE
		1418 MM
231	A 3214103602	PROPELLER SHAFT
		FROM TRANSFER CASE TO FRONT AXLE
		1672 MM
236	A 3224101208	UNIVERSAL JOINT YOKE
241	N 071412008101	GREASE NIPPLE
246	A 3024110011	DRIVE FLANGE
251	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
256	A 3189810287	NEEDLE
		SET = 132 PIECES
261	N 071412008302	GREASE NIPPLE
266	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
266	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
266	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
266	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
266	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
266	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
271	A 3374130080	SEAL RING
276	A 3214110158	SEAL HOLDER
281	A 3024110011	DRIVE FLANGE
286	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
291	A 3189810287	NEEDLE
		SET = 132 PIECES
296	N 071412008302	GREASE NIPPLE
301	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
301	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
301	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
301	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
301	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
301	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
306	A 3524100080	BOOT
311	A 3214110053	WIRE RING
316	N 916002078100	CLAMP
321	A 3219901501	SCREW
	Repalced by: A 3539900001
321	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES
326	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES
331	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO FRONT AND REAR AXLES
