Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358003

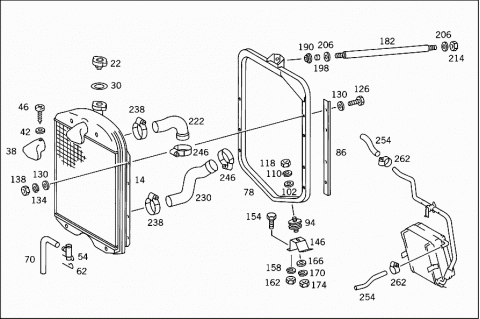

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 014 | A 3525012201 | RADIATOR |
| BEHR | ||
| 022 | A 0005012915 | RADIATOR CAP |
| WITH PRESSURE RELIEF VALVE | ||
| 030 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 038 | A 0005010556 | PIPE ELBOW |
| 042 | N 000433003206 | WASHER |
| 046 | N 007974003201 | SHEET METAL SCREW |
| 054 | A 0009970436 | VALVE |
| 062 | A 0009930225 | SPRING |
| 070 | A 3049972582 | HOSE |
| WATER DRAIN | ||
| 078 | A 3225002027 | SUPPORT |
| RADIATOR | ||
| 086 | A 3225050024 | COVER PLATE |
| LATERAL | ||
| 094 | A 3605040012 | RUBBER MOUNTING |
| RUBBER BUFFER TO BASE FRAME | ||
| 102 | N 000125010518 | WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 110 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 118 | N 000934010014 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 126 | N 000933008147 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 130 | N 000125008418 | WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 134 | N 000127008102 | LOCK WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 138 | N 000934008010 | NUT |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 146 | A 3525040039 | CLAMP |
| FRONT RUBBER MOUNTING | ||
| 154 | N 000961012164 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| M 12X28 | ||
| 154 | N 308676012012 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| M 12X1,5X25 | ||
| 158 | N 912004012100 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 162 | N 000934012022 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 166 | N 000125010518 | WASHER |
| RADIATOR TO BRACKET | ||
| 170 | N 912004010102 | LOCK WASHER |
| RADIATOR TO BRACKET | ||
| 174 | N 000934010014 | NUT |
| RADIATOR TO BRACKET | ||
| 182 | A 3525000345 | RADIATOR STRUT |
| 190 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO BRACKET | ||
| 198 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO BRACKET | ||
| 206 | N 009021010202 | WASHER |
| RADIATOR STRUT TO BRACKET | ||
| 214 | N 000934010014 | NUT |
| RADIATOR STRUT TO BRACKET | ||
| 222 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 230 | A 3525012082 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 238 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 238 | N 000000000670 | CLAMP |
| FROM HOSE TO RADIATOR | ||
| 35-50 X13 MM | ||
| 246 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 246 | N 000000000671 | CLAMP |
| FROM HOSE TO RADIATOR | ||
| 40-60X13 MM | ||
| 254 | N 900271015037 | HOSE |
| 12X24 MM | ||
| 254 | N 900271015037 | HOSE |
| FROM UPPER LINE TO HEATING SHUT-OFF COCK | ||
| 12X24 MM | ||
| 254 | N 900271015037 | HOSE |
| HEATING RETURN | ||
| 12X24 MM | ||
| 262 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 262 | N 000000000667 | CLAMP |
| COOLING WATER LINE | ||
| 20-32X13 MM | ||
