Transporto priemonė: L 1113 B MBSA; VIN numerio dalis: 358003
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

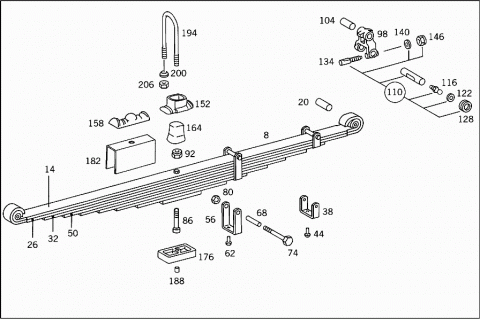

| 008 | A 3583200602 | FRONT SPRING |
| 7-LEAF | ||
| 008 | A 3583200802 | FRONT SPRING |
| 8-LEAF | ||
| 014 | A 3583201394 | SPRING LEAF |
| Repalced by: A 3583201794 | ||
| 014 | A 3583201794 | SPRING LEAF |
| NO.1 | ||
| 014 | A 3583201794 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3533220050 | BUSHING |
| 020 | A 3853220150 | BUSHING |
| 026 | A 3583210612 | SPRING LEAF |
| NO.2 | ||
| 026 | A 3583210812 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3583201594 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 032 | A 3583201894 | SPRING LEAF |
| NO.3,WITH SPRING CLAMP | ||
| 038 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 044 | N 000660008026 | RIVET |
| 050 | A 3533210414 | SPRING LEAF |
| NO.4 | ||
| 050 | A 3583210814 | SPRING LEAF |
| NO.4 | ||
| 056 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAVES NOS.6 AND 7 | ||
| 062 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 068 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 068 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 074 | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| 080 | N 000934008010 | NUT |
| FOR SPRING CLAMPS | ||
| 086 | N 004626012136 | SPRING BOLT |
| M 12X110 | ||
| 086 | N 004626012100 | SPRING BOLT |
| M 12X135 | ||
| 092 | N 913004012007 | NUT |
| SPRING BOLT | ||
| 098 | A 3533200162 | SHACKLE |
| FRONT SPRING | ||
| 104 | A 3533220050 | BUSHING |
| 104 | A 3853220150 | BUSHING |
| 110 | A 3583200065 | SHACKLE PIN |
| PARTS KIT | ||
| 110 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 116 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 116 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 122 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 122 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 122 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 128 | A 0029973140 | SEAL RING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 134 | A 3529900337 | BOLT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 140 | N 000125010518 | WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 146 | N 913004010008 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 152 | A 3283220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 158 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 164 | A 3283220144 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 176 | A 3533220384 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 182 | A 3533210084 | SHIM |
| Repalced by: A 3583210084 | ||
| 182 | A 3583210084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 188 | A 3289910060 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 194 | A 3223310725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 194 | A 3523310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 194 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 200 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 206 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 | A 3853300075 | RUBBER MOUNTING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 218 | N 000933010105 | SCREW |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| M 10X25 | ||
| 218 | N 000933010128 | SCREW |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| M 10X20 | ||
| 224 | N 912004010102 | LOCK WASHER |
| FRONT SPRING STOP | ||
| 230 | N 000934010014 | NUT |
| STOP BUFFER TO FRONT AXLE,LEFT | ||

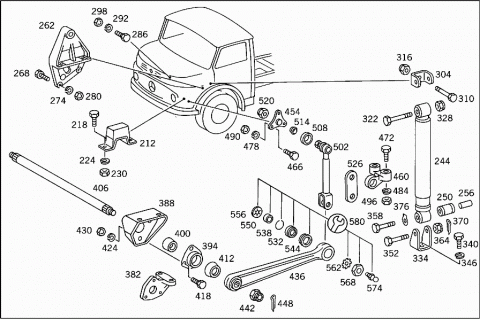

| 244 | A 0043237600 | SHOCK ABSORBER |
| Repalced by: A 0043237400 | ||
| 244 | A 0043237600 | SHOCK ABSORBER |
| Repalced by: A 0043237400 | ||
| 244 | A 0043237400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 244 | A 0043237500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 244 | A 0043236200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 250 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 74 00,004 323 62 00 | ||
| 250 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 76 00,004 323 75 00 | ||
| 256 | A 0003233150 | BUSHING |
| TO 004 323 74 00,004 323 62 00 | ||
| 256 | A 0003235250 | BUSHING |
| TO 004 323 76 00,004 323 75 00 | ||
| 262 | A 3523232563 | BEARING BRACKET |
| SHOCK ABSORBER,TOP | ||
| 268 | N 000933010145 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 274 | N 912004010102 | LOCK WASHER |
| TOP BEARING BRACKET TO FRAME | ||
| 280 | N 000934010014 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 286 | N 000933010105 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 292 | N 912004010102 | LOCK WASHER |
| REINFORCEMENT TO SIDE MEMBER | ||
| 298 | N 000934010014 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 304 | A 3523230340 | BRACKET |
| SHOCK ABSORBER | ||
| 310 | A 3529903201 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 316 | N 913004020004 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 322 | A 3529903501 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 328 | N 913004016004 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 334 | A 3523231663 | BEARING BRACKET |
| LEFT SHOCK ABSORBER | ||
| 334 | A 3523231763 | BEARING BRACKET |
| FRONT SHOCK ABSORBERS | ||
| 340 | N 000961012008 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 346 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 352 | A 3529900002 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 358 | A 3529901501 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 364 | N 000979016006 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 370 | N 000094004023 | COTTER PIN |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 376 | N 000093015001 | LOCK PLATE |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 382 | A 3523231363 | BEARING BRACKET |
| TORSION BAR | ||
| 388 | A 3533200378 | CONSOLE |
| TORSION BAR | ||
| 394 | A 3523230283 | HOUSING |
| FRONT AXLE TORSION BAR | ||
| 400 | A 3523230385 | RUBBER MOUNTING |
| FRONT AXLE TORSION BAR | ||
| 406 | A 3523230365 | TORSION BAR |
| Repalced by: A 3523230565 | ||
| 406 | A 3523230565 | TORSION BAR |
| FRONT | ||
| 406 | A 3603230165 | TORSION BAR |
| Repalced by: A 3603230465 | ||
| 406 | A 3603230465 | TORSION BAR |
| FRONT | ||
| 412 | A 3523230751 | SPACER RING |
| FRONT AXLE TORSION BAR | ||
| 418 | N 000933010094 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| M 10X40 | ||
| 418 | N 000933010105 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| M 10X25 | ||
| 424 | N 912004010102 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 430 | N 000934010014 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 436 | A 3603230769 | LEVER |
| TORSION BAR | ||
| 436 | A 3603230269 | LEVER |
| TORSION BAR | ||
| 442 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| M 28X1.5 | ||
| 442 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| M 27X1.5 | ||
| 448 | N 000094005017 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 454 | A 3603230663 | BEARING BRACKET |
| TORSION BAR BEARING | ||
| 460 | A 3603230463 | BEARING BRACKET |
| TORSION BAR BEARING | ||
| 466 | N 000933010157 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 472 | N 000961012027 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 478 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 484 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 490 | N 000934010014 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 496 | N 000934012022 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 502 | A 3603200789 | ROD |
| TORSION BAR TO FRAME | ||
| SKF | ||
| 502 | A 3603201089 | ROD |
| TORSION BAR TO FRAME | ||
| INA | ||
| 502 | A 3603200189 | ROD |
| TORSION BAR TO FRAME | ||
| LEMFOERDER | ||
| 508 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 508 | A 0003300785 | BOOT |
| LEMFOERDER | ||
| 520 | N 913004014002 | NUT |
| ROD TO FRAME | ||
| 526 | A 3603230116 | LINK |
| TORSION BAR TO FRAME | ||
| 532 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 532 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 532 | A 0019814831 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 538 | N 009045035001 | SNAP RING |
| ARTICULATED ROD TO LEVER | ||
| 544 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 550 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 556 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 562 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 568 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 574 | N 071412010100 | GREASE NIPPLE |
| 580 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||

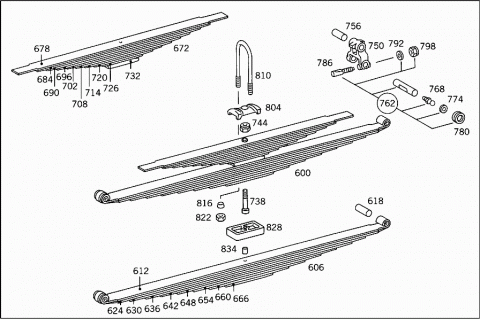

| 600 | A 3583200508 | REAR SPRING |
| 9-LEAF;WITH 9-LEAF HELPER SPRING | ||
| 606 | A 3583200706 | REAR SPRING |
| 9-LEAF | ||
| 612 | A 3583201093 | SPRING LEAF |
| NO.1 | ||
| 618 | A 3523250150 | BUSHING |
| 618 | A 3853250050 | BUSHING |
| 624 | A 3583240912 | SPRING LEAF |
| NO.2 | ||
| 630 | A 3583240613 | SPRING LEAF |
| NO.3 | ||
| 636 | A 3583240614 | SPRING LEAF |
| NO.4 | ||
| 642 | A 3583240615 | SPRING LEAF |
| NO.5 | ||
| 648 | A 3583240616 | SPRING LEAF |
| NO.6 | ||
| 654 | A 3583240617 | SPRING LEAF |
| NO.7 | ||
| 660 | A 3583240518 | SPRING LEAF |
| NO.8 | ||
| 666 | A 3583240519 | SPRING LEAF |
| NO.9 | ||
| 672 | A 3583200410 | HELPER SPRING |
| 9-LEAF | ||
| 678 | A 3583240440 | SPRING LEAF |
| NO.1 | ||
| 684 | A 3583240441 | SPRING LEAF |
| NO.2 | ||
| 690 | A 3583240542 | SPRING LEAF |
| NO.3 | ||
| 696 | A 3583240543 | SPRING LEAF |
| NO.4 | ||
| 702 | A 3583240444 | SPRING LEAF |
| NO.5 | ||
| 708 | A 3583240445 | SPRING LEAF |
| NO.6 | ||
| 714 | A 3583240246 | SPRING LEAF |
| NO.7 | ||
| 720 | A 3583240047 | SPRING LEAF |
| NO.8 | ||
| 726 | A 3583240048 | SPRING LEAF |
| NO.9 | ||
| 732 | A 3583240035 | SPACER |
| 738 | N 004626012139 | SPRING BOLT |
| 744 | N 000934012010 | NUT |
| 750 | A 3523200163 | SHACKLE |
| (SPRING SHACKLE) | ||
| 756 | A 3523250150 | BUSHING |
| 756 | A 3853250050 | BUSHING |
| 762 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 768 | N 071412010100 | GREASE NIPPLE |
| 774 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 774 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 780 | A 0029973040 | SEAL RING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 786 | A 3529900337 | BOLT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 792 | N 000125010518 | WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 798 | N 913004010008 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 804 | A 3833250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 810 | A 3523510625 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 230 MM | ||
| 810 | A 3583510125 | U-BOLT |
| Repalced by: A 3603510025 | ||
| 810 | A 3603510025 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 440 MM | ||
| 816 | A 3279970026 | WASHER |
| REAR AXLE TO TO REAR SPRINGS | ||
| 822 | N 000934018006 | NUT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 828 | A 3523250384 | SHIM |
| BETWEEN SPRING AND REAR AXLE | ||
| 834 | A 3289910060 | DOWEL PIN |
| REAR AXLE TO TO REAR SPRINGS | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
