Transporto priemonė: L 1114; VIN numerio dalis: 341032

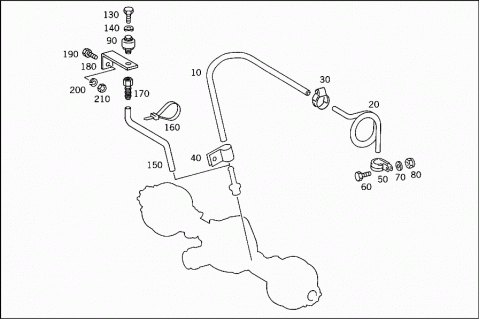

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE, SEE PARTS LIST: | ||
| 744.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE, SEE PARTS LIST: | ||
| 744.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE, SEE PARTS LIST: | ||
| 743.5 | ||
| 010 | A 3413517066 | PIPE |
| 010 | A 3413517066 | PIPE |
| 010 | A 3413517066 | PIPE |
| 020 | A 3449977582 | HOSE |
| 020 | A 3449977582 | HOSE |
| 020 | A 3449977582 | HOSE |
| 030 | N 900264005506 | LOOM TIE |
| 030 | N 900264005506 | LOOM TIE |
| 030 | N 900264005506 | LOOM TIE |
| 040 | A 3609951201 | CLAMP |
| LINE TO REAR AXLE | ||
| 040 | A 3609951201 | CLAMP |
| LINE TO REAR AXLE | ||
| 040 | A 3609951201 | CLAMP |
| LINE TO REAR AXLE | ||
| 050 | N 916016006201 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 050 | N 916016006201 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 050 | N 916016006201 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 060 | N 000933006221 | SCREW |
| LINE TO CROSS MEMBER | ||
| 060 | N 000933006221 | SCREW |
| LINE TO CROSS MEMBER | ||
| 060 | N 000933006221 | SCREW |
| LINE TO CROSS MEMBER | ||
| 070 | N 000433006402 | WASHER |
| LINE TO CROSS MEMBER | ||
| 070 | N 000433006402 | WASHER |
| LINE TO CROSS MEMBER | ||
| 070 | N 000433006402 | WASHER |
| LINE TO CROSS MEMBER | ||
| 080 | N 913004006002 | NUT |
| LINE TO CROSS MEMBER | ||
| 080 | N 913004006002 | NUT |
| LINE TO CROSS MEMBER | ||
| 080 | N 913004006002 | NUT |
| LINE TO CROSS MEMBER | ||
| 090 | A 1112600058 | BREATHER |
| 090 | A 1112600058 | BREATHER |
| A 1119970072 | FITTING | |
| A 1112600093 | OIL STRAINER | |
| A 1112610082 | CAP | |
| 130 | N 000933006086 | SCREW |
| 130 | N 000933006086 | SCREW |
| 140 | N 000137006204 | SPRING WASHER |
| 140 | N 000137006204 | SPRING WASHER |
| 150 | A 3419978482 | HOSE |
| 150 | A 3419978482 | HOSE |
| 160 | A 0029972290 | LOOM TIE |
| 160 | A 0029972290 | LOOM TIE |
| 170 | A 3513517065 | FITTING |
| 170 | A 3513517065 | FITTING |
| 180 | A 3513517040 | BRACKET |
| 180 | A 3513517040 | BRACKET |
| 190 | N 000933008274 | SCREW |
| 190 | N 000933008274 | SCREW |
| 200 | N 912004008102 | LOCK WASHER |
| 200 | N 912004008102 | LOCK WASHER |
| 210 | N 000934008045 | NUT |
| 210 | N 000934008045 | NUT |
