Transporto priemonė: L 1116; VIN numerio dalis: 344036
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT AXLE, SEE UNIT STANDARD VERSION,MODEL: | ||
| 732.708 | ||
| 010 | A 0443300400 | FRONT AXLE |
| Repalced by: A 3443307200 | ||
| 010 | A 3443307200 | FRONT AXLE |
| 010 | A 3443307900 | FRONT AXLE |
| 010 | A 0443300500 | FRONT AXLE |
| 010 | H 983443300200 | FRONT AXLE |
| Repalced by: A 3443307300 | ||
| 010 | A 3443307300 | FRONT AXLE |

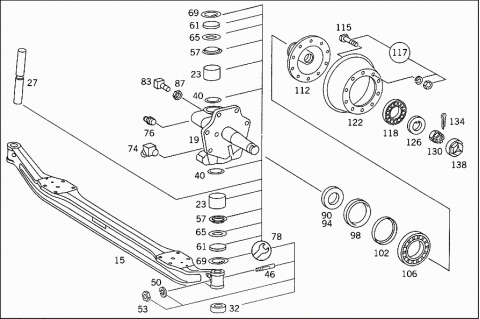

| 015 | A 0443310101 | FRONT AXLE BEAM |
| Repalced by: A 3443317001 | ||
| 015 | A 3443317001 | FRONT AXLE BEAM |
| 019 | A 3273300320 | STEERING KNUCKLE |
| 023 | A 3213320249 | BUSHING |
| Repalced by: A 3213320048 | ||
| 023 | A 3213320048 | BUSHING |
| 027 | A 3273320006 | KINGPIN |
| 35.00 MM | ||
| 027 | A 3273320106 | KINGPIN |
| 35.30 MM | ||
| 027 | A 3273320206 | KINGPIN |
| 35.60 MM | ||
| 032 | A 0009811918 | ROLLER BEARING |
| Repalced by: A 0019816618 | ||
| 032 | A 0009812818 | ROLLER BEARING |
| Repalced by: A 0019816618 | ||
| 032 | A 0009813118 | ROLLER BEARING |
| Repalced by: A 0019816618 | ||
| 032 | A 0019816618 | ROLLER BEARING |
| 032 | A 3459817018 | ROLLER BEARING |
| 032 | A 3279810805 | TAPERED ROLLER BEARING |
| 35.3 MM | ||
| 032 | A 0019814118 | ROLLER BEARING |
| 35.3 MM | ||
| 032 | A 3279810905 | TAPERED ROLLER BEARING |
| 35.60 MM | ||
| 040 | A 3273320352 | SPACER WASHER |
| 1.20 MM | ||
| 040 | A 3273320452 | SPACER WASHER |
| 1.30 MM | ||
| 040 | A 3273320552 | SPACER WASHER |
| 1.40 MM | ||
| 040 | A 3273320852 | SPACER WASHER |
| 1.50 MM | ||
| 040 | A 3273320952 | SPACER WASHER |
| 1.60 MM | ||
| 040 | A 3273321052 | SPACER WASHER |
| 1.70 MM | ||
| 040 | A 3273321452 | SPACER WASHER |
| 1.80 MM | ||
| 040 | A 3273321552 | SPACER WASHER |
| 1.90 MM | ||
| 040 | A 3273321652 | SPACER WASHER |
| 2.00 MM | ||
| 040 | A 3273321752 | SPACER WASHER |
| 2.10 MM | ||
| 040 | A 3273321852 | SPACER WASHER |
| 2.20 MM | ||
| 046 | A 3279900137 | BOLT |
| 050 | N 912004008100 | LOCK WASHER |
| 053 | N 000934008000 | NUT |
| 057 | A 0443320129 | SEALING CAP |
| Repalced by: A 3443327129 | ||
| 057 | A 3443327129 | SEALING CAP |
| 061 | A 0443320229 | SEALING CAP |
| Repalced by: A 3443327029 | ||
| 061 | A 3443327029 | SEALING CAP |
| 065 | A 3279970145 | SEAL RING |
| 069 | N 000472042000 | LOCK RING |
| 074 | N 071412010200 | GREASE NIPPLE |
| 076 | N 071412010100 | GREASE NIPPLE |
| 078 | A 0445860033 | REPAIR KIT |
| Repalced by: A 3763300619 | ||
| 078 | A 3763300619 | KING PIN |
| PARTS KIT,STANDARD | ||
| 35.0 MM | ||
| 078 | A 0445860133 | REPAIR KIT |
| Repalced by: A 3763300719 | ||
| 078 | A 3763300719 | KING PIN |
| PARTS KIT,STANDARD SIZE I | ||
| 35.3 MM | ||
| 078 | A 0445860233 | REPAIR KIT |
| Repalced by: A 3763300819 | ||
| 078 | A 3763300819 | KING PIN |
| PARTS KIT,REPAIR SIZE I | ||
| 35.6 MM | ||
| 083 | N 000961012209 | SCREW |
| 083 | N 000961012192 | SCREW |
| 087 | N 000934012004 | NUT |
| 090 | A 3213340115 | RING |
| LEFT | ||
| 094 | A 3213340215 | RING |
| RIGHT | ||
| 098 | A 0009973446 | SEAL RING |
| 098 | A 0039974047 | SEAL RING |
| 102 | A 3213340051 | SPACER RING |
| 106 | A 0019819705 | TAPERED ROLLER BEARING |
| 106 | A 0029810205 | TAPERED ROLLER BEARING |
| 106 | A 0009818905 | TAPERED ROLLER BEARING |
| 112 | A 0443340001 | WHEEL HUB |
| Repalced by: A 3443347001 | ||
| 112 | A 3443347001 | WHEEL HUB |
| 112 | A 3273340401 | WHEEL HUB |
| Repalced by: A 3443347001 | ||
| 112 | A 3443347101 | WHEEL HUB |
| Repalced by: A 3443347201 | ||
| 112 | A 3443347201 | WHEEL HUB |
| 115 | A 3124021071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3524020171 | ||
| 115 | A 3524020171 | WHEEL MOUNTING BOLT |
| 117 | A 3524000074 | PIN |
| (PARTS KIT),WHEEL MOUNTING | ||
| 118 | A 0049813405 | TAPERED ROLLER BEARING |
| 118 | A 0049813805 | TAPERED ROLLER BEARING |
| 118 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 118 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 122 | A 0444210101 | BRAKE DRUM |
| Repalced by: A 3444217001 | ||
| 122 | A 3444217001 | BRAKE DRUM |
| STANDARD | ||
| 122 | A 3444217501 | BRAKE DRUM |
| REPAIR SIZE I | ||
| 126 | A 3273321662 | THRUST WASHER |
| 130 | N 000937032000 | NUT |
| 134 | N 000094006317 | COTTER PIN |
| 138 | A 0453340025 | HUB CAP |
| Repalced by: A 3443347025 | ||
| 138 | A 3443347025 | HUB CAP |
| 142 | A 3443380107 | STEERING ARM |
| LEFT | ||
| 142 | A 3443387008 | STEERING ARM |
| RIGHT | ||
| 142 | H 983443380107 | STEERING ARM |
| Repalced by: A 3443387007 | ||
| 142 | A 3443387007 | STEERING ARM |
| LEFT | ||
| 147 | A 3443380106 | STEERING ARM |
| RIGHT | ||
| 147 | A 3443387005 | STEERING ARM |
| LEFT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 047 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 049 | ||

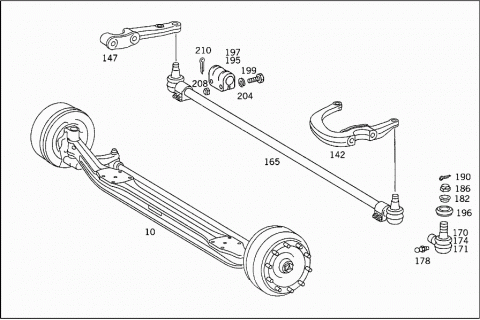

| 165 | A 3273300403 | TIE ROD |
| Repalced by: H 983443300103 | ||
| 165 | H 983443300103 | TIE ROD |
| Repalced by: A 3443307003 | ||
| 165 | A 3443307003 | TIE ROD |
| "NAKATA" | ||
| H 983443300803 | TIE ROD | |
| Repalced by: A 3443307103 | ||
| 165 | A 3443307103 | TIE ROD |
| "THOMPSON" | ||
| 165 | A 3443307203 | TIE ROD |
| NAKATA | ||
| 170 | A 3443307335 | JOINT |
| LEFT | ||
| TO 344 330 71 03 | ||
| 170 | A 3453307048 | TIE ROD END |
| TO 344 330 71 03 | ||
| 170 | H 983443300835 | JOINT |
| Repalced by: A 3443307235 | ||
| 170 | A 3443307235 | JOINT |
| LEFT | ||
| TO 344 330 70 03 | ||
| 170 | A 3443307135 | JOINT |
| RIGHT | ||
| TO 344 330 70 03 | ||
| 170 | A 3443307435 | JOINT |
| RIGHT | ||
| TO 344 330 71 03 | ||
| 171 | A 0083380129 | BALL SOCKET HEAD |
| LEFT | ||
| 174 | A 0083380029 | BALL SOCKET HEAD |
| RIGHT | ||
| 174 | H 983443301135 | JOINT |
| Repalced by: A 3443307435 | ||
| 178 | N 071412010100 | GREASE NIPPLE |
| 182 | A 0083380056 | DUST CAP |
| 182 | H 983443380297 | BOOT |
| Repalced by: A 3443387056 | ||
| 182 | A 3443387056 | DUST CAP |
| TO 344 330 70 03 | ||
| H 983443380431 | LOCKING CAP | |
| 186 | N 000937018004 | NUT |
| 190 | N 000094004026 | COTTER PIN |
| 196 | A 3443307085 | BOOT |
| TO 344 330 71 03 | ||
| 195 | A 0009950544 | CLAMP |
| H 983443300185 | BOOT | |
| Repalced by: A 3443307085 | ||
| 197 | A 3443387045 | CLAMP |
| Repalced by: A 3443387145 | ||
| 197 | A 3443387145 | CLAMP |
| 197 | A 3443387345 | CLAMP |
| TO 344 330 71 03 | ||
| 197 | A 3443387845 | CLAMP |
| 197 | H 983443380345 | CLAMP |
| Repalced by: A 3443387545 | ||
| 197 | A 3443387545 | CLAMP |
| TO 344 330 70 03 | ||
| 199 | N 000960010072 | SCREW |
| 199 | N 000960010032 | SCREW |
| 204 | N 000127010202 | LOCK WASHER |
| 208 | N 913004010004 | NUT |
| 208 | N 000935010001 | NUT |
| 210 | N 000094002008 | COTTER PIN |

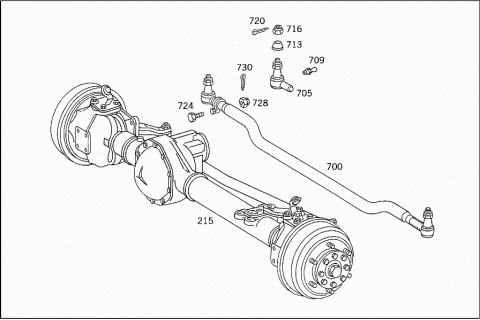

| 215 | A 0443300800 | FRONT AXLE |
| RATIO: | ||
| 7:48 | ||

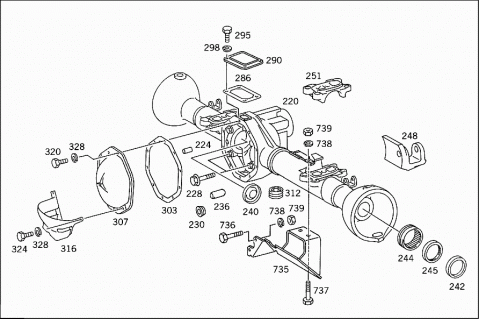

| 220 | A 3443300005 | FRONT AXLE HOUSING |
| Repalced by: A 3443307005 | ||
| 220 | A 3443307005 | FRONT AXLE HOUSING |
| 224 | N 000007006205 | CYLINDRICAL PIN |
| 228 | A 3219900801 | SCREW |
| Repalced by: N 914126016004 | ||
| 228 | N 914126016004 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 230 | N 000906016000 | SCREW PLUG |
| 232 | A 3403310050 | BUSHING |
| Repalced by: A 3403310250 | ||
| 232 | A 3403310250 | BUSHING |
| 236 | A 3523510074 | PIN |
| 240 | A 3213570082 | OIL COLLECTOR |
| 242 | A 3223310351 | SPACER RING |
| 244 | A 0009815312 | ROLLER ASSEMBLY |
| Repalced by: A 0059816310 | ||
| 244 | A 0059816310 | NEEDLE BEARING |
| 244 | A 0049814410 | NEEDLE BEARING |
| 245 | A 0039972546 | SEAL RING |
| 248 | A 3403230040 | BRACKET |
| 251 | A 3223220112 | SPRING SADDLE |
| 253 | A 3213530025 | SCREW COLLAR |
| 256 | A 3223530073 | LOCK |
| 260 | N 000933008228 | SCREW |
| 263 | N 006797008239 | TOOTHED WASHER |
| 267 | A 3223530176 | SET SCREW |
| Repalced by: A 3833530276 | ||
| 267 | A 3833530276 | SET SCREW |
| 271 | A 3223530049 | SLIDE |
| Repalced by: A 3853530149 | ||
| 271 | A 3853530149 | SLIDE |
| 275 | A 3159900051 | NUT |
| 279 | A 3223510171 | SCREW |
| Repalced by: A 3853370171 | ||
| 279 | A 3853370171 | SCREW |
| BEARING COVER | ||
| 283 | N 080705014001 | NUT |
| 286 | A 3223310180 | GASKET |
| 290 | A 3223300056 | COVER |
| Repalced by: A 3453307156 | ||
| 290 | A 3453307156 | COVER |
| TOP | ||
| 295 | N 000933008228 | SCREW |
| COVER TO AXLE HOUSING | ||
| 298 | N 912004008100 | LOCK WASHER |
| COVER TO AXLE HOUSING | ||
| 303 | A 3223510180 | GASKET |
| COVER TO AXLE HOUSING | ||
| 307 | A 3223500621 | COVER |
| Repalced by: A 6153500421 | ||
| 307 | A 6153500421 | COVER |
| 312 | A 1869970032 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| A 0009971332 | SCREW PLUG | |
| Repalced by: A 0009972632 | ||
| 312 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| M24X1,5 MM | ||
| 312 | A 0009973432 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 316 | A 3223500083 | PROTECTIVE PLATE |
| TO 322 350 06 21 | ||
| 320 | N 000933010174 | SCREW |
| TO 322 350 06 21 | ||
| 324 | N 000933010294 | SCREW |
| TO 322 350 06 21 | ||
| N 914112010016 | SCREW | |
| TO 615 350 04 21 | ||
| 328 | N 000127010202 | LOCK WASHER |
| TO 322 350 06 21 | ||

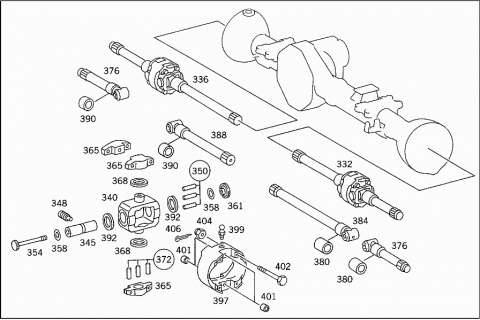

| 332 | A 3403301601 | DRIVE SHAFT |
| LEFT, COMPLETE | ||
| 336 | A 3403301701 | DRIVE SHAFT |
| RIGHT | ||
| 340 | A 3223300435 | JOINT |
| LEFT | ||
| 340 | A 3223300535 | JOINT |
| RIGHT | ||
| 345 | A 3223370074 | PIN |
| Repalced by: A 3813370074 | ||
| 345 | A 3813370074 | PIN |
| 348 | A 3609900077 | SCREW |
| 350 | A 0009812687 | NEEDLE |
| 354 | A 3229900801 | SCREW |
| 358 | A 3223370062 | THRUST WASHER |
| 361 | A 3223370030 | COVER |
| 365 | A 3223370118 | BEARING BRACKET |
| 368 | A 3223370180 | GASKET |
| Repalced by: A 4949970246 | ||
| 368 | A 4949970246 | SEAL RING |
| 372 | A 0009812587 | NEEDLE |
| 376 | A 3223302901 | DRIVE SHAFT |
| Repalced by: A 3813300601 | ||
| 376 | A 3813300601 | DRIVE SHAFT |
| OUTSIDE LEFT AND RIGHT | ||
| 380 | A 3229810181 | INNER RING |
| Repalced by: A 3819810081 | ||
| 380 | A 3819810081 | INNER RING |
| 384 | A 3403300001 | DRIVE SHAFT |
| Repalced by: A 3413300201 | ||
| 384 | A 3413300201 | DRIVE SHAFT |
| INSIDE LEFT | ||
| 388 | A 3403300101 | DRIVE SHAFT |
| Repalced by: A 3413300301 | ||
| 388 | A 3413300301 | DRIVE SHAFT |
| INSIDE RIGHT | ||
| 390 | A 3229810181 | INNER RING |
| Repalced by: A 3819810081 | ||
| 390 | A 3819810081 | INNER RING |
| 392 | A 3223370380 | GASKET |
| Repalced by: A 3819970046 | ||
| 392 | A 3819970046 | SEAL RING |
| 397 | A 3223370217 | FOLLOWER |
| 399 | A 0009971888 | GREASE NIPPLE |
| Repalced by: N 071412008100 | ||
| 399 | N 071412008100 | GREASE NIPPLE |
| 401 | A 3223370280 | GASKET |
| 402 | A 3229900102 | SCREW |
| Repalced by: N 914125010900 | ||
| 402 | N 914125010900 | SCREW |
| 404 | A 3229900055 | NUT |
| Repalced by: N 000935010007 | ||
| 404 | N 000935010007 | NUT |
| 406 | N 000094002008 | COTTER PIN |

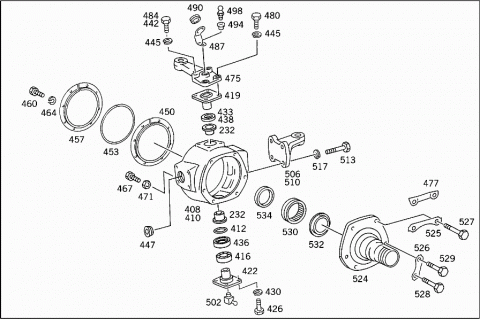

| 408 | A 3223370606 | HOUSING |
| LEFT | ||
| 410 | A 3223370706 | HOUSING |
| RIGHT | ||
| 412 | A 3123320059 | SEAL RING |
| Repalced by: A 0109979847 | ||
| 412 | A 0109979847 | SEAL RING |
| 416 | A 0009810518 | ROLLER BEARING |
| 419 | H 983443320006 | KINGPIN |
| Repalced by: A 3403321206 | ||
| 419 | A 3403321206 | KINGPIN |
| TOP | ||
| 422 | H 983443320106 | KINGPIN |
| Repalced by: A 3403321306 | ||
| 422 | A 3403321306 | KINGPIN |
| BOTTOM | ||
| 426 | N 000961012154 | SCREW |
| LOWER KING PIN TO HOUSING | ||
| 430 | N 000127012201 | LOCK WASHER |
| LOWER KING PIN TO HOUSING | ||
| 433 | A 3123320059 | SEAL RING |
| Repalced by: A 0109979847 | ||
| 433 | A 0109979847 | SEAL RING |
| 436 | A 3403320062 | THRUST WASHER |
| 438 | A 3403320262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.70 MM | ||
| 438 | A 3403320362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| 438 | A 3403320462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.90 MM | ||
| 438 | A 3403320562 | THRUST WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 438 | A 3403320662 | THRUST WASHER |
| AS REQUIRED | ||
| 4.10 MM | ||
| 438 | A 3403320762 | THRUST WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 438 | A 3403320862 | THRUST WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 438 | A 3403320962 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| 438 | A 3403321062 | THRUST WASHER |
| AS REQUIRED | ||
| 4.50 MM | ||
| 438 | A 3403321162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.60 MM | ||
| 438 | A 3403321262 | THRUST WASHER |
| AS REQUIRED | ||
| 4.70 MM | ||
| 438 | A 3403321362 | THRUST WASHER |
| AS REQUIRED | ||
| 4.80 MM | ||
| 438 | A 3403321462 | THRUST WASHER |
| AS REQUIRED | ||
| 4.90 MM | ||
| 438 | A 3403321562 | THRUST WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 442 | N 000961014105 | SCREW |
| 445 | N 000127014201 | LOCK WASHER |
| 447 | N 000906042002 | SCREW PLUG |
| 450 | A 3223310009 | SEAL HOLDER |
| INSIDE | ||
| 453 | A 3223310080 | GASKET |
| 457 | A 3223310109 | SEAL HOLDER |
| OUTSIDE | ||
| 460 | N 000933008228 | SCREW |
| 464 | N 912004008100 | LOCK WASHER |
| 467 | A 3403370071 | SCREW |
| Repalced by: A 3603370171 | ||
| 467 | A 3603370171 | SCREW |
| 471 | N 000934010000 | NUT |
| 475 | A 3403380001 | STEERING ARM |
| 477 | A 3229940130 | LOCK |
| LEFT | ||
| 477 | A 3229940230 | LOCK |
| RIGHT | ||
| 480 | N 000961014101 | SCREW |
| 484 | N 000960014035 | SCREW |
| 487 | A 3404280240 | BRACKET |
| 490 | A 3129970581 | GROMMET |
| 494 | A 3124281026 | HOLLOW SCREW |
| BRACKET TO FRONT AXLE | ||
| 498 | N 071412010100 | GREASE NIPPLE |
| TOP | ||
| 502 | N 071412010200 | GREASE NIPPLE |
| BOTTOM | ||
| 506 | A 3223380405 | STEERING ARM |
| LEFT,AT DRAG LINK | ||
| 510 | A 3223380106 | STEERING ARM |
| RIGHT | ||
| 513 | N 000961012106 | SCREW |
| 517 | N 000127012201 | LOCK WASHER |
| A 3223320816 | SUPPORTING SLEEVE | |
| Repalced by: A 3223321016 | ||
| 524 | A 3223320916 | SUPPORTING SLEEVE |
| Repalced by: A 3223321016 | ||
| 524 | A 3223321016 | SUPPORTING SLEEVE |
| 525 | A 3229940025 | LOCK |
| 526 | A 3229940125 | LOCK |
| 527 | N 000961012058 | SCREW |
| 528 | N 000961016098 | SCREW |
| 529 | N 000961012154 | SCREW |
| 530 | A 0009815312 | ROLLER ASSEMBLY |
| Repalced by: A 0059816310 | ||
| 530 | A 0059816310 | NEEDLE BEARING |
| 530 | A 0049814410 | NEEDLE BEARING |
| 532 | A 0039972546 | SEAL RING |
| 534 | A 3223310351 | SPACER RING |

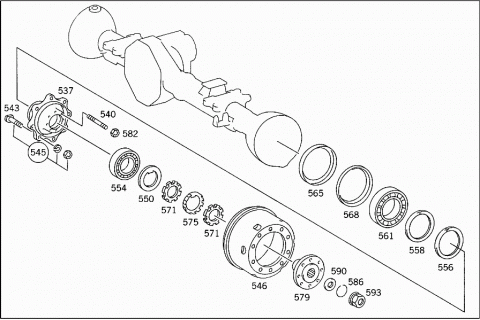

| 537 | A 3223301325 | FRONT WHEEL HUB |
| A 3223340201 | WHEEL HUB | |
| 540 | A 3129901705 | STUD |
| 543 | A 3124021071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3524020171 | ||
| 543 | A 3524020171 | WHEEL MOUNTING BOLT |
| 545 | A 3524000074 | PIN |
| (PARTS KIT),WHEEL MOUNTING | ||
| 546 | A 0444210001 | BRAKE DRUM |
| Repalced by: A 3443217401 | ||
| 546 | A 3444217401 | BRAKE DRUM |
| Repalced by: A 3224210201 | ||
| 546 | A 3224210201 | BRAKE DRUM |
| 550 | A 3123311052 | SPACER WASHER |
| 554 | A 0019815205 | TAPERED ROLLER BEARING |
| FRONT | ||
| 554 | A 3129810301 | CYLINDR. ROLLER BEARING |
| FRONT | ||
| 556 | A 3123311073 | LOCK |
| 558 | A 3403340273 | LOCK |
| 561 | A 0009816105 | TAPERED ROLLER BEARING |
| 561 | A 0019811405 | TAPERED ROLLER BEARING |
| 561 | A 0019819605 | TAPERED ROLLER BEARING |
| 561 | A 3849817505 | TAPERED ROLLER BEARING |
| 565 | A 3403340051 | SPACER RING |
| 568 | A 0029976446 | SEAL RING |
| Repalced by: A 0039972247 | ||
| 568 | A 0039972247 | SEAL RING |
| 571 | A 3129900060 | NUT |
| 575 | A 3123321073 | LOCK |
| 579 | A 3223370417 | FOLLOWER |
| 582 | N 913001012000 | NUT |
| 586 | A 0449940034 | SNAP RING |
| 590 | A 3223370051 | SPACER RING |
| 593 | A 3273530272 | NUT |
| 593 | A 3853510272 | NUT |

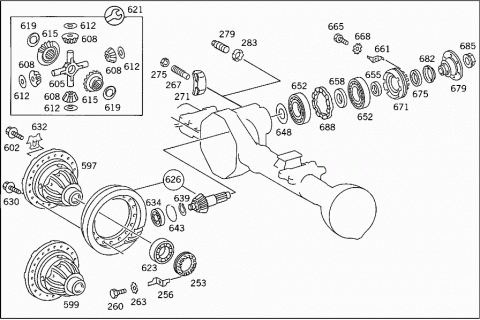

| 597 | A 0443500027 | DIFFERENTIAL CASE |
| 599 | A 3223500327 | DIFFERENTIAL CASE |
| Repalced by: A 3443507027 | ||
| 599 | A 3443507027 | DIFFERENTIAL CASE |
| 602 | N 900170014002 | SCREW |
| 605 | A 3213530220 | DIFFERENTIAL SPIDER |
| Repalced by: A 3443537020 | ||
| 605 | A 3213530320 | DIFFERENTIAL SPIDER |
| Repalced by: A 3443537020 | ||
| 605 | A 3443537020 | DIFFERENTIAL SPIDER |
| 608 | A 3443530014 | DIFFERENTIAL PINION |
| 608 | A 3223530314 | DIFFERENTIAL PINION |
| 612 | A 3123531224 | SPHERICAL WASHER |
| 615 | A 3443350115 | SIDE GEAR |
| TO 344 353 00 14 | ||
| 615 | A 3443350215 | SIDE GEAR |
| 619 | A 3213530162 | THRUST WASHER |
| 621 | A 3445860435 | REPAIR KIT |
| 621 | A 3445860535 | REPAIR KIT |
| 623 | A 0009814605 | TAPERED ROLLER BEARING |
| 623 | A 0009814105 | TAPERED ROLLER BEARING |
| 626 | A 3223501839 | RING GEAR AND PINION |
| RATIO: | ||
| 48:7,"GLEASON" | ||
| 626 | A 6153500039 | RING GEAR AND PINION |
| RATIO: | ||
| 48:7,"OERLIKON" | ||
| 630 | A 3229901101 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 632 | A 3223530273 | LOCK |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 634 | A 0009818601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029817901 | ||
| 634 | A 0029817901 | CYLINDR. ROLLER BEARING |
| 634 | A 0009819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029818201 | ||
| 634 | A 0019814501 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029819501 | ||
| 634 | A 0029819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029819501 | ||
| 634 | A 0029819501 | CYLINDR. ROLLER BEARING |
| 634 | A 0029818201 | CYLINDR. ROLLER BEARING |
| 634 | A 3459817301 | CYLINDR. ROLLER BEARING |
| 639 | N 000471035002 | LOCK RING |
| 643 | A 3229940137 | SNAP RING |
| 648 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 648 | A 6703530852 | SPACER WASHER |
| 0.10 MM | ||
| 648 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| 648 | A 6703530652 | SPACER WASHER |
| 0.20 MM | ||
| 648 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| 648 | A 6703530552 | SPACER WASHER |
| 0.50 MM | ||
| 652 | A 0019819805 | TAPERED ROLLER BEARING |
| 652 | A 0009814005 | TAPERED ROLLER BEARING |
| 652 | A 0029811105 | TAPERED ROLLER BEARING |
| 652 | A 3869817505 | TAPERED ROLLER BEARING |
| 652 | A 3869817605 | TAPERED ROLLER BEARING |
| 655 | A 3223530051 | SPACER RING |
| 658 | A 3213530762 | THRUST WASHER |
| 661 | A 3223530073 | LOCK |
| 665 | N 000933008005 | SCREW |
| 668 | N 006797008239 | TOOTHED WASHER |
| 671 | A 3273531025 | SCREW COLLAR |
| 675 | A 0039974446 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 675 | A 0109975746 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 675 | A 0089970747 | SEAL RING |
| 675 | A 3459977346 | SEAL RING |
| Repalced by: A 3459977646 | ||
| 675 | A 3459977646 | SEAL RING |
| 679 | A 3603500045 | FLANGE |
| 682 | A 3273530291 | PROTECTIVE PLATE |
| 685 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 685 | A 3853510072 | NUT |
| COUPLING FLANGE TO DRIVE PINION | ||
| 685 | A 3853510172 | NUT |
| COUPLING FLANGE TO DRIVE PINION | ||
| 688 | A 3223531352 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.10 MM | ||
| 688 | A 6163530152 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.10 MM | ||
| 688 | A 3223531452 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.12 MM | ||
| 688 | A 6163530252 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.12 MM | ||
| 688 | A 3223531552 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.14 MM | ||
| 688 | A 6163530352 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.14 MM | ||
| 688 | A 3223531652 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.16 MM | ||
| 688 | A 6163530452 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.16 MM | ||
| 688 | A 3223531752 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.18 MM | ||
| 688 | A 6163530552 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.18 MM | ||
| 688 | A 3223531852 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.20 MM | ||
| 688 | A 6163530652 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.20 MM | ||
| 688 | A 3223531952 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.22 MM | ||
| 688 | A 6163530752 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.22 MM | ||
| 688 | A 3223532052 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.24 MM | ||
| 688 | A 6163530852 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.24 MM | ||
| 688 | A 3223532152 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.26 MM | ||
| 688 | A 6163530952 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.26 MM | ||
| 688 | A 3223530152 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.28 MM | ||
| 688 | A 6163531052 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.28 MM | ||
| 688 | A 3223530252 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.30 MM | ||
| 688 | A 6163531152 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.30 MM | ||
| 688 | A 3223530352 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.32 MM | ||
| 688 | A 6163531252 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.32 MM | ||
| 688 | A 3223530452 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.34 MM | ||
| 688 | A 6163531352 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.34 MM | ||
| 688 | A 3223530552 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.36 MM | ||
| 688 | A 6163531452 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.36 MM | ||
| 688 | A 3223530652 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.38 MM | ||
| 688 | A 6163531552 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.38 MM | ||
| 688 | A 3223530752 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.40 MM | ||
| 688 | A 6163531652 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.40 MM | ||
| 688 | A 3223530852 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.42 MM | ||
| 688 | A 6163531752 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.42 MM | ||
| 688 | A 3223530952 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.44 MM | ||
| 688 | A 6163531852 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.44 MM | ||
| 688 | A 3223531052 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.46 MM | ||
| 688 | A 6163531952 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.46 MM | ||
| 688 | A 3223531152 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.48 MM | ||
| 688 | A 6163532052 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.48 MM | ||
| 688 | A 3223531252 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.50 MM | ||
| 688 | A 6163532152 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.50 MM | ||
| 688 | A 3853530051 | SPACER RING |
| AS REQUIRED; STEEL | ||
| 10.52 MM | ||
| 688 | A 6163532251 | SPACER RING |
| AS REQUIRED; BRASS | ||
| 10.52 MM | ||
| 700 | A 3443300003 | TIE ROD |
| 705 | A 0083380329 | BALL SOCKET HEAD |
| 709 | N 071412008100 | GREASE NIPPLE |
| 713 | A 0083380056 | DUST CAP |
| 716 | N 000937018004 | NUT |
| 720 | N 000094004026 | COTTER PIN |
| 724 | N 000961010012 | SCREW |
| 728 | N 000935010001 | NUT |
| 730 | N 000094002008 | COTTER PIN |
| 735 | A 3443300083 | PROTECTIVE PLATE |
| 736 | N 000961014103 | SCREW |
| BRACKET TO FRONT AXLE | ||
| 737 | N 000961014106 | SCREW |
| BRACKET TO FRONT AXLE | ||
| 738 | N 000127014201 | LOCK WASHER |
| BRACKET TO FRONT AXLE | ||
| 739 | N 000934014020 | NUT |
| BRACKET TO FRONT AXLE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 32,FIG.NO.: | ||
| 156 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
