Transporto priemonė: L 1118; VIN numerio dalis: 344024

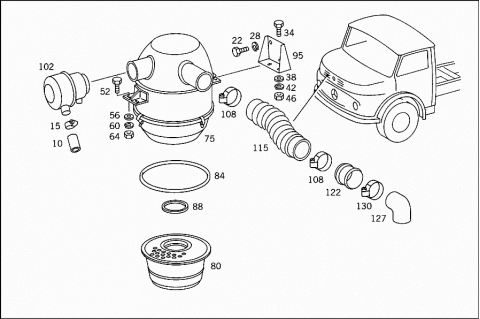

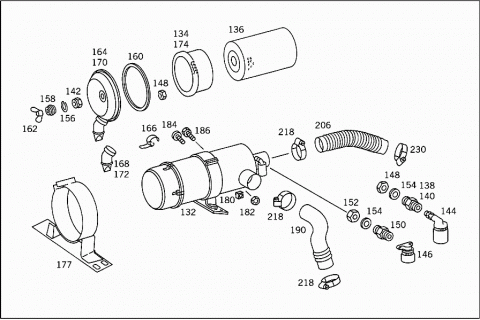

Grupė: 52 AIR CLEANER - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
010	N 900271100013	HOSE
015	A 3449979990	CLAMP
015	A 3459979990	CLAMP
022	N 304017008012	SCREW
		BRACKET TO FRONT PANEL
028	N 912004008100	LOCK WASHER
		BRACKET TO FRONT PANEL
034	N 000933010294	SCREW
		AIR CLEANER TO BRACKET ON FRONT PANEL
038	N 000125010517	WASHER
		AIR CLEANER TO BRACKET ON FRONT PANEL
042	N 000127010202	LOCK WASHER
		AIR CLEANER TO BRACKET ON FRONT PANEL
046	N 000934010005	NUT
		AIR CLEANER TO BRACKET ON FRONT PANEL
052	N 000933010294	SCREW
		AIR CLEANER TO FRONT BRACKET
056	N 000125010517	WASHER
		AIR CLEANER TO FRONT BRACKET
060	N 000127010202	LOCK WASHER
		AIR CLEANER TO FRONT BRACKET
064	N 000934010005	NUT
		AIR CLEANER TO FRONT BRACKET
075	A 3440947202	AIR CLEANER
080	A 0020941304	FILTER ELEMENT
084	A 0000948480	GASKET
		OUTSIDE
088	A 0000948380	GASKET
095	A 3525282440	BRACKET
102	A 3440947302	AIR CLEANER
108	A 3459979790	CLAMP
108	A 3449979790	CLAMP
115	A 0000949782	HOSE
122	A 3445288708	AIR INTAKE PIPE
127	A 3529971382	HOSE
130	A 3449979890	CLAMP
130	A 3459979890	CLAMP
132	A 3450948002	AIR CLEANER
		"MANN DO BRASIL"
132	A 3450947802	AIR CLEANER
		"FRAM DO BRASIL"
134	A 3440947003	FILTER BOWL
		CYCLONE
		TO 345 094 80 02
136	A 0010945204	FILTER ELEMENT
		TO 345 094 80 02
136	A 3440947104	FILTER ELEMENT
		TO 345 094 78 02
138	A 0000940158	ADAPTER FITTING
		TO 345 094 78 02
140	A 0000940167	THREADED NIPPLE
		TO 345 094 78 02
142	N 913002008001	NUT
		TO 345 094 80 02
144	A 0000942668	VACUUM BOX
		TO 345 094 78 02
146	A 3450947068	VACUUM BOX
		TO 345 094 80 02
148	A 0000940472	NUT
		TO 345 094 78 02
150	A 0009972075	THREADED UNION
		TO 345 094 80 02
152	A 0009908654	NUT
		TO 345 094 80 02
154	A 0010944480	GASKET
		TO 345 094 80 02
156	A 0000940173	LOCK
		TO 345 094 78 02
158	A 0000941360	SEAL RING
		TO 345 094 78 02
160	A 0010948080	GASKET
		TO 345 094 78 02
162	A 0000940375	NUT
		TO 345 094 78 02
164	A 0000948703	FILTER BOWL
		TO 345 094 80 02
166	A 0010940055	FASTENER
		TO 345 094 80 02
168	A 3760947165	VALVE
		TO 345 094 80 02
170	A 0000948203	FILTER BOWL
		TO 345 094 78 02
172	A 0000941405	SEPARATOR
		TO 345 094 78 02
174	A 0000941905	CYCLONE PRE-FILTER BOWL
		TO 345 094 78 02
177	A 0000940927	BRACKET
		TO 345 094 80 02
177	A 0000941027	BRACKET
		TO 345 094 78 02
180	A 1109900052	NUT
		TO 345 094 80 02
182	A 0000940572	NUT
		TO 345 094 78 02
184	N 000084008172	SCREW
		TO 345 094 80 02
186	A 0000942171	SCREW
		TO 345 094 78 02
190	A 0000941809	INTAKE PIPE
		AIR INTAKE PIPE TO AIR CLEANER
206	A 3450947082	HOSE
		FROM PICO AIR CLEANER TO PIPE SOCKET AT CYLINDER HEAD COVER
206	A 3455287082	HOSE
		FROM PICO AIR CLEANER TO PIPE SOCKET AT CYLINDER HEAD COVER
218	A 3449979890	CLAMP
218	A 3459979890	CLAMP
230	A 3449979790	CLAMP
230	A 3459979790	CLAMP
