Transporto priemonė: L 1118; VIN numerio dalis: 344024
Grupė: 42 BRAKES

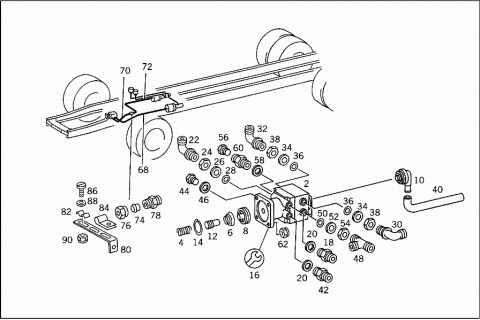

42216

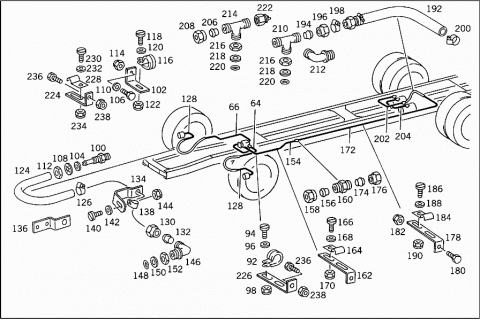

42217

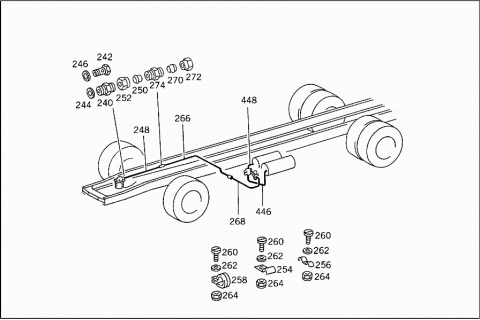

42218
42219

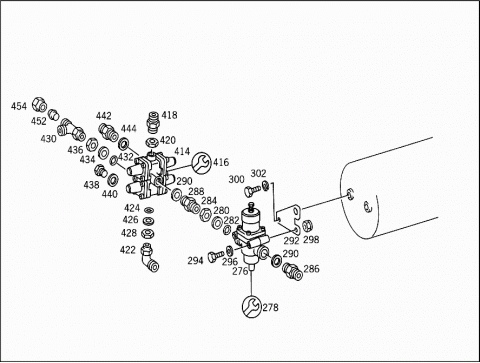

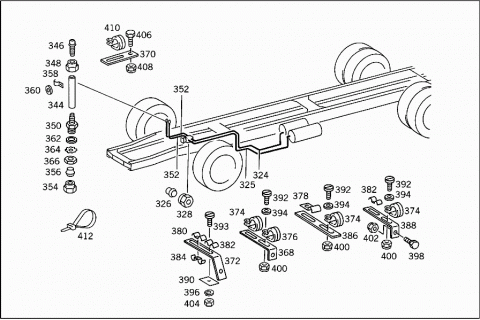

42220

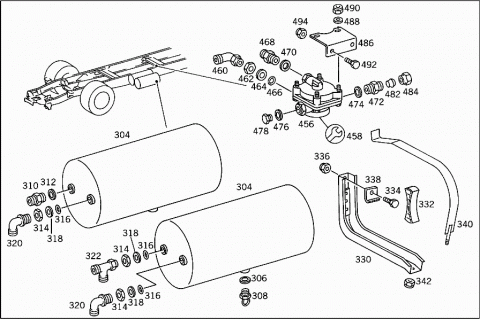

42221

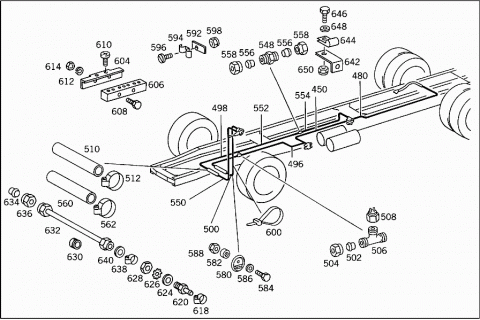

42222

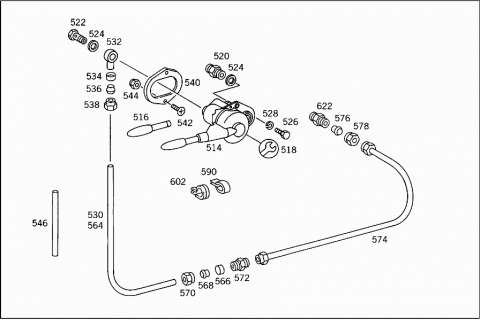

42223
42224

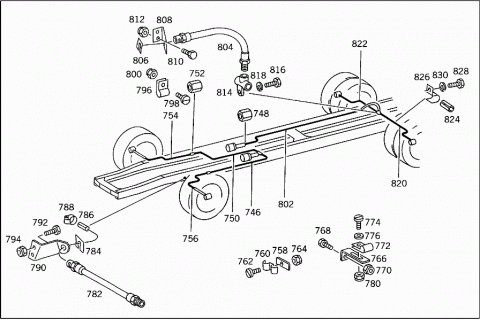

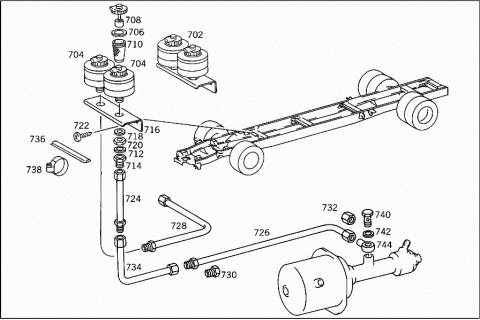

42225

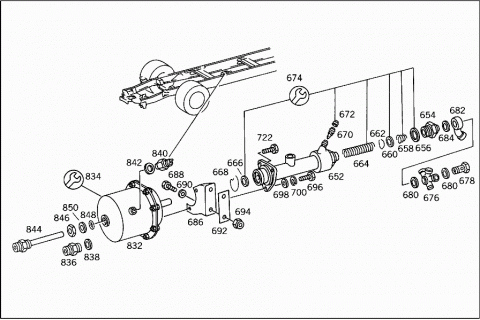

42226

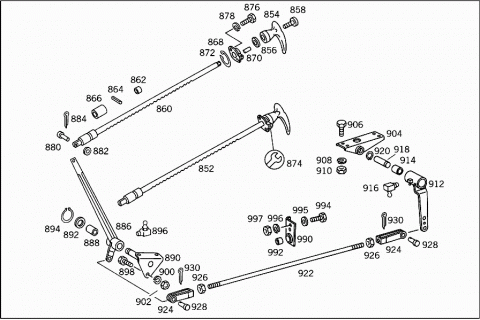

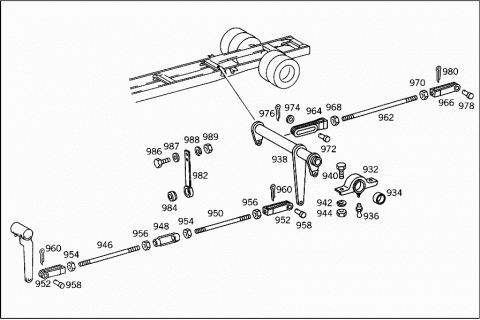

42227
42228
# Kodas Pavadinimas
002 A 0014318305 BRAKE VALVE
Repalced by: A 3454317105
002 A 3454317105 BRAKE VALVE
SERVICE BRAKE
"WABCO"
002 A 3454317005 BRAKE VALVE
SERVICE BRAKE
KNORR
004 A 0014317193 SPRING
TO 345 431 70 05
004 A 0014317293 SPRING
TO 345 431 70 05
004 A 0014317493 SPRING
TO 001 431 83 05,345 43 71 05
006 A 0004312185 FILLER RING
TO 001 431 83 05
008 A 0004318683 PISTON
TO 001 431 83 05,345 431 71 05
008 A 0004319483 PISTON
TO 345 431 70 05
010 A 0004310273 BREATHER PIPE
TO 001 431 83 05
012 A 0004318383 PISTON
TO 001 431 83 05
014 A 0049949541 LOCK
Repalced by: N 000472060000
014 N 000472060000 LOCK RING
TO 001 431 83 05,345 431 71 05
014 A 0049949641 LOCK
Repalced by: N 000472045000
014 N 000472045000 LOCK RING
TO 001 431 83 05,345 431 71 05
014 A 0049949741 LOCK
Repalced by: N 000984038000
014 N 000984038000 LOCK RING
TO 001 431 83 05,345 431 71 05
014 A 0049949841 LOCK
Repalced by: N 000472047001
014 N 000472047001 LOCK RING
TO 001 431 83 05,345 431 71 05
014 A 0049949941 LOCK
TO 345 431 70 05
016 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 001 431 83 05,345 431 71 05
016 A 0004304206 REPAIR KIT
LARGE SCOPE
TO 345 431 70 05
016 A 0014301160 REPAIR KIT
SMALL SCOPE
TO 001 431 83 05,345 431 71 05
016 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 345 431 70 05
018 A 0029971572 FITTING
BRAKE VALVE,CONNECTION "11"
018 N 003901012005 SCREW-IN FITTING
BRAKE VALVE,CONNECTION "11"
020 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "11"
022 A 3459907471 ELBOW FITTING
BRAKE VALVE,CONNECTION "11"
024 N 000936016003 NUT
BRAKE VALVE,CONNECTION "11"
026 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTION "11"
028 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTION "11"
030 A 3089907171 ELBOW FITTING
BRAKE VALVE,CONNECTION "12"
032 A 3459907471 ELBOW FITTING
BRAKE VALVE,CONNECTION "12"
034 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTION "12"
036 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTION "12"
038 N 000936016003 NUT
BRAKE VALVE,CONNECTION "12"
040 A 3459978282 HOSE
BREATHER LINE
TO 001 431 83 05
042 A 0029971572 FITTING
BRAKE VALVE,CONNECTION "21"
042 N 003901012005 SCREW-IN FITTING
BRAKE VALVE,CONNECTION "21"
044 N 007604016102 SCREW PLUG
BRAKE VALVE,CONNECTION "21"
046 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "21"
048 A 0019903570 T-FITTING
BRAKE VALVE,CONNECTION "22"
050 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTION "22"
052 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTION "22"
054 N 000936016003 NUT
BRAKE VALVE,CONNECTION "22"
056 N 007604016102 SCREW PLUG
BRAKE VALVE,CONNECTION "22"
058 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "22"
060 N 003901012005 SCREW-IN FITTING
BRAKE VALVE,CONNECTION "22"
060 A 0029971572 FITTING
BRAKE VALVE,CONNECTION "22"
062 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
064 A 3454208832 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
064 A 3444206536 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
066 A 3444209929 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
066 A 3444206436 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
068 A 3444208729 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE BRAKE CYLINDER
068 A 3454209734 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE BRAKE CYLINDER
070 A 3444208529 LINE
FROM SERVICE BRAKE VALVE TO FITTING
070 A 3454207035 LINE
FROM SERVICE BRAKE VALVE TO REAR AXLE BRAKE CYLINDER
072 A 3444208629 LINE
FROM FITTING TO BRAKE VALVE
074 N 003861012007 GLAND
074 N 003861012007 GLAND
074 N 003861012007 GLAND
076 N 915017012100 UNION NUT
076 N 915017012100 UNION NUT
076 N 915017012100 UNION NUT
078 N 003902012001 CONNECTION FITTING
FROM SERVICE BRAKE VALVE TO REAR AXLE BRAKE CYLINDER
078 A 0029971472 FITTING
FROM SERVICE BRAKE VALVE TO REAR AXLE BRAKE CYLINDER
080 A 3454288440 BRACKET
COMPRESSED AIR LINES
082 A 3379950032 CLAMP
COMPRESSED AIR LINES
084 A 3129951401 CLAMP
COMPRESSED AIR LINES
086 N 007985006515 SCREW
CLAMP
088 N 000125006420 WASHER
CLAMP
090 N 913004006001 NUT
CLAMP
092 N 916016012200 CLAMP
COMPRESSED AIR LINES
092 A 3459957901 CLAMP
COMPRESSED AIR LINES
092 A 3459957901 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
092 N 916016012200 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
094 N 007985006515 SCREW
CLAMP
094 N 000084006137 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
094 N 007985006515 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
096 N 009021006103 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
098 N 913004006001 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
100 A 3454307379 CONNECTOR
FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS
102 A 3464295840 BRACKET
COMPRESSED AIR LINES TO FRAME
104 N 000125017010 WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
106 N 000933010174 SCREW
BRACKET TO FRAME
108 N 006797016152 TOOTHED WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
110 N 000125010517 WASHER
BRACKET TO FRAME
112 N 000936016003 NUT
HOSE FITTING TO FRONT AXLE SIDE MEMBER
114 N 913004010004 NUT
BRACKET TO FRAME
116 N 916016012200 CLAMP
CLAMP TO BRACKET
118 N 007985006515 SCREW
CLAMP TO BRACKET
120 N 000125006420 WASHER
CLAMP TO BRACKET
122 N 913004006001 NUT
CLAMP TO BRACKET
124 N 916027011003 HOSE
FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS
11X480
126 A 3459977990 LOOM TIE
Repalced by: A 3459978890
126 A 3459978890 CLAMP
BRAKE HOSE
128 A 3454208632 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
130 N 915017012100 UNION NUT
132 N 003861012007 GLAND
134 A 3454287840 BRACKET
COMPRESSED AIR LINE MOUNTING
134 A 3454288240 BRACKET
COMPRESSED AIR LINE MOUNTING
136 A 3454299840 BRACKET
COMPRESSED AIR LINE MOUNTING
138 N 916016012200 CLAMP
COMPRESSED AIR LINE MOUNTING
138 A 3459957901 CLAMP
COMPRESSED AIR LINE MOUNTING
140 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
142 N 000125006420 WASHER
COMPRESSED AIR LINE MOUNTING
144 N 913004006001 NUT
COMPRESSED AIR LINE MOUNTING
146 A 3089907171 ELBOW FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
148 A 0009971548 SEAL RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
150 A 0004290927 THRUST RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
152 N 000936016003 NUT
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
154 A 3454209032 LINE
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
156 N 003861012007 GLAND
158 N 915017012100 UNION NUT
160 N 003910012001 BULKHEAD FITTING
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
160 A 0029971672 FITTING
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
162 A 3464295940 BRACKET
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
164 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
164 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
166 N 007985006515 SCREW
COMPRESSED AIR LINE TO BRACKET
168 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
170 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
172 A 3444207430 LINE
FROM FITTING TO BRAKE HOSE
172 A 3444207330 LINE
FROM FITTING TO BRAKE HOSE
172 A 3444207230 LINE
FROM FITTING TO BRAKE HOSE
172 A 3444207130 LINE
FROM FITTING TO BRAKE HOSE
174 N 003861012007 GLAND
176 N 915017012100 UNION NUT
178 A 3454288540 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
180 N 000933008288 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
182 N 913004008001 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
184 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
184 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
186 N 007985006515 SCREW
COMPRESSED AIR LINE TO BRACKET
188 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
190 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
192 A 3504200048 BRAKE HOSE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
192 N 916027011008 HOSE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"; 11X630 MM
192 A 3504208935 LINE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
194 N 003861012007 GLAND
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
196 N 915017012100 UNION NUT
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
198 A 3459978890 CLAMP
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12"
200 A 3459977990 LOOM TIE
Repalced by: A 3459978890
200 A 3459978890 CLAMP
BRAKE HOSE
202 A 3454203749 LINE
FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION:
"11"
204 A 3454203749 LINE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12"
206 N 003861012007 GLAND
208 N 915017012100 UNION NUT
210 A 0009904270 T-FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
212 A 3089907171 ELBOW FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11"
214 A 0009904770 T-FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
216 N 000936016003 NUT
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12"
218 A 0004290927 THRUST RING
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12"
220 A 0009971548 SEAL RING
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12"
222 A 0005455414 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
222 A 3445457214 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
224 A 3454297840 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
226 A 3524290740 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
228 A 3049950220 CLAMP
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
230 N 007985006515 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
230 N 000084006137 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
232 N 000125006420 WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
234 N 913004006001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
236 N 000933008288 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
238 N 913004008001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
240 A 3454298336 CONNECTOR
AT AIR COMPRESSOR
242 N 915036018101 HOLLOW SCREW
AT AIR COMPRESSOR
244 N 007603022102 SEAL RING
AT AIR COMPRESSOR
246 N 007603022105 SEAL RING
AT AIR COMPRESSOR
248 A 3454207033 LINE
FROM AIR COMPRESSOR TO FITTING
248 A 3444207630 LINE
FROM AIR COMPRESSOR TO FITTING
248 A 3764209133 LINE
FROM AIR COMPRESSOR TO FITTING
250 N 003861015004 GLAND
252 N 915017015100 UNION NUT
254 A 3129951401 CLAMP
COMPRESSED AIR LINES
256 A 3049950532 CLAMP
COMPRESSED AIR LINES
258 N 916016008200 CLAMP
COMPRESSED AIR LINES
260 N 007985006515 SCREW
CLAMP TO BRACKET
262 N 000125006420 WASHER
CLAMP TO BRACKET
264 N 913004006001 NUT
CLAMP TO BRACKET
266 A 3454207632 LINE
FROM FITTING TO FITTING
268 A 3454208135 LINE
FROM FITTING TO PRESSURE REGULATOR
270 N 003861015004 GLAND
272 N 915017015100 UNION NUT
274 N 003902015001 CONNECTION FITTING
274 N 003902015001 CONNECTION FITTING
276 A 0014319806 PRESSURE REGULATOR
276 A 0014310006 PRESSURE REGULATOR
278 A 0015864343 REPAIR KIT
TO 001 431 00 06
278 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
278 A 0004201371 REPAIR KIT
TO 001 431 98 06
278 A 0024304681 VALVE
VALVE KIT
TO 001 431 00 06
280 A 0004290227 THRUST RING
Repalced by: A 0009940203
280 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
282 A 0009870446 O-RING
AT PRESSURE REGULATOR
284 N 074305022202 NUT
AT PRESSURE REGULATOR
286 A 3454298336 CONNECTOR
AT PRESSURE REGULATOR
288 N 074313016401 FITTING
AT PRESSURE REGULATOR
288 A 0019972372 FITTING
AT PRESSURE REGULATOR
290 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
292 A 3454318640 BRACKET
294 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
296 N 000125008417 WASHER
PRESSURE REGULATOR TO BRACKET
298 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
300 N 000933008268 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X16
302 N 912004008100 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
304 A 3214300205 RESERVOIR
Repalced by: A 3454308205
304 A 3454308205 RESERVOIR
306 N 007603022102 SEAL RING
308 A 0004320807 VALVE
308 A 3644327107 VALVE
310 A 0029971172 FITTING
Repalced by: A 3454307879
310 A 3454307879 CONNECTOR
AIR RESERVOIR
"1"
310 N 074313012100 FITTING
AIR RESERVOIR
"1"
312 N 007603022102 SEAL RING
AIR RESERVOIR
"1"
314 N 074305022202 NUT
AIR RESERVOIR
"2"
316 A 0009870446 O-RING
AIR RESERVOIR
"2"
318 A 0004290227 THRUST RING
Repalced by: A 0009940203
318 A 0009940203 THRUST RING
AIR RESERVOIR
"2"
320 A 0009907771 ELBOW FITTING
AIR RESERVOIR
"2"
320 N 074315012101 FITTING
AIR RESERVOIR
"2"
322 A 3444297338 ELBOW FITTING
Repalced by: A 3454307779
322 A 3454307779 CONNECTOR
AIR RESERVOIR
324 A 3454209132 LINE
FROM AIR RESERVOIR I TO SERVICE BRAKE VALVE,CONNECTION:
"12"
325 A 3454209232 LINE
FROM AIR RESERVOIR II TO SERVICE BRAKE VALVE,CONNECTION:
"11"
326 N 003861012007 GLAND
328 N 915017012100 UNION NUT
330 A 3444307111 CONSOLE
AIR RESERVOIR
332 A 3354320218 BASE
334 N 000961012106 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
334 N 000963012011 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
336 N 913004012006 NUT
AIR RESERVOIR CONSOLE TO SIDE MEMBER
336 N 913004012012 NUT
AIR RESERVOIR CONSOLE TO SIDE MEMBER
338 A 3454320026 PLATE
AIR RESERVOIR CONSOLE TO SIDE MEMBER
340 A 3604300040 STRAP
AIR RESERVOIR TO CONSOLE
342 N 913004010004 NUT
AIR RESERVOIR TO CONSOLE
344 A 0089976082 HOSE
TO PRESSURE GAUGE
346 A 0019975072 FITTING
TO PRESSURE GAUGE
348 N 915017006200 UNION NUT
TO PRESSURE GAUGE
350 A 0019973772 FITTING
TO PRESSURE GAUGE
352 A 3445407961 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"11",6X0.7 MM
352 A 3765407661 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"11"
352 A 3445408061 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"12",6X0.7 MM
352 A 3765407561 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"12"
354 N 915017006100 UNION NUT
356 N 003861006007 GLAND
358 A 3049951520 CLAMP
PRESSURE GAUGE LINE TO FIRE WALL
Repalced by: A 1009950420
358 A 1009950420 CLAMP
PRESSURE GAUGE LINE TO FIRE WALL
360 N 000125005315 WASHER
PRESSURE GAUGE LINE TO FIRE WALL
362 N 000125013012 WASHER
PLASTIC LINE TO FIRE WALL
364 N 006797012153 TOOTHED WASHER
PLASTIC LINE TO FIRE WALL
366 N 000936012017 NUT
Repalced by: N 000936012005
366 N 000936012005 NUT
PLASTIC LINE TO FIRE WALL
368 A 3464295940 BRACKET
LINE MOUNTING
370 A 3444297040 BRACKET
LINE MOUNTING
372 A 3454287740 BRACKET
LINE MOUNTING
374 N 916016006201 CLAMP
LINE MOUNTING
374 A 3459957801 CLAMP
LINE MOUNTING
374 N 916016008200 CLAMP
LINE MOUNTING
376 N 916016012200 CLAMP
LINE MOUNTING
376 A 3459957901 CLAMP
LINE MOUNTING
378 A 3049951520 CLAMP
LINE MOUNTING
Repalced by: A 1009950420
378 A 1009950420 CLAMP
LINE MOUNTING
380 A 3444290240 CLAMP
LINE MOUNTING
382 A 3379950032 CLAMP
LINE MOUNTING
384 A 3449950132 CLAMP
LINE MOUNTING
384 A 3129950332 CLAMP
LINE MOUNTING
386 A 3454288040 BRACKET
LINE MOUNTING
388 A 3454288540 BRACKET
LINE MOUNTING
390 A 3215422340 BRACKET
LINE MOUNTING
392 N 007985006515 SCREW
LINE MOUNTING
M 6X16
392 N 000084006193 SCREW
LINE MOUNTING
M 6X20
393 N 007985005171 SCREW
LINE MOUNTING
M 5X16
394 N 000125006420 WASHER
LINE MOUNTING
396 N 000127005001 LOCK WASHER
LINE MOUNTING
398 N 000933008288 SCREW
LINE MOUNTING
400 N 913004006001 NUT
LINE MOUNTING
402 N 913004008001 NUT
LINE MOUNTING
404 N 000934005008 NUT
LINE MOUNTING
406 N 000933010174 SCREW
LINE MOUNTING
408 N 913004010004 NUT
LINE MOUNTING
410 A 3459957901 CLAMP
LINE MOUNTING
410 N 916016012200 CLAMP
LINE MOUNTING
412 A 3449977290 LOOM TIE
Repalced by: A 3459977390
412 A 3459977390 LOOM TIE
LINE MOUNTING
195 MM
414 A 0014318906 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
414 A 0024310106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
416 A 0035860943 REPAIR KIT
TO 001 431 89 06
416 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
416 A 0004201571 REPAIR KIT
TO 002 431 01 06
418 N 003901012005 SCREW-IN FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
418 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
420 N 007607016103 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
422 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
424 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
426 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
428 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
430 A 0009904970 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
430 N 074317012200 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
432 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
434 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
436 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
438 N 000908016001 SCREW PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
440 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
442 A 0029978172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
442 N 074313006101 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
444 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
446 A 3454209932 LINE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
448 A 3454209832 LINE
450 A 3454208232 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
450 A 3454208432 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
450 A 3454208332 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
450 A 3454208532 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
452 N 003861012007 GLAND
454 N 915017012100 UNION NUT
456 A 0014296844 VALVE
(RELAY VALVE)
456 A 0034293044 VALVE
(RELAY VALVE)
458 H 983455860842 REPAIR KIT
Repalced by: A 0004205555
458 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44,WESTINGHOUSE
458 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44,WESTINGHOUSE
458 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
458 A 0004201471 REPAIR KIT
TO 003 429 30 44,KNORR
460 N 074315012101 FITTING
RELAY VALVE,CONNECTION "1"
460 A 0009907771 ELBOW FITTING
RELAY VALVE,CONNECTION "1"
462 N 074305022202 NUT
RELAY VALVE,CONNECTION "1"
464 A 0004290227 THRUST RING
Repalced by: A 0009940203
464 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION "1"
466 A 0009870446 O-RING
RELAY VALVE,CONNECTION "1"
468 A 0029979572 FITTING
RELAY VALVE,CONNECTION "4"
468 N 074313008102 FITTING
RELAY VALVE,CONNECTION "4"
470 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION "4"
472 N 003901012005 SCREW-IN FITTING
RELAY VALVE,CONNECTION "2"
472 A 0029971572 FITTING
RELAY VALVE,CONNECTION "2"
474 N 007603006103 SEAL RING
RELAY VALVE,CONNECTION "2"
476 N 007603016103 SEAL RING
RELAY VALVE
478 N 007604016002 SCREW PLUG
RELAY VALVE
480 A 3444207030 LINE
FROM RELAY VALVE,CONNECTION "2",TO BRAKE HOSE
482 N 003861012007 GLAND
484 N 915017012100 UNION NUT
486 A 3504311240 BRACKET
RELAY VALVE
488 N 000125008417 WASHER
RELAY VALVE TO BRACKET
490 N 913004008001 NUT
RELAY VALVE TO BRACKET
492 N 000933010200 SCREW
RELAY VALVE BRACKET TO SIDE MEMBER
494 N 913004010004 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
496 A 3454209532 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
496 A 3444202237 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
498 A 3504207526 LINE
FROM HAND BRAKE VALVE T-FITTING TO COMPRESSED AIR HOSE
500 A 3454204426 LINE
FROM T-FITTING TO HAND BRAKE VALVE, CONNECTION:
502 N 003861008005 GLAND
504 N 915017008100 UNION NUT
506 A 0009901070 T-FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
M14X1,5 / M14X1,5 / M12X1,5
506 A 3454297132 T-FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
508 A 0005455414 SWITCH
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
508 A 0005457214 SWITCH
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
510 A 3524290035 BRAKE HOSE
COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
512 N 916017011000 CLAMP
Repalced by: N 000000000665
512 N 000000000665 CLAMP
514 A 0004304781 VALVE
Repalced by: A 3454307381
514 A 3454307381 VALVE
(HAND BRAKE VALVE)
514 A 3504307009 VALVE
(HAND BRAKE VALVE)
516 A 0009973277 HANDLE
TO 345 430 73 81
A 0004305760 REPAIR KIT
TO 000 430 55 81
518 H 983455861043 REPAIR KIT
Repalced by: A 0034301181
518 A 0034301181 REPAIR KIT
SMALL SCOPE
TO 345 430 73 81
518 A 0005868043 REPAIR KIT
LARGE SCOPE
TO 345 430 73 81
518 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
518 A 0034303181 REPAIR KIT
TO 350 430 70 09
518 A 0024302360 REPAIR KIT
Repalced by: A 0004304006
518 A 0004304006 REPAIR KIT
TO 345 430 73 09
520 A 0039979972 FITTING
HAND BRAKE VALVE
522 N 915036010200 HOLLOW SCREW
HAND BRAKE VALVE
524 N 007603014102 SEAL RING
HAND BRAKE VALVE
526 N 007985008169 SCREW
HAND BRAKE VALVE TO FIRE WALL
528 N 912004008100 LOCK WASHER
HAND BRAKE VALVE TO FIRE WALL
530 A 0089979082 HOSE
Repalced by: A 0009874927
530 A 0009874927 PLASTIC PIPE
FROM BULKHEAD FITTING TO HAND BRAKE VALVE
8X6 MM
532 N 915052006005 BANJO UNION
534 A 0019976672 FITTING
Repalced by: N 915062006000
534 N 915062006000 SLEEVE
536 N 003861008005 GLAND
538 N 915017008100 UNION NUT
540 A 3454317184 SHIM
HAND BRAKE VALVE TO SEAT BOX
542 N 000966006034 SCREW
HAND BRAKE VALVE TO SEAT BOX
544 N 913004006001 NUT
HAND BRAKE VALVE TO SEAT BOX
546 A 3509978482 HOSE
HAND BRAKE VALVE
548 N 003910008001 BULKHEAD FITTING
548 A 0019972772 FITTING
550 A 3454202926 LINE
FROM HAND BRAKE VALVE TO COMPRESSED AIR HOSE
552 A 3454208235 LINE
FROM COMPRESSED AIR HOSE TO FITTING
552 A 3444202137 LINE
FROM COMPRESSED AIR HOSE TO FITTING
554 A 3454209432 LINE
FROM CONNECTION FITTING TO RELAY VALVE ,CONNECTION:
"4"
554 A 3454208335 LINE
FROM COMPRESSED AIR HOSE TO FITTING
554 A 3454208435 LINE
FROM CONNECTION FITTING TO RELAY VALVE ,CONNECTION:
"4"
554 A 3454208535 LINE
FROM CONNECTION FITTING TO RELAY VALVE ,CONNECTION:
"4"
556 N 003861008005 GLAND
558 N 915017008100 UNION NUT
560 A 3524290035 BRAKE HOSE
FROM HAND BRAKE VALVE TO COMPRESSED AIR HOSE
562 N 916017011000 CLAMP
Repalced by: N 000000000665
562 N 000000000665 CLAMP
564 A 0089979082 HOSE
Repalced by: A 0009874927
564 A 0009874927 PLASTIC PIPE
BULKHEAD FITTING
8X6 MM
564 A 0009874927 PLASTIC PIPE
AT FITTING
8X6 MM
564 A 0009874927 PLASTIC PIPE
AT T-FITTING
8X6 MM
566 A 0019976672 FITTING
Repalced by: N 915062006000
566 N 915062006000 SLEEVE
568 N 003861008005 GLAND
570 N 915017008100 UNION NUT
572 N 003902008001 CONNECTION FITTING
574 A 3824209226 LINE
FROM BULKHEAD FITTING TO CONNECTION FITTING
574 A 3824209326 LINE
576 N 003861008005 GLAND
578 N 915017008100 UNION NUT
580 A 3816820086 BRACKET
PLASTIC LINE TO CAB
582 A 3609902340 WASHER
584 N 000933006221 SCREW
LINE TO CROSS MEMBER
586 N 000125006420 WASHER
588 N 913004006001 NUT
LINE TO CROSS MEMBER
590 A 0009951205 CLAMP
LINE TO CROSS MEMBER
590 A 0009951205 CLAMP
PLASTIC LINES TO FRAME
592 A 3179950148 CLAMPING PIECE
COMPRESSED AIR LINES
594 A 1119950032 CLAMP
COMPRESSED AIR LINES
596 N 007985006515 SCREW
COMPRESSED AIR LINES
598 N 913004006001 NUT
COMPRESSED AIR LINES
600 A 0019978590 LOOM TIE
600 A 3459977690 LOOM TIE
600 A 0019978290 LOOM TIE
600 A 3459978290 LOOM TIE
602 N 916016008200 CLAMP
COMPRESSED AIR LINE TO CAB
604 A 3226840075 BLOCK
COMPRESSED AIR LINE MOUNTING
606 A 3226840096 PAD
COMPRESSED AIR LINE MOUNTING
608 N 000931006200 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X60
610 N 007985006228 SCREW
COMPRESSED AIR LINE MOUNTING
BM 6X35
612 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
614 N 000934006006 NUT
COMPRESSED AIR LINE MOUNTING
618 A 3609950201 CLAMP
Repalced by: A 3604300143
618 A 3604300143 CLAMP
Repalced by: N 916016008200
618 N 916016008200 CLAMP
COMPRESSED AIR LINE MOUNTING
620 A 3509977672 FITTING
LINE CONNECTION TO FIRE WALL
620 A 3509977672 FITTING
LINE CONNECTION TO FIRE WALL
622 A 3459978272 FITTING
LINE CONNECTION TO FIRE WALL
624 N 000125015012 WASHER
LINE CONNECTION TO FIRE WALL
626 N 006797014150 TOOTHED WASHER
LINE CONNECTION TO FIRE WALL
628 N 080705014001 NUT
LINE CONNECTION TO FIRE WALL
630 A 0009972181 GROMMET
Repalced by: A 0009972281
630 A 0009972281 GROMMET
LINE CONNECTION TO FIRE WALL
632 A 3444202037 LINE
FROM FITTING TO BRAKE HOSE
634 N 003861008005 GLAND
636 N 915017008100 UNION NUT
638 A 3449950132 CLAMP
LINE MOUNTING
640 N 000125005316 WASHER
LINE MOUNTING
642 A 3524281740 BRACKET
LINE MOUNTING
644 A 3449950132 CLAMP
LINE MOUNTING
646 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
648 N 000125006420 WASHER
COMPRESSED AIR LINE MOUNTING
650 N 913004006001 NUT
COMPRESSED AIR LINE MOUNTING
652 A 0024302701 BRAKE MASTER CYLINDER
FRONT/REAR BRAKE CIRCUIT
652 A 3454307701 BRAKE MASTER CYLINDER
FRONT/REAR BRAKE CIRCUIT
654 A 0004311075 THREADED UNION
TO 002 431 27 01
654 A 0084310675 THREADED UNION
TO 345 430 77 01
656 N 007603040102 SEAL RING
656 A 0004310760 SEAL RING
TO 002 430 27 01
658 A 0009930605 SPRING
TO 002 430 27 01
660 A 0004311776 WASHER
TO 002 430 27 01
662 A 0009941835 SNAP RING
TO 002 430 27 01
664 A 3454317393 SPRING
666 A 0039975246 SEAL RING
TO 002 430 27 01
668 A 3454317194 LOCK
TO 345 430 77 01
668 A 0004310194 LOCK
TO 002 430 27 01
670 A 0004310265 VALVE
Repalced by: A 3454317165
670 A 3454317165 VALVE
672 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
672 A 3454317287 PROTECTIVE CAP
674 A 0455860442 REPAIR KIT
MAJOR
TO 345 430 77 01
674 A 0455860542 REPAIR KIT
MINOR
TO 345 430 77 01
676 A 3454287324 DISTRIBUTOR
TO 345 430 73 01
676 A 3454287524 DISTRIBUTOR
Repalced by: A 3454288024
676 A 3454288024 DISTRIBUTOR
TO 345 430 73 01
676 A 3454287424 DISTRIBUTOR
LEFT
678 A 0004280026 HOLLOW SCREW
Repalced by: A 3454287126
678 A 3454287126 HOLLOW SCREW
LEFT
678 A 3454287626 HOLLOW SCREW
LEFT
680 N 007603014106 SEAL RING
LEFT
682 A 3444280030 CONNECTOR
684 N 007603014106 SEAL RING
RIGHT
686 A 3454310540 BRACKET
BRAKE MASTER CYLINDER
686 A 3454310140 BRACKET
LEFT
686 A 3524310940 BRACKET
RIGHT
688 N 000933010174 SCREW
BRACKET TO FRAME
690 N 000125010517 WASHER
BRACKET TO FRAME
692 A 3523110084 SHIM
BRACKET TO FRAME
694 N 913004010004 NUT
BRACKET TO FRAME
696 N 000933010174 SCREW
MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER
M 10X25
696 N 000933010129 SCREW
MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER
M 10X30
698 N 000125010517 WASHER
MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER
700 N 000127010202 LOCK WASHER
MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER
702 A 3644307002 RESERVOIR
704 A 0004317302 RESERVOIR
Repalced by: A 3644317002
704 A 3644317002 RESERVOIR
706 A 0009972940 SEAL RING
Repalced by: A 0049975340
706 A 0009972940 SEAL RING
TO 000 431 73 02
708 A 0004313433 FILLER CAP
TO 000 431 73 02
708 A 3644317033 FILLER CAP
SENSOR TO COVER
TO 364 431 70 02
710 A 0004314634 STRAINER
WITH FLOAT
TO 000 431 73 02
710 A 3644317034 STRAINER
TO 364 431 70 02
712 N 007603022102 SEAL RING
FLUID RESERVOIR
TO 000 431 73 02
714 A 3454297034 ADAPTER FITTING
FLUID RESERVOIR
TO 000 431 73 02
716 A 3454298440 BRACKET
FLUID RESERVOIR
718 N 000125019009 WASHER
FLUID RESERVOIR TO BRACKET
TO 000 431 73 02
718 H 983084310176 WASHER
FLUID RESERVOIR TO BRACKET
TO 364 431 70 02
720 N 080705018002 NUT
FLUID RESERVOIR TO BRACKET
TO 000 431 73 02
720 N 000934018004 NUT
FLUID RESERVOIR TO BRACKET
TO 364 431 70 02
722 N 007981006208 SHEET METAL SCREW
BRACKET TO CAB CROSS MEMBER
724 A 3764200928 LINE
FROM FLUID RESERVOIR TO CONNECTOR
TO 000 431 73 02
724 A 3764207828 LINE
FROM FLUID RESERVOIR TO CONNECTOR
TO 364 431 70 02
724 A 3764207828 LINE
FROM CONNECTOR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT
TO 364 431 70 02
726 A 3764200728 LINE
FROM CONNECTOR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT
TO 000 431 73 02
726 A 3444207830 LINE
FROM CONNECTOR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT
TO 364 431 70 02
728 A 3764200828 LINE
FROM CONNECTOR TO BRAKE MASTER CYLINDER,REAR AXLE BRAKE CIRCUIT
TO 000 431 73 02
728 A 3444207730 LINE
FROM CONNECTOR TO BRAKE MASTER CYLINDER,REAR AXLE BRAKE CIRCUIT
TO 364 431 70 02
728 A 3504207028 LINE
TO 364 431 70 02
730 A 0009971173 FITTING
732 N 074233014001 UNION SCREW
734 A 3764208148 BRAKE HOSE
TO 000 431 73 02
734 A 0089977782 HOSE
TO 364 431 70 02
734 A 0009971052 HOSE
TO 364 431 70 02
736 A 1119870236 RUBBER SECTION
TRANSMISSION COVER PLATE
738 N 916002010100 CLAMP
TO 364 431 70 02
740 A 3454287026 HOLLOW SCREW
REFILLING LINE TO BRAKE MASTER CYLINDER
740 A 0004280126 HOLLOW SCREW
REFILLING LINE TO BRAKE MASTER CYLINDER
742 N 007603022102 SEAL RING
REFILLING LINE TO BRAKE MASTER CYLINDER
744 A 3454287030 CONNECTOR
REFILLING LINE TO BRAKE MASTER CYLINDER
744 A 0004280130 CONNECTOR
REFILLING LINE TO BRAKE MASTER CYLINDER
744 A 3444208829 LINE
FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE
746 A 3764209832 LINE
FROM FRONT MASTER CYLINDER TO LEFT FRONT BRAKE HOSE
748 A 0004292736 CONNECTOR
748 A 3454297836 CONNECTOR
750 A 3444208929 LINE
FROM MASTER CYLINDER TO CONNECTOR
750 A 3764209732 LINE
FROM MASTER CYLINDER TO CONNECTOR
752 A 0004292736 CONNECTOR
754 A 3444209029 LINE
FROM CONNECTOR TO RIGHT FRONT WHEEL
756 A 3444207530 LINE
FROM INTERMEDIATE PIECE TO LEFT FRONT WHEEL BRAKE HOSE
758 A 3215422340 BRACKET
BRAKE LINE MOUNTING
760 A 3129950332 CLAMP
BRAKE LINE TO BRACKET
762 N 007985005171 SCREW
BRAKE LINE TO BRACKET
764 N 913004005001 NUT
BRAKE LINE TO BRACKET
766 A 3454287040 BRACKET
768 N 000933008288 SCREW
BRACKET TO SIDE MEMBER
770 N 913004008001 NUT
BRACKET TO SIDE MEMBER
772 A 3129951401 CLAMP
BRAKE LINE TO BRACKET
774 N 007985006515 SCREW
BRAKE LINE TO BRACKET
776 N 000125006420 WASHER
BRAKE LINE TO BRACKET
780 N 913004006001 NUT
BRAKE LINE TO BRACKET
782 A 0004284735 BRAKE HOSE
Repalced by: A 3444287535
782 A 3444287535 BRAKE HOSE
FRONT AXLE,LEFT AND RIGHT
782 A 3444287135 BRAKE HOSE
Repalced by: A 3444287435
782 A 3444287435 BRAKE HOSE
FRONT AXLE,LEFT AND RIGHT
784 A 0004280473 BRACKET
BRAKE HOSE
786 A 3449978082 HOSE
HOSE TO BRAKE LINE
788 A 3459977290 LOOM TIE
HOSE TO BRAKE LINE
790 A 3404280243 ANGLE
Repalced by: A 3524282240
790 A 3404280343 ANGLE
Repalced by: A 3524282240
790 A 3524282240 BRACKET
BRAKE HOSE
792 N 000933008288 SCREW
BRACKET TO CAB CONSOLE
794 N 913004008001 NUT
BRACKET TO CAB CONSOLE
796 A 3129951401 CLAMP
MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE
798 N 007985006515 SCREW
CLAMP
800 N 913004006001 NUT
CLAMP
802 A 3444209229 LINE
FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE
802 A 3764200328 LINE
FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE
802 A 3444209329 LINE
FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE
802 A 3764200428 LINE
FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE
802 A 3444209129 LINE
FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE
802 A 3764200228 LINE
FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE
804 A 0004280235 BRAKE HOSE
Repalced by: A 3454287035
804 A 3454287035 BRAKE HOSE
TO REAR AXLE
804 A 0014283535 BRAKE HOSE
Repalced by: A 3454287135
804 A 3454287135 BRAKE HOSE
TO REAR AXLE
804 A 3444287235 BRAKE HOSE
Repalced by: A 3454287235
804 A 3454287235 BRAKE HOSE
TO REAR AXLE
806 A 0004280473 BRACKET
BRAKE HOSE
808 A 3124281040 BRACKET
BRAKE HOSE
810 N 000933008288 SCREW
BRACKET TO SIDE MEMBER
812 N 913004008001 NUT
BRACKET TO SIDE MEMBER
814 A 0004290437 DISTRIBUTOR
AT REAR AXLE
814 A 3454297037 DISTRIBUTOR
AT REAR AXLE
816 N 000933008273 SCREW
DISTRIBUTOR TO REAR AXLE
818 N 912004008100 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
820 A 3444207928 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
822 A 3444207828 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
824 A 3129973482 HOSE
826 A 3129951020 CLAMP
828 N 000933008015 SCREW
LINE TO AXLE HOUSING
830 N 912004008100 LOCK WASHER
LINE TO AXLE HOUSING
832 A 0034304401 BRAKE BOOSTER
ONE-CHAMBER COMPRESSED AIR CYLINDER
834 A 0015869143 REPAIR KIT
Repalced by: A 0004301608
834 A 0004301608 REPAIR KIT
TO 003 430 44 01
836 N 074313012100 FITTING
LEFT AND RIGHT BRAKE CYLINDERS
836 A 0029971172 FITTING
Repalced by: A 3454307879
836 A 3454307879 CONNECTOR
LEFT AND RIGHT BRAKE CYLINDERS
838 N 007603022102 SEAL RING
LEFT AND RIGHT BRAKE CYLINDERS
840 A 0005455214 SWITCH
STOP LIGHT
842 N 007603010110 SEAL RING
844 N 074315012101 FITTING
LEFT AND RIGHT BRAKE CYLINDERS
844 A 0009907771 ELBOW FITTING
LEFT AND RIGHT BRAKE CYLINDERS
846 N 074305022202 NUT
LEFT AND RIGHT BRAKE CYLINDERS
848 A 0009870446 O-RING
LEFT AND RIGHT BRAKE CYLINDERS
850 A 0004290227 THRUST RING
Repalced by: A 0009940203
850 A 0009940203 THRUST RING
LEFT AND RIGHT BRAKE CYLINDERS
852 A 3454207084 PARKING BRAKE
854 A 3094270020 HANDLE
856 A 3124271086 DAMPING RING
858 N 007985010132 SCREW
860 A 3764207088 RATCHET ROD
862 A 3124271151 SPACER RING
864 N 001473004021 GROOVED PIN
866 A 3534270095 PROTECTIVE CAP
868 A 3124201178 BEARING BRACKET
870 N 001473004023 GROOVED PIN
872 N 000472015000 LOCK RING
874 A 3144200092 REPAIR KIT
PAWL
876 N 000933008317 SCREW
BEARING BRACKET TO FIRE WALL
878 N 912004008100 LOCK WASHER
BEARING BRACKET TO FIRE WALL
880 A 3529910407 PIN
PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER
882 N 000433008403 WASHER
PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER
884 N 000094002033 COTTER PIN
PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER
886 A 3454207212 BRAKE LEVER
HAND BRAKE LEVER
888 A 3449920301 BUSHING
890 A 3444200178 BEARING BRACKET
HAND BRAKE LEVER
892 A 3129901540 WASHER
BRAKE LEVER TO BEARING BRACKET
894 N 000471022000 LOCK RING
BRAKE LEVER TO BEARING BRACKET
896 N 071412010300 GREASE NIPPLE
BRAKE LEVER TO BEARING BRACKET
898 N 000933010129 SCREW
BEARING BRACKET WITH HAND BRAKE LEVER TO FRAME
900 N 000127010202 LOCK WASHER
BEARING BRACKET WITH HAND BRAKE LEVER TO FRAME
902 N 000934010000 NUT
BEARING BRACKET WITH HAND BRAKE LEVER TO FRAME
904 A 3224203678 BEARING BRACKET
INTERMEDIATE LEVER
906 N 000933010174 SCREW
BEARING BRACKET TO FRONT CROSS MEMBER
908 N 000127010202 LOCK WASHER
BEARING BRACKET TO FRONT CROSS MEMBER
910 N 000934010000 NUT
BEARING BRACKET TO FRONT CROSS MEMBER
912 A 3444207081 LEVER
INTERMEDIATE LEVER
914 A 3124271550 BUSHING
916 N 071412010300 GREASE NIPPLE
918 A 3124261574 PIN
INTERMEDIATE LEVER TO BEARING BRACKET
920 N 000471022000 LOCK RING
INTERMEDIATE LEVER TO BEARING BRACKET
922 N 900331010383 PULL ROD
FROM HAND BRAKE LEVER TO FRONT INTERMEDIATE LEVER
1580 MM
924 A 3214200176 END PIECE
926 N 000934010000 NUT
928 A 3149910107 PIN
930 N 000094003027 COTTER PIN
932 A 3444207078 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
934 A 3124272350 BUSHING
936 N 071412010100 GREASE NIPPLE
938 A 3224201480 BRAKE INTERMEDIATE SHAFT
BRAKE INTERMEDIATE SHAFT
940 N 000933010174 SCREW
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
942 N 000127010202 LOCK WASHER
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
944 N 000934010000 NUT
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
946 N 900331010034 PULL ROD
FROM FRONT INTERMEDIATE LEVER TO REAR BRAKE INTERMEDIATE SHAFT
1100 MM
946 N 900331010045 PULL ROD
FROM FRONT INTERMEDIATE LEVER TO REAR BRAKE INTERMEDIATE SHAFT
1700 MM
946 N 900331010392 PULL ROD
FROM FRONT INTERMEDIATE LEVER TO REAR BRAKE INTERMEDIATE SHAFT
2340 MM
948 N 001480010200 TURNBUCKLE
TURNBUCKLE
950 A 3129962441 ROD
FROM FRONT INTERMEDIATE LEVER TO REAR BRAKE INTERMEDIATE SHAFT
952 A 3214200176 END PIECE
954 N 000934010000 NUT
R.H. THREAD
956 N 000934010000 NUT
L.H. THREAD
958 A 3149910107 PIN
960 N 000094003027 COTTER PIN
962 A 3129961541 ROD
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
964 A 3224200347 YOKE
L.H. THREAD
966 A 3444207047 YOKE
R.H. THREAD
968 N 000934010000 NUT
L.H. THREAD
970 N 000934010000 NUT
R.H. THREAD
972 A 3529910707 PIN
PULL ROD TO INTERMEDIATE LEVER
974 N 000433010500 WASHER
PULL ROD TO INTERMEDIATE LEVER
976 N 000094003027 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
978 N 001444010210 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
980 N 000094003027 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
982 A 3454207286 BRACKET
PULL ROD TO CROSS MEMBER V
984 A 0009973481 GROMMET
986 N 000933008282 SCREW
BRACKET TO CROSS MEMBER
987 N 000125008417 WASHER
BRACKET TO CROSS MEMBER
988 N 912004008100 LOCK WASHER
BRACKET TO CROSS MEMBER
989 N 000934008000 NUT
BRACKET TO CROSS MEMBER
990 A 3604200286 BRACKET
HAND BRAKE LINKAGE
992 A 3604270150 BUSHING
994 N 000933008050 SCREW
995 N 000125008417 WASHER
996 N 912004008100 LOCK WASHER
997 N 000934008000 NUT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
