Transporto priemonė: L 1118; VIN numerio dalis: 344024

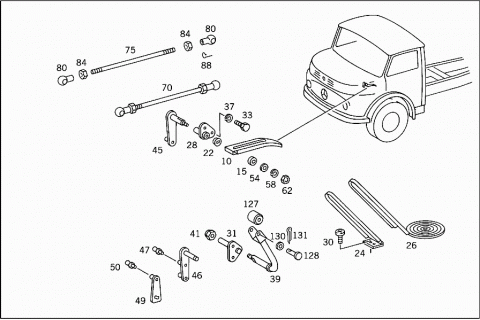

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3523000802 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 015 | A 3223010054 | GUARD PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 022 | A 3523010088 | COVERING |
| ACCELERATOR PEDAL CONTROL | ||
| 024 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 024 | A 3763007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 026 | A 3443010082 | PAD |
| ACCELERATOR PEDAL CONTROL | ||
| 028 | A 3223000021 | BEARING TUBE |
| Repalced by: A 3453000021 | ||
| 028 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 028 | A 3763000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 030 | N 007985006137 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 030 | N 007985006513 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 031 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 033 | N 000933008317 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| 033 | N 000933008145 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| 037 | N 912004008100 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 039 | A 3503007225 | LEVER |
| 041 | N 913004008001 | NUT |
| LEVER TO SHAFT | ||
| 045 | A 3453007025 | LEVER |
| 046 | A 3763000825 | LEVER |
| 047 | N 071803010206 | BALL PIVOT |
| 049 | A 3453008525 | LEVER |
| 050 | N 071803010209 | BALL PIVOT |
| 054 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 054 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 058 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 062 | N 000934008010 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 070 | A 3443000415 | ROD |
| 070 | A 3763007015 | ROD |
| 070 | A 3763000215 | ROD |
| 070 | A 3763000315 | ROD |
| 075 | N 900331006298 | PULL ROD |
| 6X200 | ||
| 075 | N 900331006126 | PULL ROD |
| 6X170 | ||
| 075 | N 900331006152 | PULL ROD |
| 6X130 | ||
| 075 | N 900331006599 | PULL ROD |
| 080 | N 071805010202 | BALL SOCKET |
| 084 | N 000934006006 | NUT |
| 088 | N 071805010402 | CIRCLIP |
| 095 | A 3453008307 | KNOB |
| Repalced by: A 3453009007 | ||
| 095 | A 3453009007 | KNOB |
| WITH SPINDLE | ||
| 095 | A 3453008407 | KNOB |
| Repalced by: A 3453009607 | ||
| 095 | A 3453009607 | KNOB |
| WITH SPINDLE | ||
| 105 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 105 | A 3764307210 | BRACKET |
| MANUAL CONTROL | ||
| 112 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL | ||
| 116 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 120 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL | ||
| 122 | N 072571001024 | CLAMP |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 123 | N 007981004240 | SHEET METAL SCREW |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 126 | A 3459977581 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 127 | A 3443000006 | ROLLER |
| 128 | N 001444006224 | PIN |
| ROLLER TO LEVER | ||
| 128 | N 001444006225 | PIN |
| ROLLER TO LEVER | ||
| 130 | N 000125006420 | WASHER |
| ROLLER TO LEVER | ||
| 131 | N 000094001609 | COTTER PIN |
| ROLLER TO LEVER | ||
| 132 | A 3453027091 | GROMMET |
| 138 | A 3523020020 | CLAMP |
| 142 | N 007985006512 | SCREW |
| BRACKET TO ENGINE | ||
| 146 | N 000127006203 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 154 | N 000933006223 | SCREW |
| ACCELERATOR PEDAL TO BRACKET | ||
| 158 | N 000127006203 | LOCK WASHER |
| ACCELERATOR PEDAL TO BRACKET | ||
| 162 | N 000934006006 | NUT |
| ACCELERATOR PEDAL TO BRACKET | ||
