Transporto priemonė: L 1118; VIN numerio dalis: 344024
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

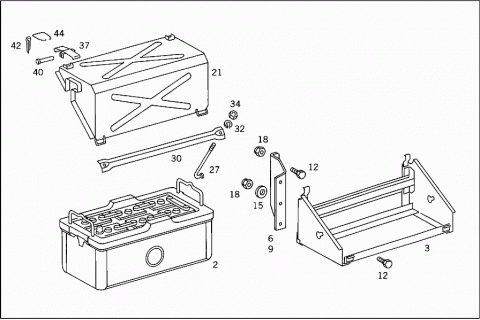

| 002 | A 0005418101 | BATTERY |
| 003 | A 3445407014 | BATTERY CASE |
| 006 | A 3455417640 | BRACKET |
| REAR | ||
| 009 | A 3455417740 | BRACKET |
| FRONT | ||
| 012 | N 000961014101 | SCREW |
| 015 | A 3209901840 | WASHER |
| 018 | N 913004014005 | NUT |
| 021 | A 3445407282 | COVER |
| 027 | A 3455417222 | HOOK |
| 030 | A 3445417213 | MOUNTING RAIL |
| 032 | N 000127008104 | LOCK WASHER |
| 034 | A 3449907062 | NUT |
| 034 | N 000315008007 | NUT |
| 037 | A 3445400019 | MOUNTING BOW |
| 040 | N 001444005211 | PIN |
| B5 F.8X40 | ||
| 042 | N 000094001203 | COTTER PIN |
| 044 | A 3445410026 | BRACKET |

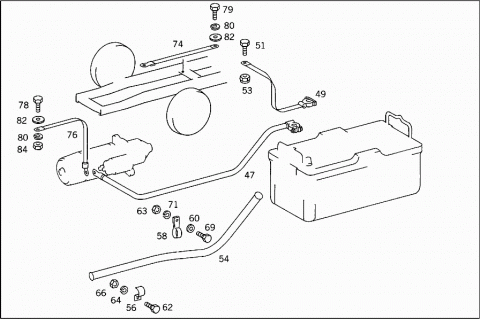

| 047 | A 3455407830 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 049 | A 3445407031 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 051 | N 000961012040 | SCREW |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 053 | N 913004012003 | NUT |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 054 | A 3445467085 | PROTECTIVE TUBE |
| 056 | A 3449957020 | CLAMP |
| CABLE CONDUIT | ||
| 058 | A 3449957035 | CLAMP |
| CABLE CONDUIT | ||
| 060 | N 000125008417 | WASHER |
| CABLE CONDUIT | ||
| 062 | N 000933006223 | SCREW |
| CABLE CONDUIT | ||
| 063 | N 000934008010 | NUT |
| CABLE CONDUIT | ||
| 064 | N 000127006203 | LOCK WASHER |
| CABLE CONDUIT | ||
| 066 | N 000934006006 | NUT |
| CABLE CONDUIT | ||
| 069 | N 000933008282 | SCREW |
| CLAMP TO SUBSTRUCTURE | ||
| 071 | N 000127008104 | LOCK WASHER |
| CLAMP TO SUBSTRUCTURE | ||
| N 916016025201 | CLAMP | |
| BATTERY CABLE MOUNTING | ||
| 15-25 | ||
| N 000933006089 | SCREW | |
| BATTERY CABLE MOUNTING | ||
| N 913004006001 | NUT | |
| BATTERY CABLE MOUNTING | ||
| 074 | A 3455407241 | GROUND STRAP |
| 076 | A 3455400041 | GROUND STRAP |
| 078 | N 000933010092 | SCREW |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 079 | N 000933010174 | SCREW |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 080 | N 000127010202 | LOCK WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 082 | N 009021010102 | WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 084 | N 913004010014 | NUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 086 | A 0005453726 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 1-2,5MM2,TO345 540 91 05,345 540 70 06 | ||

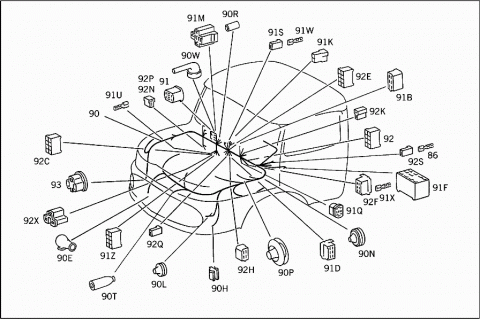

| 090 | A 3455409105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 090 | A 3455407006 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 090E | A 0005460035 | BOOT |
| TO 345 540 91 05,345 540 70 06 | ||
| 090H | A 0005440156 | CONTACT PIECE |
| TO 345 540 91 05,345 540 70 06 | ||
| 090L | A 1109970481 | GROMMET |
| HEADLAMP | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 090N | A 3459977081 | GROMMET |
| TO 345 540 70 06 | ||
| 090P | A 3459977781 | GROMMET |
| TO 345 540 70 06 | ||
| 090R | A 0009970381 | GROMMET |
| TO 345 540 91 05,345 540 70 06 | ||
| 090R | A 0009970581 | GROMMET |
| TO 345 540 91 05,345 540 70 06 | ||
| 090T | A 3449977181 | GROMMET |
| HORN | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 090W | A 0005400181 | PLUG SOCKET |
| DIFFERENTIAL LOCK SWITCH | ||
| TO 345 540 91 05 | ||
| 091 | A 3455457028 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 091B | A 0015452828 | PIN BUSHING HOUSING |
| INTERMITTENT ACTION SWITCH;6-POLE | ||
| TO 345 540 70 06 | ||
| 091D | A 0035451128 | PIN BUSHING HOUSING |
| INTERMITTENT ACTION SWITCH;6-POLE | ||
| TO 345 540 70 06 | ||
| 091F | A 3455457128 | PIN BUSHING HOUSING |
| 10-POLE | ||
| TO 345 540 70 06 | ||
| 091K | A 0015457028 | PLUG |
| Repalced by: A 0015457928 | ||
| 091K | A 0015457928 | PLUG HOUSING |
| HEATING CONTROL LIGHTING | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 091M | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| TO 345 540 91 05 | ||
| 091M | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| TO 345 540 70 06 | ||
| 091Q | A 3445457128 | PLUG |
| TO 345 540 91 05 | ||
| 091S | A 0015456728 | PLUG HOUSING |
| CIGAR LIGHTER; BIPOLAR | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 091U | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2,TO 345 540 91 05,345 540 70 06 | ||
| 091W | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 091W | A 0005453726 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 1-2,5MM2,TO345 540 91 05,345 540 70 06 | ||
| 091X | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2,TO 345 540 91 05,345 540 70 06 | ||
| 091X | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1-2,5MM2,TO345 540 91 05,345 540 70 06 | ||
| 091Z | A 0025459628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 092 | A 0015453028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 092C | A 0035457628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| TO 345 540 91 05 | ||
| 092E | A 0035455128 | PLUG |
| 8-POLE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 092E | A 0045459328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 092F | A 0015452628 | PIN BUSHING HOUSING |
| 6-POLE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 092H | A 0035459528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| TO 345 540 70 06 | ||
| 092H | A 0035453528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| TO 345 540 91 05 | ||
| 092H | A 0015455928 | PIN BUSHING HOUSING |
| 4-POLE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| 092H | A 0015457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| TO 345 540 91 05 | ||
| 092K | A 0015459528 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 91 05 | ||
| 092K | A 0015459528 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 70 06 | ||
| 092N | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 91 05 | ||
| 092N | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 70 06 | ||
| 092P | A 0015451028 | PIN BUSHING HOUSING |
| Repalced by: A 0015458728 | ||
| 092P | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 91 05 | ||
| 092P | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 70 06 | ||
| A 0015451028 | PIN BUSHING HOUSING | |
| Repalced by: A 0015458728 | ||
| 092P | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 91 05 | ||
| 092P | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| TO 345 540 70 06 | ||
| 092Q | A 0005451745 | BOOT |
| TO 345 540 91 05,345 540 70 06 | ||
| 092S | A 3645457145 | PIN BUSHING HOUSING |
| TO 345 540 70 06 | ||
| 092X | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 092X | A 0385452528 | PLUG |
| FROM ALTERNATOR TO REGULATOR CASE | ||
| TO 345 540 91 05,345 540 70 06 | ||
| A 3845467035 | BOOT | |
| ALTERNATOR | ||
| 093 | A 3445447060 | PLUG SOCKET HOUSING |

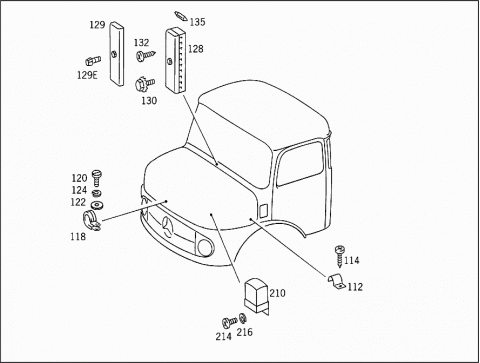

| 112 | A 3449957120 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 114 | N 007981004219 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 118 | A 3509978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 118 | N 916016020201 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 118 | A 3459957501 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 120 | N 007985005171 | SCREW |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 122 | N 009021005104 | WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 124 | N 000127005001 | LOCK WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 128 | A 3455457701 | FUSE BOX |
| 12-POLE | ||
| 128 | A 3455457801 | FUSE BOX |
| 12-POLE | ||
| 129 | A 3455407182 | COVER |
| 129E | A 3455457071 | SCREW |
| 130 | N 914028004100 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 132 | N 007981004252 | SHEET METAL SCREW |
| FUSE BOX | ||
| 135 | A 3085450234 | FUSE |
| 8 A | ||
| 135 | A 3085450334 | FUSE |
| 15 A | ||

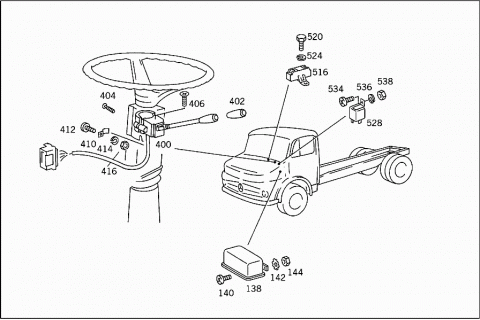

| 138 | A 3445447232 | SENDER UNIT |
| BLINKER | ||
| 138 | A 3085447132 | SENDER UNIT |
| BLINKER | ||
| 138 | A 3085447132 | SENDER UNIT |
| BLINKER | ||
| A 3455447032 | SENDER UNIT | |
| 140 | N 007985006127 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 142 | N 006797006145 | TOOTHED WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 144 | N 000934006006 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| A 3465400079 | STOP LIGHT SWITCH | |
| Repalced by: A 0005457009 | ||

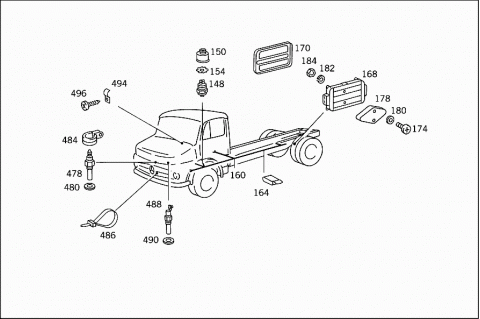

| 148 | A 0005457009 | SWITCH |
| 150 | A 3465450045 | BOOT |
| 154 | N 006797016152 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 160 | A 3445407632 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 160 | A 3445409137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 160 | A 3445407732 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 160 | A 3445409237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 160 | A 3445407832 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 160 | A 3445409337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 160 | A 3445407932 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 164 | A 3449880078 | CLIP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 168 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE | ||
| 170 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 174 | N 007985004193 | SCREW |
| PLUG MOUNTING | ||
| 174 | N 007985004124 | SCREW |
| PLUG MOUNTING | ||
| 178 | A 3275425038 | SHIM |
| PLUG MOUNTING | ||
| 180 | N 000125004313 | WASHER |
| PLUG MOUNTING | ||
| 182 | N 912004004102 | LOCK WASHER |
| PLUG MOUNTING | ||
| 184 | N 000934004014 | NUT |
| PLUG MOUNTING | ||
| 190 | A 3085400427 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 190 | A 3455407207 | CABLE HARNESS |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 194 | A 3085400527 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 194 | A 3445407007 | CABLE HARNESS |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||

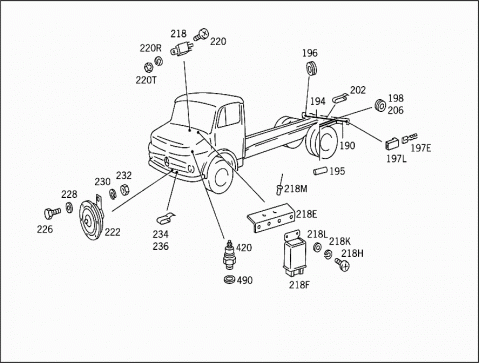

| 195 | A 0009970381 | GROMMET |
| FROM JUNCTION BOX TO TAIL LAMP | ||
| 195 | A 0009970381 | GROMMET |
| FROM JUNCTION BOX TO TAIL LAMP | ||
| 196 | A 8339970281 | GROMMET |
| 197E | A 0005453726 | PIN BUSHING |
| 197L | A 0005451745 | BOOT |
| 198 | A 3129970481 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 202 | A 3219950040 | CLAMP |
| ELECTRIC CABLE TO REAR CROSS MEMBER | ||
| 206 | A 3129970481 | GROMMET |
| 210 | A 0021545006 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021546206 | ||
| 210 | A 0021546206 | REGULATOR AND CUT-OUT |
| (ELECTRONIC FIELD REGULATOR) | ||
| 214 | N 007985006512 | SCREW |
| REGULATOR AND CUT-OUT | ||
| 216 | N 000127006203 | LOCK WASHER |
| REGULATOR AND CUT-OUT | ||
| 218 | A 3445427119 | RELAY |
| STARTING MOTOR | ||
| 218 | A 3455427019 | RELAY |
| STARTING MOTOR | ||
| 218E | A 3505407173 | BRACKET |
| WIPER PULSE SENDER UNIT | ||
| 218F | A 3455458424 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 218H | N 007985004192 | SCREW |
| WIPER PULSE SENDER UNIT | ||
| 218K | N 912004004102 | LOCK WASHER |
| WIPER PULSE SENDER UNIT | ||
| 218L | N 000125004313 | WASHER |
| WIPER PULSE SENDER UNIT | ||
| 218M | A 3449908197 | RIVET |
| BRACKET TO WINDOW LEVEL GIRDER UPPER PART | ||
| 220 | N 007985005183 | SCREW |
| RELAY TO BRACKET | ||
| 220R | N 912004005101 | LOCK WASHER |
| RELAY TO BRACKET | ||
| 220T | N 000934005008 | NUT |
| RELAY TO BRACKET | ||
| 222 | A 3445427120 | HORN |
| 222 | A 3445427520 | HORN |
| 222 | A 3445427720 | HORN |
| 226 | N 000933010129 | SCREW |
| HORN MOUNTING | ||
| 228 | N 000125010517 | WASHER |
| HORN MOUNTING | ||
| 230 | N 000127010202 | LOCK WASHER |
| HORN MOUNTING | ||
| 232 | N 000934010000 | NUT |
| HORN MOUNTING | ||
| 234 | A 3449880078 | CLIP |
| HORN CABLE | ||
| 236 | A 3219950040 | CLAMP |
| HORN BRANCH-OFF TO RADIATOR BASE FRAME | ||

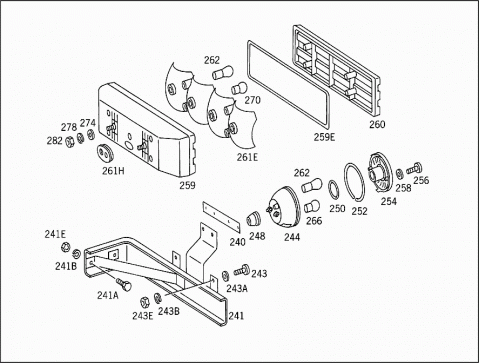

| 240 | A 3445447038 | BRACKET |
| 241 | A 3445400473 | BRACKET |
| LICENSE PLATE AND TAIL LAMP | ||
| 241 | A 3445407873 | BRACKET |
| LICENSE PLATE AND TAIL LAMP | ||
| 241 | A 3445408073 | BRACKET |
| LICENSE PLATE AND TAIL LAMP | ||
| 241 | A 3445400373 | BRACKET |
| RIGHT TAIL LAMP | ||
| 241 | A 3085407473 | BRACKET |
| RIGHT TAIL LAMP | ||
| 241 | A 3445407973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 241A | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| 241B | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 241E | N 000934010000 | NUT |
| BRACKET TO FRAME | ||
| 243 | N 007985006502 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 243A | N 000125006420 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 243B | N 000127006203 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 243E | N 000934006006 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 244 | A 0005445503 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 244 | A 3445447003 | TAIL LAMP |
| LEFT | ||
| "IAM" | ||
| 244 | A 0005445603 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 244 | A 3445447103 | TAIL LAMP |
| RIGHT | ||
| "IAM" | ||
| 248 | A 0445440081 | GROMMET |
| TO 000 544 55 03,000 544 56 03 | ||
| 250 | A 0445440080 | GASKET |
| TO 000 544 55 03,000 544 56 03 | ||
| 252 | A 0445440180 | GASKET |
| TO 000 544 55 03,000 544 56 03 | ||
| 254 | A 0445440089 | RIM |
| TO 000 544 55 03,000 544 56 03 | ||
| 256 | N 007985005140 | SCREW |
| TO 000 544 55 03,000 544 56 03 | ||
| 258 | N 000125005313 | WASHER |
| TO 000 544 55 03,000 544 56 03 | ||
| 259 | A 0025442403 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 259 | A 6885447103 | TAIL LAMP |
| LEFT | ||
| "ARTEB" | ||
| 259 | A 0025440803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 259 | A 6885447203 | TAIL LAMP |
| RIGHT | ||
| "ARTEB" | ||
| 259E | A 0005449480 | GASKET |
| TO 002 544 08 03,24 03"HELLA" | ||
| 259E | A 0005449780 | GASKET |
| TO 688 544 71 03,72 03"ARTEB" | ||
| 260 | A 0025440790 | LENS |
| TO 002 544 08 03,24 03"HELLA" | ||
| 260 | A 0025441890 | LENS |
| TO 688 544 71 03,72 03"ARTEB" | ||
| 261E | A 0005448492 | REFLECTOR |
| LEFT | ||
| TO 688 544 71 03,"ARTEB" | ||
| 261E | A 0005448592 | REFLECTOR |
| RIGHT | ||
| TO 688 544 72 03,"ARTEB" | ||
| 261H | A 6675460137 | GROMMET |
| TAIL LAMP | ||
| 262 | N 072601012190 | BULB |
| 262 | N 072601012190 | BULB |
| 266 | N 072601012701 | BULB |
| 12V 5W | ||
| 266 | A 3085440394 | BULB |
| 270 | N 072601012702 | BULB |
| 12V 10W | ||
| A 6885447076 | WASHER | |
| TAIL LAMP TO BRACKET | ||
| N 009021008102 | WASHER | |
| TAIL LAMP TO BRACKET | ||
| 274 | N 007349008000 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 278 | N 000127008203 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 282 | N 000934008013 | NUT |
| TAIL LAMP TO BRACKET | ||
| 300 | A 3455427106 | SPEEDOMETER |
| 300 | A 3455427506 | SPEEDOMETER |
| 300 | A 3085427006 | SPEEDOMETER |
| VDO | ||
| 300 | A 3085427006 | SPEEDOMETER |
| VDO | ||
| 300 | A 3445427410 | TACHOGRAPH |
| SEVEN-DAY REGISTRATION | ||
| VDO | ||
| 300 | A 3085427106 | SPEEDOMETER |
| HORASA | ||
| 300 | A 3085427106 | SPEEDOMETER |
| HORASA | ||
| 301 | A 3455440093 | LAMP SOCKET |
| TO 345 542 71 06,345 542 75 06 | ||
| 301 | A 0005400366 | SOCKET |
| TO 308 542 70 06,308 542 71 06 | ||
| 302 | N 072601012800 | BULB |
| TO 345 542 71 06,345 542 75 06 | ||
| 302 | A 0015443894 | BULB |
| TO 308 542 70 06,345 542 71 06 | ||
| 304 | A 3085427007 | FLEXIBLE SHAFT |
| 304 | A 3455428207 | FLEXIBLE SHAFT |
| 308 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| Repalced by: A 1009950420 | ||
| 308 | A 1009950420 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 309 | N 916016028202 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 310 | N 000933006221 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 312 | N 007985005171 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 314 | N 000127006203 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 316 | N 912004005101 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 318 | N 000934005008 | NUT |
| FLEXIBLE SHAFT MOUNTING | ||
| 322 | A 3459977481 | GROMMET |
| FLEXIBLE SHAFT AND WINDSHIELD WASHER HOSE THRU TOEBOARD | ||
| 324 | A 3525420440 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 326 | N 916016008200 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 328 | A 3129950332 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 330 | A 3449957120 | CLAMP |
| ENGINE SUPPORT | ||
| 332 | N 000933005122 | SCREW |
| ENGINE SUPPORT | ||
| 334 | N 000127005001 | LOCK WASHER |
| ENGINE SUPPORT | ||
| 336 | N 000934005008 | NUT |
| ENGINE SUPPORT | ||
| 338 | N 009021005104 | WASHER |
| ENGINE SUPPORT | ||
| 342 | A 3455420330 | ANGLE DRIVE |
| 342 | A 3455421030 | ANGLE DRIVE |
| 350 | A 3455409247 | INSTRUMENT CLUSTER |
| 350 | A 3455407248 | INSTRUMENT CLUSTER |
| VDO | ||
| 350 | A 3455407848 | INSTRUMENT CLUSTER |
| HORASA | ||
| 354 | A 0035427005 | TEMPERATURE GAUGE |
| TO 345 540 92 47 | ||
| 354 | A 0035428405 | TEMPERATURE GAUGE |
| TO 345 540 72 48 | ||
| 358 | A 0015421908 | AIR PRESSURE GAUGE |
| TO 345 540 92 47 | ||
| 358 | A 0015422908 | AIR PRESSURE GAUGE |
| TO 345 540 72 48 | ||
| 362 | A 0025428203 | FUEL GAUGE DASH UNIT |
| TO 345 540 92 47 | ||
| 365H | A 0025428903 | FUEL GAUGE DASH UNIT |
| TO 345 540 72 48 | ||
| 366 | A 0005400366 | SOCKET |
| TO 345 540 92 47 | ||
| 370 | A 0005422125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 374 | A 0005450372 | NUT |
| POTENTIOMETER | ||
| 378 | A 0005421189 | KNOB |
| INSTRUMENT LIGHTING | ||
| 382 | N 072601012800 | BULB |
| INSTRUMENT CLUSTER | ||
| 384 | A 3645427325 | POTENTIOMETER |
| Repalced by: A 3645427525 | ||
| 384 | A 3645427525 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 386 | A 0005451213 | SWITCH BOX |
| 386 | A 3455457013 | SWITCH BOX |
| 386 | A 3455457113 | SWITCH BOX |
| 388 | A 0445450176 | WASHER |
| 390 | A 0445450072 | NUT |
| 391 | A 0005451235 | KEY |
| SWITCH BOX | ||
| 391 | A 3455457035 | KEY |
| SWITCH BOX | ||
| 391 | A 3455457135 | KEY |
| SWITCH BOX | ||
| 392 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 392E | A 0005450042 | FOLLOWER |
| IGNITION/STARTING SWITCH | ||
| 392F | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 392H | A 0025451428 | PLUG |
| 392K | A 0005422172 | NUT |
| IGNITION/STARTING SWITCH | ||
| TO 345 545 72 13 | ||
| 392L | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "HAGA" | ||
| 392L | A 3458937103 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "UNIVEL" | ||
| 392M | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 392M | A 0007668506 | KEY |
| BLANK | ||
| "UNIVEL" | ||
| 394 | A 3455450114 | SWITCH |
| STARTING MOTOR | ||
| 394 | A 3455457714 | SWITCH |
| STARTING MOTOR | ||
| 396 | A 0089901451 | NUT |
| 400 | A 0035458124 | SWITCH,AUTOMATIC |
| Repalced by: A 3455457124 | ||
| 400 | A 3455457124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 400 | A 3455457424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 400 | A 3455457524 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 402 | A 0005452637 | BUTTON |
| TO 003 545 81 24 | ||
| 404 | N 000965005122 | SCREW |
| TO 003 545 81 24 | ||
| 406 | N 000091004141 | SCREW |
| TO 003 545 81 24 | ||
| 410 | A 3129952020 | CLAMP |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 412 | N 007985005168 | SCREW |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 414 | N 000127005001 | LOCK WASHER |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 416 | N 000934005008 | NUT |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 420 | A 0015426917 | SENDER UNIT |
| Repalced by: A 0015427017 | ||
| 420 | A 0015427017 | SENDER UNIT |
| OIL PRESSURE | ||
| 420 | A 3455427117 | SENDER UNIT |
| OIL PRESSURE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| LFD NR.94360 | ||
| 426 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 426 | A 3455457115 | TELL-TALE LAMP |
| LESS LENS | ||
| 426 | A 3455457115 | TELL-TALE LAMP |
| LESS LENS | ||
| 430 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 430 | A 3445458390 | LENS |
| PARKING BRAKE | ||
| 432 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 432 | A 3445458290 | LENS |
| CHARGE CONTROL | ||
| 434 | A 0035453390 | LENS |
| HIGH BEAM | ||
| 434 | A 3445458890 | LENS |
| HIGH BEAM | ||
| 436 | A 0035455290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 436 | A 3445457990 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 438 | A 0035454290 | LENS |
| TRAILER BLINKER | ||
| 440 | A 3455457690 | LENS |
| SWITCH BOX LIGHTING | ||
| 440 | A 3455457790 | LENS |
| IGNITION/STARTING SWITCH | ||
| 442 | A 3445458990 | LENS |
| BRAKE LINING WEAR INDICATOR | ||
| 444 | A 3445457390 | LENS |
| BRAKE FLUID | ||
| 448 | N 072601012800 | BULB |
| 12V/2W | ||
| 448 | N 072601012900 | BULB |
| CHARGE CONTROL | ||
| 12V/4W | ||
| 452 | A 3319977035 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 456 | A 3316897008 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 456 | A 3316897108 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 460 | A 3316897208 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 464 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 464 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 468 | A 3455457123 | SWITCH |
| PANE WIPER | ||
| 468 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 468F | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 468H | A 3505458614 | SWITCH |
| WIPER INTERMITTENT ACTION | ||
| 468K | A 3505458214 | SWITCH |
| (LIGHT SWITCH) | ||
| 470 | A 0005446293 | LAMP SOCKET |
| KOSTAL | ||
| 470 | A 0005446293 | LAMP SOCKET |
| KOSTAL | ||
| 472 | N 072601012230 | BULB |
| Repalced by: A 6885447093 | ||
| 472 | A 6885447093 | LAMP SOCKET |
| PUSHBUTTON SWITCH | ||
| 472 | A 6885447093 | LAMP SOCKET |
| PUSHBUTTON SWITCH | ||
| 478 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 478 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 478 | A 0025425917 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 478 | A 3455427417 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 478 | A 3455427517 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 480 | N 007603014402 | SEAL RING |
| SENDER UNIT | ||
| 484 | N 916016006202 | CLAMP |
| TEMPERATURE SWITCH | ||
| 484 | A 3459958401 | CLAMP |
| TEMPERATURE SWITCH | ||
| 486 | A 3459977290 | LOOM TIE |
| RADIATOR BASE FRAME | ||
| 488 | A 0025456324 | SWITCH,AUTOMATIC |
| TEMPERATURE SWITCH | ||
| 488 | A 3455457824 | SWITCH,AUTOMATIC |
| TEMPERATURE SWITCH | ||
| 488 | A 3455458224 | SWITCH,AUTOMATIC |
| 490 | N 007603014402 | SEAL RING |
| TEMPERATURE SWITCH | ||
| 490 | N 007603014104 | SEAL RING |
| TEMPERATURE SENSOR | ||
| 494 | N 072571001024 | CLAMP |
| WATER TEMPERATURE GAUGE CABLE TO FIRE WALL | ||
| 496 | N 007981004226 | SHEET METAL SCREW |
| WATER TEMPERATURE GAUGE CABLE TO FIRE WALL | ||
| 500 | A 3455440193 | LAMP SOCKET |
| HEATING CONTROL LIGHTING | ||
| 500 | A 3455447093 | LAMP SOCKET |
| HEATING CONTROL LIGHTING | ||
| 504 | N 072601012800 | BULB |
| HEATING CONTROL LIGHTING | ||
| 508 | A 3455457624 | SWITCH,AUTOMATIC |
| Repalced by: A 3645457524 | ||
| 508 | A 3455457724 | SWITCH,AUTOMATIC |
| Repalced by: A 3645457524 | ||
| 508 | A 3645457524 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 512 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 12V 2W | ||
| 516 | A 3455457018 | RESISTOR |
| 520 | N 000933006223 | SCREW |
| RESISTOR | ||
| 524 | N 000127006203 | LOCK WASHER |
| RESISTOR | ||
| 528 | A 3445427119 | RELAY |
| 528 | A 3455427019 | RELAY |
| 534 | N 007985005183 | SCREW |
| CONTACTOR | ||
| 536 | N 912004005101 | LOCK WASHER |
| CONTACTOR | ||
| 538 | N 000934005008 | NUT |
| CONTACTOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
