Transporto priemonė: L 1118; VIN numerio dalis: 344024

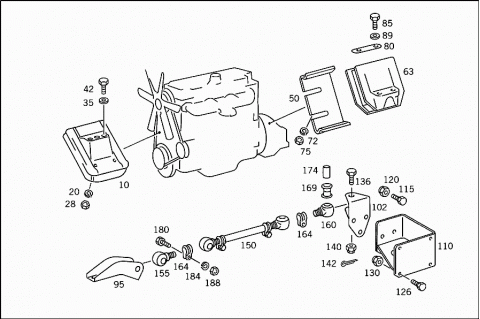

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3442407017 | RUBBER MOUNTING |
| FRONT | ||
| 012 | A 3762400017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 014 | A 3762400032 | REINFORCEMENT |
| ENGINE FRONT MOUNTING | ||
| 016 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 020 | N 000127010202 | LOCK WASHER |
| ENGINE MOUNTING TO FRONT CROSS MEMBER | ||
| 028 | N 000934010004 | NUT |
| ENGINE MOUNTING TO FRONT CROSS MEMBER | ||
| 030 | N 000961012154 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 032 | N 913004012003 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 035 | A 3459907340 | WASHER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 360 990 18 40 | ||
| 038 | A 3459907440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 042 | N 000961014103 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 045 | N 000960016249 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 050 | A 3522420409 | ENGINE STAY |
| 063 | A 3452400018 | RUBBER MOUNTING |
| 063 | A 3522400318 | RUBBER MOUNTING |
| 065 | A 6152400218 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 065 | A 6842407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 065 | A 6152400318 | RUBBER MOUNTING |
| Repalced by: A 3922407018 | ||
| 065 | A 3922407018 | RUBBER MOUNTING |
| 065 | A 6152400418 | RUBBER MOUNTING |
| Repalced by: A 3862407218 | ||
| 065 | A 3862407218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 072 | N 000127012201 | LOCK WASHER |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 075 | N 000934012004 | NUT |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 080 | A 3529940032 | LOCK |
| 085 | N 000961014161 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 089 | A 3609901840 | WASHER |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 090 | A 3762400026 | INTERMEDIATE PIECE |
| ENGINE MOUNTING TO CONSOLE | ||
| 090A | N 000961012209 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 12X1.5X50 | ||
| 090B | N 000961012212 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 12X1.5X75 | ||
| 090E | N 912004012100 | LOCK WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 091 | A 3812420205 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 092 | A 3812420305 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 092A | N 000933016079 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 092B | N 000127016201 | LOCK WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 093 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 093A | A 3459907340 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 093B | N 000961014116 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 095 | A 3442410035 | BEARING BRACKET |
| 102 | A 3452400035 | BEARING BRACKET |
| 110 | A 3452407040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 115 | N 000933012015 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 120 | N 913004012012 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 126 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 130 | N 913004010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 136 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 140 | N 000979016000 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| 142 | N 000094004056 | COTTER PIN |
| ROD TO FRONT AND REAR BRACKETS | ||
| 150 | A 3452407125 | ROD |
| 155 | A 3459967140 | ROD END |
| 160 | A 3459967040 | ROD END |
| 164 | A 3459957044 | CLAMP |
| 169 | A 3452427013 | RUBBER MOUNTING |
| 174 | A 3452427050 | BUSHING |
| 180 | N 000960008002 | SCREW |
| 184 | N 000127008203 | LOCK WASHER |
| 188 | N 000934008007 | NUT |
