Transporto priemonė: L 1118; VIN numerio dalis: 344024

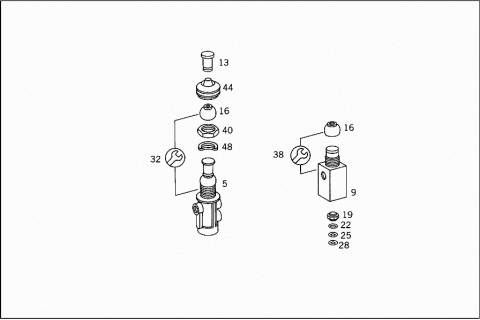

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 3454347101	VALVE
		"WABCO DO BRASIL"
009	A 0004343001	VALVE
		"KNORR"
013	A 0009972077	HANDLE
		TO 000 434 24 01
016	A 0004317387	PROTECTIVE CAP
		TO 345 434 71 01
019	A 0109970948	SEAL RING
		TO 000 434 30 01
022	A 0109971048	SEAL RING
		TO 000 434 30 01
025	A 0109971148	SEAL RING
		TO 000 434 30 01
028	A 0109971248	SEAL RING
		TO 000 434 30 01
032	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
032	A 0034301281	REPAIR KIT
		SMALL SCOPE
		TO 345 434 71 01
032	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 345 434 71 01
032	A 0025869843	REPAIR KIT
		TO 000 434 24 01
038	A 0014301360	REPAIR KIT
	Repalced by: A 0004304106
038	A 0004304106	REPAIR KIT
		LARGE SCOPE
		TO 000 434 30 01
038	A 0014301460	REPAIR KIT
		SMALL SCOPE
		TO 000 434 30 01
040	N 074305026202	NUT
		VALVE TO FLOOR
044	A 3459977081	GROMMET
048	N 000137027201	SPRING WASHER
052	A 3454298136	CONNECTOR
054	N 007603012106	SEAL RING

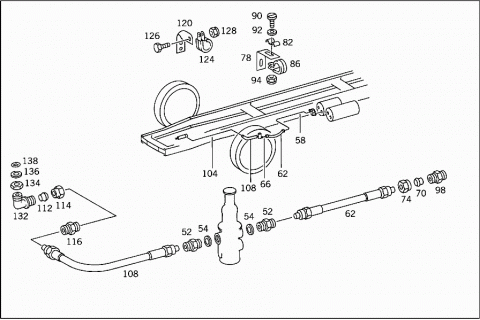

058	A 3454209732	LINE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING
062	A 3454200048	BRAKE HOSE
		FROM FITTING TO FITTING
066	A 3454307165	LINE
		FROM FITTING TO VENT VALVE,CONNECTION:
		"1"
070	N 003861006007	GLAND
074	N 915017006100	UNION NUT
078	A 3255460343	BRACKET
		LINE MOUNTING
082	A 3379950032	CLAMP
		LINE MOUNTING
086	N 916016006201	CLAMP
		LINE MOUNTING
086	A 3459957801	CLAMP
		LINE MOUNTING
090	N 007985005171	SCREW
		LINE MOUNTING
092	N 000125005315	WASHER
		LINE MOUNTING
094	N 913004005001	NUT
		LINE MOUNTING
098	N 003902006001	CONNECTION FITTING
		FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING
104	A 3454208035	LINE
		FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE
108	A 3454200048	BRAKE HOSE
		FROM VENT VALVE CONNECTION "2" TO FITTING
112	N 003861006007	GLAND
114	N 915017006100	UNION NUT
116	N 003902006001	CONNECTION FITTING
		FROM OPERATING VALVE TO COMPRESSED AIR CYLINDER
120	A 3525420840	BRACKET
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
124	A 3459957801	CLAMP
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
124	N 916016006201	CLAMP
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
126	N 007985006515	SCREW
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
128	N 913004006001	NUT
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
132	A 3454297438	ELBOW FITTING
		AT COMPRESSED AIR CYLINDER,ENGINE
134	N 080705012003	NUT
		AT COMPRESSED AIR CYLINDER,ENGINE
136	A 0004290827	THRUST RING
	Repalced by: A 0009940103
136	A 0009940103	THRUST RING
		AT COMPRESSED AIR CYLINDER,ENGINE
138	A 0019875046	SEALING CORD
		AT COMPRESSED AIR CYLINDER,ENGINE
