Mercedes-benz | iAUTO.lt

Transporto priemonė: L 1118; VIN numerio dalis: 344024

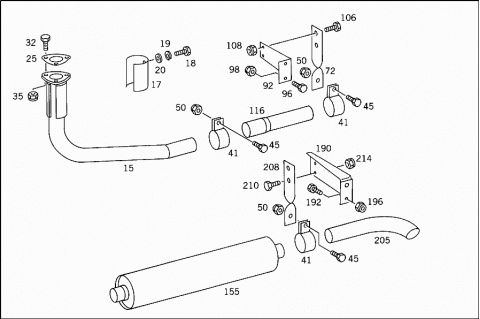

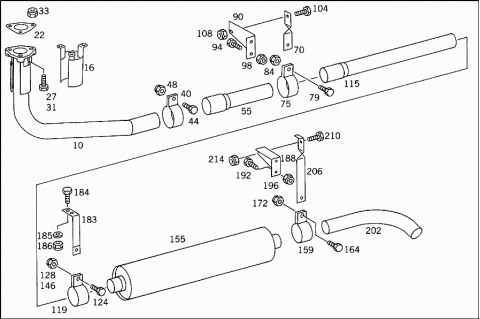

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
010	A 3444907819	EXHAUST PIPE
		FRONT
015	A 3454909319	EXHAUST PIPE
		FRONT
016	A 3454907530	PROTECTIVE PLATE
017	A 3224920530	PROTECTIVE PLATE
018	N 000933006223	SCREW
		HEAT SHIELD MOUNTING
019	N 000127006203	LOCK WASHER
		HEAT SHIELD MOUNTING
020	N 000125006420	WASHER
		HEAT SHIELD MOUNTING
022	A 3124921080	FLANGE GASKET
	Repalced by: A 4424920280
022	A 4424920280	FLANGE GASKET
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
025	A 3444920080	FLANGE GASKET
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
027	N 000931010264	SCREW
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
031	N 000931010422	SCREW
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
032	N 000931012253	SCREW
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
033	N 913004010000	NUT
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
035	N 913004012010	NUT
		FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
040	N 071555065500	CLAMP
		FRONT EXHAUST PIPE
041	N 071555075500	CLAMP
		CLAMP TO BRACKET AND TO PIPE
044	N 000933008288	SCREW
		FRONT EXHAUST PIPE
045	N 000933010129	SCREW
		CLAMP TO BRACKET AND TO PIPE
048	N 913004008001	NUT
		FRONT EXHAUST PIPE
050	N 913004010004	NUT
		CLAMP TO BRACKET AND TO PIPE
055	A 3454927007	CONNECTOR
		INTERMEDIATE PIECE,FRONT
070	A 3444917019	BRACKET
		BOTTOM
072	A 3764924841	BRACKET
		BOTTOM
075	N 071555065500	CLAMP
		CLAMP TO CONNECTOR
079	N 000933008282	SCREW
		CLAMP TO CONNECTOR
084	N 913004008001	NUT
		CLAMP TO CONNECTOR
090	A 3444910016	SUPPORT
		TOP
092	A 3444917116	SUPPORT
		TOP
094	N 000933008050	SCREW
		SUPPORT TO SIDE MEMBER
096	N 000933008282	SCREW
		SUPPORT TO SIDE MEMBER
098	N 913004008001	NUT
		SUPPORT TO SIDE MEMBER
104	N 000933008282	SCREW
		BRACKET TO SUPPORT
106	N 000933008282	SCREW
		BRACKET TO SUPPORT
108	N 913004008001	NUT
		BRACKET TO SUPPORT
108	N 913004008001	NUT
		BRACKET TO SUPPORT
115	A 3444927801	FRONT EXHAUST PIPE
		AT MUFFLER
116	A 3454927402	FRONT EXHAUST PIPE
		AT MUFFLER
119	N 071555065500	CLAMP
		FRONT EXHAUST MUFFLER
124	N 000933008273	SCREW
		CLAMP TO BRACKET AND TO PIPE
128	N 913004008001	NUT
		CLAMP TO BRACKET AND TO PIPE
146	N 913004008001	NUT
		BRACKET TO CROSS MEMBER
155	A 3224900201	EXHAUST MUFFLER
	Repalced by: A 3454907101
155	A 3444907301	EXHAUST MUFFLER
	Repalced by: A 3454907101
155	A 3444907501	EXHAUST MUFFLER
	Repalced by: A 3454907101
155	A 3454907101	EXHAUST MUFFLER
155	A 3604900001	EXHAUST MUFFLER
155	A 3454907801	EXHAUST MUFFLER
159	N 071555063500	CLAMP
		REAR EXHAUST PIPE
164	N 000933008273	SCREW
		CLAMP TO BRACKET AND TO PIPE
172	N 913004008001	NUT
		CLAMP TO BRACKET AND TO PIPE
183	A 3444927619	BRACKET
184	N 000933008288	SCREW
		BRACKET TO CROSS MEMBER
185	N 000125008417	WASHER
		BRACKET TO CROSS MEMBER
186	N 913004008001	NUT
		BRACKET TO CROSS MEMBER
188	A 3124911016	SUPPORT
		TOP
190	A 3454917316	SUPPORT
		TOP
192	N 000933008050	SCREW
		SUPPORT TO SIDE MEMBER
		M 8X22
192	N 000933008273	SCREW
		SUPPORT TO SIDE MEMBER
		M 8X30
192	N 000933008288	SCREW
		SUPPORT TO SIDE MEMBER
		M 8X25
192	N 000933008288	SCREW
		SUPPORT TO SIDE MEMBER
		M 8X25
196	N 913004008001	NUT
		SUPPORT TO SIDE MEMBER
202	A 3444927404	REAR EXHAUST PIPE
		AT MUFFLER
205	A 3454927904	REAR EXHAUST PIPE
		AT MUFFLER
206	A 3454917041	BRACKET
		BOTTOM
208	A 3444927741	BRACKET
		BOTTOM
210	N 000933008282	SCREW
		BRACKET TO SUPPORT
210	N 000933008282	SCREW
		BRACKET TO SUPPORT
214	N 913004008001	NUT
		BRACKET TO SUPPORT
214	N 913004008001	NUT
		BRACKET TO SUPPORT
