Transporto priemonė: L 1118; VIN numerio dalis: 344024

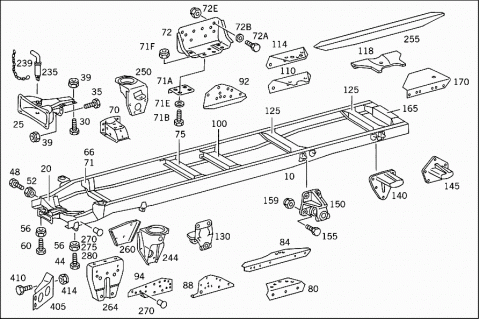

Grupė: 31 FRAME

#	Kodas	Pavadinimas
010	A 3443107703	FRAME
010	A 3443109705	FRAME
010	A 3443107803	FRAME
010	A 3443106703	FRAME
010	A 3443107903	FRAME
010	A 3443106803	FRAME
010	A 3443108703	FRAME
020	A 3443100126	ENGINE CROSS MEMBER
		NO.1
020	A 3443107126	ENGINE CROSS MEMBER
		NO.1
025	A 3443100109	BRACKET
030	N 000933010294	SCREW
		BRACKET TO CROSS MEMBER
035	N 000933010174	SCREW
		BRACKET TO CROSS MEMBER
039	N 913004010004	NUT
		BRACKET TO CROSS MEMBER
044	N 000933010129	SCREW
		FRONT CROSS MEMBER TO SIDE MEMBERS
048	N 000961012154	SCREW
		FRONT CROSS MEMBER TO SIDE MEMBERS
052	N 913004012003	NUT
		FRONT CROSS MEMBER TO SIDE MEMBERS
056	N 913004010004	NUT
		FRONT CROSS MEMBER TO SIDE MEMBERS
060	N 000933010294	SCREW
		FRONT CROSS MEMBER TO SIDE MEMBERS
066	A 3603100028	ENGINE CROSS MEMBER
		NO.2
070	A 3603130008	STAY
071	A 3453127007	ENGINE CROSS MEMBER
		REAR
071A	A 3453127084	SHIM
		CROSS MEMBER TO CONSOLE
071B	N 000961012106	SCREW
		CROSS MEMBER TO CONSOLE
071E	N 000125013012	WASHER
		CROSS MEMBER TO CONSOLE
071F	N 913004012003	NUT
		CROSS MEMBER TO CONSOLE
072	A 3762427002	SUPPORT
072A	N 000961012171	SCREW
		CONSOLE TO SIDE MEMBER
072B	N 000125013012	WASHER
		CONSOLE TO SIDE MEMBER
072E	N 913004012003	NUT
		CONSOLE TO SIDE MEMBER
075	A 3213121110	CROSS MEMBER
		NO.3
075	A 3443127110	CROSS MEMBER
		NO.3
080	A 3213120052	ANGLE
084	A 3213120152	ANGLE
	Repalced by: A 3443127452
084	A 3443127452	ANGLE
		LEFT
084	A 3213120252	ANGLE
	Repalced by: A 3443127552
084	A 3443127552	ANGLE
		RIGHT
088	A 3443117053	ANGLE
		LEFT
092	A 3213110953	ANGLE
		RIGHT
094	A 3763110051	TRUSS
		LEFT SIDE MEMBER
094	A 3763110151	TRUSS
		RIGHT SIDE MEMBER
100	A 3453107336	CROSS MEMBER
		NO. 4
100	A 3453107136	CROSS MEMBER
		NO.4
110	A 3523120552	ANGLE
		BRACKET TO CROSS MEMBER
114	A 3523120052	ANGLE
		BRACKET TO CROSS MEMBER
118	A 3453127360	REINFORCEMENT
125	A 3453127317	CROSS MEMBER
		NO.4
125	A 3453127317	CROSS MEMBER
		NO.5
125	A 3453127317	CROSS MEMBER
		NO.6
130	A 3443220301	FRONT SPRING BRACKET
140	A 3443257417	HELPER SPRING BRACKET
140	A 3443257217	HELPER SPRING BRACKET
		FRONT
145	A 3443257517	HELPER SPRING BRACKET
145	A 3443257317	HELPER SPRING BRACKET
150	A 3523250101	REAR SPRING BRACKET
155	A 3219901901	SCREW
		REAR SPRING BRACKET TO SIDE MEMBER
159	N 913004014005	NUT
		REAR SPRING BRACKET TO SIDE MEMBER
165	A 3443120035	CROSS MEMBER
		REAR CROSS MEMBER
170	A 3443120087	GUSSET PLATE
170	A 3443120187	GUSSET PLATE
235	A 3453157206	COUPLING PIN
239	A 0008500095	FASTENER
244	A 3453100167	BODY SUPPORT
		LEFT
250	A 3453107163	CONSOLE
		RIGHT
255	A 3223110051	TRUSS
		LEFT
255	A 3223110151	TRUSS
		RIGHT
260	A 3523170228	REINFORCEMENT
		RIGHT
260	A 3523170328	REINFORCEMENT
		LEFT
264	A 3443237095	REINFORCEMENT
270	N 910005010049	RIVET
		10X16 MM
270	N 910005010001	RIVET
		10X24 MM
270	N 910005010002	RIVET
		10X26 MM
270	N 910005010003	RIVET
		10X28 MM
270	N 910005010004	RIVET
		10X30 MM
270	N 910005010005	RIVET
		10X34 MM
275	N 910005012012	RIVET
		12X26 MM
275	N 910005012001	RIVET
		12X28 MM
275	N 910005012002	RIVET
		12X30 MM
275	N 910005012076	RIVET
		12X34 MM
275	N 910005012017	RIVET
		12X36 MM
275	N 910005012018	RIVET
		12X38 MM
275	N 910005012006	RIVET
		12X42 MM
275	N 910005012030	RIVET
		12X45 MM
275	N 910005012036	RIVET
		12X48 MM
275	N 910005012024	RIVET
		12X52 MM
280	N 910005014013	RIVET
		14X30 MM
280	N 910005014041	RIVET
		14X32 MM
280	N 910005014043	RIVET
		14X48 MM
290	A 3443100367	BODY SUPPORT
290	A 3443107067	BODY SUPPORT
295	N 000933010174	SCREW
		CAB MOUNTING TO SIDE MEMBER
299	N 000125010517	WASHER
		CAB MOUNTING TO SIDE MEMBER
303	N 000127010202	LOCK WASHER
		CAB MOUNTING TO SIDE MEMBER
307	N 000934010000	NUT
		CAB MOUNTING TO SIDE MEMBER
315	N 000961012154	SCREW
		CAB MOUNTING TO SIDE MEMBER
315	N 000961012106	SCREW
		CAB MOUNTING TO SIDE MEMBER
319	N 000125013012	WASHER
		CAB MOUNTING TO SIDE MEMBER
323	N 000127012201	LOCK WASHER
		CAB MOUNTING TO SIDE MEMBER
327	N 000934012013	NUT
		CAB MOUNTING TO SIDE MEMBER
		M12 X 1,5 MM
335	A 3523170240	BRACKET
339	A 3529900030	SCREW
	Repalced by: N 000000000011
339	N 000000000011	SCREW
		M10X25
343	N 000125010517	WASHER
		SPRING BRACKET TO CAB CONSOLE
344	N 000127010202	LOCK WASHER
		SPRING BRACKET TO CAB CONSOLE
351	N 000934010000	NUT
		SPRING BRACKET TO CAB CONSOLE

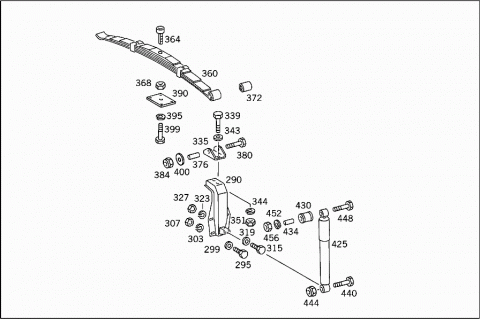

360	A 3223100179	SPRING
364	N 004626008103	SPRING BOLT
368	N 000934008000	NUT
372	A 0009883610	RUBBER MOUNTING
372	A 3443177012	RUBBER BUFFER
376	A 3229910640	SPACER TUBE
		LEAF SPRING TO CONSOLE
380	N 000960012385	SCREW
		LEAF SPRING TO CONSOLE
384	N 913004012003	NUT
		LEAF SPRING TO CONSOLE
390	A 3358910411	PLATE
		LEAF SPRING TO CONSOLE
395	N 000127010202	LOCK WASHER
		LEAF SPRING TO CONSOLE
399	N 000933010273	SCREW
		LEAF SPRING TO CONSOLE
400	N 009021010102	WASHER
		LOCK TO BUMPER
405	A 3523130826	BRACKET
405	A 3523130926	BRACKET
410	N 000933010174	SCREW
		STAY TO ENGINE FRONT CROSS MEMBER
414	N 913004010004	NUT
		STAY TO ENGINE FRONT CROSS MEMBER
425	A 3448907019	SHOCK ABSORBER
425	A 0008910805	SHOCK ABSORBER
425	A 3448907119	SHOCK ABSORBER
430	A 0083230144	RUBBER BUFFER
434	A 0003231450	BUSHING
		SHOCK ABSORBER TO BEARING BRACKET
440	N 000961012192	SCREW
		SHOCK ABSORBER TO BRACKET AND TO BODY
444	N 913004012003	NUT
		SHOCK ABSORBER TO BRACKET AND TO BODY
448	N 000961012192	SCREW
		SHOCK ABSORBER TO CAB
452	N 000127012201	LOCK WASHER
		SHOCK ABSORBER TO CAB
456	N 000934012004	NUT
		SHOCK ABSORBER TO CAB
