Transporto priemonė: L 1118; VIN numerio dalis: 344024

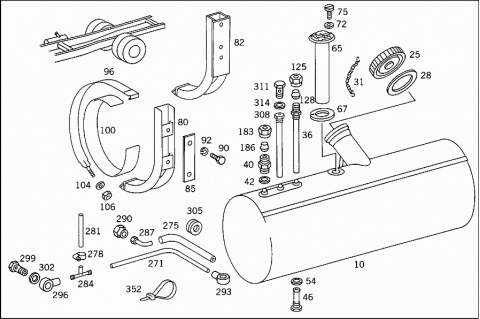

Grupė: 47 FUEL SYSTEM

#	Kodas	Pavadinimas
010	A 3444709001	FUEL TANK
		LESS SENDER UNIT
010	A 3444707902	FUEL TANK
		LESS SENDER UNIT
010	A 3444706101	FUEL TANK
		LESS SENDER UNIT
025	A 3444700205	FILLER CAP
028	A 3444710679	SEAL RING
031	A 3034700031	CHAIN
036	A 3444700126	RISING PIPE
040	A 3214710220	FITTING
042	N 007603016301	SEAL RING
046	A 3504700006	FUEL STRAINER
054	A 0029977245	SEAL RING
		FUEL STRAINER SCREEN TO FUEL TANK
065	A 0015426117	SENDER UNIT
	Repalced by: A 3455427617
065	A 3455427617	SENDER UNIT
	Repalced by: A 3455427917
065	A 3455427917	SENDER UNIT
		TANK
065	A 3445427217	SENDER UNIT
		TANK
067	A 3524710080	GASKET
		FUEL GAUGE SENDER UNIT TO FUEL TANK
072	A 0669970640	SEAL RING
		FUEL GAUGE SENDER UNIT TO FUEL TANK
075	N 007985005171	SCREW
		FUEL GAUGE SENDER UNIT TO FUEL TANK
080	A 3224700542	SUPPORT
		FUEL TANK
082	A 3444708042	SUPPORT
		FUEL TANK
085	A 3224750184	SHIM
		SUPPORT TO SIDE MEMBER
090	N 000961014106	SCREW
		SUPPORT TO SIDE MEMBER
		M 14X35
092	N 000127014201	LOCK WASHER
		SUPPORT TO SIDE MEMBER
096	A 3454700140	STRAP
		FUEL TANK
100	A 3459837391	CARDBOARD
		FUEL TANK TO SUPPORT
100	A 3454757384	SHIM
		FUEL TANK TO SUPPORT
104	N 000125013012	WASHER
		FUEL TANK TO SUPPORT
106	N 000934012009	NUT
		FUEL TANK TO SUPPORT
120	A 3444708565	LINE
		FROM TANK TO HOSE
125	N 915017010200	UNION NUT
128	A 3449907067	SEAL CONE
132	A 3444760126	HOSE
136	A 3509970290	LOOM TIE
		AS REQUIRED
136	A 3509970290	CLAMP
		AS REQUIRED
140	A 3440700032	LINE
		FROM HOSE TO FEED PUMP
145	A 3454767024	CONNECTOR
		FROM HOSE TO FEED PUMP
150	N 915036010100	HOLLOW SCREW
		CONNECTION TO FEED PUMP
152	N 007603014104	SEAL RING
		CONNECTION TO FEED PUMP
160	A 3444702864	LINE
		FROM FUEL FILTER TO RUBBER HOSE;RETURN
165	N 915017010200	UNION NUT
168	A 3449907067	SEAL CONE
170	A 3444760126	HOSE
177	A 3509970290	LOOM TIE
		AS REQUIRED
177	A 3509970290	CLAMP
		AS REQUIRED
180	A 3444707065	LINE
		FROM HOSE TO TANK
183	N 915017010200	UNION NUT
186	A 3449907067	SEAL CONE
190	A 3440780081	HOSE
	Repalced by: A 3769978182
190	A 3769978182	HOSE
192	N 916002010100	CLAMP
194	A 3444708665	LINE
		FROM CYLINDER HEAD TO HOSE
198	A 3444760126	HOSE
200	A 3509970290	LOOM TIE
		AS REQUIRED
200	A 3509970290	CLAMP
		AS REQUIRED
202	A 3444708765	LINE
		FROM HOSE TO TANK
204	N 915017010200	UNION NUT
206	A 3449907067	SEAL CONE
210	A 3444760336	BRACKET
		FUEL LINES
214	A 3444767036	BRACKET
		FUEL LINES
218	N 000933010034	SCREW
		BRACKET TO SIDE MEMBER
222	N 000125010517	WASHER
		BRACKET TO SIDE MEMBER
226	N 000127010202	LOCK WASHER
		BRACKET TO SIDE MEMBER
230	N 000934010000	NUT
		BRACKET TO SIDE MEMBER
235	A 3124761236	BRACKET
		FUEL LINES
240	A 3129950232	CLAMP
		FUEL LINES
245	N 000933006220	SCREW
		BRACKET TO CLAMP
		M 6X16
245	N 007985006502	SCREW
		BRACKET TO CLAMP
		M 6X20
249	N 000933006221	SCREW
		BRACKET TO CLAMP
253	N 000934006006	NUT
		BRACKET TO CLAMP
260	N 000933010129	SCREW
		BRACKET TO SIDE MEMBER
		M 10X30
264	N 000127010202	LOCK WASHER
		BRACKET TO SIDE MEMBER
268	N 000934010000	NUT
		BRACKET TO SIDE MEMBER
271	A 0089975482	HOSE
		FEED
		8X11 MM / 3200 MM
271	A 0089975482	HOSE
		RETURN
		8X11 MM / 2390 MM
271	A 0089975482	HOSE
		FROM RETURN LINE TO FUEL TANK
		8X11 MM / 780 MM
275	N 040621012208	INSULATING HOSE
		10 MM
275	N 040621012207	INSULATING HOSE
		10 MM
278	N 916002010100	CLAMP
		LEAK LINE
281	A 3084767026	HOSE
	Repalced by: A 3449977582
281	A 3449977582	HOSE
	Repalced by: A 3769978182
281	A 3769978182	HOSE
		LEAK LINE
284	A 3084767023	DISTRIBUTOR
		LEAK LINE
287	A 3084767124	CONNECTOR
290	N 915017010200	UNION NUT
293	A 0009905088	BANJO UNION
		FEED LINE AND RETURN LINE
296	N 915052008006	BANJO UNION
		FEED
		8/14 MM
299	N 915036010100	HOLLOW SCREW
		FUEL LINE TO FEED PUMP
302	N 007603014104	SEAL RING
		FUEL LINE TO FEED PUMP
305	A 4069975081	GROMMET
308	A 3444707226	RISING PIPE
311	N 915036012150	HOLLOW SCREW
		FUEL LINE TO TANK
314	N 007603016301	SEAL RING
		FUEL LINE TO TANK
314	N 007603016301	SEAL RING
		FUEL LINE TO TANK
314	N 007603016105	SEAL RING
314	N 007603016105	SEAL RING
314	N 007603016105	SEAL RING
317	A 3444297040	BRACKET
		FUEL LINE
317	A 3444297040	BRACKET
		FUEL LINE
317	A 3524290740	BRACKET
		FUEL LINE
317	A 3464295840	BRACKET
		FUEL LINE
320	N 000933010294	SCREW
		BRACKET TO SIDE MEMBER
		M 10X20
320	N 000933010174	SCREW
		BRACKET TO SIDE MEMBER
		M 10X25
320	N 000933008288	SCREW
		BRACKET TO SIDE MEMBER
		M 8X25
323	N 913004010004	NUT
		BRACKET TO SIDE MEMBER
326	A 0009950905	CLAMP
		FUEL LINES
326	N 916016022202	CLAMP
		FUEL LINES
329	N 000933006221	SCREW
		FUEL LINES
		M 6X20
332	N 000125006420	WASHER
		FUEL LINES TO SUBSTRUCTURE
336	N 009021006103	WASHER
		FUEL LINES TO SUBSTRUCTURE
338	N 913004006001	NUT
		FUEL LINES
341	N 000933008273	SCREW
		FUEL LINES TO SUBSTRUCTURE
		M 8X30
345	N 009021008102	WASHER
		FUEL LINES TO SUBSTRUCTURE
349	N 913004008001	NUT
		FUEL LINES TO SUBSTRUCTURE
352	A 3449977290	LOOM TIE
	Repalced by: A 3459977390
352	A 3459977390	LOOM TIE
		FUEL LINE TO FUEL LINE
		195 MM
