Transporto priemonė: L 1118; VIN numerio dalis: 344024

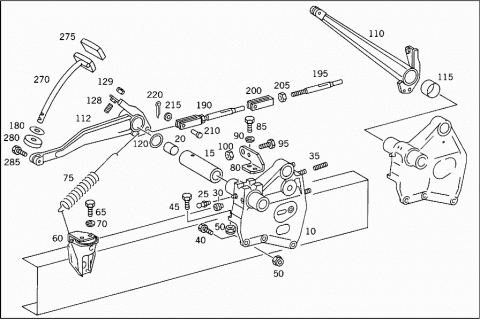

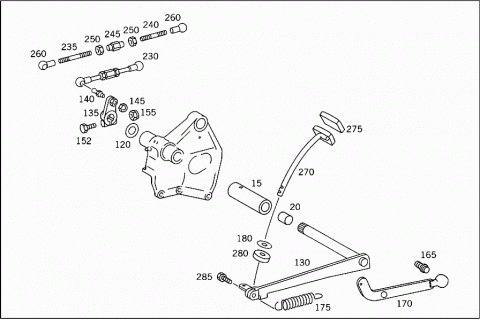

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3452907419 | BEARING BRACKET |
| Repalced by: A 3452907619 | ||
| 010 | A 3452907619 | BEARING BRACKET |
| FRONT | ||
| 012 | A 3762907019 | BEARING BRACKET |
| 015 | A 3442907036 | BEARING TUBE |
| 020 | A 3442940150 | BUSHING |
| 025 | N 071412010100 | GREASE NIPPLE |
| 030 | A 3529900080 | SCREW |
| 035 | N 000835008061 | STUD |
| 040 | N 000933010258 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 045 | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 045 | N 000933010261 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 045 | N 000933010273 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 050 | N 913004010001 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 060 | A 3452920040 | BRACKET |
| BATTERY TO LEFT CAB CONSOLE | ||
| 062 | A 3762910040 | BRACKET |
| RELEASE SPRING | ||
| 065 | N 000933008268 | SCREW |
| BATTERY TO LEFT CAB CONSOLE | ||
| 070 | N 000127008104 | LOCK WASHER |
| BATTERY TO LEFT CAB CONSOLE | ||
| 075 | A 3609930210 | SPRING |
| BRAKE PEDAL | ||
| 075 | A 3529931010 | SPRING |
| BRAKE PEDAL | ||
| 078 | A 3762920004 | BEARING BRACKET |
| 080 | A 3452920130 | STOP |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 082 | A 3762920130 | STOP |
| 085 | N 000933010294 | SCREW |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 086 | N 007984010035 | SCREW |
| BEARING TO PEDAL BEARING BRACKET | ||
| 090 | N 000127010202 | LOCK WASHER |
| AT PEDAL ASSEMBLY BEARING BRACKET | ||
| 092 | N 007980010003 | LOCK WASHER |
| BEARING TO PEDAL BEARING BRACKET | ||
| 095 | N 000933010174 | SCREW |
| BRAKE PEDAL CONTROL | ||
| 100 | N 000934010035 | NUT |
| BRAKE PEDAL CONTROL | ||
| 110 | A 3452900318 | PEDAL |
| Repalced by: A 3452907118 | ||
| 110 | A 3452907118 | PEDAL |
| BRAKE PEDAL | ||
| 112 | A 3762901118 | PEDAL |
| BRAKE PEDAL | ||
| 112 | A 3762900918 | PEDAL |
| BRAKE PEDAL | ||
| 115 | A 3452927050 | BUSHING |
| BRAKE PEDAL | ||
| 116 | A 3442920150 | BUSHING |
| 117 | N 071412010200 | GREASE NIPPLE |
| 120 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 120 | A 3202940151 | SPACER RING |
| BRAKE PEDAL | ||
| 3.25 MM | ||
| 120 | A 3202940251 | SPACER RING |
| BRAKE PEDAL | ||
| 3.50 MM | ||
| 120 | A 3039910345 | RING |
| BRAKE PEDAL | ||
| 126 | A 3762920052 | SPACER WASHER |
| PEDAL TO BEARING BRACKET | ||
| 127 | N 000471040002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 127 | N 000471035002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 128 | N 900190012005 | THREADED PIN |
| STOP LIGHT SWITCH | ||
| 129 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 129 | N 000936012005 | NUT |
| STOP LIGHT SWITCH | ||
| 130 | A 3522902216 | PEDAL |
| Repalced by: A 3452907016 | ||
| 130 | A 3452907016 | PEDAL |
| CLUTCH PEDAL | ||
| 132 | A 3762907016 | PEDAL |
| CLUTCH PEDAL | ||
| 133 | A 3769817010 | NEEDLE BEARING |
| 134 | A 3769977047 | SEAL RING |
| 135 | A 3452931310 | LEVER |
| Repalced by: A 3762900034 | ||
| 135 | A 3762900034 | LEVER |
| 140 | A 3029910015 | BALL PIVOT |
| 145 | N 000934012010 | NUT |
| 146 | N 000444010318 | EYEBOLT |
| CLUTCH PEDAL | ||
| 147 | N 000433010500 | WASHER |
| CLUTCH PEDAL | ||
| 148 | N 000934010005 | NUT |
| CLUTCH PEDAL | ||
| 149 | A 3762910741 | STOP |
| 150 | A 3762910240 | BRACKET |
| 152 | N 000931010080 | SCREW |
| CLUTCH PEDAL TO LEVER | ||
| 155 | N 913004010002 | NUT |
| CLUTCH PEDAL TO LEVER | ||
| 165 | A 3522910474 | PIN |
| Repalced by: A 3452917074 | ||
| 165 | A 3452917074 | PIN |
| Repalced by: A 3509917020 | ||
| 165 | A 3509917020 | BALL PIVOT |
| CLUTCH | ||
| 170 | A 3522910732 | LEVER |
| Repalced by: A 3762907034 | ||
| 170 | A 3762907034 | LEVER |
| CLUTCH | ||
| 175 | A 3529931310 | SPRING |
| CLUTCH | ||
| 180 | A 3222930077 | WASHER |
| 190 | A 3762900039 | ROD |
| Repalced by: A 3452908439 | ||
| 190 | A 3452908439 | ROD |
| 195 | A 3762950033 | ROD |
| 200 | A 3769960001 | YOKE |
| 205 | N 000934012009 | NUT |
| 210 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 215 | N 000433010500 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 220 | N 000094003027 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 230 | A 3212900739 | ROD |
| 235 | A 3219961425 | ROD |
| FRONT | ||
| 240 | A 3219961525 | ROD |
| REAR | ||
| 245 | N 001479010000 | TURNBUCKLE |
| 250 | N 000934010035 | NUT |
| 250 | N 000934010000 | NUT |
| 260 | N 071805016101 | BALL SOCKET |
| 270 | A 3212900024 | PEDAL PLATE |
| Repalced by: A 3452907224 | ||
| 270 | A 3452907224 | PEDAL PLATE |
| 270 | A 3452907524 | PEDAL PLATE |
| (BRAKE PEDAL) | ||
| 270 | A 3452907724 | PEDAL PLATE |
| (CLUTCH PEDAL) | ||
| 270 | A 3452907124 | PEDAL PLATE |
| 270 | A 3222901324 | PEDAL PLATE |
| 275 | A 3202925082 | PAD |
| TO 321 290 00 24 | ||
| 275 | A 3452917082 | PAD |
| (CLUTCH PEDAL) | ||
| 275 | A 3052910182 | PAD |
| (BRAKE PEDAL) | ||
| 280 | A 3122911197 | SEAL WASHER |
| (BRAKE PEDAL) | ||
| 285 | N 000933010174 | SCREW |
| (BRAKE PEDAL) | ||
| 286 | N 000933010174 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 287 | A 0002958206 | MASTER CYLINDER |
| CLUTCH | ||
| 287 | A 3452957006 | MASTER CYLINDER |
| CLUTCH | ||
| 288 | A 0002955483 | BOOT |
| TO 345 295 70 06 | ||
| 289 | A 0049936001 | SPRING |
| TO 000 295 82 06 | ||
| 290 | N 000472024000 | LOCK RING |
| TO 000 295 82 06 | ||
| 291 | A 0009971186 | PLUG |
| TO 000 295 82 06 | ||
| 292 | A 0002950436 | INTERMEDIATE PIECE |
| TO 000 295 82 06 | ||
| 292 | A 0029901671 | ELBOW FITTING |
| TO 345 295 70 06 | ||
| 293 | A 0009978635 | PLUG |
| TO 345 295 70 06 | ||
| 294 | A 0005863529 | REPAIR KIT |
| LESS PISTON | ||
| TO 000 295 82 06 | ||
| 295 | A 0002902667 | REPAIR KIT |
| TO 345 295 70 06 | ||
| 296 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 297 | N 913004006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 298 | A 3812900739 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 299 | A 0009961045 | ARTICULATION PIECE |
| 299 | A 0009961145 | ARTICULATION PIECE |
| 300 | A 0059814410 | NEEDLE BEARING |
| 300 | A 0059813810 | NEEDLE BEARING |
| 300 | A 0089811210 | NEEDLE BEARING |
| 301 | N 000934008013 | NUT |
| 301 | N 000934008013 | NUT |
| 302 | A 3762910274 | PIN |
| 303 | N 913004012003 | NUT |
| GUIDE BOLT TO CLUTCH PEDAL LEVER | ||
| 304 | N 000433008403 | WASHER |
| PISTON ROD TO GUIDE BOLT | ||
| 305 | N 912002008001 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 305 | A 3502937073 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 306 | A 3182950383 | BOOT |
| ON PISTON ROD AND PIN | ||
| 307 | N 000933010269 | SCREW |
| STOP | ||
| 308 | N 000934010005 | NUT |
| STOP | ||
| 309 | A 3762900513 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 310 | A 0004281072 | UNION SCREW |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 311 | A 0002951735 | HOSE |
| 311 | A 3762957035 | HOSE |
| 312 | A 3762900613 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 313 | A 0004281072 | UNION SCREW |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 314 | A 3504317002 | RESERVOIR |
| Repalced by: A 3504317102 | ||
| 314 | A 3504317102 | RESERVOIR |
| (RESERVOIR) | ||
| 315 | A 0084310502 | RESERVOIR |
| 316 | A 3084317033 | FILLER CAP |
| Repalced by: A 3644317033 | ||
| 316 | A 3644317033 | FILLER CAP |
| SENSOR TO COVER | ||
| 317 | A 0089970240 | SEAL RING |
| 318 | A 3084317034 | STRAINER |
| 319 | H 983084310140 | BRACKET |
| 320 | H 983084310176 | WASHER |
| 321 | N 000934018012 | NUT |
| 322 | N 000933006220 | SCREW |
| RESERVOIR TO BRACKET | ||
| 323 | N 000125006420 | WASHER |
| RESERVOIR TO BRACKET | ||
| 324 | N 913004006001 | NUT |
| RESERVOIR TO BRACKET | ||
| 325 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 326 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 326 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 326 | N 000000000666 | CLAMP |
| 327 | A 3762937040 | BRACKET |
| RESERVOIR TO BRACKET | ||
