Transporto priemonė: L 1118; VIN numerio dalis: 344024

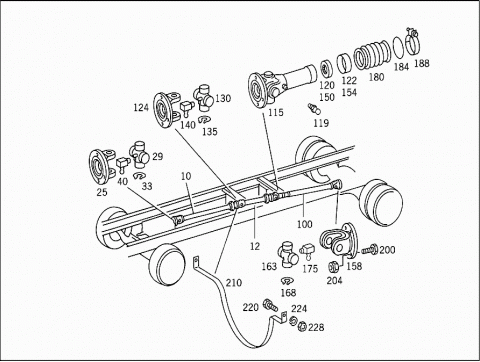

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3444100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 837 MM | ||
| 010 | A 3444100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1436 MM | ||
| 010 | A 3444100204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1946 MM | ||
| 012 | A 3444101701 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1531 MM | ||
| 015 | N 071412008100 | GREASE NIPPLE |
| 019 | A 3524130061 | PROTECTIVE CAP |
| 025 | A 3524110011 | DRIVE FLANGE |
| 029 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 029 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 033 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 033 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 033 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 033 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 033 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 033 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 033 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 033 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 033 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 033 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 033 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 033 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 033 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 033 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 033 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 033 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 033 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 040 | N 071412008300 | GREASE NIPPLE |
| 040 | A 3459977288 | GREASE NIPPLE |
| A 3084100010 | INTERMEDIATE BEARING | |
| REPAIR KIT | ||
| 045 | A 3524100130 | CENTERING FLANGE |
| 049 | A 3524130061 | PROTECTIVE CAP |
| 053 | A 3449907050 | NUT |
| 057 | A 3454107340 | BRACKET |
| 057 | A 3454107540 | BRACKET |
| 065 | N 000961010035 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 069 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 074 | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 078 | A 3524130012 | RUBBER MOUNTING |
| 085 | A 3524100051 | BALL BEARING |
| 085 | A 3454100051 | BALL BEARING |
| 092 | A 3124131231 | BEARING RING |
| 100 | A 3444101802 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1703 MM | ||
| 110 | A 3444101402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1652 MM | ||
| 110 | A 3444101602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1775 MM | ||
| 115 | A 3444100008 | UNIVERSAL JOINT YOKE |
| 119 | N 071412008100 | GREASE NIPPLE |
| 120 | A 3374130080 | SEAL RING |
| 122 | A 3214110158 | SEAL HOLDER |
| 124 | A 3524110011 | DRIVE FLANGE |
| 130 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 130 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 135 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 135 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 135 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 135 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 135 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 135 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 135 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 135 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 135 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 135 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 135 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 135 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 135 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 135 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 135 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 135 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 135 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 140 | N 071412008300 | GREASE NIPPLE |
| 140 | A 3459977288 | GREASE NIPPLE |
| 150 | A 3374130080 | SEAL RING |
| 154 | A 3214110158 | SEAL HOLDER |
| 158 | A 3524110011 | DRIVE FLANGE |
| 163 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 163 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 168 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 168 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 168 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 168 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 168 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 168 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 168 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 168 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 168 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 168 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 168 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 168 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 168 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 168 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 168 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 168 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 168 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 175 | N 071412008300 | GREASE NIPPLE |
| 175 | A 3459977288 | GREASE NIPPLE |
| 180 | A 3524100080 | BOOT |
| 180 | A 3454107280 | BOOT |
| 184 | A 3214110053 | WIRE RING |
| 188 | A 3449979790 | CLAMP |
| 200 | A 3529900401 | SCREW |
| 204 | N 913004010014 | NUT |
| 210 | A 3454137244 | REBOUND STRAP |
| 220 | N 000933010174 | SCREW |
| 224 | N 000127010202 | LOCK WASHER |
| 228 | N 000934010000 | NUT |
