Transporto priemonė: L 1118; VIN numerio dalis: 344024

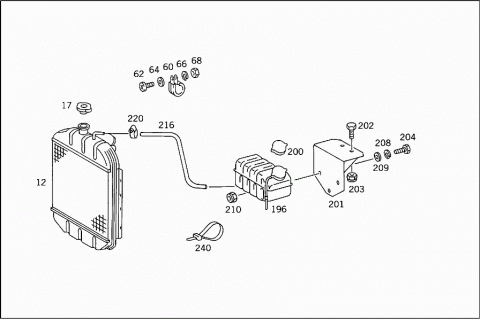

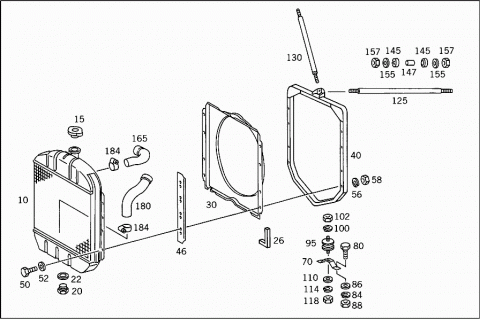

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3455017001 | RADIATOR |
| 010 | A 3455017601 | RADIATOR |
| 010 | A 3455017901 | RADIATOR |
| 010 | A 3455018201 | RADIATOR |
| 010 | A 3455018301 | RADIATOR |
| 012 | A 3455018701 | RADIATOR |
| 012 | A 3455018501 | RADIATOR |
| 012 | A 3455018601 | RADIATOR |
| 015 | A 3445010315 | RADIATOR CAP |
| 017 | A 3455017215 | RADIATOR CAP |
| 020 | A 1369970830 | SCREW PLUG |
| 022 | N 007603018401 | SEAL RING |
| 026 | A 3649870723 | PLASTIC SECTION |
| FAN SHROUD | ||
| 030 | A 3405050055 | FAN SHROUD |
| 030 | A 3445057055 | FAN SHROUD |
| 030 | A 3765050255 | FAN SHROUD |
| 030 | A 3765007155 | FAN SHROUD |
| 040 | A 3445007127 | SUPPORT |
| 040 | A 3455007627 | SUPPORT |
| RADIATOR BLOCK | ||
| 040 | A 3765007027 | SUPPORT |
| RADIATOR BLOCK | ||
| 046 | A 3225050024 | COVER PLATE |
| RETURN; FROM HOSE CONNECTION I TO HOSE CONNECTION II | ||
| 050 | N 000933008282 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 052 | N 000125008417 | WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 056 | N 912004008100 | LOCK WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 058 | N 000934008000 | NUT |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 060 | N 916016015202 | CLAMP |
| HOSE TO RADIATOR BASE FRAME | ||
| 062 | N 007985006502 | SCREW |
| HOSE TO RADIATOR BASE FRAME | ||
| 064 | N 000125006420 | WASHER |
| HOSE TO RADIATOR BASE FRAME | ||
| 066 | N 000127006203 | LOCK WASHER |
| HOSE TO RADIATOR BASE FRAME | ||
| 068 | N 000934006012 | NUT |
| HOSE TO RADIATOR BASE FRAME | ||
| 070 | A 3225040139 | ANGLE |
| 080 | N 000933010294 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 080 | N 000933012011 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 084 | N 000127010202 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 086 | N 000125013012 | WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 088 | N 000934010000 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 088 | N 913004012003 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 095 | A 3605040012 | RUBBER MOUNTING |
| 095 | A 3475040012 | RUBBER MOUNTING |
| 100 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 102 | N 000934010000 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 110 | N 000125010517 | WASHER |
| RADIATOR TO BRACKET | ||
| 114 | N 000127010202 | LOCK WASHER |
| RADIATOR TO BRACKET | ||
| 118 | N 000934010000 | NUT |
| RADIATOR TO BRACKET | ||
| 125 | A 3445007445 | RADIATOR STRUT |
| 125 | A 3455007345 | RADIATOR STRUT |
| 130 | A 3445007045 | RADIATOR STRUT |
| 145 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 147 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 155 | N 009021010102 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 157 | N 000934010000 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 165 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 180 | A 3405010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 184 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 184 | A 0019972590 | LOOM TIE |
| 184 | A 3459977090 | LOOM TIE |
| 184 | A 3461400040 | CLAMP |
| 196 | A 3765000349 | TANK |
| EXPANSION TANK | ||
| 196 | A 3455007649 | TANK |
| EXPANSION TANK | ||
| 200 | A 3455017315 | RADIATOR CAP |
| TO 345 500 76 49 | ||
| 201 | A 3445007231 | BRACKET |
| EXPANSION TANK | ||
| 202 | N 000933010174 | SCREW |
| 203 | N 913004010004 | NUT |
| 204 | N 000933008268 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 8X16 | ||
| 208 | N 912004008100 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 209 | N 000125008417 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 210 | N 913004008001 | NUT |
| EXPANSION TANK TO BRACKET | ||
| A 3765017482 | HOSE | |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 216 | N 900271008088 | HOSE |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 220 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 220 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 220 | N 000000000666 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 220 | A 3319977090 | LOOM TIE |
| HOSE TO EXPANSION TANK AND TO RADIATOR STRUT | ||
| N 900271015037 | HOSE | |
| FROM UPPER LINE TO HEATING SHUT-OFF COCK | ||
| 15X24X1170 | ||
| N 900271015123 | HOSE | |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 15X24X650 | ||
| A 3459978890 | CLAMP | |
| A 3449977590 | CLAMP | |
| 240 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 240 | A 3459977390 | LOOM TIE |
| RETURN LINE TO RADIATOR | ||
