Transporto priemonė: L 1118; VIN numerio dalis: 344024

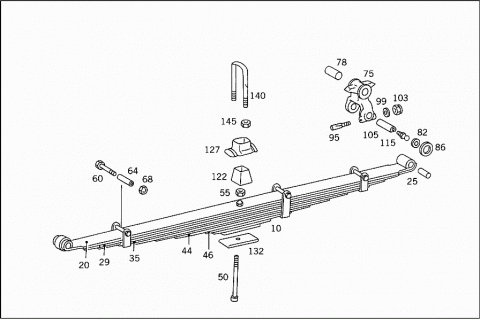

Grupė: 32 SPRINGS ANS SUSPENSION - 001 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3413200202 | FRONT SPRING |
| 10 LEAVES | ||
| 010 | A 3413200202 | FRONT SPRING |
| 10 LEAVES | ||
| 010 | A 3443207302 | FRONT SPRING |
| 11 BLATT | ||
| 020 | A 3763200094 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3763200094 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3443200594 | SPRING LEAF |
| NO.1 | ||
| 025 | A 3523220050 | BUSHING |
| 025 | A 3853220050 | BUSHING |
| 029 | A 3413210212 | SPRING LEAF |
| NO.2 | ||
| 029 | A 3413210212 | SPRING LEAF |
| NO.2 | ||
| 029 | A 3443210612 | SPRING LEAF |
| NO.2 | ||
| 035 | A 3763200194 | SPRING LEAF |
| NO.4 | ||
| 035 | A 3763200194 | SPRING LEAF |
| NO.4 | ||
| 035 | A 3443200694 | SPRING LEAF |
| NO.4 | ||
| 044 | A 3763200294 | SPRING LEAF |
| NO.7 | ||
| 044 | A 3763200294 | SPRING LEAF |
| NO.7 | ||
| 046 | A 3443200794 | SPRING LEAF |
| NO.8 | ||
| 050 | N 004626012109 | SPRING BOLT |
| TO 341 320 02 02 | ||
| 050 | N 004626012102 | SPRING BOLT |
| 055 | N 000934012010 | NUT |
| 055 | N 913004012012 | NUT |
| 060 | N 000933010268 | SCREW |
| 064 | A 0003213153 | SPACER TUBE |
| 068 | N 000934010000 | NUT |
| 075 | A 3523200063 | SHACKLE |
| 078 | A 3523220050 | BUSHING |
| 078 | A 3853220050 | BUSHING |
| 082 | A 3523230376 | WASHER |
| 4.00 MM DICK | ||
| 082 | A 3453230376 | WASHER |
| 4.00 MM DICK | ||
| 082 | A 3523230476 | WASHER |
| 4.20 MM DICK | ||
| 082 | A 3453230276 | WASHER |
| 4.20 MM DICK | ||
| 082 | A 3453230176 | WASHER |
| 4.30 MM DICK | ||
| 082 | A 3523230576 | WASHER |
| 4.30 MM | ||
| 086 | A 0029973140 | SEAL RING |
| 095 | A 3529900337 | BOLT |
| 099 | N 000125010517 | WASHER |
| 103 | N 913004010004 | NUT |
| 105 | A 3453227030 | SHACKLE PIN |
| 105 | A 3443227230 | SHACKLE PIN |
| 115 | N 071412010100 | GREASE NIPPLE |
| 122 | A 3413310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 122 | A 3413310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 122 | A 3523310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3443220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3443220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3413220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3413220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3443227024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3443227024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3523220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 127 | A 3453227224 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 132 | A 3273315128 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3413310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3413310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 145 | N 000934018002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

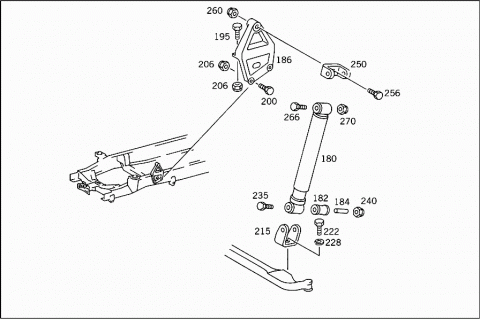

| 180 | A 3443237500 | SHOCK ABSORBER |
| FRONT | ||
| 182 | A 0083230285 | RUBBER MOUNTING |
| 184 | A 0083230150 | BUSHING |
| 186 | A 3453230263 | BEARING BRACKET |
| Repalced by: A 3503237163 | ||
| 186 | A 3503237163 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 195 | N 000933010200 | SCREW |
| BRACKET TO FRAME | ||
| 200 | N 000933010269 | SCREW |
| BRACKET TO FRAME | ||
| 206 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 215 | A 3523231663 | BEARING BRACKET |
| BOTTOM LEFT,AT SHOCK ABSORBER | ||
| 215 | A 3523231763 | BEARING BRACKET |
| BOTTOM RIGHT, AT SHOCK ABSORBER | ||
| 222 | N 000961012160 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| 228 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO FRONT AXLE | ||
| 235 | A 3449909901 | SCREW |
| 240 | N 913004016004 | NUT |
| 250 | A 3523230340 | BRACKET |
| SHOCK ABSORBER | ||
| 256 | A 3529903201 | SCREW |
| 260 | N 913002020004 | NUT |
| 266 | N 000960016238 | SCREW |
| 270 | N 913002016004 | NUT |

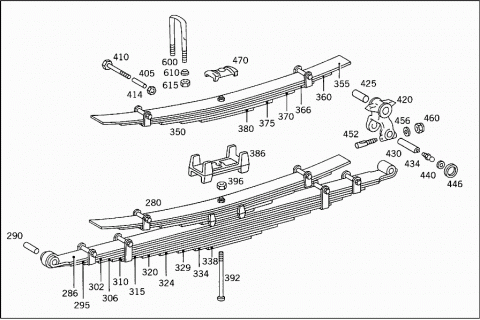

| 280 | A 3443200008 | REAR SPRING |
| WITH HELPER SPRING | ||
| 280 | A 3443207208 | REAR SPRING |
| WITH HELPER SPRING | ||
| 286 | A 3443200293 | SPRING LEAF |
| NO.1 | ||
| 286 | A 3443207194 | SPRING LEAF |
| NO.1 | ||
| 290 | A 3523250150 | BUSHING |
| 290 | A 3853250050 | BUSHING |
| 295 | A 3443240112 | SPRING LEAF |
| NO.2 | ||
| 295 | A 3443247012 | SPRING LEAF |
| NO.2 | ||
| 302 | A 3443200393 | SPRING LEAF |
| NO.3 | ||
| 302 | A 3443207493 | SPRING LEAF |
| NO.3 | ||
| 306 | A 3443240114 | SPRING LEAF |
| NO.4 | ||
| 306 | A 3443247014 | SPRING LEAF |
| NO.4 | ||
| 310 | A 3443247215 | SPRING LEAF |
| NO.5 | ||
| 310 | A 3443200493 | SPRING LEAF |
| NO.5 | ||
| 315 | A 3443207593 | SPRING LEAF |
| NO.6 | ||
| 320 | A 3443247017 | SPRING LEAF |
| NO.7 | ||
| 324 | A 3443247018 | SPRING LEAF |
| NO.8 | ||
| 329 | A 3443247019 | SPRING LEAF |
| NO.9 | ||
| 334 | A 3443247020 | SPRING LEAF |
| NO.10 | ||
| 338 | A 3443247021 | SPRING LEAF |
| NO.11 | ||
| 350 | A 0443200010 | HELPER SPRING |
| 355 | A 3443240040 | SPRING LEAF |
| NO.1 | ||
| 355 | A 3443247040 | SPRING LEAF |
| NO.1 | ||
| 360 | A 3443240041 | SPRING LEAF |
| NO.2 | ||
| 360 | A 3443247041 | SPRING LEAF |
| NO.2 | ||
| 366 | A 3443200193 | SPRING LEAF |
| NO.3 | ||
| 366 | A 3443207393 | SPRING LEAF |
| NO.3 | ||
| 370 | A 3443240043 | SPRING LEAF |
| NO.4 | ||
| 370 | A 3443247043 | SPRING LEAF |
| NO.4 | ||
| 375 | A 3443240044 | SPRING LEAF |
| NO.5 | ||
| 375 | A 3443247044 | SPRING LEAF |
| NO.5 | ||
| 380 | A 3443240045 | SPRING LEAF |
| NO.6 | ||
| 380 | A 3443247045 | SPRING LEAF |
| NO.6 | ||
| 386 | A 3443240035 | SPACER |
| 392 | N 004626012133 | SPRING BOLT |
| 392 | N 004626012125 | SPRING BOLT |
| 396 | N 000934012010 | NUT |
| 405 | A 0003213053 | SPACER TUBE |
| Repalced by: A 3140720253 | ||
| 405 | A 3140720253 | SPACER TUBE |
| 410 | N 000931010154 | SCREW |
| 414 | N 000934010000 | NUT |
| 420 | A 3523200163 | SHACKLE |
| 425 | A 3523250150 | BUSHING |
| 425 | A 3853250050 | BUSHING |
| 430 | A 3453257030 | SHACKLE PIN |
| 434 | N 071412010100 | GREASE NIPPLE |
| 440 | A 3453230776 | WASHER |
| 4.00 MM | ||
| 440 | A 3523230976 | WASHER |
| 4.00 MM | ||
| 440 | A 3453230676 | WASHER |
| 4.20 MM | ||
| 440 | A 3523231076 | WASHER |
| 4.20 MM | ||
| 446 | A 0029973040 | SEAL RING |
| 452 | A 3529900337 | BOLT |
| 456 | N 000125010517 | WASHER |
| 460 | N 913004010004 | NUT |
| 470 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 600 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 600 | A 3213512125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 600 | A 3583510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 600 | A 3423510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 610 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 615 | N 000934018002 | NUT |
| REAR SPRING TO REAR AXLE | ||
