Transporto priemonė: L 1118; VIN numerio dalis: 344024
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 762.004 | ||

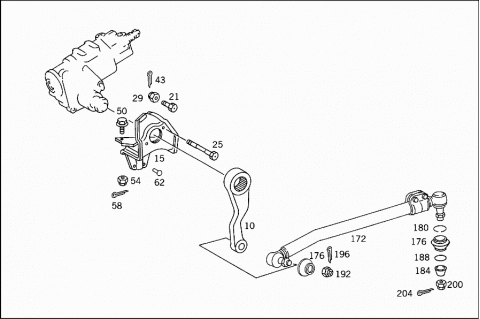

| 010 | A 3524631201 | PITMAN ARM |
| 015 | A 3224600235 | BRACKET |
| 021 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 025 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 029 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| 043 | N 000094003217 | COTTER PIN |
| STEERING TO STEERING BRACKET | ||
| 050 | A 3449907002 | SCREW |
| STEERING TO FRAME | ||
| 054 | N 000935012003 | NUT |
| BRACKET TO CHASSIS | ||
| 058 | N 000094003217 | COTTER PIN |
| BRACKET TO CHASSIS | ||
| 062 | N 910005012004 | RIVET |
| BRACKET TO CHASSIS | ||
| 070 | A 3444607057 | UNIVERSAL JOINT |
| 070 | A 3444607157 | UNIVERSAL JOINT |
| 070 | A 3444607257 | UNIVERSAL JOINT |
| 075 | A 3454620401 | STEERING SHAFT |
| BOTTOM | ||
| 080 | A 3454627301 | STEERING SHAFT |
| 085 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 089 | N 913004008005 | NUT |
| 2.15 MM | ||

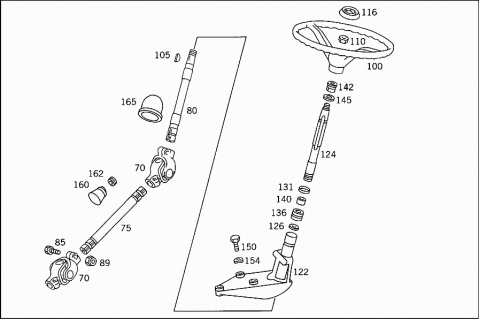

| 100 | A 3454607003 | STEERING WHEEL |
| 100 | A 0004641101 | STEERING WHEEL |
| 105 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 110 | N 000439022203 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 116 | A 3454647131 | CAP |
| "MERCEDES",TO 345 460 70 03 | ||
| 116 | A 0004642631 | CAP |
| TO 000 464 26 31 | ||
| 122 | A 3454607437 | BEARING |
| STEERING SHAFT | ||
| 122 | A 3454607237 | BEARING |
| STEERING SHAFT | ||
| 124 | A 3454627201 | STEERING SHAFT |
| 126 | A 3764620075 | WASHER |
| 126 | A 3764620075 | WASHER |
| 131 | A 3454627023 | COVER |
| 136 | A 3454627065 | RING |
| 140 | A 3454627050 | BUSHING |
| 142 | A 3524620251 | RING |
| 145 | A 3454627028 | BEARING RING |
| 150 | N 000933010129 | SCREW |
| 154 | N 000137010103 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 160 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 160 | A 3524620196 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 162 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 165 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 172 | A 3444609805 | DRAG LINK |
| 172 | A 3454608305 | DRAG LINK |
| NAKATA | ||
| 172 | A 3454608405 | DRAG LINK |
| GEMMER THOMPSON | ||
| 172 | A 3444601505 | DRAG LINK |
| 172 | A 3454609105 | DRAG LINK |
| GEMMER THOMPSON | ||
| 176 | A 0003300285 | BOOT |
| Repalced by: A 3443307085 | ||
| 176 | A 3443307085 | BOOT |
| JOINT | ||
| 18 MM,TO 344 460 98 05,345 460 84 05 | ||
| 176 | A 3443307085 | BOOT |
| ELBOWED END | ||
| TO 344 460 15 05,345 460 91 05 | ||
| 176 | A 3443387056 | DUST CAP |
| JOINT | ||
| 18MM,TO 345 460 83 05 | ||
| 176 | A 0003300385 | BOOT |
| Repalced by: A 3643307085 | ||
| 176 | A 3643307085 | BOOT |
| JOINT | ||
| 20 MM,TO 344 460 98 05,345 460 84 05 | ||
| 176 | A 3643307085 | BOOT |
| STRAIGHT END | ||
| TO 344 460 15 05,345 460 91 05 | ||
| 176 | A 3503387056 | DUST CAP |
| JOINT | ||
| 20MM,TO 345 460 83 05 | ||
| 176 | A 3503387056 | DUST CAP |
| ELBOWED END | ||
| TO 344 460 15 05 | ||
| 180 | A 3443387263 | CLAMPING RING |
| JOINT | ||
| 18MM,TO 345 460 83 05 | ||
| 180 | A 3443387363 | CLAMPING RING |
| JOINT | ||
| 18MM,TO 345 460 84 05 | ||
| 180 | A 3443387363 | CLAMPING RING |
| ELBOWED END | ||
| TO 345 460 91 05 | ||
| 180 | A 3443387363 | CLAMPING RING |
| STRAIGHT END | ||
| TO 344 460 15 05 | ||
| 180 | A 3503387063 | CLAMPING RING |
| JOINT | ||
| 20MM,TO 345 460 83 05 | ||
| 184 | A 3443387051 | SPACER RING |
| JOINT | ||
| 18MM,TO 345 460 83 05 | ||
| 188 | A 3643387082 | RUBBER RING |
| Repalced by: A 0003381463 | ||
| 188 | A 0003381463 | CLAMPING RING |
| STRAIGHT END | ||
| TO 345 460 91 05 | ||
| 192 | N 000937018004 | NUT |
| M 18X1.5 | ||
| 192 | N 000937018004 | NUT |
| M 18X1.5 | ||
| 196 | N 000094004065 | COTTER PIN |
| 4X35 MM | ||
| 196 | N 000094004065 | COTTER PIN |
| 4X35 MM | ||
| 200 | N 000937020000 | NUT |
| M 20X1.5 | ||
| 204 | N 000094004065 | COTTER PIN |
| 4X40 MM | ||
