Transporto priemonė: L 1118; VIN numerio dalis: 344024
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 713.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 713.5 | ||

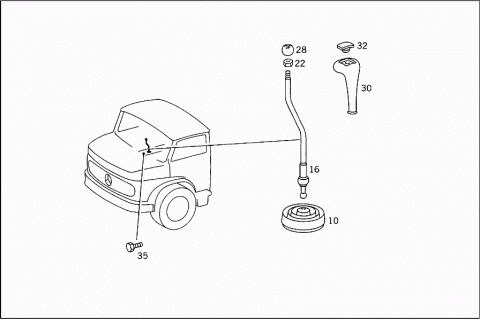

| 010 | A 3452677096 | BOOT |
| Repalced by: A 6882677096 | ||
| 010 | A 6882677096 | BOOT |
| 016 | A 3222601139 | SHIFT LEVER |
| 016 | A 3762601939 | SHIFT LEVER |
| 016 | A 3452609039 | SHIFT LEVER |
| 016 | A 3452609239 | SHIFT LEVER |
| 022 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB | ||
| 022 | N 000934010004 | NUT |
| GEARSHIFT LEVER KNOB | ||
| 028 | A 3442600040 | HANDLE |
| 028 | A 3222600040 | HANDLE |
| 028 | A 3452607140 | HANDLE |
| 030 | A 3642687042 | KNOB |
| 032 | A 6202680557 | COVER |
| A 3102680050 | BUSHING | |
| BETWEEN SHIFT LEVER AND SHIFTING ROD | ||
| 035 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||

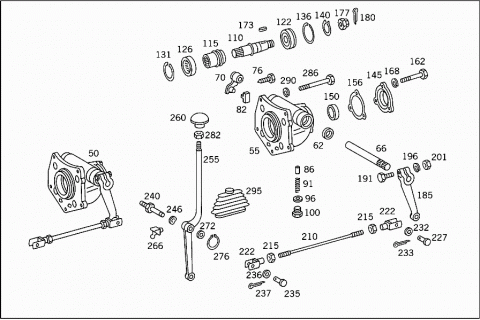

| 050 | A 3442607005 | P.T.O. |
| 055 | A 3212640501 | HOUSING |
| 062 | N 006503016100 | SEAL RING |
| 066 | A 3212640125 | SHIFTING ROD |
| 070 | A 3442647040 | LOCK-OUT |
| 076 | A 3122641071 | SCREW |
| 082 | A 1362630023 | COLLAR |
| 086 | A 3222840148 | INTERLOCK PIN |
| DETENT | ||
| 091 | A 3229931701 | SPRING |
| DETENT | ||
| 096 | N 007603014100 | SEAL RING |
| DETENT | ||
| 100 | A 3229970330 | SCREW PLUG |
| DETENT | ||
| 110 | A 3222640106 | DRIVE SHAFT |
| 115 | A 3222640023 | SLIDING COLLAR |
| 122 | N 000625506007 | GROOVED BALL BEARING |
| 126 | A 0019810010 | NEEDLE BEARING |
| 131 | N 000472062000 | LOCK RING |
| 136 | A 0009940034 | SNAP RING |
| 140 | N 900055035301 | LOCK RING |
| 145 | A 3222640111 | COVER |
| P.T.O. | ||
| 150 | N 006504035100 | RADIAL SEAL RING |
| 156 | A 3222640079 | GASKET |
| COVER TO P.T.O. CASE | ||
| 162 | N 000933008288 | SCREW |
| COVER TO P.T.O. CASE | ||
| 168 | N 912004008100 | LOCK WASHER |
| COVER TO P.T.O. CASE | ||
| 173 | N 006885008021 | KEY |
| COUPLING FLANGE TO P.T.O. | ||
| 177 | N 000937024001 | NUT |
| COUPLING FLANGE TO P.T.O. | ||
| 180 | N 000094005013 | COTTER PIN |
| 185 | A 3442647019 | LEVER |
| 191 | N 000931008045 | SCREW |
| LEVER TO SHIFTING SHAFT | ||
| 196 | N 912004008100 | LOCK WASHER |
| LEVER TO SHIFTING SHAFT | ||
| 201 | N 000934008000 | NUT |
| LEVER TO SHIFTING SHAFT | ||
| 210 | N 900331008132 | PULL ROD |
| 215 | N 000934008000 | NUT |
| 222 | N 071752008000 | YOKE |
| 227 | N 001434008020 | PIN |
| PULL ROD TO SHIFTING SHAFT | ||
| 232 | N 000433008403 | WASHER |
| PULL ROD TO SHIFTING SHAFT | ||
| 233 | N 000094002033 | COTTER PIN |
| PULL ROD TO SHIFTING SHAFT | ||
| 235 | N 001434008020 | PIN |
| PULL ROD TO SHIFT LEVER | ||
| 236 | N 000434008400 | WASHER |
| PULL ROD TO SHIFT LEVER | ||
| 237 | N 000094002033 | COTTER PIN |
| PULL ROD TO SHIFT LEVER | ||
| 240 | A 3212640074 | PIN |
| 246 | A 3129900148 | WASHER |
| 255 | A 3442607039 | SHIFT LEVER |
| 260 | A 3442607040 | HANDLE |
| 266 | N 071412008300 | GREASE NIPPLE |
| 266 | A 3459977288 | GREASE NIPPLE |
| 272 | N 000433015000 | WASHER |
| 276 | N 000471015000 | LOCK RING |
| 282 | N 000936010007 | NUT |
| 286 | N 000933008279 | SCREW |
| P.T.O. TO TRANSMISSION | ||
| 290 | N 912004008100 | LOCK WASHER |
| P.T.O. TO TRANSMISSION | ||
| 295 | A 3442647096 | BOOT |
