Transporto priemonė: L 1215; VIN numerio dalis: 384002
Grupė: 29 PEDALS - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH PEDAL ASSEMBLY | ||
| 005 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL ASSEMBLY | ||
| 008 | A 6882920070 | STUD |
| 011 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 011 | A 6452940280 | GASKET |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 014 | N 000137008203 | SPRING WASHER |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 017 | N 000934008000 | NUT |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 020 | A 6882910030 | STOP |
| STOP TO BEARING BRACKET | ||
| 023 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| 026 | N 913004006002 | NUT |
| STOP TO BEARING BRACKET | ||
| 028 | A 3842907032 | STOP |
| CLUTCH PEDAL | ||
| 029 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 029 | A 6882917386 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 031 | N 000934008000 | NUT |
| CLUTCH PEDAL | ||
| 032 | A 3842907016 | PEDAL |
| CLUTCH | ||
| 032 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 032 | A 3842907216 | PEDAL |
| CLUTCH | ||
| 035 | A 0019816310 | NEEDLE BEARING |
| 035 | A 0109818010 | NEEDLE BEARING |
| 038 | A 6882910074 | PIN |
| 038 | A 3882917074 | PIN |
| 041 | N 913002010001 | NUT |
| 044 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 047 | A 3882917074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 049 | A 3889937010 | SPRING |
| CLUTCH PEDAL | ||
| 050 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 053 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 053 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | N 007976006309 | SHEET METAL SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| BZ 6,3X16 | ||
| 059 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 062 | A 3812901439 | ROD |
| Repalced by: A 3822908419 | ||
| 062 | A 3822908419 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 065 | A 0059814410 | NEEDLE BEARING |
| 065 | A 0059813810 | NEEDLE BEARING |
| 065 | A 0089811210 | NEEDLE BEARING |
| 068 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 071 | A 1112910491 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 074 | A 3869937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 074 | A 3849937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 074 | A 3889937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 077 | A 3092910091 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 077 | A 3882917091 | SPRING RETAINER |
| Repalced by: A 3092910091 | ||
| 077 | A 3092910091 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 080 | A 6459880178 | CLIP |
| SPRING TO PUSH ROD | ||
| 081 | A 3822900193 | SPRING |
| REPAIR KIT | ||
| 083 | A 6452910374 | PIN |
| Repalced by: A 3842917074 | ||
| 083 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 086 | N 001440008002 | WASHER |
| PUSH ROD TO PEDAL | ||
| 089 | N 000471008001 | LOCK RING |
| PUSH ROD TO PEDAL | ||
| 089 | N 000471008001 | LOCK RING |
| PUSH ROD TO PEDAL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

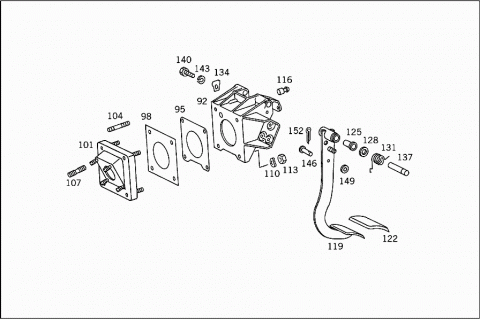

| BRAKE PEDAL ASSEMBLY | ||
| 092 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 092 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL ASSEMBLY | ||
| A 3822947001 | BEARING BRACKET | |
| 095 | A 3842947080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 098 | A 6884310080 | GASKET |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 101 | A 3844307210 | BRACKET |
| SERVICE BRAKE VALVE | ||
| 101 | A 3844307010 | BRACKET |
| SERVICE BRAKE VALVE | ||
| 104 | N 000835008086 | STUD |
| 107 | N 000835008096 | STUD |
| 110 | N 000137008203 | SPRING WASHER |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 113 | N 000934008000 | NUT |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 116 | A 6882917386 | STOP |
| PEDAL STOP | ||
| 116 | A 3842917086 | STOP |
| PEDAL STOP | ||
| A 6882917186 | STOP | |
| PEDAL STOP | ||
| 119 | A 3842907018 | PEDAL |
| BRAKE PEDAL | ||
| 119 | A 3842907118 | PEDAL |
| BRAKE PEDAL | ||
| 122 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 125 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 128 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 131 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 134 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 134 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 137 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 137 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 140 | N 000933006223 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 143 | N 000127006203 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 146 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 149 | N 000433010500 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 152 | N 000094003027 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
