Transporto priemonė: L 1215; VIN numerio dalis: 392001

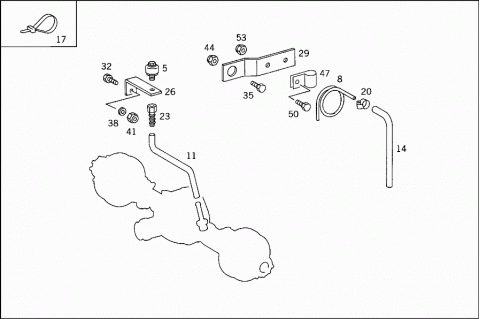

Grupė: 35 REAR AXLE - 030 AXLE BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1112600058 | BREATHER |
| AXLE BREATHING | ||
| 008 | A 3443517066 | PIPE |
| AXLE BREATHING | ||
| 011 | A 3419978482 | HOSE |
| AXLE BREATHING | ||
| 014 | A 3459978782 | HOSE |
| AXLE BREATHING | ||
| 017 | A 0029972290 | LOOM TIE |
| BREATHER LINE | ||
| 020 | N 916002010100 | CLAMP |
| 023 | A 3513517065 | FITTING |
| HOSE TO BREATHER | ||
| 026 | A 3513517040 | BRACKET |
| AXLE BREATHING | ||
| 029 | A 3845288240 | BRACKET |
| 032 | N 000933008270 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 035 | N 000961014100 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 038 | N 000125008417 | WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 041 | N 913004008001 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 044 | N 913004014004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 047 | A 3129951401 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 050 | N 000933006220 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| 053 | N 913004006002 | NUT |
| BREATHER PIPE TO BRACKET |
