Transporto priemonė: L 1215; VIN numerio dalis: 392003

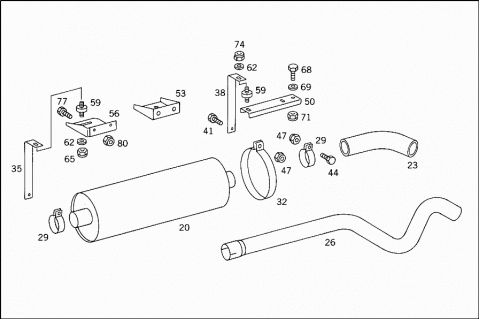

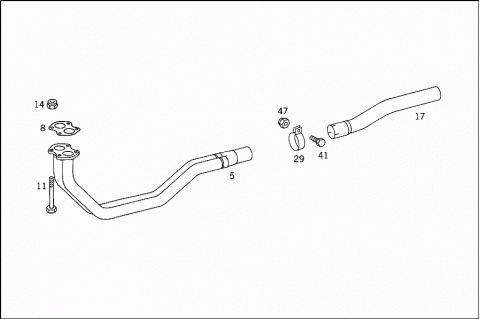

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3924908119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3924907119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3924908219 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 6844927080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 000931010053 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| 014 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 3924927607 | CONNECTOR |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 017 | A 3924927707 | CONNECTOR |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 020 | A 3924907001 | EXHAUST MUFFLER |
| 020 | A 3844907001 | EXHAUST MUFFLER |
| 020 | A 3924907301 | EXHAUST MUFFLER |
| 023 | A 3924927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 026 | A 3924927204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 029 | N 071555094502 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 029 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 032 | A 3504917040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 035 | A 3924917141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 035 | A 3924918541 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 038 | A 3924917641 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 038 | A 3924918141 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 038 | A 3924918341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 041 | N 000933010254 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X25 | ||
| 041 | N 000933010255 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X35 | ||
| 044 | N 000933010129 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X30 | ||
| 047 | N 913004010008 | NUT |
| CLAMP TO BRACKET | ||
| 050 | A 3924917616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 050 | A 3924917416 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 053 | A 3924917716 | SUPPORT |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 056 | A 3924918041 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 056 | A 3924918041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 056 | A 3924918441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 059 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 062 | N 000125010517 | WASHER |
| BRACKET TO SUPPORT | ||
| 065 | N 913004010008 | NUT |
| BRACKET TO SUPPORT | ||
| 068 | N 000933012077 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| NO.3 | ||
| 068 | N 000933010129 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| NO.4 | ||
| 069 | N 000125013008 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| NO.3 | ||
| 071 | N 913004012004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| NO.3 | ||
| 074 | N 913004010008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| NO.4 | ||
| 077 | N 000933014046 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 077 | N 000933014049 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X30 | ||
| 080 | N 913004014007 | NUT |
| SUPPORT TO SIDE MEMBER |
