Transporto priemonė: L 1215; VIN numerio dalis: 392003
Grupė: 41 PROPELLER SHAFT

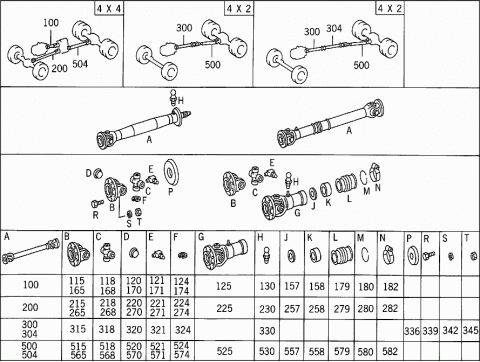

130229
41538
# Kodas Pavadinimas
A 3414100307 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
100 A 3414100107 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
115 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
118 A 3024100031 UNIVERSAL JOINT CROSS
120 A 3124111233 EXPANSION PLUG
121 N 071412008300 GREASE NIPPLE
121 A 3459977288 GREASE NIPPLE
124 A 3449947135 SNAP RING
2.500 MM
124 A 3129941135 SNAP RING
2.500 MM
124 A 3449947235 SNAP RING
2.525 MM
124 A 3449947335 SNAP RING
2.550 MM
124 A 3129941635 SNAP RING
2.550 MM
124 A 3449947435 SNAP RING
2.575 MM
124 A 3449947535 SNAP RING
2.600 MM
124 A 3129941335 SNAP RING
2.600 MM
124 A 3449947635 SNAP RING
2.625 MM
124 A 3449947735 SNAP RING
2.650 MM
124 A 3129941435 SNAP RING
2.650 MM
124 A 3449947835 SNAP RING
2.675 MM
124 A 3449947935 SNAP RING
2.700 MM
124 A 3129941535 SNAP RING
2.700 MM
124 A 3449948035 SNAP RING
2.725 MM
124 A 3449948135 SNAP RING
2.750 MM
124 A 3129941735 SNAP RING
2.750 MM
125 A 3414100908 UNIVERSAL JOINT YOKE
FROM TRANSMISSION TO TRANSFER CASE
130 N 071412008100 GREASE NIPPLE
157 A 3374130080 SEAL RING
158 A 3214110158 SEAL HOLDER
165 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
168 A 3024100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
170 A 3124111233 EXPANSION PLUG
171 N 071412008300 GREASE NIPPLE
171 A 3459977288 GREASE NIPPLE
174 A 3449947135 SNAP RING
2.500 MM
174 A 3129941135 SNAP RING
2.500 MM
174 A 3449947235 SNAP RING
2.525 MM
174 A 3449947335 SNAP RING
2.550 MM
174 A 3129941635 SNAP RING
2.550 MM
174 A 3449947435 SNAP RING
2.575 MM
174 A 3449947535 SNAP RING
2.600 MM
174 A 3129941335 SNAP RING
2.600 MM
174 A 3449947635 SNAP RING
2.625 MM
174 A 3449947735 SNAP RING
2.650 MM
174 A 3129941435 SNAP RING
2.650 MM
174 A 3449947835 SNAP RING
2.675 MM
174 A 3449947935 SNAP RING
2.700 MM
174 A 3129941535 SNAP RING
2.700 MM
174 A 3449948035 SNAP RING
2.725 MM
174 A 3449948135 SNAP RING
2.750 MM
174 A 3129941735 SNAP RING
2.750 MM
179 A 3454107280 BOOT
179 A 3524100080 BOOT
180 A 3214110053 WIRE RING
182 A 3419977790 CLAMP
182 N 916002078100 CLAMP
A 3414100907 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
200 A 3414100607 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
215 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
218 A 3024100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
220 A 3124111233 EXPANSION PLUG
221 N 071412008300 GREASE NIPPLE
221 A 3459977288 GREASE NIPPLE
224 A 3449947135 SNAP RING
2.500 MM
224 A 3129941135 SNAP RING
2.500 MM
224 A 3449947235 SNAP RING
224 A 3449947335 SNAP RING
2.550 MM
224 A 3129941635 SNAP RING
2.550 MM
224 A 3449947435 SNAP RING
2.575 MM
224 A 3449947535 SNAP RING
2.600 MM
224 A 3129941335 SNAP RING
2.600 MM
224 A 3449947635 SNAP RING
2.625 MM
224 A 3449947735 SNAP RING
2.650 MM
224 A 3129941435 SNAP RING
2.650 MM
224 A 3449947835 SNAP RING
2.675 MM
224 A 3449947935 SNAP RING
2.700 MM
224 A 3129941535 SNAP RING
2.700 MM
224 A 3449948035 SNAP RING
2.725 MM
224 A 3449948135 SNAP RING
2.750 MM
224 A 3129941735 SNAP RING
2.750 MM
225 A 3414100908 UNIVERSAL JOINT YOKE
FROM TRANSMISSION TO TRANSFER CASE
230 N 071412008100 GREASE NIPPLE
257 A 3374130080 SEAL RING
258 A 3214110158 SEAL HOLDER
265 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
268 A 3024100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
270 A 3124111233 EXPANSION PLUG
271 N 071412008300 GREASE NIPPLE
271 A 3459977288 GREASE NIPPLE
274 A 3449947135 SNAP RING
2.500 MM
274 A 3129941135 SNAP RING
2.500 MM
274 A 3449947235 SNAP RING
2.525 MM
274 A 3449947335 SNAP RING
2.550 MM
274 A 3129941635 SNAP RING
2.550 MM
274 A 3449947435 SNAP RING
2.575 MM
274 A 3449947535 SNAP RING
2.600 MM
274 A 3129941335 SNAP RING
2.600 MM
274 A 3449947635 SNAP RING
2.625 MM
274 A 3449947735 SNAP RING
2.650 MM
274 A 3129941435 SNAP RING
2.650 MM
274 A 3449947835 SNAP RING
2.675 MM
274 A 3449947935 SNAP RING
2.700 MM
274 A 3129941535 SNAP RING
2.700 MM
274 A 3449948035 SNAP RING
2.725 MM
274 A 3449948135 SNAP RING
2.750 MM
274 A 3129941735 SNAP RING
2.750 MM
279 A 3454107280 BOOT
279 A 3524100080 BOOT
280 A 3214110053 WIRE RING
282 A 3419977790 CLAMP
282 N 916002078100 CLAMP
300 A 3844100604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
300 A 3444100004 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
304 A 3844100104 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
315 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
318 A 3024100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
320 A 3124111233 EXPANSION PLUG
321 N 071412008300 GREASE NIPPLE
321 A 3459977288 GREASE NIPPLE
324 A 3449947135 SNAP RING
2.500 MM
324 A 3129941135 SNAP RING
2.500 MM
324 A 3449947235 SNAP RING
2.525 MM
324 A 3449947335 SNAP RING
2.550 MM
324 A 3129941635 SNAP RING
2.550 MM
324 A 3449947435 SNAP RING
2.575 MM
324 A 3449947535 SNAP RING
2.600 MM
324 A 3129941335 SNAP RING
2.600 MM
324 A 3449947635 SNAP RING
2.625 MM
324 A 3449947735 SNAP RING
2.650 MM
324 A 3129941435 SNAP RING
2.650 MM
324 A 3449947835 SNAP RING
2.675 MM
324 A 3449947935 SNAP RING
2.700 MM
324 A 3129941535 SNAP RING
2.700 MM
324 A 3449948035 SNAP RING
2.725 MM
324 A 3449948135 SNAP RING
2.750 MM
324 A 3129941735 SNAP RING
2.750 MM
330 N 071412008100 GREASE NIPPLE
336 A 3524130061 PROTECTIVE CAP
TO 344 410 00 04,384 410 06 04
336 A 3524130061 PROTECTIVE CAP
TO 384 410 01 04
339 A 3529900401 SCREW
Repalced by: A 3529904701
339 A 3529904701 SCREW
PROPELLER SHAFT TO TRANSMISSION
342 N 000127010202 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION
TO 352 990 04 01
345 N 000934010042 NUT
PROPELLER SHAFT TO TRANSMISSION
400 A 3524130012 RUBBER MOUNTING
INTERMEDIATE BEARING
403 A 3524100051 BALL BEARING
INTERMEDIATE BEARING
403 A 3454100051 BALL BEARING
INTERMEDIATE BEARING
406 A 3124131231 BEARING RING
INTERMEDIATE BEARING
407 A 3524100130 CENTERING FLANGE
INTERMEDIATE BEARING
409 A 3454100240 BRACKET
INTERMEDIATE BEARING
TO 344 410 00 04,384 410 06 04
409 A 3444107040 BRACKET
INTERMEDIATE BEARING
TO 384 410 01 04
409 A 3764100740 BRACKET
INTERMEDIATE BEARING
TO 344 410 00 04,384 410 06 04
418 A 3449907050 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
421 A 3524130011 REINFORCEMENT
PROPELLER SHAFT BEARING TO CROSS MEMBER
424 N 000961010039 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
427 N 913002010002 NUT
PROPELLER SHAFT BEARING TO CROSS MEMBER
430 A 3844137046 REBOUND STRAP
PROPELLER SHAFT
440 A 3864137114 SUPPORT
LEFT
450 A 3864137214 SUPPORT
RIGHT
460 N 000961010038 SCREW
REBOUND STRAP TO FRAME
470 A 3524130011 REINFORCEMENT
REBOUND STRAP TO FRAME
480 N 913004010010 NUT
REBOUND STRAP TO FRAME
500 A 3444101402 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
500 A 3444101402 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
500 A 3444101602 PROPELLER SHAFT
Repalced by: A 3414106702
500 A 3414106702 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
A 3414100307 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
504 A 3414100707 PROPELLER SHAFT
515 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
518 A 3024100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
520 A 3124111233 EXPANSION PLUG
521 N 071412008300 GREASE NIPPLE
521 A 3459977288 GREASE NIPPLE
524 A 3449947135 SNAP RING
2.500 MM
524 A 3129941135 SNAP RING
2.500 MM
524 A 3449947235 SNAP RING
2.525 MM
524 A 3449947335 SNAP RING
2.500 MM
524 A 3129941635 SNAP RING
2.550 MM
524 A 3449947435 SNAP RING
2.575 MM
524 A 3449947535 SNAP RING
2.600 MM
524 A 3129941335 SNAP RING
2.600 MM
524 A 3449947635 SNAP RING
2.625 MM
524 A 3449947735 SNAP RING
2.650 MM
524 A 3129941435 SNAP RING
2.650 MM
524 A 3449947835 SNAP RING
2.675 MM
524 A 3449947935 SNAP RING
2.700 MM
524 A 3129941535 SNAP RING
2.700 MM
524 A 3449948035 SNAP RING
2.725 MM
524 A 3449948135 SNAP RING
2.750 MM
524 A 3129941735 SNAP RING
2.750 MM
525 A 3444100008 UNIVERSAL JOINT YOKE
Repalced by: A 3414100908
525 A 3414100908 UNIVERSAL JOINT YOKE
530 N 071412008100 GREASE NIPPLE
557 A 3374130080 SEAL RING
558 A 3214110158 SEAL HOLDER
565 A 3524110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
568 A 3024100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
570 A 3124111233 EXPANSION PLUG
571 N 071412008300 GREASE NIPPLE
571 A 3459977288 GREASE NIPPLE
574 A 3449947135 SNAP RING
2.500 MM
574 A 3129941135 SNAP RING
2.500 MM
574 A 3449947235 SNAP RING
2.525 MM
574 A 3449947335 SNAP RING
2.550 MM
574 A 3129941635 SNAP RING
2.550 MM
574 A 3449947435 SNAP RING
2.575 MM
574 A 3449947535 SNAP RING
2.600 MM
574 A 3129941335 SNAP RING
2.600 MM
574 A 3449947635 SNAP RING
2.625 MM
574 A 3449947735 SNAP RING
2.650 MM
574 A 3129941435 SNAP RING
2.650 MM
574 A 3449947835 SNAP RING
2.675 MM
574 A 3449947935 SNAP RING
2.700 MM
574 A 3129941535 SNAP RING
2.700 MM
574 A 3449948035 SNAP RING
2.725 MM
574 A 3449948135 SNAP RING
2.750 MM
574 A 3129941735 SNAP RING
2.750 MM
579 A 3454107280 BOOT
579 A 3524100080 BOOT
580 A 3214110053 WIRE RING
582 A 3449979790 CLAMP
582 N 916018070000 CLAMP
582 A 3419977790 CLAMP
582 N 916002078100 CLAMP
