Transporto priemonė: L 1217; VIN numerio dalis: 685123

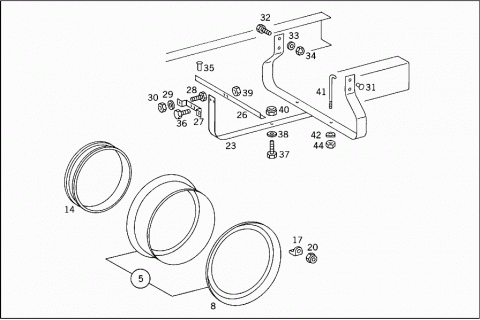

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER

#	Kodas	Pavadinimas
005	Q 0498456R91	PART NAME MISSING
		DISC WHEEL
005	H XM6854000302	DISC WHEEL
008	Q 0498855R1	PART NAME MISSING
		SIDE RING
		TO Q0498456R91
008	H XM6854010006	SIDE RING
		TO HXM685 400 03 02
008	Q 0500643R1	PART NAME MISSING
		SIDE RING
014	Q 498854R1	PART NAME MISSING
		INTERMEDIATE PIECE
014	H XM6854010106	SIDE RING
	Repalced by: H XM6814020315
014	H XM6814020315	SPACER
017	Q 499124R1	PART NAME MISSING
		CLAMPING PLATE
	Y YYYYYYYYYYYY	PART NAME MISSING
		FRONT AND REAR
017	H XM6854020069	CLAMPING PIECE
		FRONT WHEELS
017	H XM6854020169	CLAMPING PIECE
		REAR WHEELS
020	Q 54495R2	PART NAME MISSING
		NUT
		3/4-10 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		WHEEL MOUNTING
020	H XM6859900551	NUT
		WHEEL MOUNTING
		3/4-10
023	Q 783696R1	PART NAME MISSING
		BRACKET
	Y YYYYYYYYYYYY	PART NAME MISSING
		SPARE WHEEL
023	H XM6854000039	BRACKET
		SPARE WHEEL
026	Q 783648R2	PART NAME MISSING
		ANGLE
027	H XM6854030040	BRACKET
		SPARE WHEEL
028	Q 23-09440-175	PART NAME MISSING
		SCREW
		1/2-13 X 1 3/4 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO CROSS MEMBER
029	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.06 14 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO CROSS MEMBER
030	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO CROSS MEMBER
	Y YYYYYYYYYYYY	PART NAME MISSING
		OPTIONAL,AS REQUIRED
031	Q 0012014R1	PART NAME MISSING
		ANGLE TO SIDE MEMBER
		1/2 X 1 1/4
031	Q 0012014R1	PART NAME MISSING
		BRACKET TO SIDE MEMBER
		1/2 X 1 1/4
032	Q 23-09440-200	PART NAME MISSING
		SCREW
		1/2-13 X 2 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
033	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.06 14 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
034	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
035	Q 0012018R1	PART NAME MISSING
		RIVET
		1/2-1 3/4
	Y YYYYYYYYYYYY	PART NAME MISSING
		OPTIONAL,AS REQUIRED
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
036	Q 24862R1	PART NAME MISSING
		SCREW
		1/2-13 X 1 1/2 FG 8
	Y YYYYYYYYYYYY	PART NAME MISSING
		ANGLE TO BRACKET
037	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2-13 X 1 1/2 FG8
037	Q 23-09440-150	PART NAME MISSING
		BRACKET TO BRACKET
038	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.06 14 Z
038	Q 23-09114-003	PART NAME MISSING
		BRACKET TO BRACKET
039	Q 9412230	PART NAME MISSING
	Repalced by: A 6859901151
039	A 6859901151	NUT
		ANGLE TO BRACKET
		1/2-13 FG 8
040	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
040	Q 23-09901-108	PART NAME MISSING
		BRACKET TO BRACKET
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
041	Q 783693R1	PART NAME MISSING
		HOOK BOLT
	Y YYYYYYYYYYYY	PART NAME MISSING
		SPARE WHEEL CARRIER
041	H XM6854030029	HOOK BOLT
		SPARE WHEEL CARRIER
		"J"
041	H XM6854030029	HOOK BOLT
		SPARE WHEEL CARRIER
		"J"
	H XM6854030129	HOOK BOLT
		SPARE WHEEL CARRIER
042	Q 120384	PART NAME MISSING
		SPRING WASHER
		1/2-.509Z
042	Q 23-09318-015	PART NAME MISSING
		SPRING WASHER
		5/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SPARE WHEEL CARRIER
044	Q 120378	PART NAME MISSING
		NUT
		1/2-13 Z G5
044	Q 23-09339-012	PART NAME MISSING
		NUT
		5/8-11 FG5
	Y YYYYYYYYYYYY	PART NAME MISSING
		SPARE WHEEL CARRIER
	H XM6859850099	METAL SECTION
		SPARE WHEEL CARRIER
