Transporto priemonė: L 1218 R; VIN numerio dalis: 694004

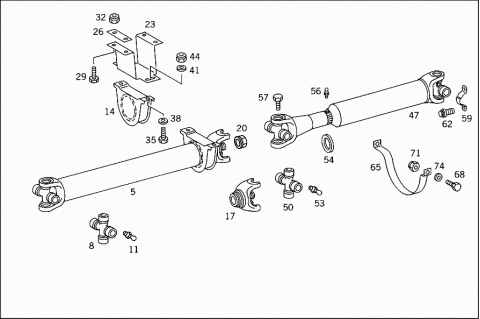

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6944107001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1922 MM | ||
| 005 | A 6944107101 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1251 MM | ||
| 008 | A 0004102731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 008 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 011 | A 0009975688 | GREASE NIPPLE |
| NOT THREADED | ||
| A 0009974788 | GREASE NIPPLE | |
| 014 | A 0004100222 | INTERMEDIATE BEARING |
| A 0004130112 | RUBBER MOUNTING | |
| 017 | A 0004100930 | CENTERING FLANGE |
| 017 | A 0004100430 | CENTERING FLANGE |
| 020 | A 0009905050 | NUT |
| 023 | A 6954137142 | BRACKET |
| AT CROSS MEMBER | ||
| 023 | A 6944137042 | BRACKET |
| AT CROSS MEMBER | ||
| 023 | A 6954137242 | BRACKET |
| AT CROSS MEMBER | ||
| 026 | A 3524130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 029 | N 000961010039 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 10X1X30 | ||
| 032 | N 913004010002 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 035 | N 000961012155 | SCREW |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 12X1.5X45 | ||
| 038 | N 000125013012 | WASHER |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 041 | N 007349013002 | WASHER |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 044 | N 913004012006 | NUT |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 047 | A 6944107002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1800 MM | ||
| 047 | A 6954107002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1740 MM | ||
| 047 | A 3844107302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1452 MM | ||
| 050 | A 0004102731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 050 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 053 | A 0009975688 | GREASE NIPPLE |
| NOT THREADED | ||
| A 0009974788 | GREASE NIPPLE | |
| 054 | A 0004110359 | SEAL RING |
| A 0004130380 | SEAL RING | |
| NOTE THREAD DIAMETER | ||
| 2 1/2" | ||
| A 0004130780 | SEAL RING | |
| NOTE THREAD DIAMETER | ||
| 2 1/4" | ||
| 056 | A 0009974888 | GREASE NIPPLE |
| 057 | A 0069903601 | SCREW |
| 059 | A 6959957010 | CLAMP |
| 059 | A 3849957010 | CLAMP |
| 062 | A 3849907801 | SCREW |
| 065 | A 6954117082 | REBOUND STRAP |
| Repalced by: A 6954117182 | ||
| 065 | A 6954117182 | REBOUND STRAP |
| Repalced by: A 6954117282 | ||
| 065 | A 6954117282 | REBOUND STRAP |
| AT FRAME | ||
| 068 | N 000961014105 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1.5X30 | ||
| 071 | N 913004014005 | NUT |
| REBOUND STRAP TO FRAME | ||
| 074 | N 000125015012 | WASHER |
| REBOUND STRAP TO FRAME | ||
