Transporto priemonė: L 1417; VIN numerio dalis: 685131

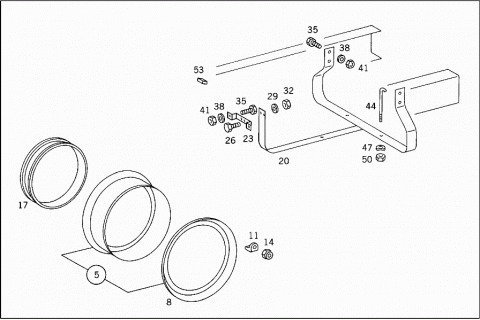

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
40796
# Kodas Pavadinimas
005 H XM6854000302 DISC WHEEL
005 H XM6854000802 DISC WHEEL
008 H XM6854010006 SIDE RING
011 H XM6854020069 CLAMPING PIECE
011 H XM6854020169 CLAMPING PIECE
014 H XM6859900551 NUT
017 A 6814020315 SPACER
020 H XM6854000239 BRACKET
SPARE WHEEL
023 H XM6854030040 BRACKET
AT BRACKET
026 Q 23-09440-150 PART NAME MISSING
SCREW
1/2 - 13 X 1 1/2 FG 8
029 Q 23-09114-003 PART NAME MISSING
WASHER
1/2 - 1.062 - 14 Z
032 Q 23-09901-108 PART NAME MISSING
NUT
1/2 - 13 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO BRACKET
035 Q 23-09440-175 PART NAME MISSING
SCREW
1/2 - 13 X 1 3/4 FG 8
035 Q 23-09440-200 PART NAME MISSING
SCREW
1/2 - 13 X 2 FG 8
038 Q 23-09114-003 PART NAME MISSING
WASHER
1/2 - 1.062 - 14 Z
041 Q 23-09901-108 PART NAME MISSING
NUT
1/2 - 13 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO SIDE MEMBER
044 H XM6854030129 HOOK BOLT
"J"
047 Q 23-09318-015 PART NAME MISSING
SPRING WASHER
5/8
050 Q 23-09339-012 PART NAME MISSING
NUT
5/8 - 11 FG 5
053 A 6814020315 SPACER
