Transporto priemonė: L 1418; VIN numerio dalis: 685266

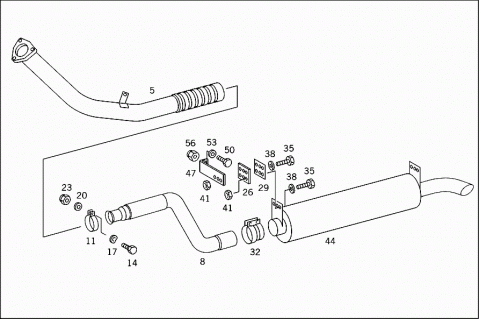

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	H XM6854926201	FRONT EXHAUST PIPE
		FRONT
008	H XM6854904019	EXHAUST PIPE
		FRONT
011	A 6909970490	CLAMP
		CONNECTING PIPE TO EXHAUST MANIFOLD
014	Q 23-09434-150	PART NAME MISSING
		SCREW
		5/16-18
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONNECTING PIPE TO EXHAUST MANIFOLD
017	Q 23-09320-010	PART NAME MISSING
		SPRING WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONNECTING PIPE TO EXHAUST MANIFOLD
020	Q 23-09114-006	PART NAME MISSING
		WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONNECTING PIPE TO EXHAUST MANIFOLD
023	Q 23-09247-105	PART NAME MISSING
		NUT
		5/16-18
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONNECTING PIPE TO EXHAUST MANIFOLD
026	H XM6854910120	MOUNTING STRAP
		BRACKET TO EXHAUST MUFFLER
029	H XM6854921518	BASE PLATE
		BRACKET TO EXHAUST MUFFLER
032	Q A04-12096-001	PART NAME MISSING
		CLAMP
		4"
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST PIPE TO MUFFLER
035	Q 23-11609-125	PART NAME MISSING
		SCREW
		10-24 UNC X 1 1/4
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
038	Q 23-00600-025	WASHER
		WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
041	Q 23-09901-104	NUT
		NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
044	H XM6854901601	EXHAUST MUFFLER
047	H XM6854922417	ANGLE
		EXHAUST MUFFLER TO SIDE MEMBER
050	Q 23-09436-150	PART NAME MISSING
		SCREW
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
053	Q 23-09114-002	PART NAME MISSING
		WASHER
		3/8-.812-.072 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
056	Q 23-09901-106	PART NAME MISSING
		NUT
		3/8-16 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
