Transporto priemonė: L 1418; VIN numerio dalis: 685266

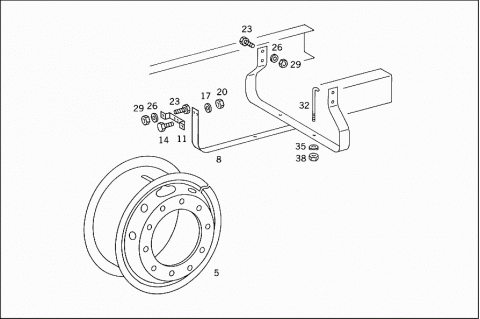

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
40809
# Kodas Pavadinimas
005 H XM6854000802 DISC WHEEL
008 H XM6854000239 BRACKET
SPARE WHEEL
011 H XM6854030040 BRACKET
AT BRACKET
014 Q 23-09440-150 PART NAME MISSING
SCREW
1/2 - 13 X 1 1/2 FG 8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO BRACKET
017 Q 23-09114-003 PART NAME MISSING
WASHER
1/2 - 1.062 - 14 Z
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO BRACKET
020 Q 23-09901-108 PART NAME MISSING
NUT
1/2 - 13 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO BRACKET
023 Q 23-09440-175 PART NAME MISSING
SCREW
1/2 - 13 X 1 3/4 FG 8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO SIDE MEMBER
026 Q 23-09114-003 PART NAME MISSING
WASHER
1/2 - 1.062 - 14 Z
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO SIDE MEMBER
029 Q 23-09901-108 PART NAME MISSING
NUT
1/2 - 13 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO SIDE MEMBER
032 H XM6854030129 HOOK BOLT
"2"
035 Q 23-09318-015 PART NAME MISSING
SPRING WASHER
5/8
038 Q 23-09339-012 PART NAME MISSING
NUT
5/8 - 11 FG 5
